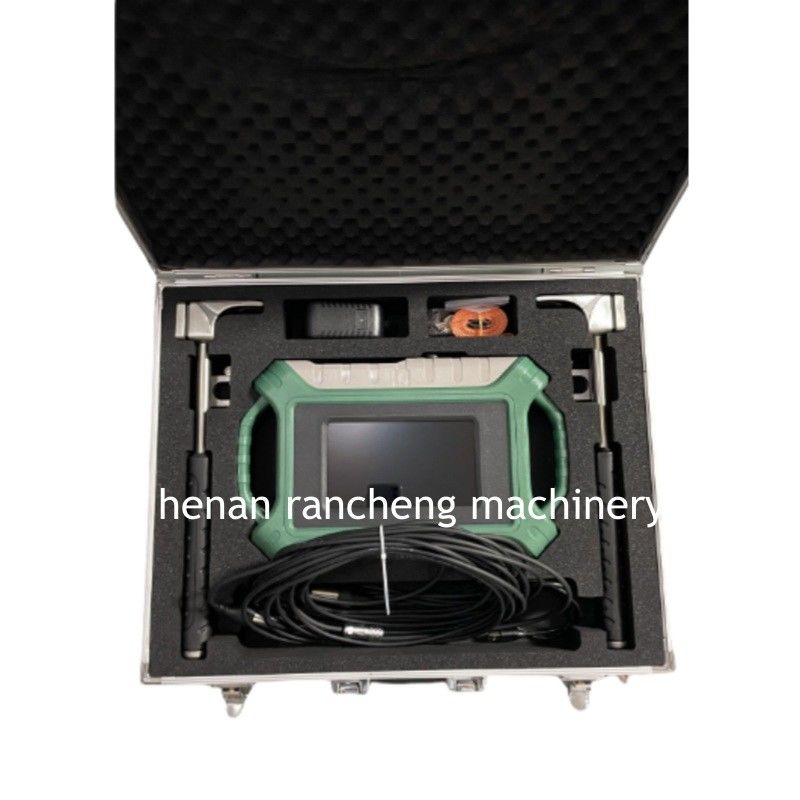

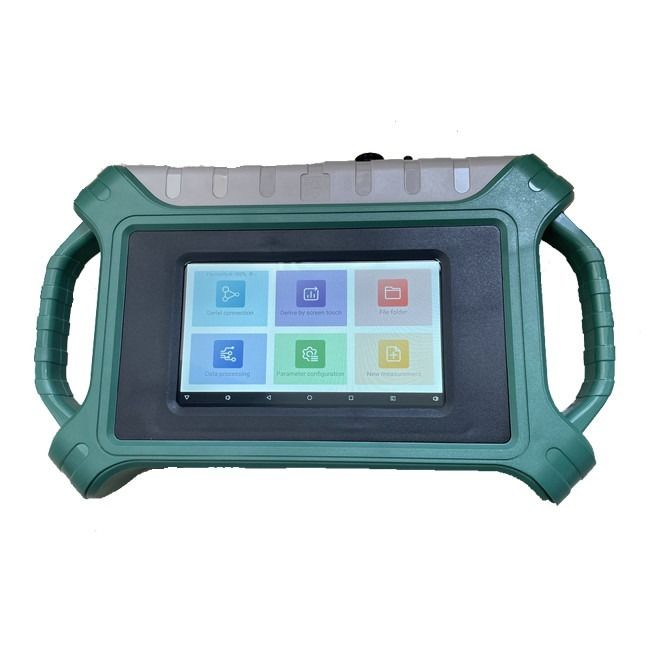

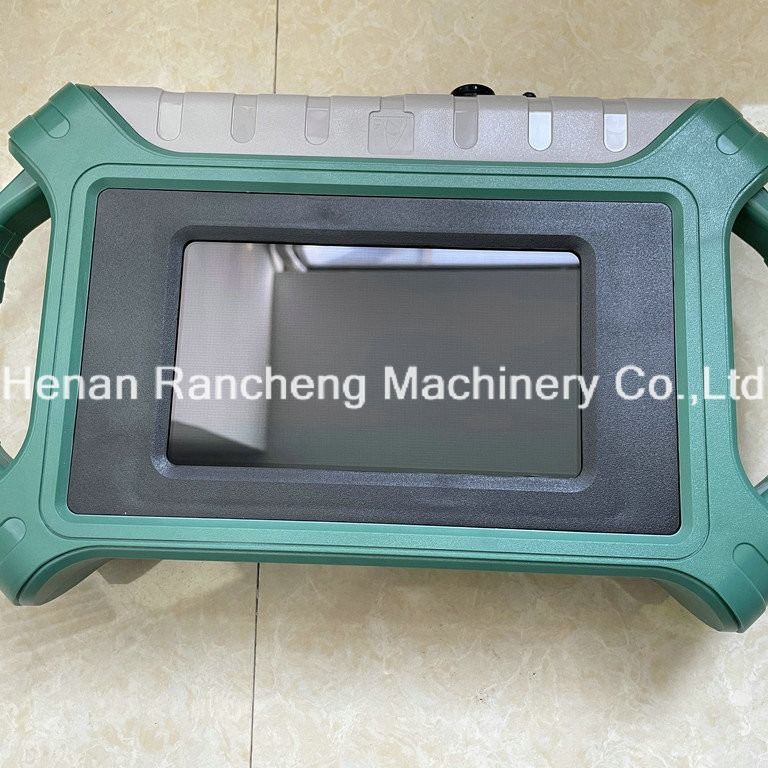

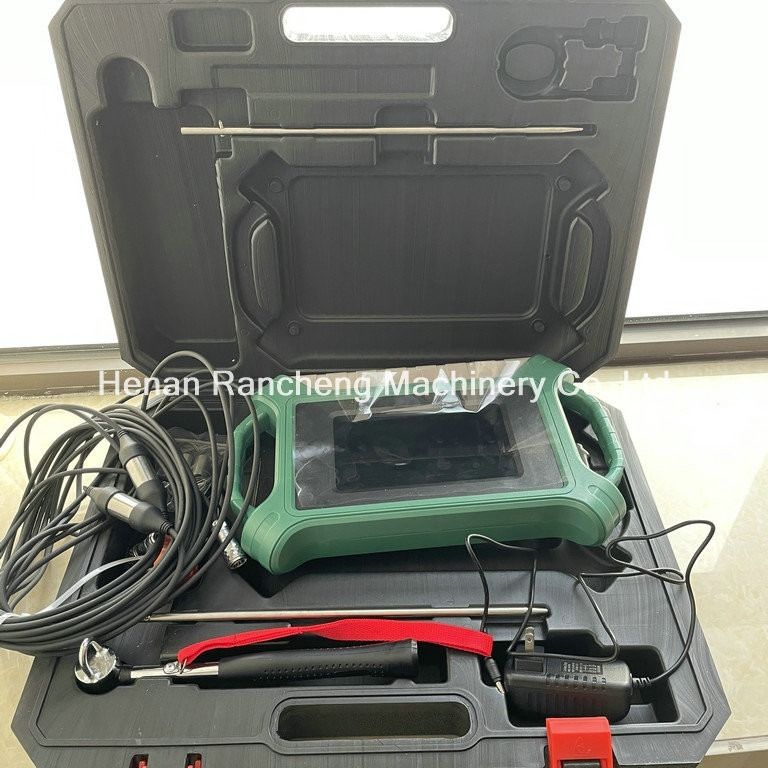

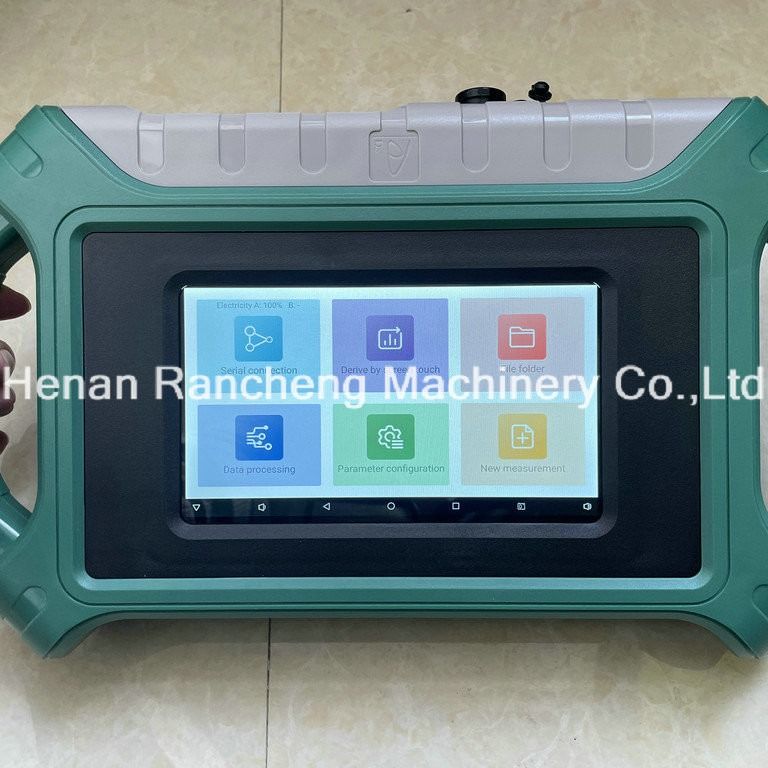

Hot Selling 300m Deep Depth Underground RC-M300 16 Channel Water Detector in Stock
Product Description:
Introducing the RC-M300/500/1200/2000/3000-16D Underground Water Detector, a cutting-edge solution designed for efficient and precise underground water detection. This ISO9001 certified device features advanced technology and has garnered multiple invention patents, including the unique Field Source Modify method for geophysical measurements (Patent Numbers: ZL201320054153.5, ZL201320303919.9).
Features:
1.Drilling Depth: Capable of detecting water at varying depths of 300m, 500m, 1200m, 2000m, and 3000m, making it suitable for a wide range of applications.
2.Multi-Channel Input: With 16 channels for simultaneous input, the detector ensures efficient data collection with a maximum electrode spacing of 2.5m. This feature significantly improves measurement stability and accuracy.
3.Connectivity Options: The device supports various connection interfaces, including Serial port, Wi-Fi, Bluetooth 4.0, and USB, with optional 4G connectivity for enhanced communication.
4.Battery Life: Equipped with a robust 800mA/H battery, it provides reliable power for extended field operations.
Main advantages:
The RC-M300 16 channel underground water detector employs real-time imaging technology, developed in collaboration with the Guilin Institute of Hydrology and Geological Exploration. Its innovative design allows for stable field source measurement, effectively addressing the inconsistencies of natural electric field intensity. By minimizing errors associated with repeated measurements, this detector enhances the accuracy and reliability of subsurface water detection.
Technical Parameters:
| Versions |
300m-16D |
500m-16D |
1200m-16D |
2000m-16D |
3000m-16D |
| Max Depth (m) |
≤300 |
≤500 |
≤1200 |
≤2000 |
≤3000 |
| Channel Input |
16 channels input simultaneously, maximum electrode spacing 2.5m |
| Channel Options |
1-14 |
| Depth Options |
Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m |
| Scan Interval |
10-80 |
| Connections |
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
|
| Display |
10.1-inch IPS wide-angle 178° visual touch screen (1024×600) |
| OS |
Android 6.0.1 |
| CPU |
ARM Cortex-A7 8-core CPU 2.0Hz |
| GPU |
OpenGL ES 2.0 |
| Core Features |
Multiple options of depths, 2D/3D plotting, removable battery |
| Sensing Mode |
MN/TT |
| Frequency Range (hz) |
1-8K |
0.01-6K |
| Filtering |
Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional |
| Discrim. |
0.1mV±3% |
0.01mV±2% |
| Acquisition Time (s) |
60-3600 |
120-5400 |
| Battery |
800mA/H |
| Console Weight |
1.85kg |
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Packing and Shipping:
delivery time :10-15days
standard exporting packing
FAQ:
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
