1-14 Channel Options Flexible Deep Physical Exploration Groundwater Detector
Product Description:
Introducing the cutting-edge 16-channel Real-Time Viewing Water Detector, a revolutionary tool designed for professionals who demand precision and efficiency in water quality monitoring. This state-of-the-art device features a vibrant 10.1-inch Android system touch screen, providing users with an intuitive interface for real-time data visualization. Whether you’re in the field or in the lab, you can easily access your measurements on the instrument screen, mobile phone, or computer, ensuring that you stay connected and informed at all times.
The versatility of this water detector is unmatched, allowing you to select from 1 to 14 measurement channels based on your specific needs. With the option to utilize wireless probes or traditional water search methods, you can tailor your approach to suit various environments and conditions. The innovative ring rod design enables seamless switching between measurement modes for the MN electrode and TT probe, making on-site operations more convenient than ever.
Designed with user-friendliness in mind, this water detector has garnered widespread recognition and approval from customers across various industries. Its robust construction and advanced technology ensure reliable performance, while the real-time viewing capability allows for immediate analysis and decision-making. Whether you are monitoring water quality in environmental studies, industrial applications, or municipal water systems, this device is your go-to solution for accurate and timely results.
Elevate your water quality monitoring experience with the 16-channel Real-Time Viewing Water Detector. Embrace the future of water analysis and ensure the safety and quality of your water sources with this indispensable tool. Experience the perfect blend of technology, convenience, and reliability—your water monitoring needs will never be the same again!
Main advantages:
1. Automatic image:

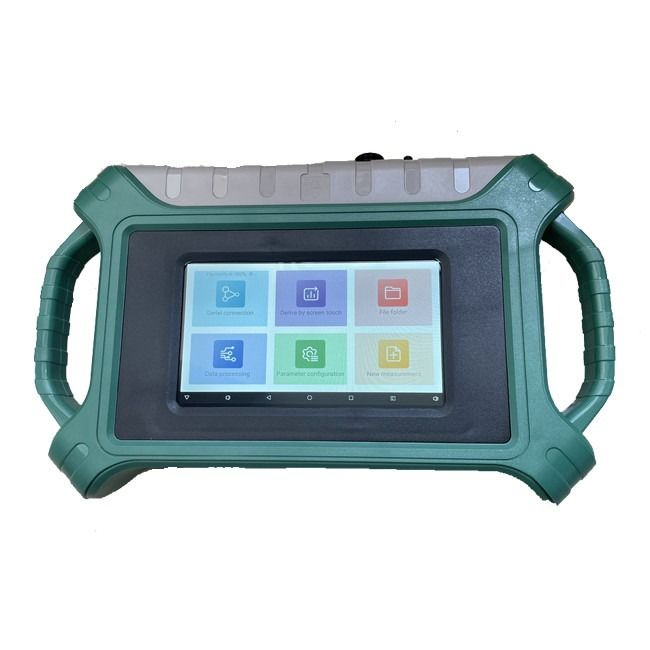

10.1-inch Android touch screen can capture intelligent, real-time 2D, 3D and curved images.
2. Accurate and stable:
The shortcomings of inconsistent size and time-varying natural electromagnetic field sources are eliminated, and the accuracy is significantly improved.
3. Three-screen interoperability:
The instrument screen, mobile phone screen, and computer screen can all be transparently transmitted.
4. Intelligent and flexible:
1-14 channels can be selected, and the electromagnetic probe can be selected in the TT probe measurement mode. It also supports wireless connection to find water.
Technical Parameters:
| Versions |
300m-16D |
500m-16D |
1200m-16D |
2000m-16D |
3000m-16D |
| Max Depth (m) |
≤300 |
≤500 |
≤1200 |
≤2000 |
≤3000 |
| Channel Input |
16 channels input simultaneously, maximum electrode spacing 2.5m |
| Channel Options |
1-14 |
| Depth Options |
Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m |
| Scan Interval |
10-80 |
| Connections |
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
|
| Display |
10.1-inch IPS wide-angle 178° visual touch screen (1024×600) |
| OS |
Android 6.0.1 |
| CPU |
ARM Cortex-A7 8-core CPU 2.0Hz |
| GPU |
OpenGL ES 2.0 |
| Core Features |
Multiple options of depths, 2D/3D plotting, removable battery |
| Sensing Mode |
MN/TT |
| Frequency Range (hz) |
1-8K |
0.01-6K |
| Filtering |
Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional |
| Discrim. |
0.1mV±3% |
0.01mV±2% |
| Acquisition Time (s) |
60-3600 |
120-5400 |
| Battery |
800mA/H |
| Console Weight |
1.85kg |
