Depth 1000m Deep Water Well Rig Exploration Geotechnical Machine With 194KW Cummins Engine

Depth 1000m Deep Water Well Rig Exploration Geotechnical Machine With 194KW Cummins Engine

Machine Description

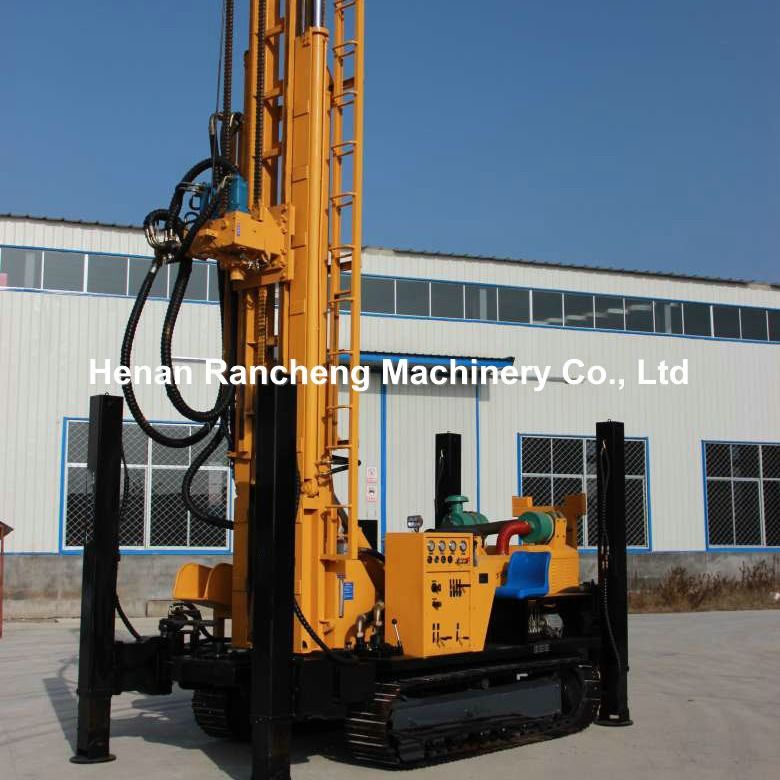

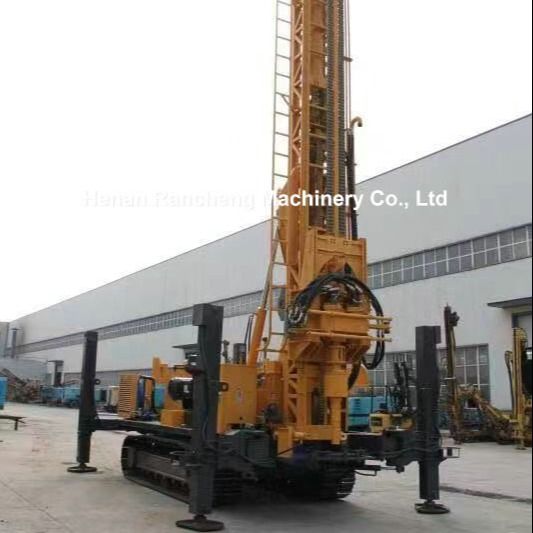

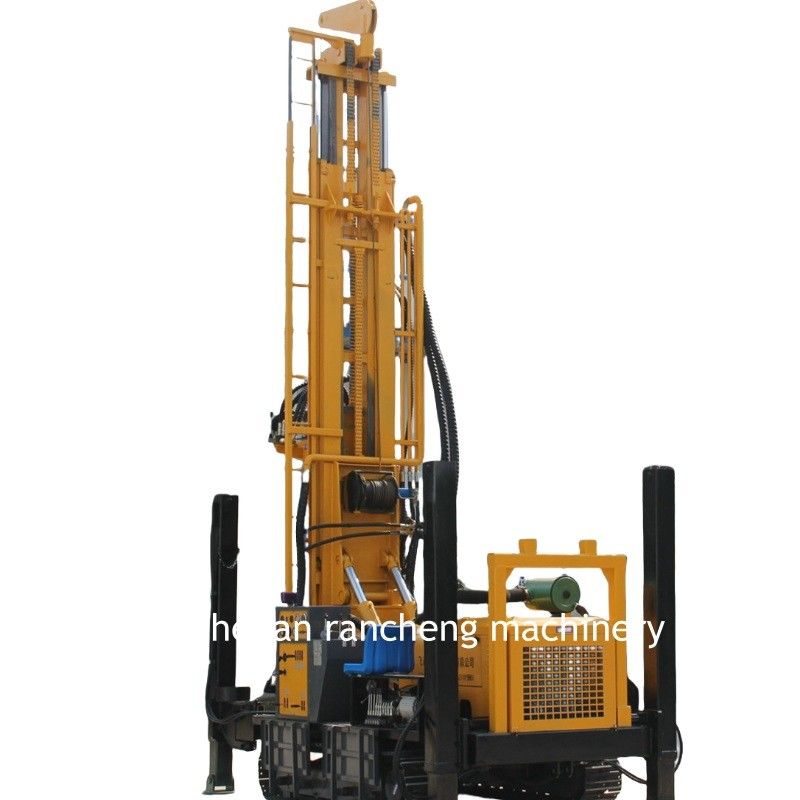

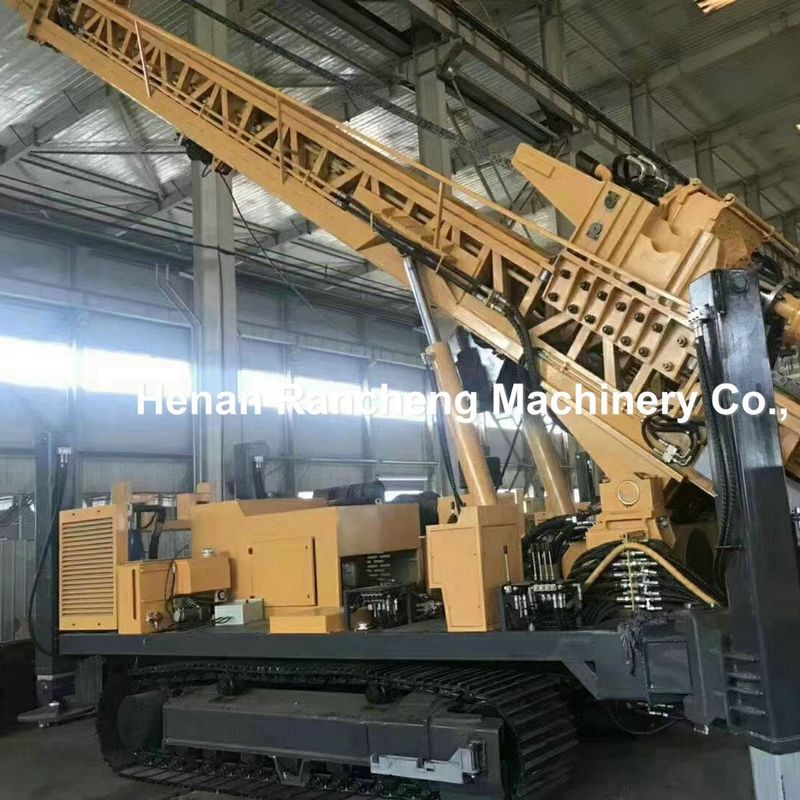

The RCF1000C Water Bore Rig is a versatile, full-hydraulic drilling rig designed for a wide range of applications. Powered by a 179KW Cummins engine, this rig offers a maximum depth of 1000 meters and a drilling diameter of up to 800mm. It is equipped with a top drive system that ensures efficient and smooth operation.

This multi-functional rig is ideal for drilling water wells, geothermal wells, monitoring wells, dewatering wells, relief wells, micro piles, and ground source air conditioning holes. It is also highly suitable for projects involving coalbed methane, natural gas, petroleum extraction, and other related drilling applications.

The RCF1000C features high-quality hydraulic components sourced from well-known international brands, which reduce failure rates and increase the machine's longevity. The rig's lifting force can reach up to 52 tons, making it capable of handling challenging drilling conditions. With its advanced design, the RCF1000C provides reliable performance while maintaining a lighter overall weight for improved mobility and ease of use.

Whether for large-scale projects or specialized drilling tasks, the RCF1000C is built to deliver exceptional results with minimal downtime.

Technical Data



Advantage


1. Full Hydraulic Control: The RCF1000C features full hydraulic control, providing unmatched flexibility and ease of operation. Its speed, torque, feeding axial pressure, reverse axial pressure, feeding speed, and lifting speed can be adjusted in real-time, ensuring compatibility with different drilling tools, conditions, and techniques.

2. Top Drive Type Rotary Feeding Lifting: The innovative top drive type rotary feeding lifting system simplifies the process of connecting and disconnecting drill pipes. This design reduces auxiliary time significantly, enabling more efficient and faster drilling operations.

3. Multifunctional Efficient Drilling: The RCF1000C is capable of supporting a wide range of drilling techniques, including down-the-hole (DTH) drilling, through-air reverse circulation, airlift reverse circulation, cutting, cone, casing, and core drilling. Its advanced hydraulic control and top drive system make it highly adaptable to different tools and methods, ensuring high efficiency and reduced downtime.

4. Low Cost: The use of DTH hammer drilling technology for rock drilling ensures high drilling efficiency and the lowest cost per meter, making the RCF1000C a cost-effective solution for various drilling projects.

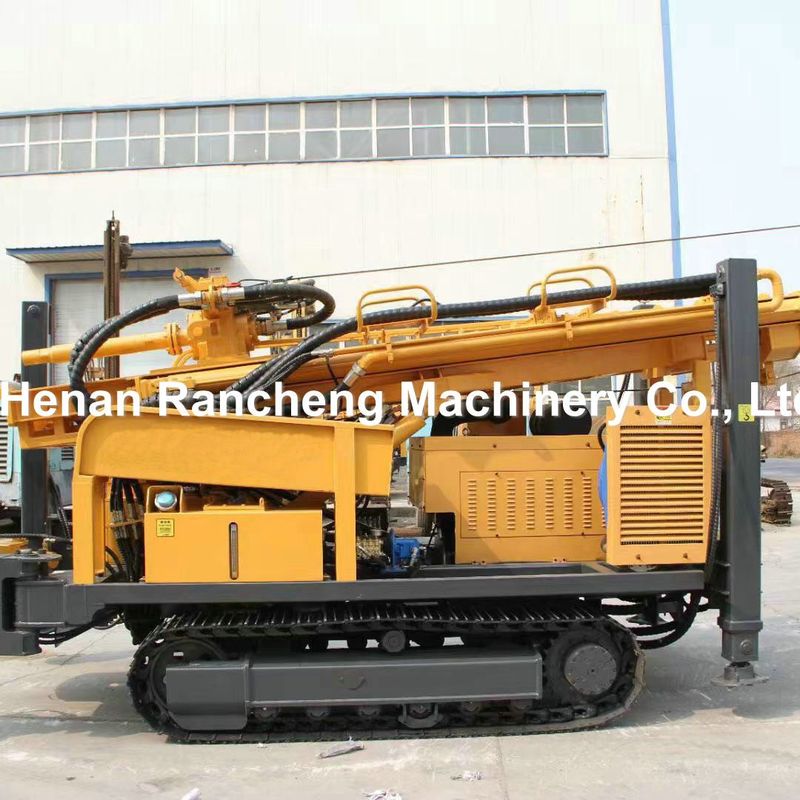

5. High Outriggers Crawler Type: The high outriggers and crawler-type chassis are ideal for easy loading and transportation, eliminating the need for cranes. The chassis design also improves the rig’s mobility in challenging, muddy on-site conditions.

6. Unique Positive and Negative Axial Pressure Adjustment: The adjustable positive and negative axial pressure valves optimize the performance of the DTH hammers by ensuring the best axial pressure for maximum impact efficiency, even as the number of drill rods increases. This feature enhances drilling performance and reduces wear.

7. Versatile Rig Chassis: The rig can be mounted on various chassis types, including self-propelled crawler, truck-mounted self-propelled, or trailer-mounted chassis, offering flexibility for different operational environments and requirements.

The RCF1000C combines advanced hydraulic technology, efficient drilling capabilities, and versatile design to deliver a high-performance solution for a wide range of water bore and well drilling applications.
