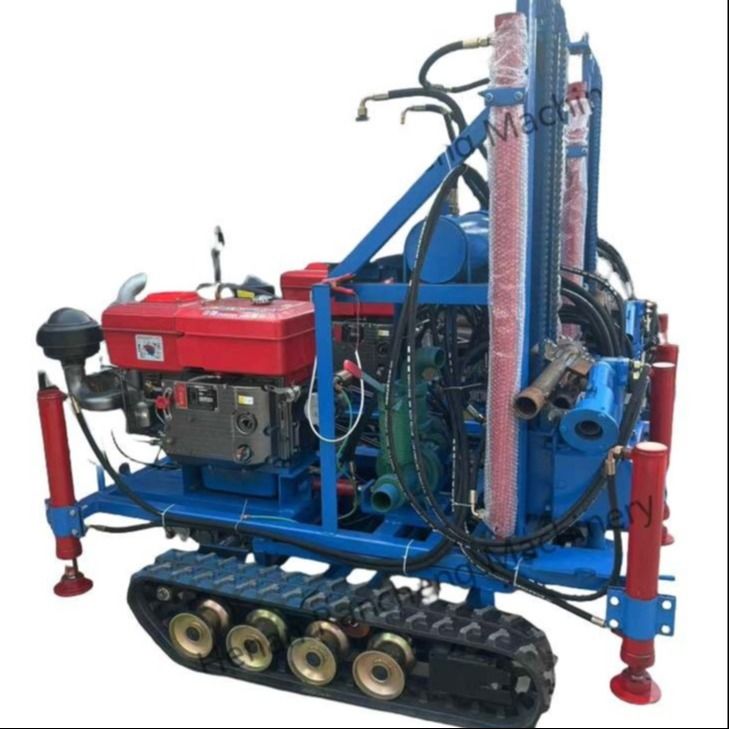

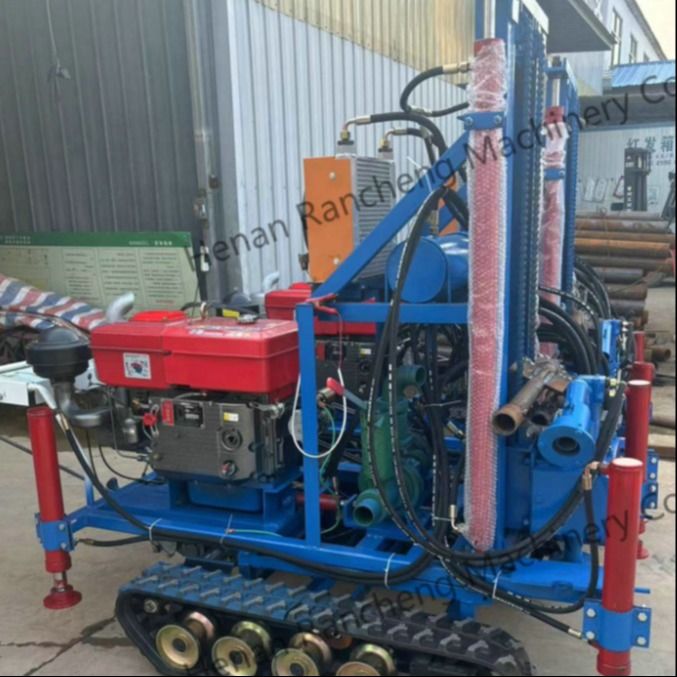

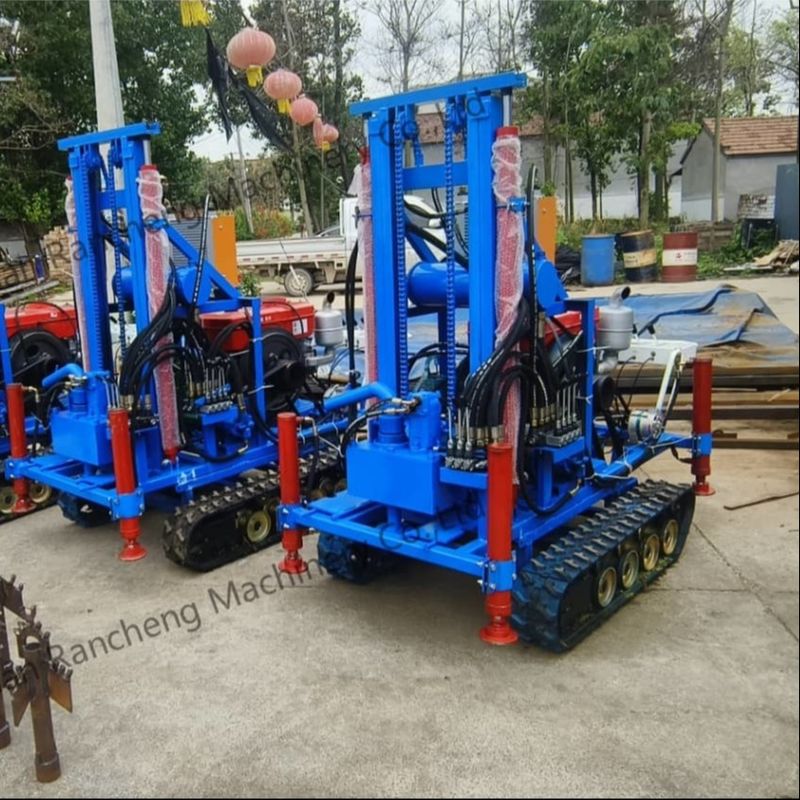

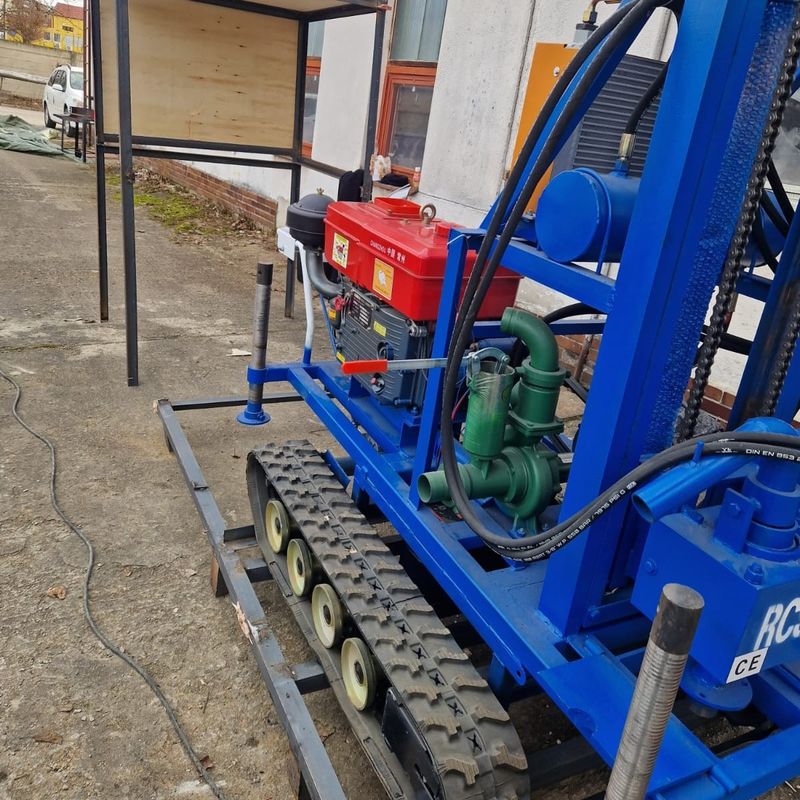

160m Hydraulic Borehole Water Well Drilling Rig RCS260C Portable Drilling Machine
Product Description:
This machine is primarily designed for geothermal drilling, farmland irrigation, residential courtyards, gardens, and well drilling. It can accommodate drilling diameters ranging from 70 to 450 mm and can reach a maximum depth of 160 meters. Additionally, it is suitable for small building piling, such as for farmhouses or factories, with a drilling diameter of up to 450 mm. The machine is capable of working with various strata, including sand, soil, clay, and soft rock.
Features:
1. The machine is equipped with a 35-horsepower diesel engine, allowing for convenient operation without the need for electricity.
2. It can achieve a maximum drilling depth of 100 to 160 meters and a maximum diameter of 450 mm. Despite its small size, it offers significant drilling capacity.
3. The hydraulic operating system is user-friendly, allowing one person to operate the machine, which saves on labor costs.
4. It is capable of drilling through hard clay, soil, soft rock, and other tough formations at a fast drilling speed.
5. This machine is primarily used for drilling irrigation wells in farmland, courtyard wells, and small pile foundations, among other applications.
6. With a small initial investment, it provides a substantial return. Customers report high satisfaction and significant profits from using this equipment.
Technical Parameters:
| Model of drilling machine |
RCS260C |
| Walking way |
Rubber crawler mounted |
| Drilling machine overall dimension(mm) |
2300*1080*2000 |
| Weight of Drilling machine (kg) |
1000 |
| Drill rod diameter (mm) |
Ø64 |
| Drill rod length(mm) |
1500 |
| Rod change method |
Full automatic screw thread |
| Drilling depth(m) |
160 |
| Diesel Motor Power (Hp/kw) |
35HP /25.8KW |
| Drilling method |
Percussive and rotating type |
| Drilling hole diameter(mm) |
Within Ø 450mm |
| Stroke distance (mm) |
2000 |
| Hosting capacity (kg) |
4000KG |
Applications:
The RCS260C portable water well drilling rig is primarily designed for geothermal drilling, agricultural irrigation, and water well drilling. It has a maximum drilling depth of 160 meters. Additionally, it can be utilized for piling in small structures, such as farmhouses or factories, as well as for drilling in yards and gardens.
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Packing and Shipping:
delivery time :10-15days
standard exporting packing
FAQ
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
