Name: BW60/10 Drilling Mud Pump Max Flow Rate 600L/min
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW600 / 10
Availability: InStock

Home > products > Drilling Mud Pump >

BW60/10 Drilling Mud Pump Max Flow Rate 600L/min

Max Flow Rate Drilling Mud Pump

High Quality Drilling Mud Pump

BW60/10 Drilling Mud Pump

Place of Origin:

China

Certification:

CE, ISO 9001:2000

Model Number:

BW600 / 10

Request A Quote

Product Details

Name:

Mud Pump

Model:

BW600 / 10

Flow Rate L/min:

600/415/280/195

Pressure Mpa:

3.5/5/7.5/10

Overall Dimensions (LxWxH) Mm:

1500X890X1230

Weight:

1400kg

Highlight:

Max Flow Rate Drilling Mud Pump

High Quality Drilling Mud Pump

BW60/10 Drilling Mud Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by LCL

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling

Get Best Price

Video

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price

Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price

Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price

Contact Now

Product Description

High Quality BW60/10 Drilling Mud Pump Max Flow Rate 600L/min

Machine Description

The BW600 mud pump is equipped with drilling equipment to drill holes with mud. During drilling, mud pumps inject mud and water into the well to coat the well walls, lubricate drilling tools, and bring cuttings to the surface. It is suitable for geological core drilling and exploration drilling below 1500 meters, and can also be used for water well drilling 300-500 meters deep

BW600/10 Mud Pump has the advantages of compact construction, light weight,readily movable and easy to be operated etc. This mud pump can be driven by electric motor, diesel engine and hydraulic motor according to the requirement of the customer in order. If need, we can also equip wheels for you, it can help you move in the worksite.

Technical Parameters

Model	BW600/10
Cylinder diameter	100mm
Piston Stroke	110 mm
frequency of stroke	232/162/109/76times/min
Flow rate	600/415/280/195L/min
Pressure	3.5/5/7.5/10Mpa
Power input	55KW
Diameter of suction pipe	127mm (5”)
Diameter of discharge pipe	63.5 mm (2-1/2”)
Overall dimensions (LxWxH)	1500X890X1230mm
Weight	1400kg

Characteristics

1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Two cylinder liners with different diameters are optional, with a large flow and pressure adjustment range and a wide range of applications;
3. This series of products has a large export volume and has been exported to more than 20 countries and regions such as Europe, America, and Southeast Asia. It has been widely used in geology, coal, construction, metallurgy, chemical industry, railway, water conservancy, petroleum and other industries in China.

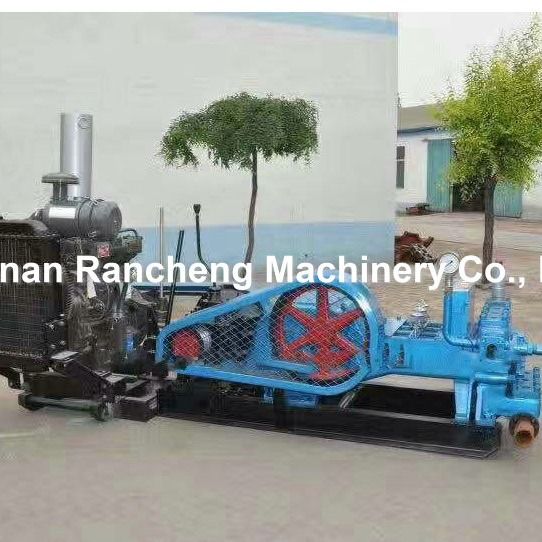

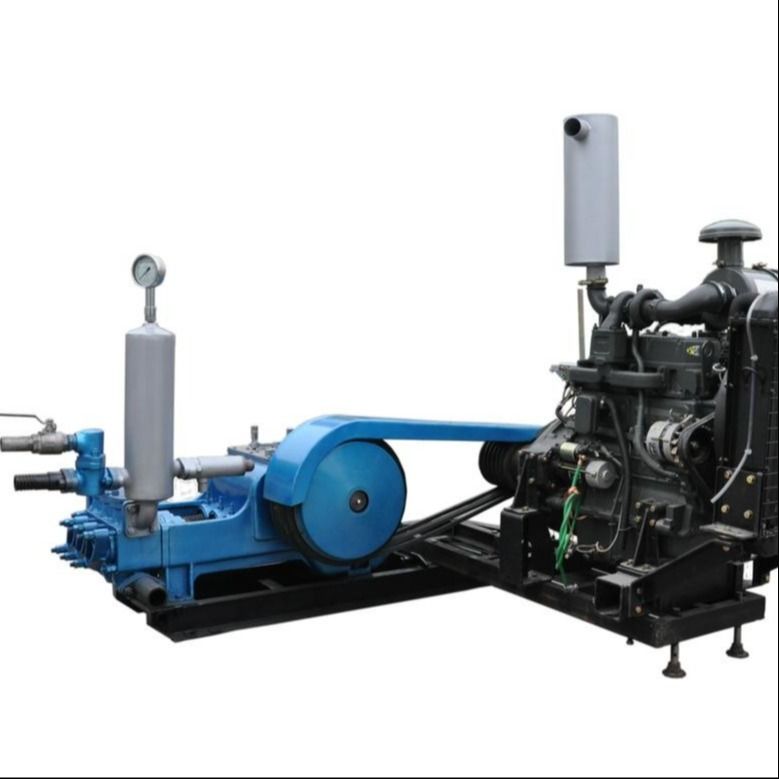

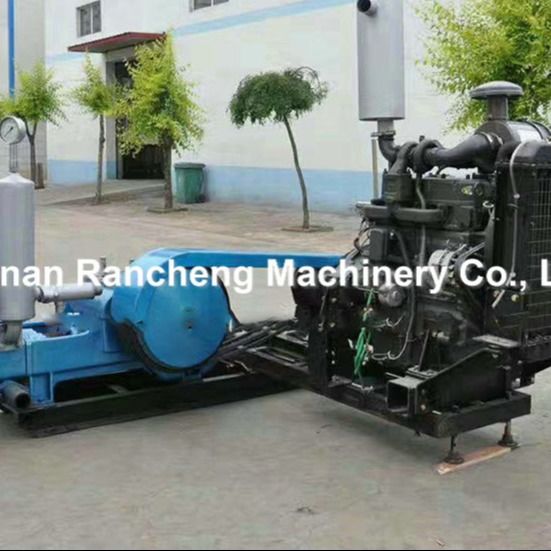

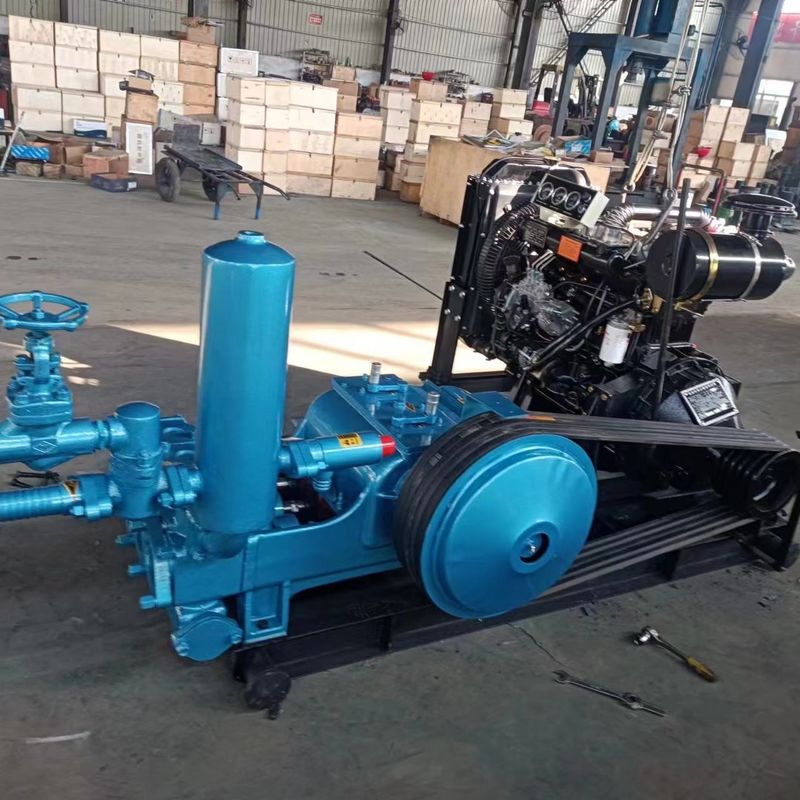

Machine Pictures

BW60/10 Drilling Mud Pump Max Flow Rate 600L/min 0

BW60/10 Drilling Mud Pump Max Flow Rate 600L/min 3

BW60/10 Drilling Mud Pump Max Flow Rate 600L/min 4
