Factory Price 350m Deep Crawler-Mounted Borehole Water Well Drilling Rig Machine
Product Description
The RCF350C Water Hole Drilling Machine is an advanced, high-performance drilling rig designed for various water well drilling applications, including irrigation wells, drinking water wells, geothermal wells, and industrial wells. Featuring a steel crawler mounted chassis, this rig ensures excellent mobility and stability, even on uneven terrain, making it ideal for diverse drilling environments.
Key specifications include a maximum drilling depth of 350 meters and a drilling diameter ranging from 90 to 350 mm, offering versatility to meet different project requirements. The rig is powered by a robust 91KW Yuchai diesel engine, providing strong and reliable performance.
The RCF350C operates using both a mud pump and DTH (Down-the-Hole) air drilling system, enabling it to tackle a wide range of geological conditions. It also features a top head rotation drive function, enhancing its efficiency during the drilling process. This combination of power, versatility, and mobility makes the RCF350C an ideal choice for a variety of water well drilling projects.
Whether for agricultural, residential, or industrial use, the RCF350C is designed to deliver consistent, high-quality results, ensuring long-lasting performance and ease of maintenance.
Technical Parameters
| Model |
RCF350C |
| Bore diameter(Hammer) |
140-350mm |
| Bore depth |
350m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m/6m |
| Lifting force |
22T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
6200-8500Nm |
| Rotary speed |
55-115r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6000×2000×2550mm |
| Weight |
8600Kg |
| Diesel engine |
91KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
| Operating system |
Full hydraulic operation |
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

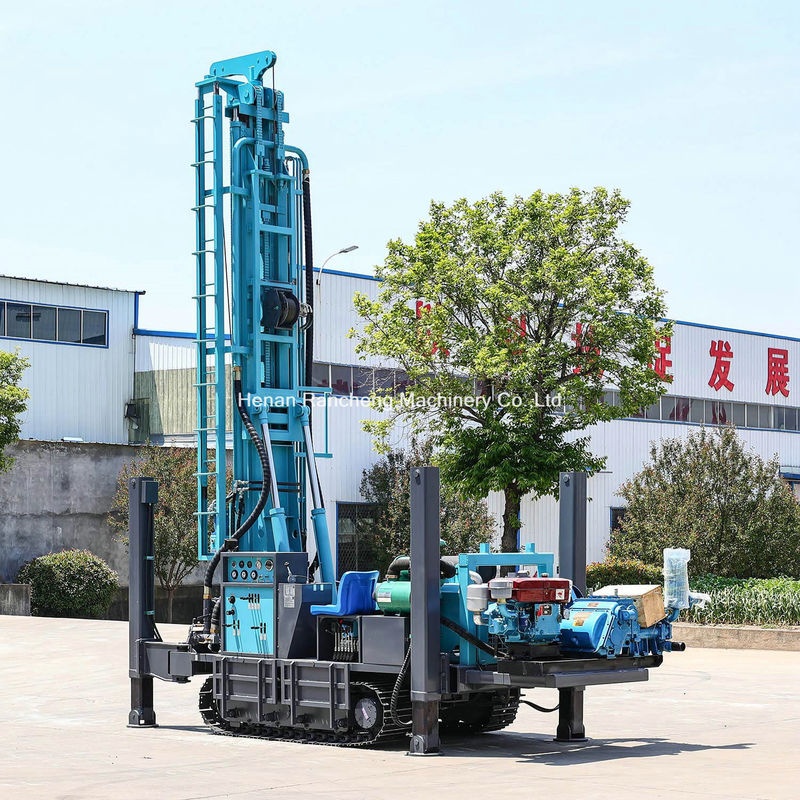

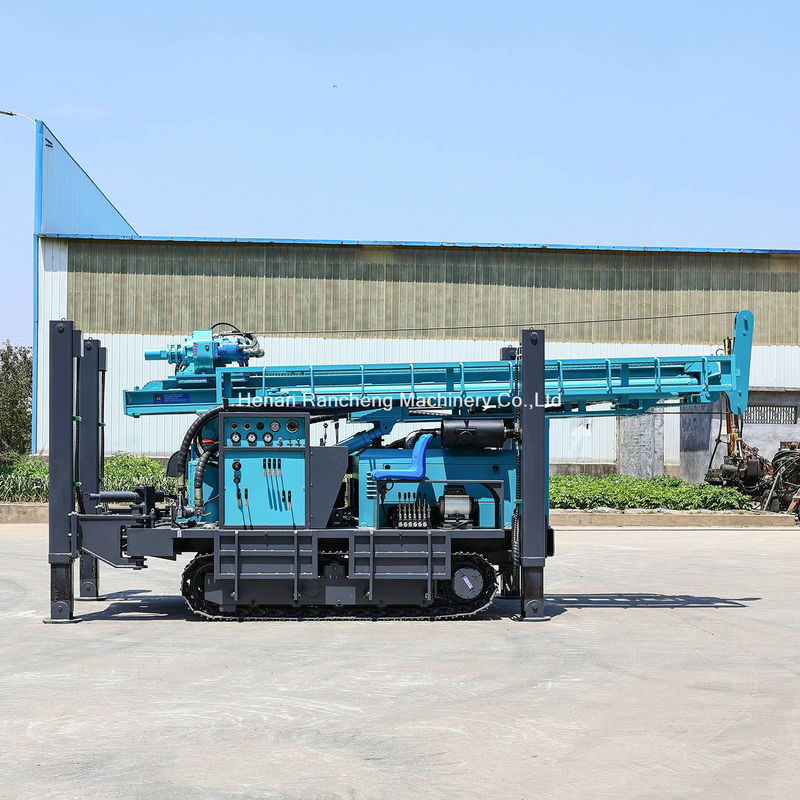

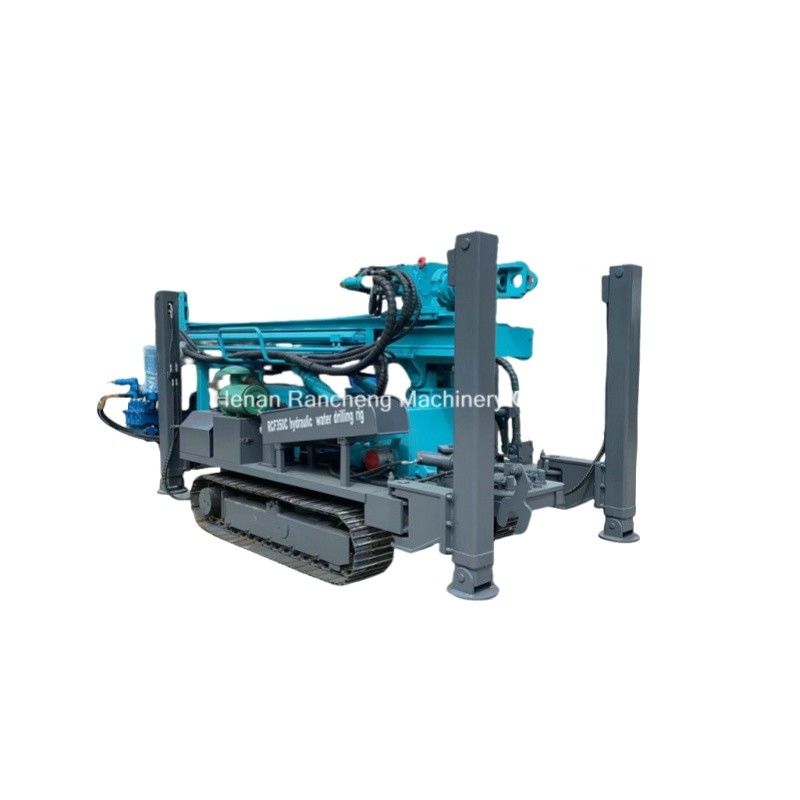

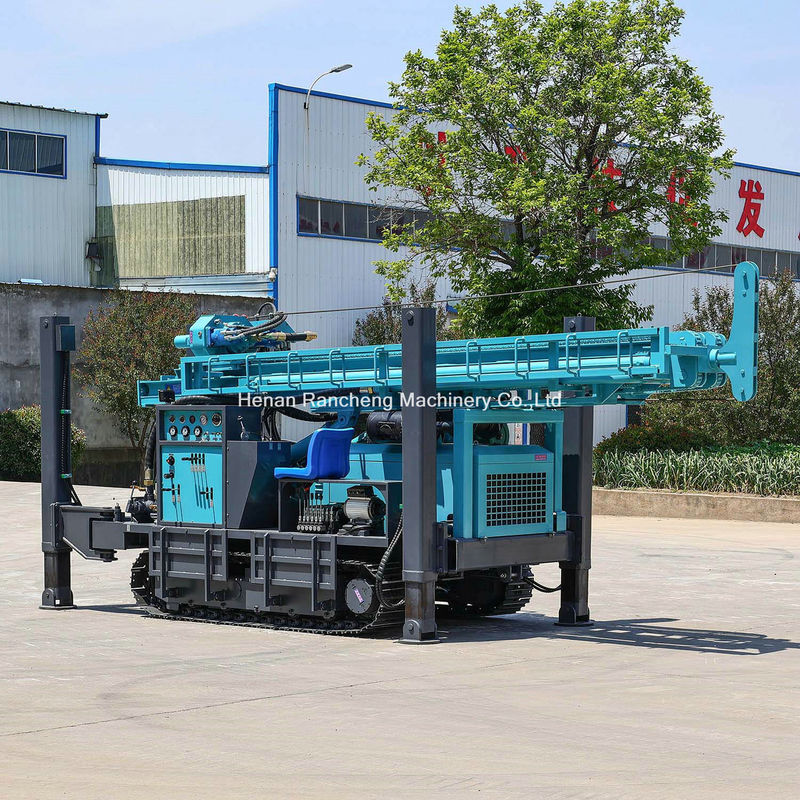

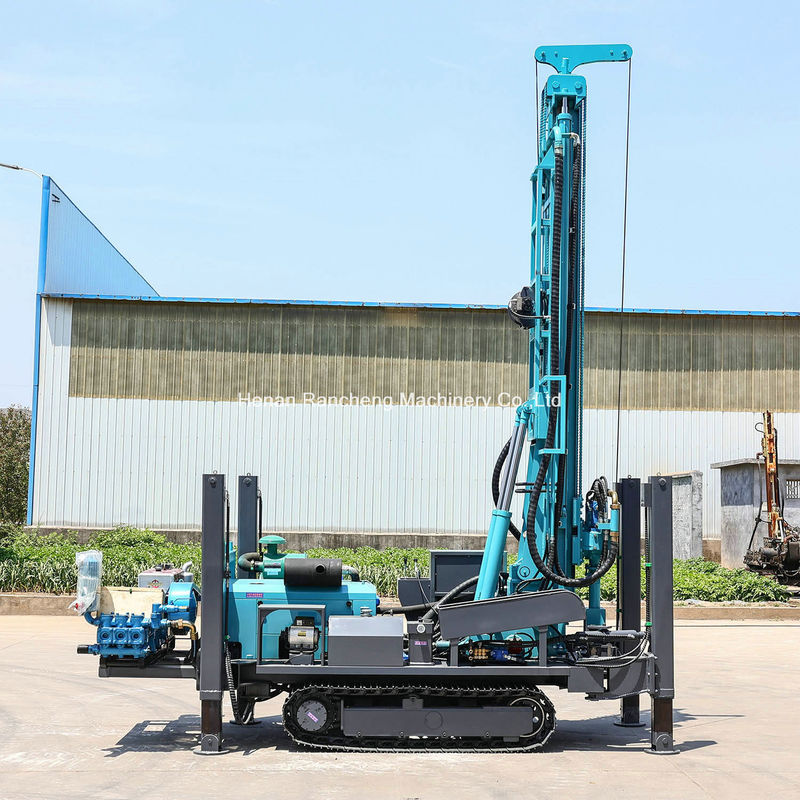

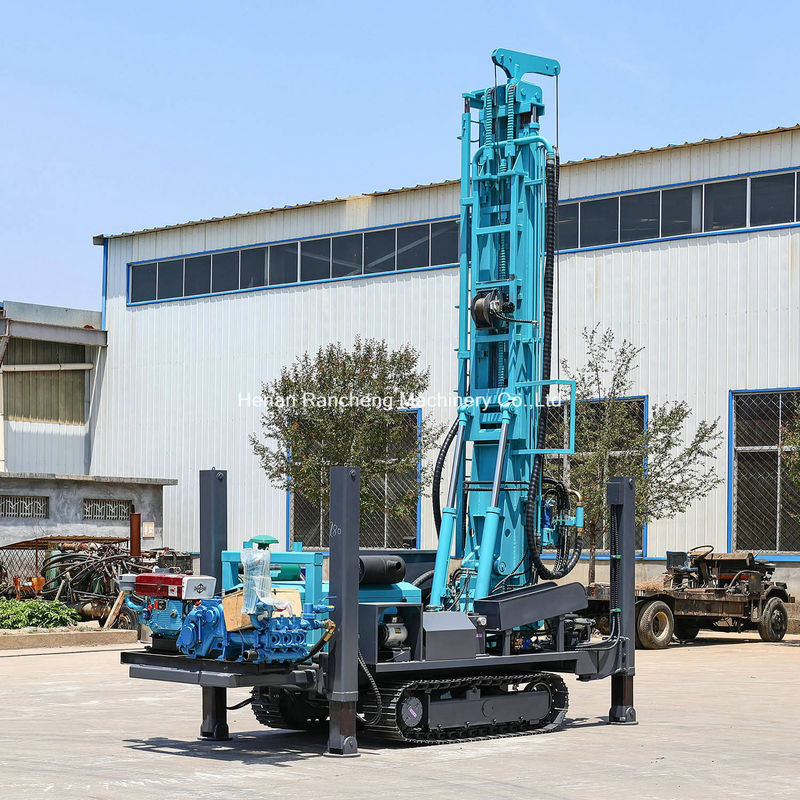

Machine picture display
