Industrial Deep Borehole Drilling Rig Machine With 1000m Depth 500mm Diameter

High Quality Industrial Deep Borehole Drilling Rig Machine With 1000m Depth 500mm Diameter

Machine Description

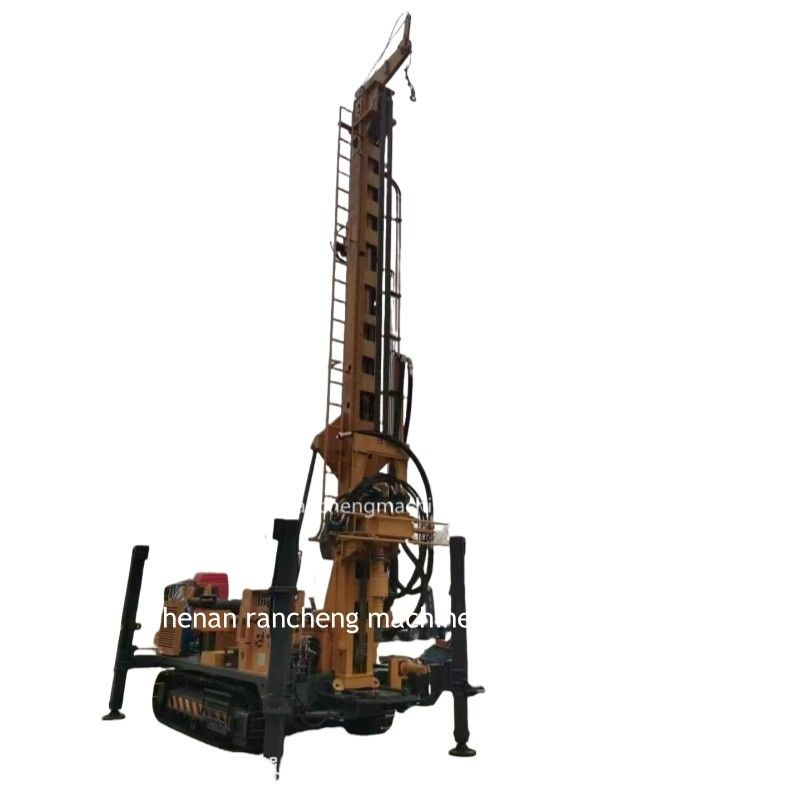

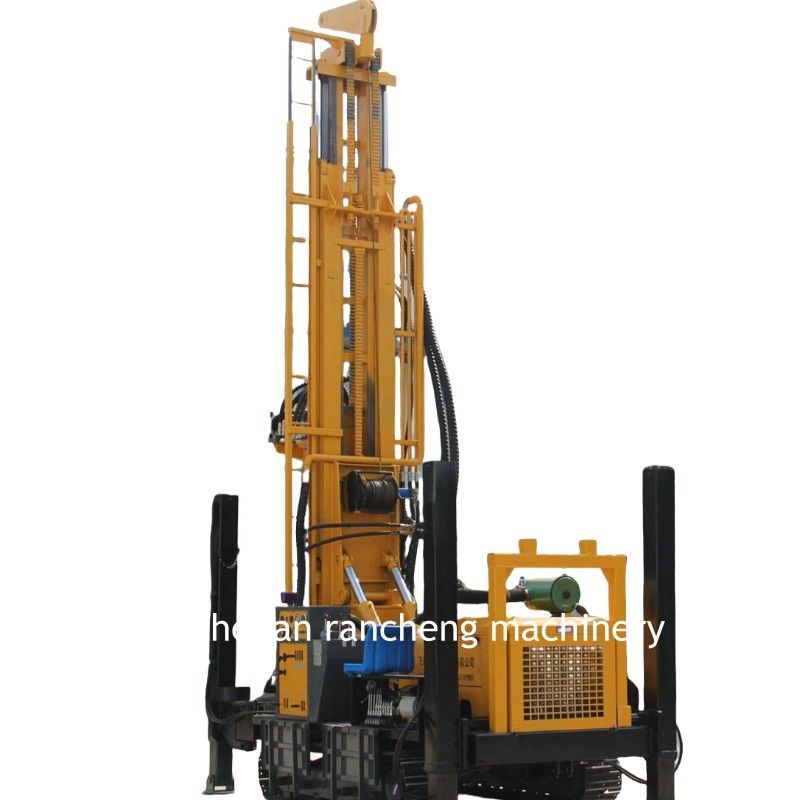

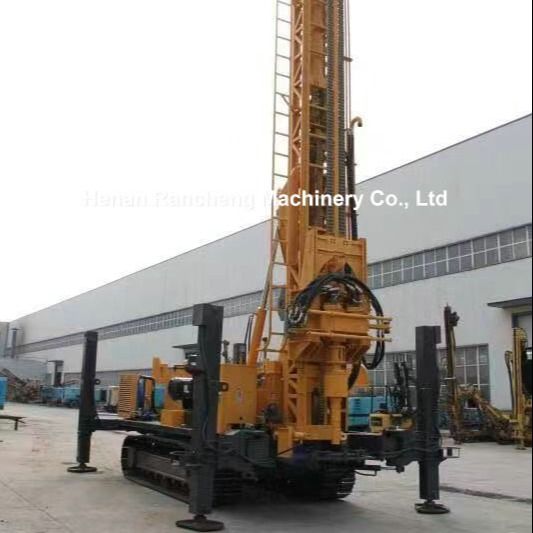

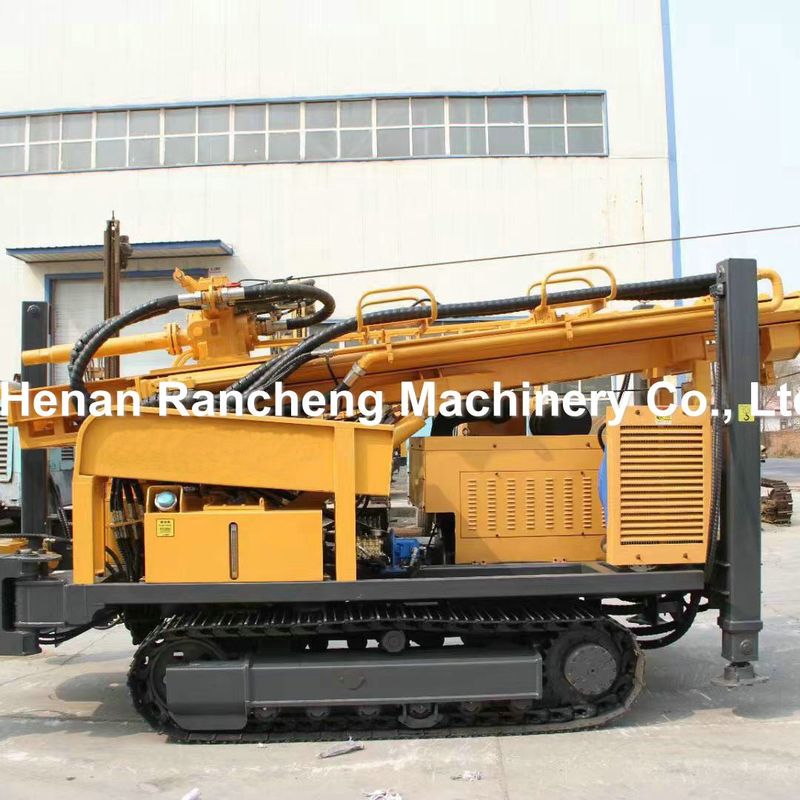

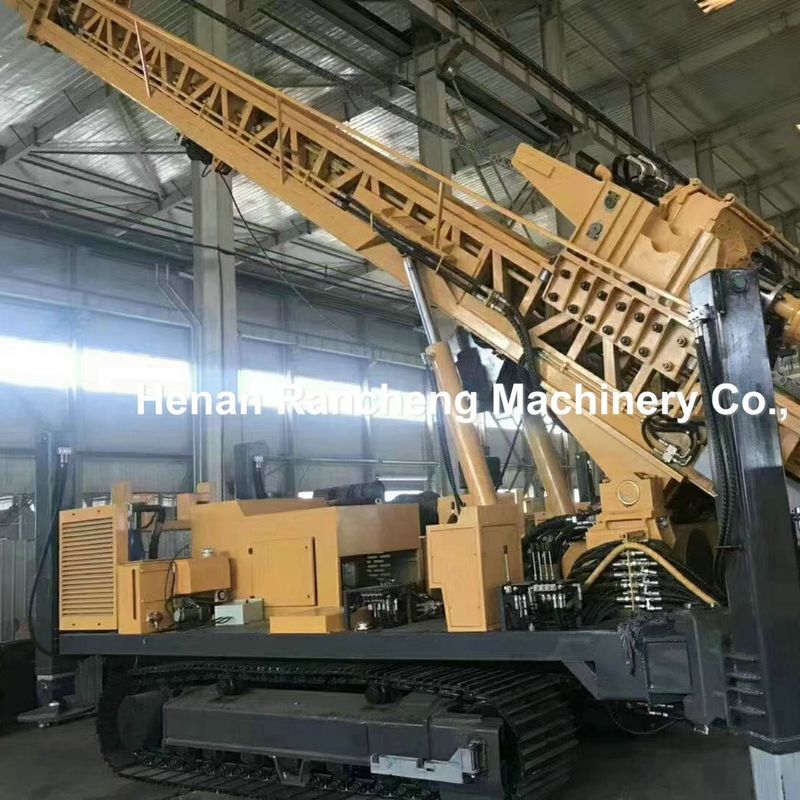

The RCF1000C Industrial Borehole Drilling Machine is a next-generation, down-the-hole drilling rig developed by Rancheng Machinery, designed to meet the demands of resource exploitation. This powerful and versatile drilling machine offers a drilling depth of up to 1000 meters and accommodates drilling diameters ranging from 140mm to 500mm.

Powered by a 194KW Cummins engine, the RCF1000C provides impressive performance with a lifting force of 36 tons, ensuring it can handle challenging drilling conditions. Its hydraulic control system reduces manual labor, enhancing efficiency during operations.

This machine is ideal for various geological environments, including silt, quicksand, weathered rock, and pebble layers. Its low noise operation and strong load resistance make it a reliable choice for a range of applications, including resource exploration, hydrological wells, civil water wells, and agricultural irrigation projects. The high cost-effectiveness and robust design ensure optimal performance in diverse drilling scenarios.

Technical Data



Advantage


High Efficiency and Cost-Effective Operation
Featuring full hydraulic functionality, the rig delivers fast drilling speeds and minimizes auxiliary time, ensuring high operational efficiency and reduced costs per meter drilled.

Enhanced Mobility and Versatile Chassis
Equipped with high outriggers for easy loading and tracked walking for improved mobility in muddy conditions, the rig can be configured as either a tracked or vehicle-mounted self-propelled chassis, offering versatile deployment options.

High-Quality Materials
The rig's frame is constructed from high-strength low-carbon alloy steel, providing exceptional durability and wear resistance for long-term reliability and performance.
