Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine

80m Hydraulic Thrust Boring Machine

Diesel Engine Hydraulic Thrust Boring Machine

32HP Hydraulic Thrust Boring Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCHD-60D

Contact Us
Request A Quote
Product Details
Pump Station Power:
32HP Diesel Engine
Model:
RCHD-60D
Drilling Rig Power:
Hydraulic
Max Drilling Diameter:
500mm
Drilling Pipe Size:
42mm ,1m/pc
Drilling Bit Size (optional ):
80,100,130,150,200,250,300,350,400,450,500mm
Product Category:
Hydraulic Thrust Boring Machine
Highlight:

80m Hydraulic Thrust Boring Machine

,

Diesel Engine Hydraulic Thrust Boring Machine

,

32HP Hydraulic Thrust Boring Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Drilling Depth 60-80m Hydraulic Thrust Boring Machine with 32HP Diesel Engine



Product Description:





The hydraulic thrust boring machine is commonly used in various projects, including natural gas conversion, tap water transformation, sewage engineering, small sewage projects, pipeline installation, and trenchless road water pipe transformation. It is characterized by fast drilling and its ability to work efficiently in hard soil, which makes construction quick and labor-efficient while ensuring smooth and flat drilling. Additionally, there is a specialized pipe jacking machine designed for water conservancy projects. This water drill pipe jacking machine significantly enhances the efficiency of hydraulic pipe jacking. The typical soil jacking speed of the water drill pipe jacking machine is 1 meter every 5 seconds, which is more than ten times faster than that of a standard hydraulic pipe jacking machine. The jacking rod of the water drill pipe jacking machine is made of high-strength, water-injectable materials. During operation, water injection transforms residual soil into a mud-like flow, thereby reducing the friction during the jacking process. This innovative machine also alters the soil's consistency, improving overall performance.





Features:



1. water drill pipe jacking machine are small and flexible.

2.The water drill pipe jacking machine uses a universal joint to pull back the pipe material.

3.The small underground pipe jacking machine adopts an automatic travel design and automatic pulling back function.

4.The main machine is connected to the gearbox in one piece.



Technical Parameters:

Product Name: 60m Max Drilling Distance HDD Drilling Rig with 6T Pull Force and Advanced Technology
Product Category: HDD Drilling Rig
Model: RCHD-60D
Drilling Rig Size: 1700*600*400mm
Drilling Rig Weight: 150KGS
Pump Station Size: 1200*1000*1000mm
Pump Station Weight: 350KGS
Pump Station Power: 32HP Diesel Engine
Pull Force: 6T
Torque: 1800N.m

This is an underground horizontal boring machine, also known as a horizontal drilling machine or underground drilling machine.



Applications:

Our machine is for Non-excavation laying of various pipelines such as communication cables,water supply,drainage, natural gas pipelines, etc.

Normal pipelines: the max diameter is 520mm,the max drilling distance is 60m.

Support and Services:

1,24/7 service by chat online and phone.

2,Lifelong and free technical support.

3,Service overseas: if you need, we can dispatch an engineer to your door.



Packing and Shipping:

delivery time :10-15days

standard exporting packing







FAQ

Q:Are you the manufacturer?

A: Yes, we are the factory with more than 10 years of manufacturing experience.

Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.

Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.


Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;

Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

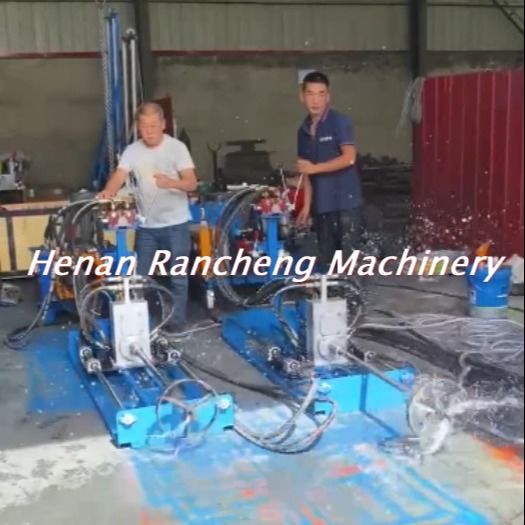

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine 0

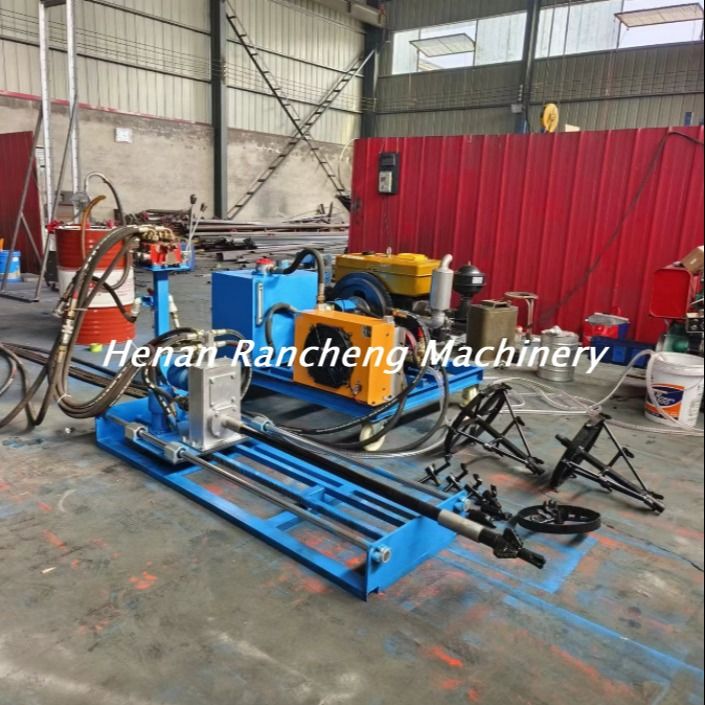

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine 1

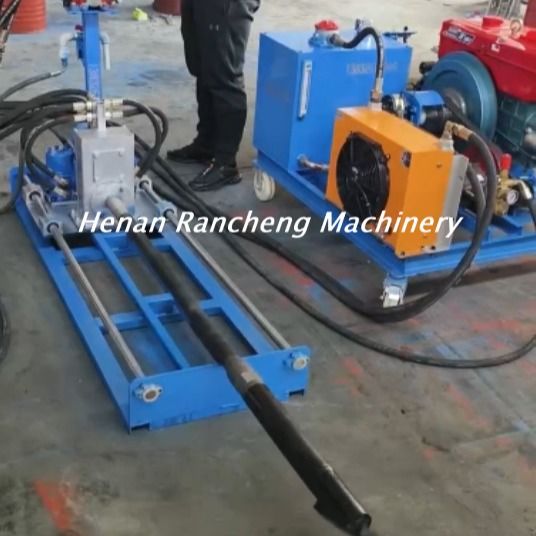

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine 2
