Best Selling Bore Depth 280m Deep Rock Water Well Drilling Rig Machine with 70KW engine
Product Description
The RCF280C Water Well Drilling Rig Machine is a highly efficient, multi-functional, full hydraulic drilling rig designed for a variety of projects. It is capable of drilling up to 280 meters in depth, with a diameter range of 100-350mm. Powered by a reliable 70KW Yuchai engine, the rig offers robust performance for resource exploration, hydrology wells, civil water wells, and agricultural irrigation projects.
This machine features a steel crawler mounted system for easy mobility and supports both mud pump and DTH air drilling methods, making it versatile for different drilling needs. With its large torque turntable, the RCF280C ensures high efficiency and stability during operation, making it an ideal choice for demanding drilling tasks.
Technical Parameters
| Model |
RCF280C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
280m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
3m/6m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4100×1900×2600mm |
| Weight |
7000Kg |
| Diesel engine |
70KW Yuchai engine |
Product Advantages
This drilling rig is equipped with advanced safety features that ensure the safety of workers and the environment. It has an automatic shut-down system that activates in case of emergencies, and it meets the regulatory standards for environmental protection.
The best water well drilling rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes.

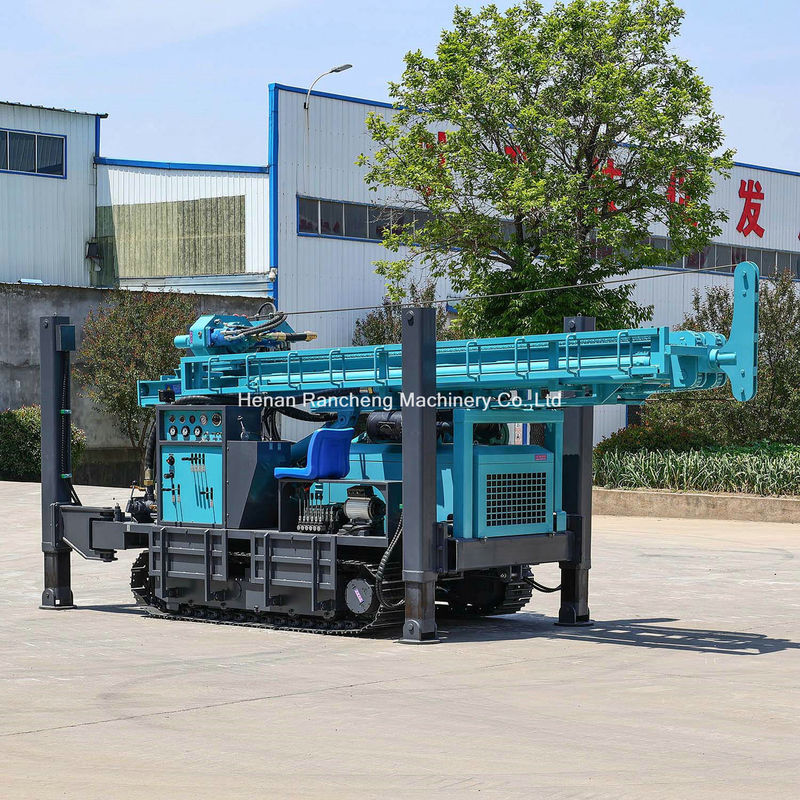

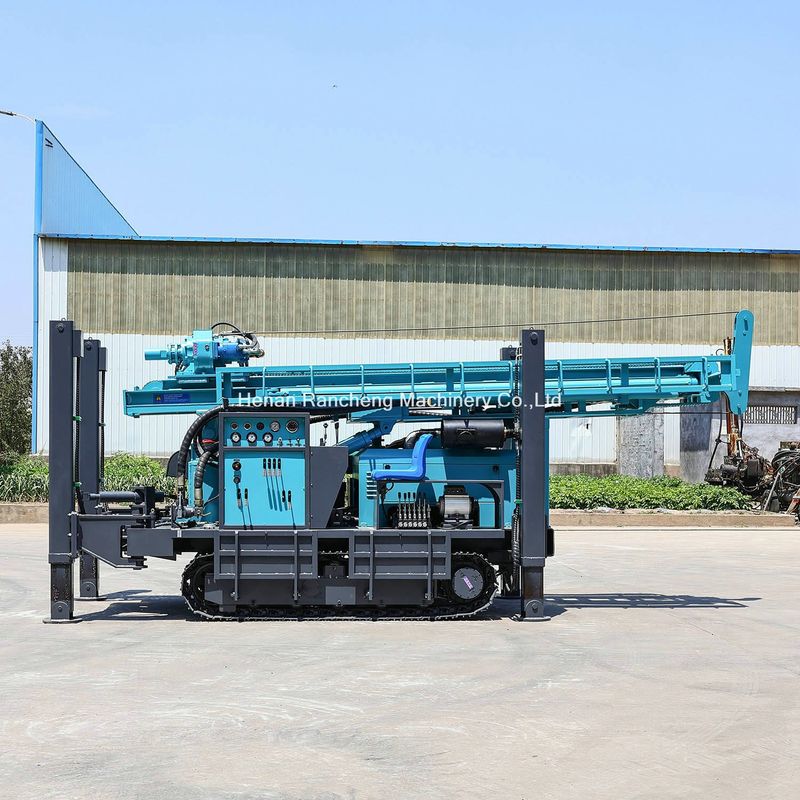

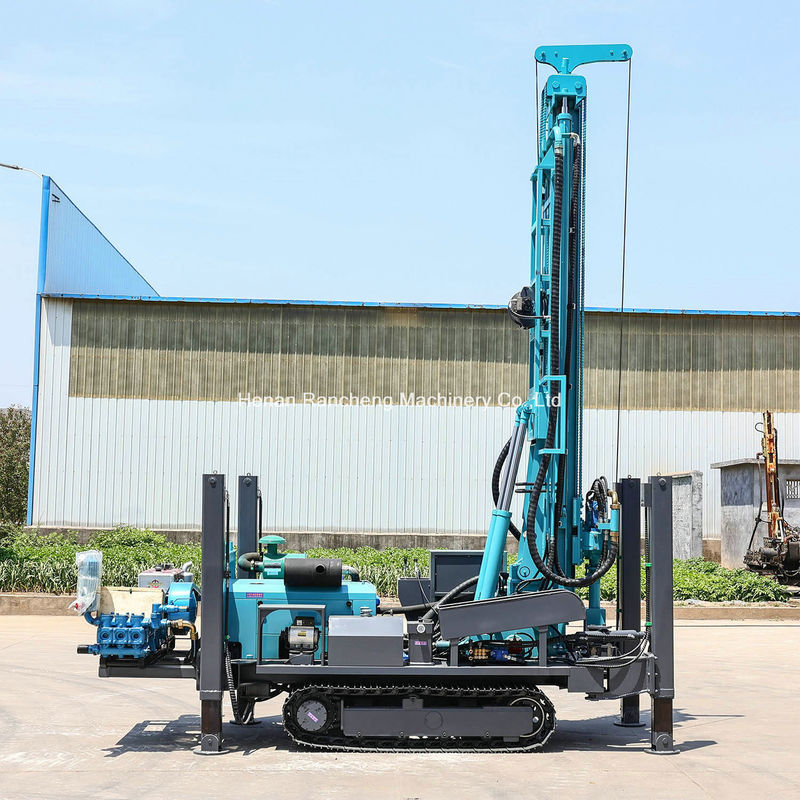

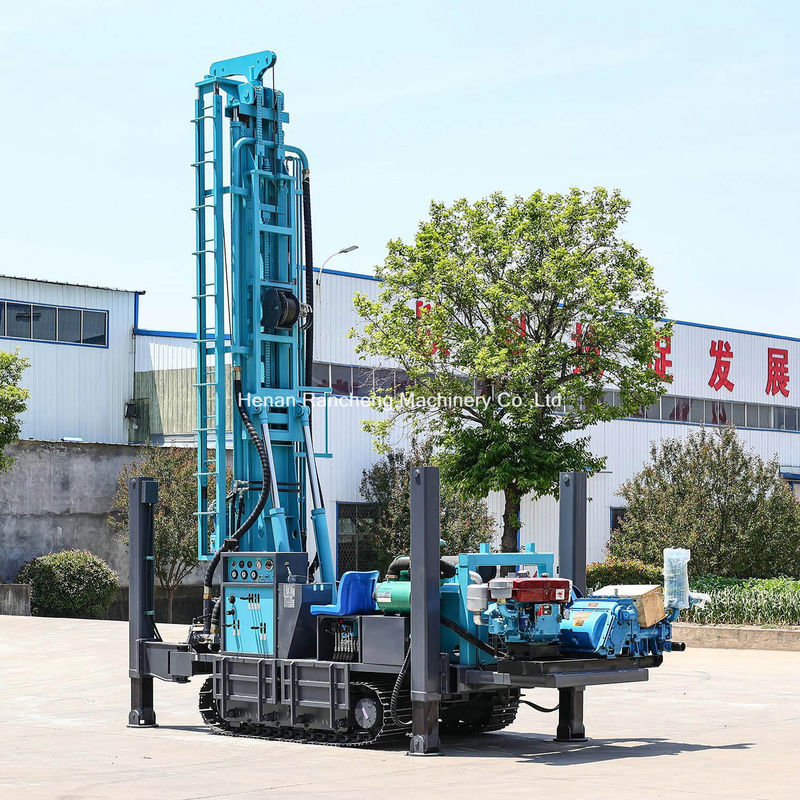

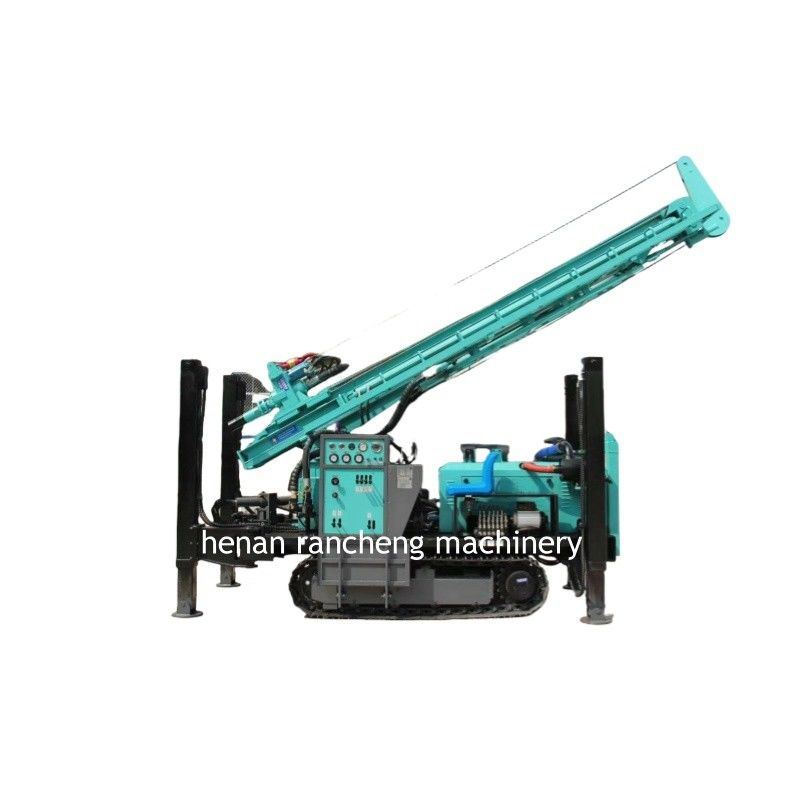

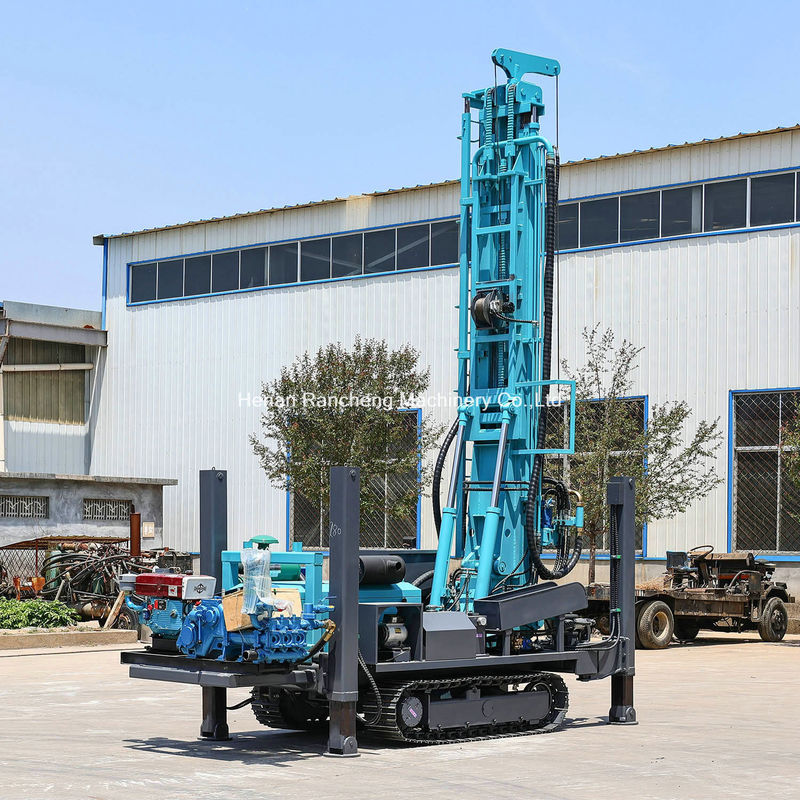

Machine Picture Display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
