480m Geological Mining Equipment RCK400P Portable Hydraulic Core Drill Rig

Product Description:

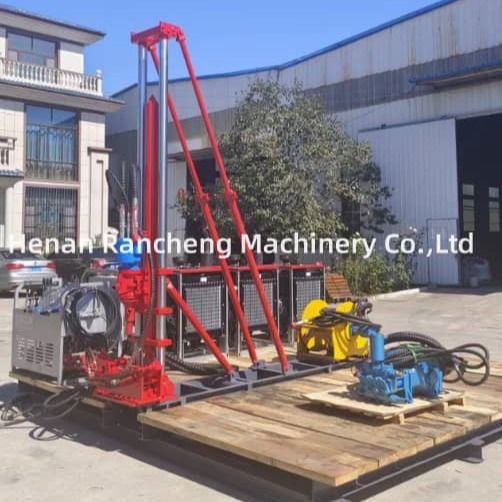

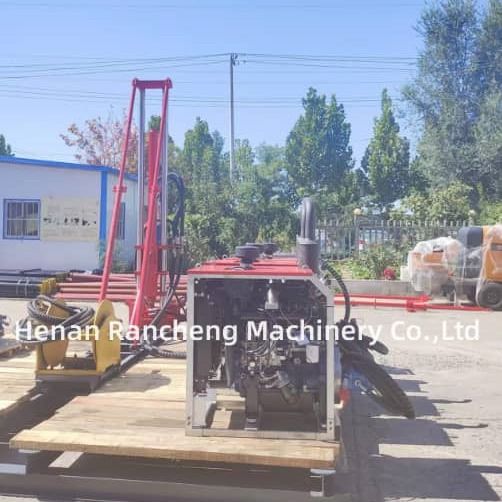

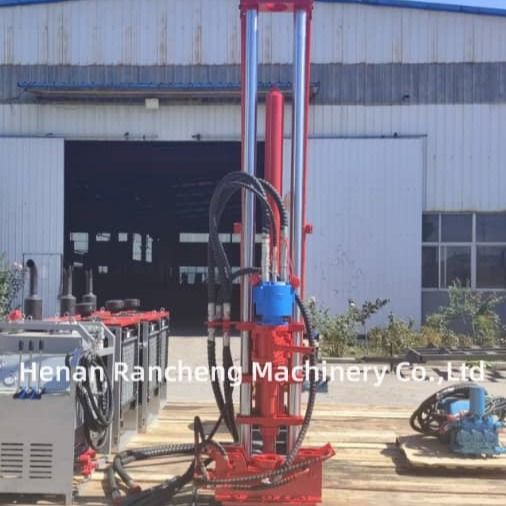

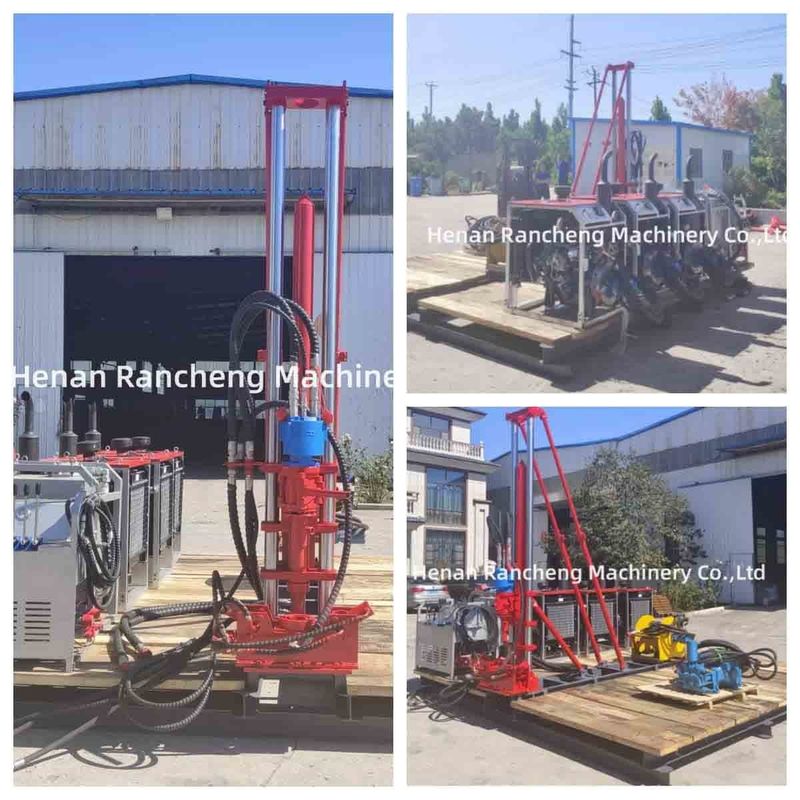

RCK400P portable core drilling rig is suitable for wireline core drilling in medium and deep holes. It has a compact structure, lightweight modular design, and is easy to disassemble. When transportation conditions are limited, there is no need to repair roads or destroy vegetation. The drilling rig can be carried manually, which is safe and convenient.

Features:

1. The drilling rig adopts Yuchai high-performance National III turbocharged engine, integrated control system, enhanced power reserve, optimized system configuration, and strong power output.

2. The hydraulic system adopts high-pressure plunger pump, advanced constant power output and load-sensing control system, precisely controls the system pressure, and can fully cope with complex formations.

3. The power head adopts a single-stage gear variable speed structure and A6VM high-pressure plunger pump, the output torque is three times that of the traditional gear motor, and it is equipped with thin-walled drilling tools for stable cutting and fast drilling speed.

4. Equipped with automatic telescopic combined mast and pressure loss protection clamp mechanism, it is compact in structure, safe and reliable.

Technical Parameters:

Applications:

The RCK400P small hydraulic core drill is widely used in mineral exploration, infrastructure construction (such as railways, roads and bridges, etc.), water conservancy and hydropower projects, tunnel exploration and geographical surveys. It works particularly well in areas with complex geographical features such as mountains, forests and plateaus. It is an ideal drill for operating in difficult-to-operate areas within 600 meters depth, executing small projects, conducting preliminary surveys and working on tight schedules.

FAQ:

Q: What is the brand name of the core drilling rig?
A: The brand name of the core drilling rig is RanCheng.
Q: What is the model number of the core drilling rig?
A: The model number of the core drilling rig is RCK400P.
Q: What certifications does the core drilling rig have?
A: The core drilling rig has CE and ISO 9001:2000 certifications.
Q: Where is the core drilling rig manufactured?
A: The core drilling rig is manufactured in China.
Q: What is the minimum order quantity for the core drilling rig?
A: The minimum order quantity for the core drilling rig is 1.
Q: What is the price of the core drilling rig?
A: The price of the core drilling rig is negotiable.
Q: What are the payment terms for the core drilling rig?
A: The payment terms for the core drilling rig are T/T and Western Union.
Q: What is the delivery time for the core drilling rig?
A: The delivery time for the core drilling rig is 10-15 working days.
