Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF1000C
Factory Price Deep Borehole Water Well 1000m Depth Crawler Mounted Machine 197KW Power
Machine Description

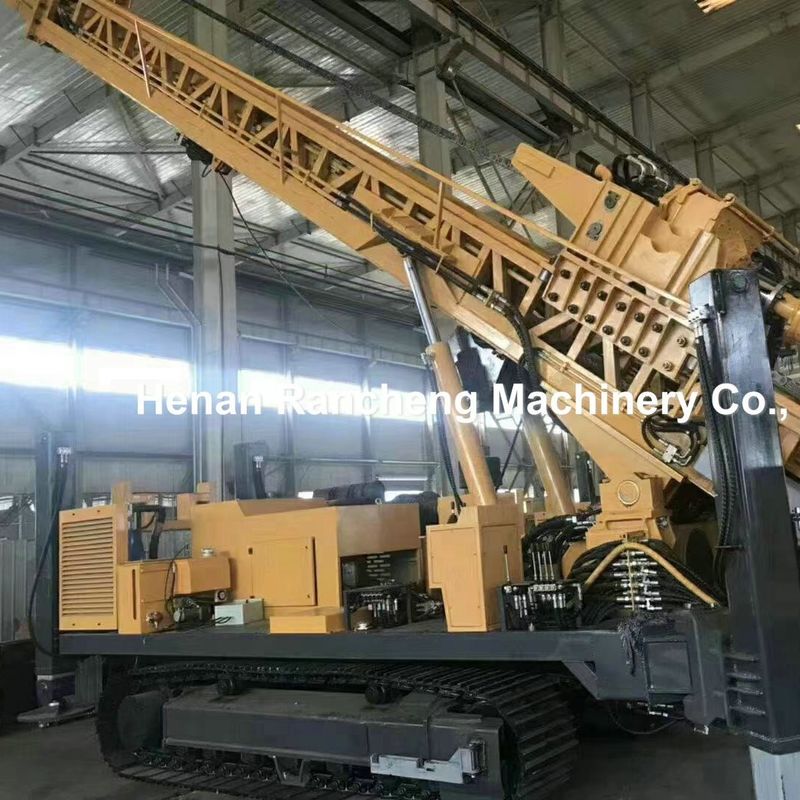

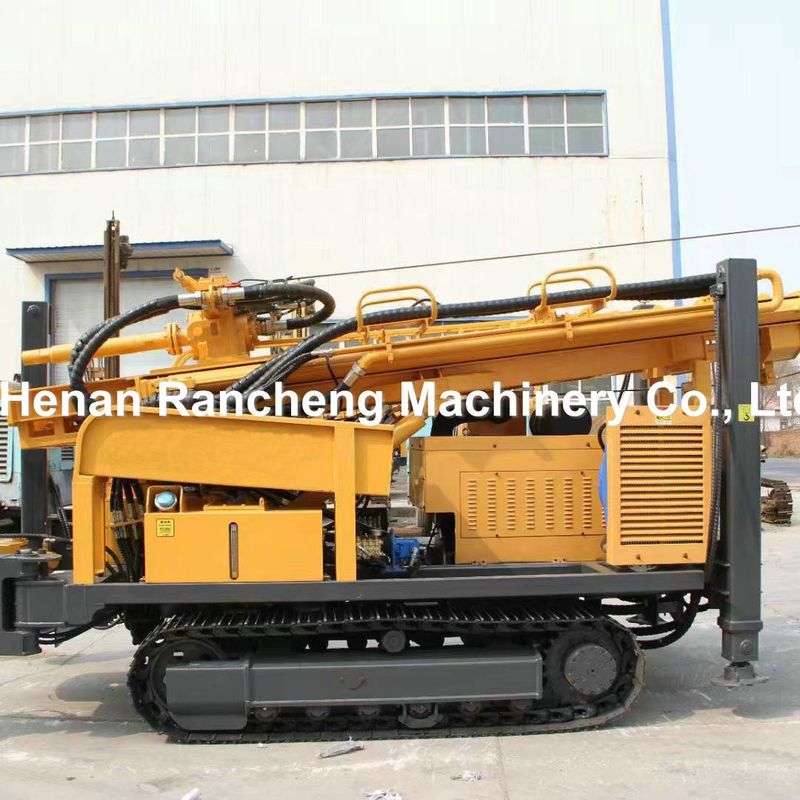

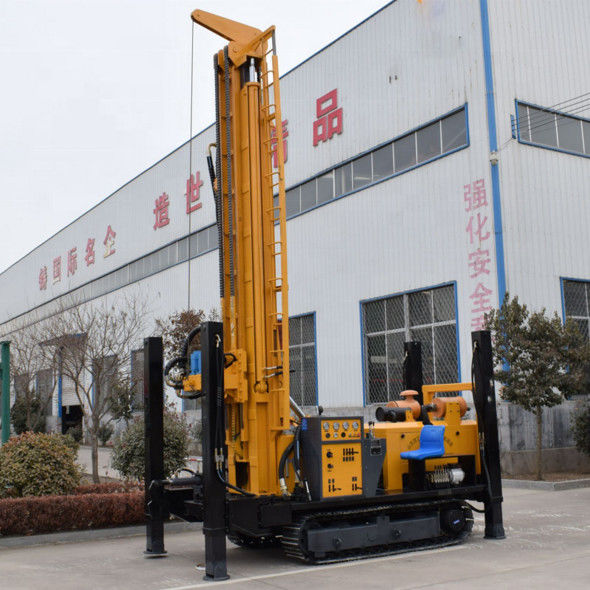

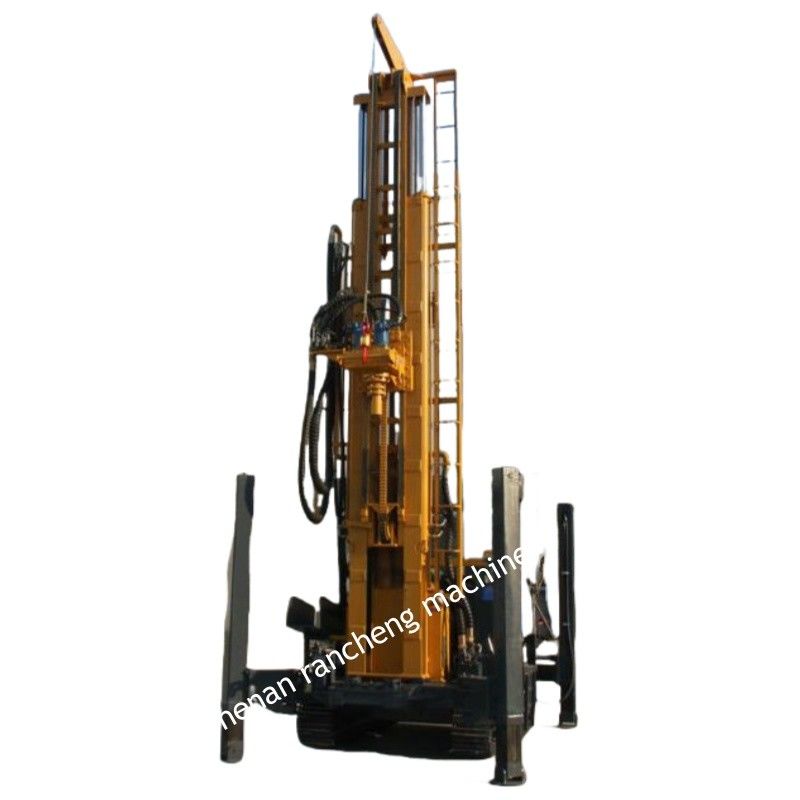

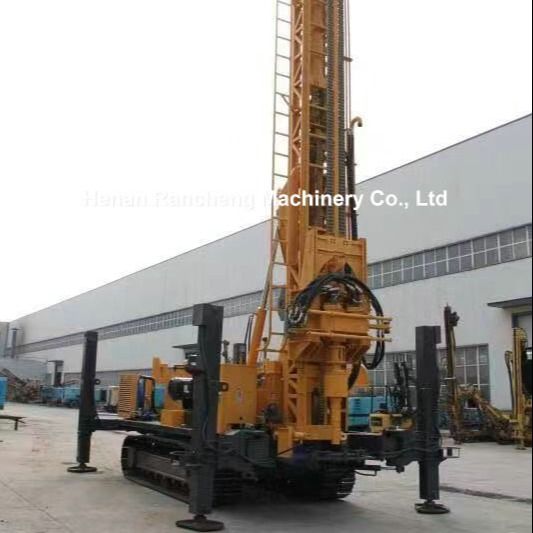

The RCF1000C is a high-efficiency, multifunctional, full-hydraulic water well drilling rig designed to handle a variety of drilling tasks. With a maximum depth of 1000 meters and a drilling diameter up to 800mm, it is powered by a 179KW Cummins engine that ensures strong performance and reliability. This rig is suitable for drilling water wells, geothermal wells, monitoring wells, and other specialized projects.
The rig features a telescopic mast that allows for easy transport and efficient operation in different environments. With a lifting force of up to 52 tons, it can handle heavy-duty applications, and it can lift up to 6 meters of casing. The key hydraulic components are sourced from leading brands, which reduces failure rates and prolongs the service life of the rig.
Designed to work in tough conditions, the RCF1000C offers durability, efficiency, and reliability for large-scale drilling projects.
Technical Data
Bore diameter(hammer) | 140-500mm |
Bore depth | 1000m |
Air consumption | 17-42m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 102/108/114mm |
Pipe length | 1m/2m/3m/6m |
Lifting force | 36T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 20m/min |
Fast feeding speed | 40m/min |
One-time advance length | 6.6m |
Max torque of rotary | 9000-14000Nm |
Rotary speed | 45-140r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 850L/min (option) |
High hydraulic leg | 1.7m |
Feeding efficiency | 15-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6300×2300×2950mm |
weight | 13000Kg |
Diesel engine | 194KW Cummins engine |
Drilling way | Air compressor drilling or mud pump drilling |
Advantage
1. The top-mounted driving head principal shaft has a large drift diameter, making it suitable for various types of drilling, including slurry, air, and air foam drilling, and meeting the requirements for well drilling in different terrain strata.
2. The compact structure of the entire drilling rig, with its small dimensions, allows it to operate in confined spaces and facilitates tunnel transportation.
3. The rig offers two optional drive modes for the drive unit, providing versatility and adaptability to various strata conditions.
4. The extendable mast (or optional box-type mast) is designed for long casing drilling, enhancing operational efficiency.
5. The integrated, visualized pressure feeding system allows for precise regulation of drilling pressure based on drilling depth.
6. Equipped with four hydraulic supporting legs, the rig can achieve quick horizontal adjustments and can be transported without the need for a crane.
7. The rotational centralizer ensures ample operating space, improving maneuverability during operations.
8. The optional external floating spindle extends the service life of the drill stem thread by 30%.
