Name: BW200 Horizontal Type Two Cylinder Double Action Pump Of Drilling Rigs Within 200m
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW200
Availability: InStock

Home > products > Drilling Mud Pump >

BW200 Horizontal Type Two Cylinder Double Action Pump Of Drilling Rigs Within 200m

Horizontal Type Double Action Pump

Drilling Rigs Double Action Pump

11KW Transmission Power Double Action Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW200

Request A Quote

Product Details

Name:

Horizontal Type Two Cylinder Double Action Pump

Model:

BW200

Cylinder Diameter :

80,65mm

Piston Stroke:

85mm

Flow Rate:

200;125 L/min

Transmission Power:

11KW

Highlight:

Horizontal Type Double Action Pump

Drilling Rigs Double Action Pump

11KW Transmission Power Double Action Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price

Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price

Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price

Video

BW1200 Double-cylinder Double-acting Piston Pump Two-speed Transmission Mud Pump

Get Best Price

Contact Now

Product Description

BW200 Horizontal Type Two Cylinder Double Action Pump of Drilling Rigs within 200m

Machine Introduction

BW200 mud pump is a horizontal double cylinder double action.Reciprocating piston pump, the existing crankshaft bush and bearing type of two kinds, mainly used in water well drilling or core drilling to supply flushing fluid.This pump has the characteristics of small volume and light weight, and is used for supporting the use of drilling RIGS within 200m for water well drilling and 600 meters for core drilling. Moreover, the attendance amount,the complex strata of the karst cave can also be used for cement slurry infusion.

Technical Parameters

Model	BW200
Type	horizontal type two cylinder double action pump
Cylinder diameter	80,65mm
Piston stroke	85mm
Frequency of stroke	145 times/min
Flow rate	200;125 l/min
Working pressure	40;60(kg/cm)
Transmission power	11KW
Diameter of discharge pipe	37mm
Diameter of suction pipe	65mm
Overall dimensions(LWH)	1050630820mm
Weight	300kgs

Machine Advantages

BW200 grouting pump, excellent horizontal double-cylinder double-acting design, cylinder diameter differentiation, long piston stroke, high stroke frequency, ensure efficient and stable output. Adjustable flow to meet diverse needs, stable working pressure, adapt to various working conditions. Strong transmission power, smooth liquid flow, reduce clogging and wear. Widely used in geological drilling, water conservancy, construction, tunnels and other fields, grouting mud lifting effect is excellent, a powerful assistant for engineering projects.

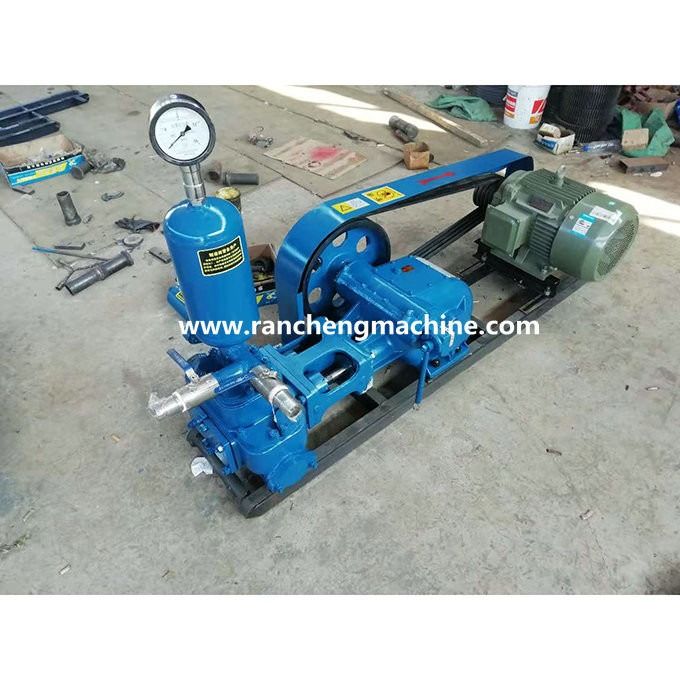

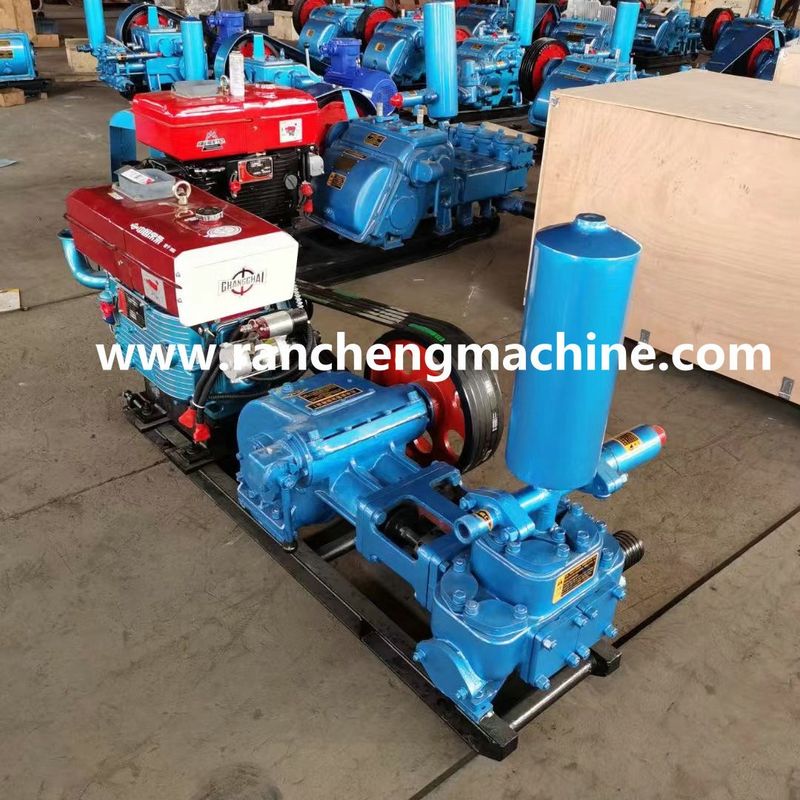

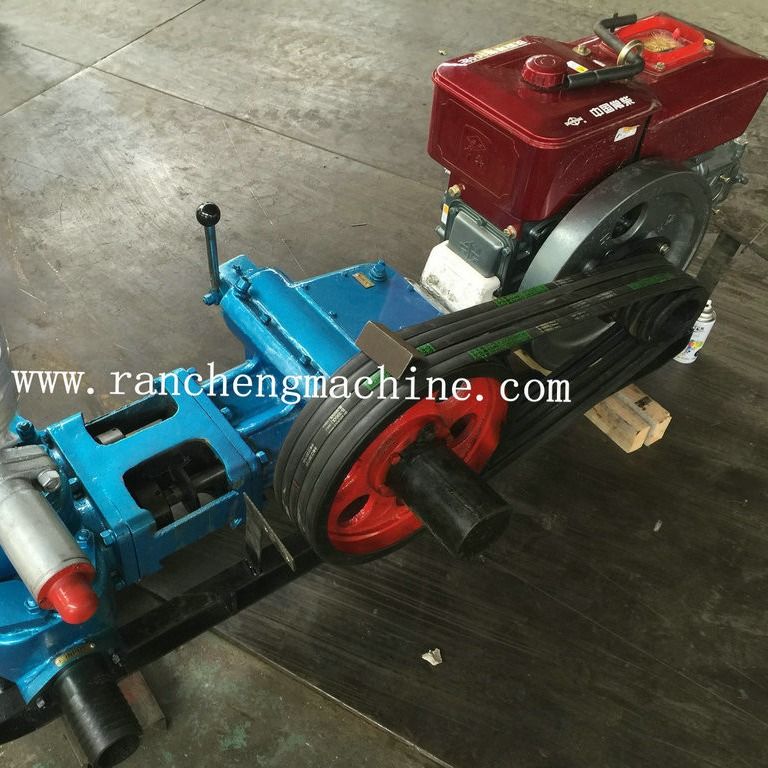

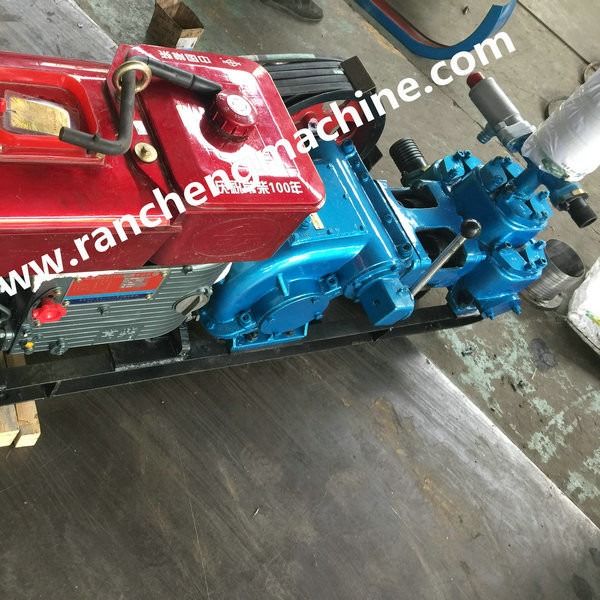

Machine Pictures
