500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed

500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed

20m Wheel Type Auger Piling Rig

1500mm Wheel Type Auger Piling Rig

11m Wheel Type Auger Piling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-11W/13W/15W/20W

Contact Us
Request A Quote
Product Details
Name:
Rotary Drilling Rig
Model:
RCQ-11W/13W/15W/20W
Drilling Diameter:
500-1500mm
Max Drilling Depth:
11/13/15/20m
Powerhead Rotary Speed:
30-50r/min
Highlight:

20m Wheel Type Auger Piling Rig

,

1500mm Wheel Type Auger Piling Rig

,

11m Wheel Type Auger Piling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed

Product Description

Introducing the RCQ Series Wheeled Pile Driver - the ultimate solution for high-speed rail construction and other demanding piling projects. Manufactured using state-of-the-art technology, this high-end equipment is designed to meet the stringent requirements of modern construction while ensuring maximum efficiency and flexibility.



The RCQ Series uses a pressurized drilling method that allows it to achieve a rotary drilling depth of 11 to 20 meters. This feature, combined with the ability to adapt to different drilling tool specifications, allows the rig to accommodate a wide range of pile hole diameters from 500mm to 1500mm. Whether you are working on a large infrastructure project or a small construction site, the RCQ Series is able to handle all tasks with ease.



One of the standout features of the RCQ Series is its high drilling efficiency. This means that you can complete pole installation tasks in a fraction of the time compared to traditional methods, completing projects faster and reducing labor costs. In addition, the design of the equipment makes it easy to move quickly to the next job site, making it ideal for contractors who need their equipment to be mobile and adaptable.



The RCQ Series Wheeled Pile Driver is more than just a piece of machinery; it is a valuable asset for any construction team focused on high-speed rail projects. Its combination of flexibility, practicality and efficiency makes it a unique piling machine for national high-speed railway construction. Invest in the RCQ series now and experience the future of piling technology, where performance and innovation combine to provide unparalleled results for your construction projects.



Product Specifications

Model RCQ-11W RCQ-13W RCQ-15W RCQ-20W
Working mode Pressure type drilling
Drilling diameter (mm) Φ500-Φ1500
Max drilling depth (m) 11 13 15 20
Dimension (mm) 7150X2120x2900 7000X2200X2950 7500X2200X2950 8200X2200X2950
The total weight (t) 7.6 9.5 9.8 10.2
Chassis width(mm) 400
Powerhead torque (KN.m) 17000-22000
Powerhead rotary speed (r/min) 30-50
Max lifting power (KN) 150
Max stroke (m) 11-12
Wire-rope diameter (mm) 16
Rotation angle ( °) 180 360
Travel speed (km/h) 30
Max Grade ability ( °) 25
Diesel engine model Weichai 4108 Weichai 6105
Diesel engine power (KW) 88 110
Diesel engine rotary speed (r/min) 2400 2200


Product Features


1,Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.



2,High returns: small investment, quick gains, economic advantages can not be replaced.



3,Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole .



4,wheel mounted type piling driver ,move by itself ,easy to move.

Product Image

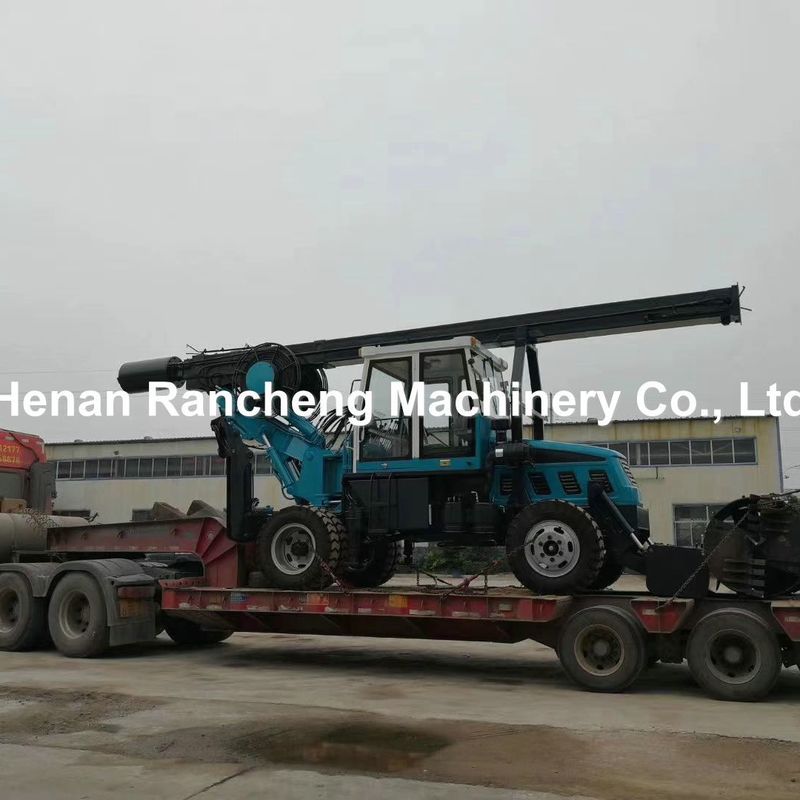

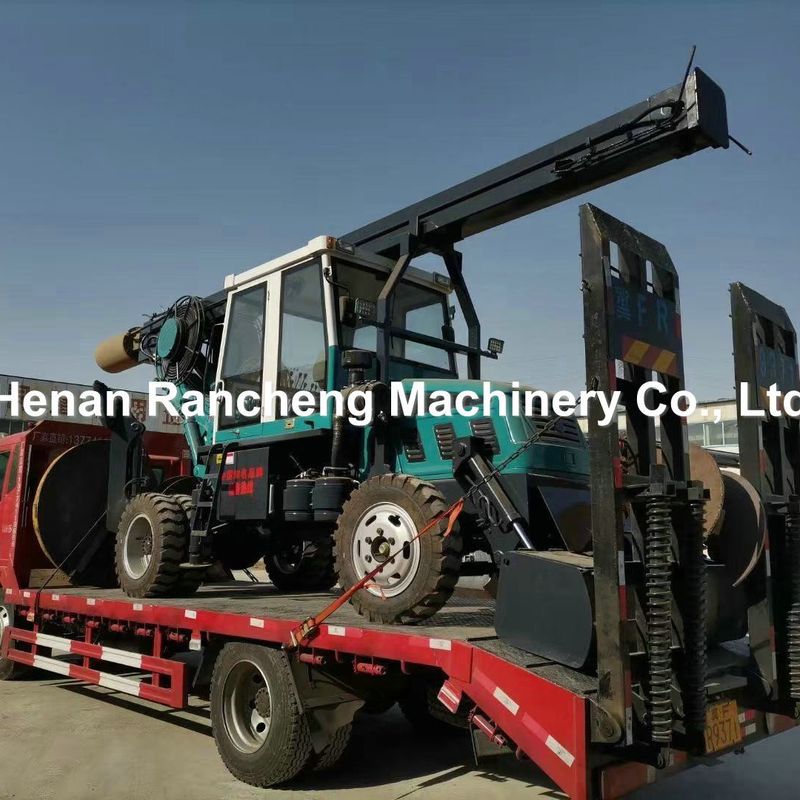

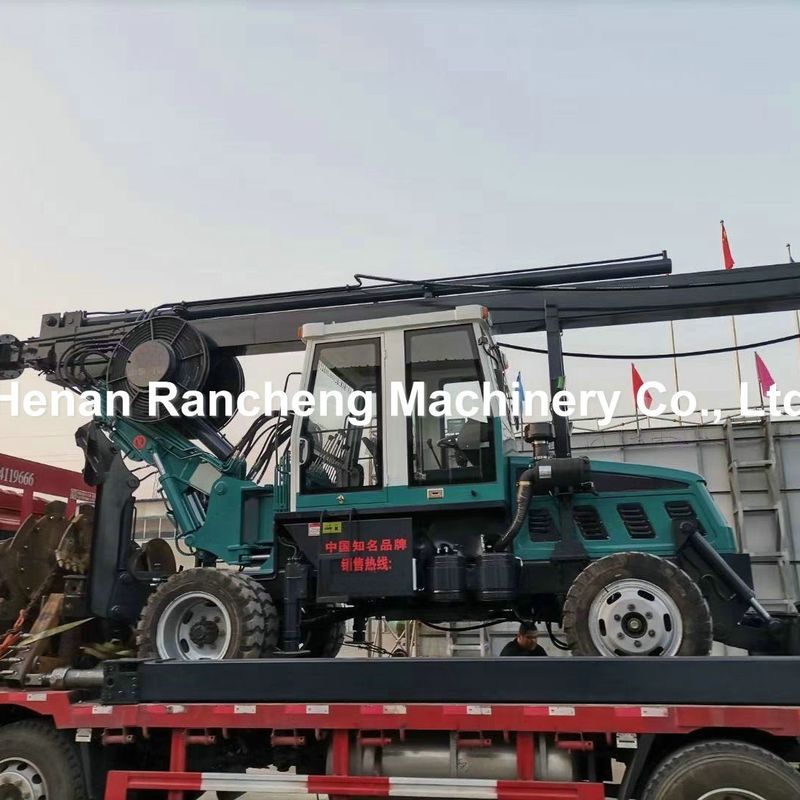

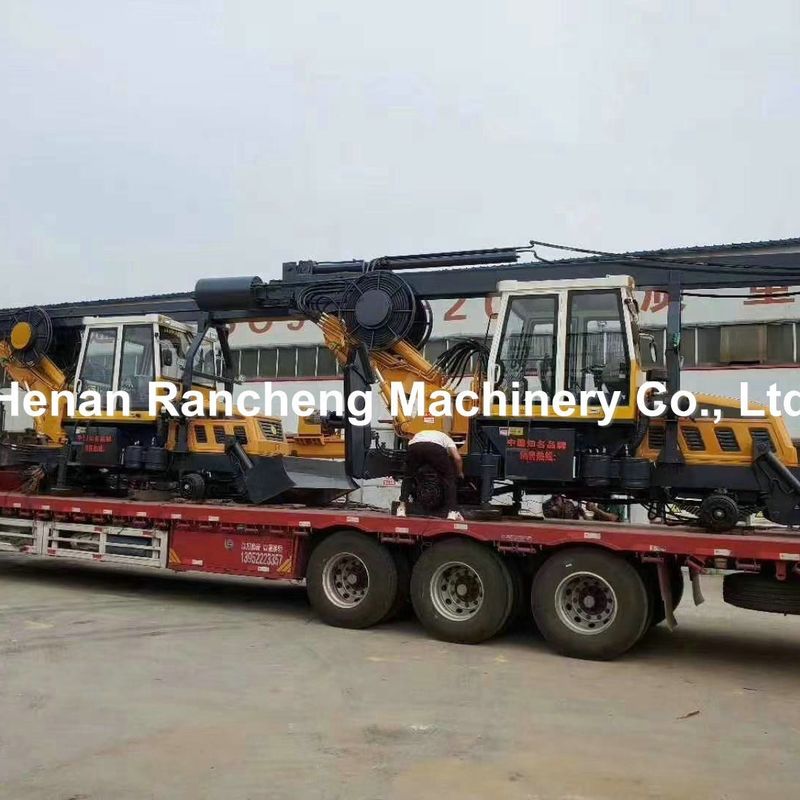

500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed 0500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed 1500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed 2500-1500mm Versatile Wheel Type Auger Piling Rig For 30-50r/Min Powerhead Rotary Speed 3
