Advanced Hydraulic Crawler Core Drilling Rig Powered By 74KW Cummins
Product Description
Introducing the RCDX-2A Full Hydraulic Portable Drill Rig – the ultimate solution for geological exploration in challenging and remote terrains. Designed with versatility and efficiency in mind, this lightweight rig is perfect for diamond drilling using the advanced wireline coring technique.
The RCDX-2A is engineered to tackle the toughest drilling conditions, making it an indispensable tool for geologists and exploration teams. Its robust construction includes a powerful diesel power unit, a sophisticated hydraulic system, and an intuitive control panel, ensuring seamless operation in the field. The rig’s mast and main winch are designed for stability and precision, while the wireline winch and drill head facilitate efficient core retrieval.
What sets the RCDX-2A apart is its fully hydraulic drive system, which powers all surface coring functions. This feature not only enhances the rig’s performance but also reduces the need for manual intervention, allowing operators to focus on the task at hand. The feed system and foot clamp provide additional support and control, ensuring that drilling operations are both safe and effective.
Whether you are conducting mineral exploration, environmental assessments, or geotechnical investigations, the RCDX-2A is your go-to drilling rig. Its portability allows for easy transportation to remote sites, while its advanced hydraulic capabilities ensure that you can achieve precise and reliable results, no matter the conditions.
Invest in the RCDX-2A Full Hydraulic Portable Drill Rig today and experience the perfect blend of power, efficiency, and portability in your geological exploration endeavors. With this state-of-the-art rig, you can confidently tackle any drilling challenge that comes your way.
Product Specifications
| Power unit |
Power |
74KW Cummins diesel engine |
| Speed |
2200rpm |
| Drilling capacity |
BQ |
400m |
| NQ |
230m |
| HQ |
120m |
| Drill head capacity |
Max. spindle torque |
334~1030Nm |
| Max. Spindle speed |
0~900rpm |
| Feeding system (feed with hydraulic cylinder) |
Feeding stroke |
1700mm |
| Lifting capacity |
50kN |
| Feeding capacity |
25kN |
| The capacity of the main hoist |
Lifting capacity |
18kN (single-wire) |
| Lifting speed |
84m/min |
| Rope capacity |
30m |
| Steel wire diameter |
12mm |
| The capacity of wireline winch |
Lifting capacity |
8.4kN (bare drum) |
| Lifting speed |
90~240m/min |
| Rope capacity |
500m |
| Steel wire diameter |
6mm |
| Mud pump |
model |
BW-100A |
| Overall dimensions |
L*W*H in transport position |
3500*1500*1300 mm |
| Dimensions of the disassembled parts (without mud pump) |
The largest part not more than 100kg |
Product Features
1.Full hydraulic and drill head model: the drill head rotation is realized with duplex gear pump and four hydraulic pumps driven by 74KW diesel engine; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed;
2.Crawler mounted, has good climbing ability, easy to move and can work in rugged ground operations; the rig can be applied and performed in narrow space for drilling of hole at 45 degree~90 degree with stronger adaptability;
3.Strong techniques adaptability: besides diamond drilling with wire line coring technique, it is in strong techniques adaptability, it is applicable for the drilling and feeding requirements of any other stratum;

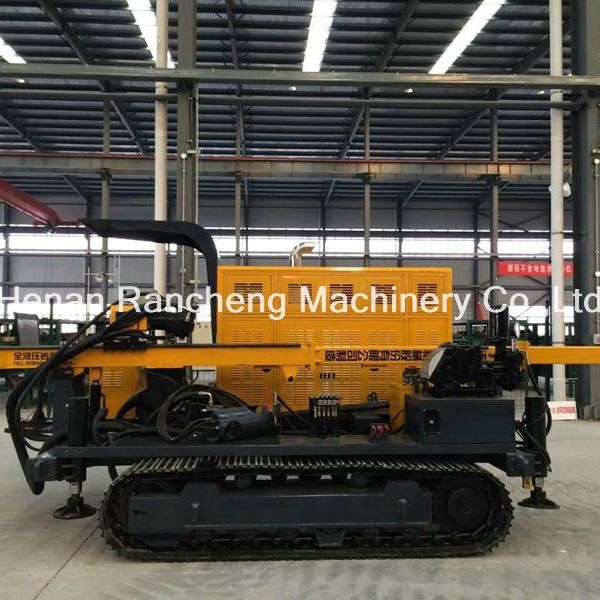

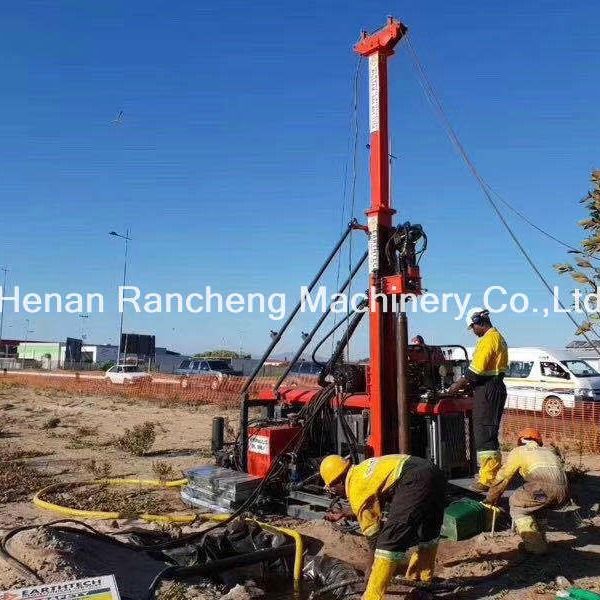

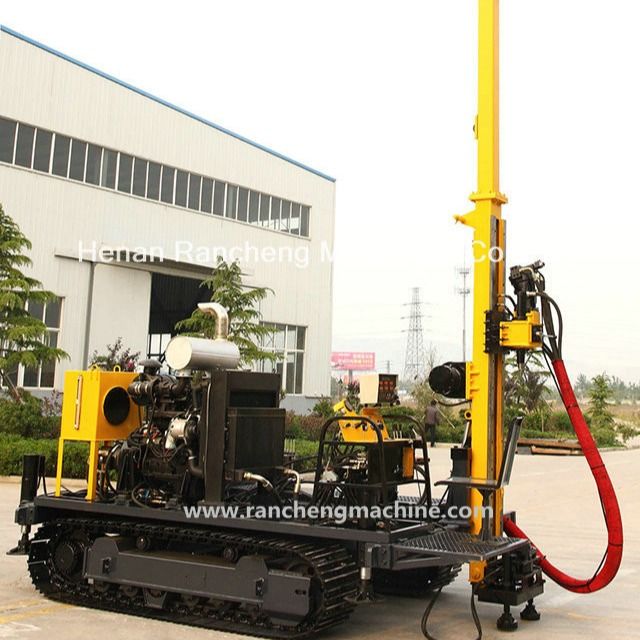

Product Image
