310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well

310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well

310SCYT Portable Screw Air Compressor

4 Wheels Portable Screw Air Compressor

1178 Cfm Portable Screw Air Compressor

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

310SCYT-18-25

Contact Us
Request A Quote
Product Details
Operation Modes:
Two Operation Modes
Rated FAD:
33 M3/min | 1178 Cfm ; 27 M3/min | 964 Cfm
Rated Pressure:
25 Bar ; 18 Bar
Engine:
Xichai Diesel Engine 309 KW
Compression Stage:
2
Diesel Tank Capacity:
485L
Highlight:

310SCYT Portable Screw Air Compressor

,

4 Wheels Portable Screw Air Compressor

,

1178 Cfm Portable Screw Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well



Product Description



The 310SCYT air compressor is a high-performance, reliable mobile air compressor designed to meet the needs of water well drilling rigs, geothermal projects, and other air sources. The product has been optimized and upgraded in terms of continuous use performance and transportation convenience to ensure excellent performance in harsh environments.



It is suitable for down-the-hole drilling, anchor drilling, photovoltaic drilling, rock drilling, water well drilling, and other operating scenarios with a diameter greater than φ138 mm. Its efficient intake valve and optimized airway control system reduce the source of failure and improve the performance of the diesel engine.



Specifications



Model 310SCYT-18-25G 310SCYT-18-25
Type No wheels 4 wheels
Dimension (L*W*H, mm) 3900*2010*2190 4180*2080*2510
Weight (kg) 4900 5300
Operation modes Two operation modes
Rated FAD 33 m3/min | 1178 cfm ; 27 m3/min | 964 cfm
Rated pressure 25 bar ; 18 bar
Engine Xichai diesel engine 309 kW
Compression stage 2
Diesel tank capacity 485 L
Maintenance oil tank 85 L
Exhaust oil content ≤3 PPM
Exhaust temperature 80-110 ℃
Noise level (dB) ≤85 dB
Emission China III



Product Advantages



1. Frame optimization

Higher frame strength enhances traction protection and safety.
The frame is equipped with rubber protection strips. The top load capacity is improved to meet the customer's additional load requirements.



2. Durable pressure pipe design
All pressure pipes are connected with steel pipes to ensure excellent sealing. The pressure pipe is not easy to age, has a beautiful appearance and is durable.



3. High-efficiency air filtration system
The patented safety air filtration unit is matched with a stainless steel intake pipe to improve the dust filtration capacity and effectively prevent dirty air from entering.



4. Modular cooler
Independently designed cooler module. The buffer structure avoids damage caused by the deformation of the shield.
The cooler module unit is easy to replace without disassembling the overall components, making maintenance more convenient.



5. International brand controller
The operation interface is optimized, simple and easy to use, and only 3 switches are required to complete the operation.
Provides automatic preheating, loading and unloading, pressure control, and fuel injection management to ensure safe operation.



6. Convenient maintenance design
The air compressor is equipped with documents and toolboxes for convenient storage and maintenance. It can ensure efficient and safe machine management.



7. Motor protection
Equipped with circuit breakers and power switches, it is easy to operate safer and more reliable.



8. Noise reduction design
The whole body sound-absorbing cotton and rear car muffler design reduce the operating noise by 40% and create a quieter working environment.



Application



  • Water well drilling: It supports the efficient operation of water well drilling rigs and is suitable for various geological conditions.
  • Geothermal engineering: It meets the high gas source demand for geothermal development.
  • Infrastructure: It can be used for photovoltaic power generation, rock drilling, anchor drilling and other basic projects.
  • Other gas source requirements: It is suitable for high-pressure gas source application scenarios such as mines and tunnels.

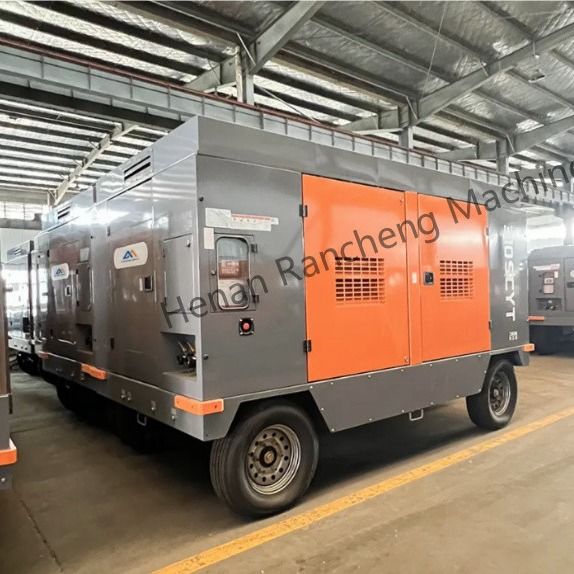

310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well 0

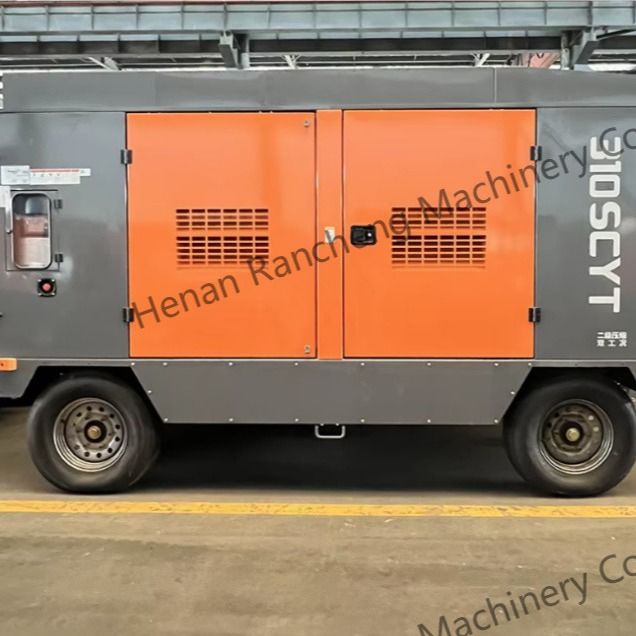

310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well 1

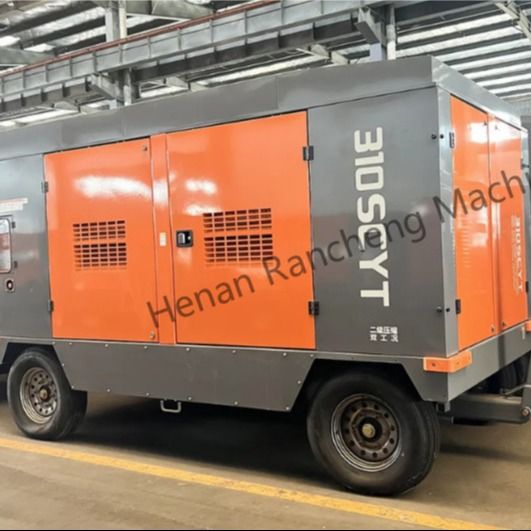

310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well 2

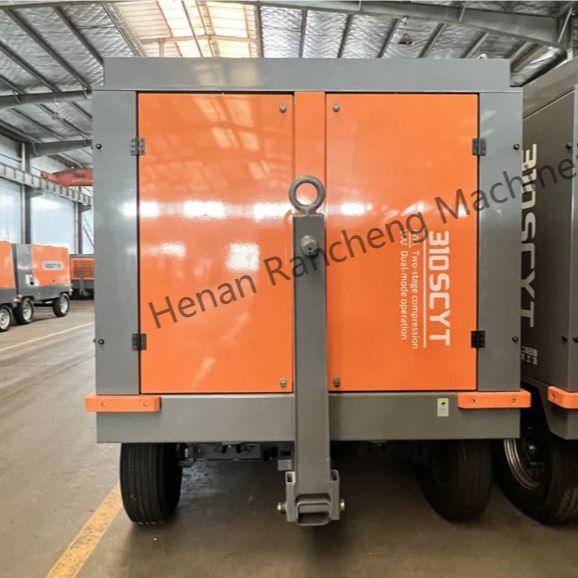

310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well 3



310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well 4



310SCYT 1178 Cfm Portable Screw Air Compressor 4 Wheels For Water Well 5
