Efficient 200m Depth Truck-Mounted Borehole Drilling Equipment
Product Description
Introducing the RCF200T Deep Water Well Drilling Rig – a cutting-edge solution designed for efficiency and performance in various drilling applications. Developed through our independent research and innovation, the RCF200T represents the next generation of Down-The-Hole (DTH) drilling technology, specifically engineered to meet the demands of modern resource exploration and hydrology projects.
Equipped with enhanced air power, the RCF200T significantly accelerates drilling rates, allowing for quicker project completion without compromising on quality. This advanced hydro technology not only optimizes performance but also ensures low fuel consumption, making it an environmentally friendly choice for your drilling needs. The rig’s large rotary torque provides the necessary strength to tackle even the toughest geological conditions, ensuring reliable operation in diverse environments.
The RCF200T is designed with user convenience in mind, featuring a convenient hole deflection system that allows for precise drilling angles and improved accuracy. Whether you are engaged in civil water well projects, agricultural irrigation, or resource exploration, this versatile drilling machine is equipped to handle a wide range of applications with ease.
With its robust construction and innovative features, the RCF200T Deep Water Well Drilling Rig is not just a tool; it’s a reliable partner in your drilling endeavors. Experience the perfect blend of power, efficiency, and convenience with the RCF200T, and elevate your drilling projects to new heights. Invest in the future of drilling technology and ensure your operations are equipped with the best in the industry. Choose the RCF200T for unparalleled performance and reliability in deep water well drilling.
Technical Parameters
| Drilling type |
Mud pump drilling and air DTH drilling |
| Geology drilled |
All kind |
| Drill system and operation |
Hydraulic |
| Drilling diameter (mm) |
115～350 |
| Drilling depth (m) |
200 |
| Work Pressure(Mpa) |
1.05～3.5 |
| Consumption (m³/min) |
16～40 |
| Drill pipe length (m) |
3 |
| Drill pipe diameter (mm) |
89 |
| Axle pressure (N) |
57000 |
| Lifting power (T) |
12T |
| Rotary torque (Nm) |
5600 |
| Rotary speed |
0～100 |
| Truck Chassis |
DONGFENG |
| Diesel engine Model |
Cummins |
| Discharge standard |
Euro III |
| Horsepower |
180HP |
| Rated speed |
2500r/min |
| Fuel type |
diesel |
| Tire size |
90.00-20R |
| Drive form |
4*2 |
| Dimension (mm) |
8900*2100*3300 |
| The total weight (T) |
12 |
Machine Advantages
1.Fully automatic drilling, single operator is needed.
2. The rigs adopt a special automobile truck chassis, and the transfer case, main transmission system, power head, mud pump, air compressor, diesel engine, etc. are all installed on the same truck chassis;
3. The drilling rig has a beautiful appearance, large rotary table torque and fast footage. It is suitable for farmland water conservancy projects, industrial deep water wells, national defense construction, hydrological exploration, geothermal mine water well drilling, and can also be used for other engineering foundation hole construction.
4. After more than 20 years of market test, the drilling rig has reliable quality, simple operation and low maintenance cost. Welcomed by domestic and foreign drilling companies.

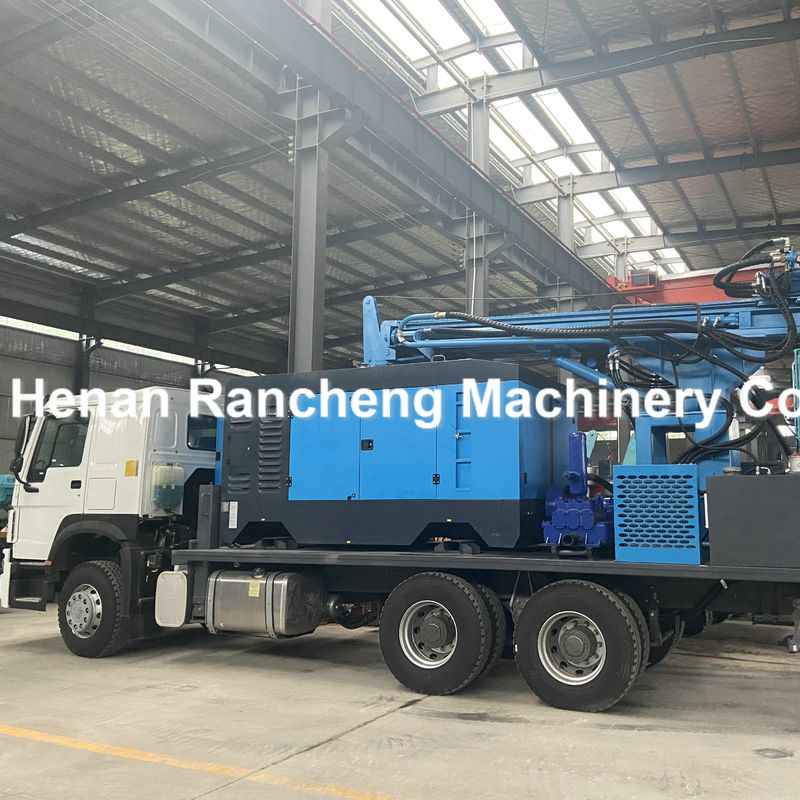

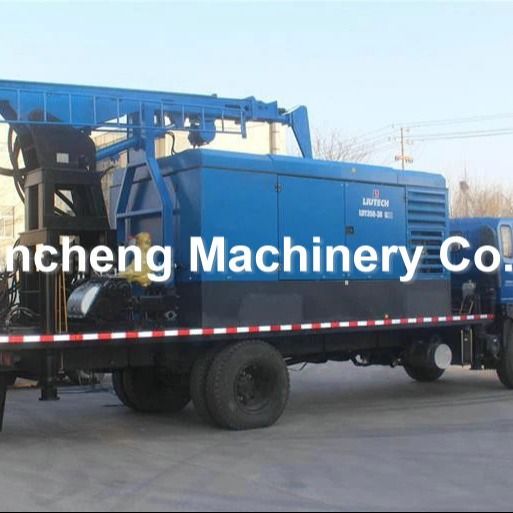

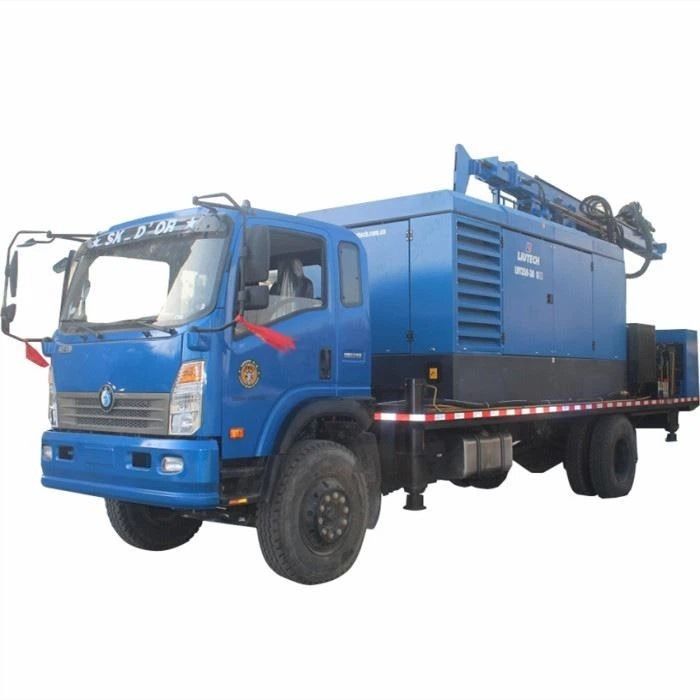

Machine picture display
