280m Depth Truck Mounted Water Well Drilling Rig 210 HP Load Vehicle Engine
Product Description
Introducing the RCF280T Truck-Mounted Water Well Drill: the ultimate solution for all your drilling needs. This state-of-the-art unit offers superior performance and unmatched flexibility, designed to handle a wide range of drilling tasks with ease and efficiency.
With a drilling depth of up to 280 meters, the RCF280T is ideal for commercial and industrial applications. Whether you are drilling for water, geothermal energy or mineral exploration, this rig is up to the task. Its versatile design can accommodate borehole diameters from 140mm to 350mm, making it suitable for a variety of project needs.
One of the standout features of the RCF280T is its dual drilling capability. The rig is equipped with a mud pump and an air compressor, allowing operators to choose the most efficient drilling method depending on the geological conditions. The mud pump drilling method excels in softer rock formations, providing a stable, efficient drilling process. On the other hand, the air compressor drilling method is ideal for penetrating harder rock formations, ensuring you can confidently tackle the toughest challenges.
Designed with durability and reliability in mind, the RCF280T is built to withstand tough working environments. Its rugged construction and advanced technology ensure that you can rely on this platform for consistent performance day after day.
In short, the RCF280T truck-mounted water well drill is your solution. Perfect for high-performance drilling. With its impressive depth capabilities, versatile drilling methods and rugged design, this rig is poised to revolutionize drilling operations. Experience the power and flexibility of the RCF280T and take your projects to the next level!
product Specifications
| Model |
RCF280T |
| Dimension |
10600*2500*3550mm |
| Weight |
23000kg |
| Aperture |
140-350mm |
| Drilling depth |
280m |
| Feed stroke |
6600mm |
| Travel speed |
80Km/h |
| Grade ability |
30° |
| Wind pressure |
1.7-3.0Mpa |
| Air consumption |
17-35m3/min |
| Drill pipe diameter |
φ89/ 102mm |
| Drill pipe length |
3.0/6.0m |
| Lifting force |
18T |
| Rotary speed |
40-70RPM |
| Rotation torque |
4500-6000N.m |
| Mud pump |
BW250 (optional item) |
| Carrying vehicle |
Dongfeng truck |
| Load vehicle engine |
210 HP |
| Driving form |
6X4 |
| Steering wheel |
Right position (optional item ) |
| Air compressor |
30/24,30m3/min ,24bar ,295KW Yuchai engine |
Product Features
1.The RCF280T is a truck - mounted drilling machine designed for drilling tasks in the diameter range of 140 - 350 mm.
2.It can drill to a maximum depth of 280m, has a feed stroke of up to 6,600 mm, and has good 30° slope climbing capabilities.
3.The diameter of the drill pipe is 89 / 102 mm, the length is optional 3 or 6m, it has a lifting force of 18 tons, a rotation speed of 40 - 70 rpm, and a rotation torque of 4500 - 6000 Newton meters.

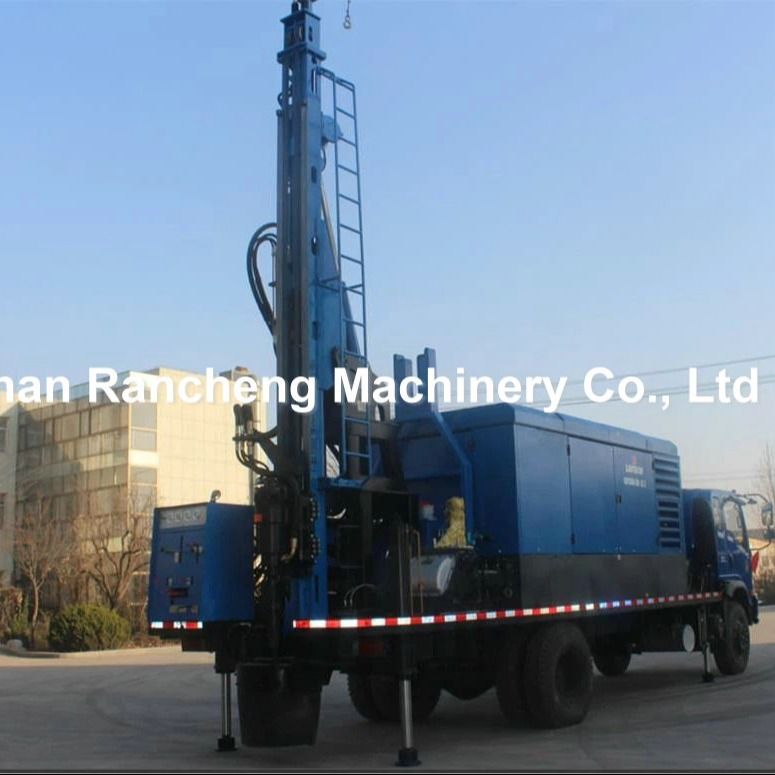

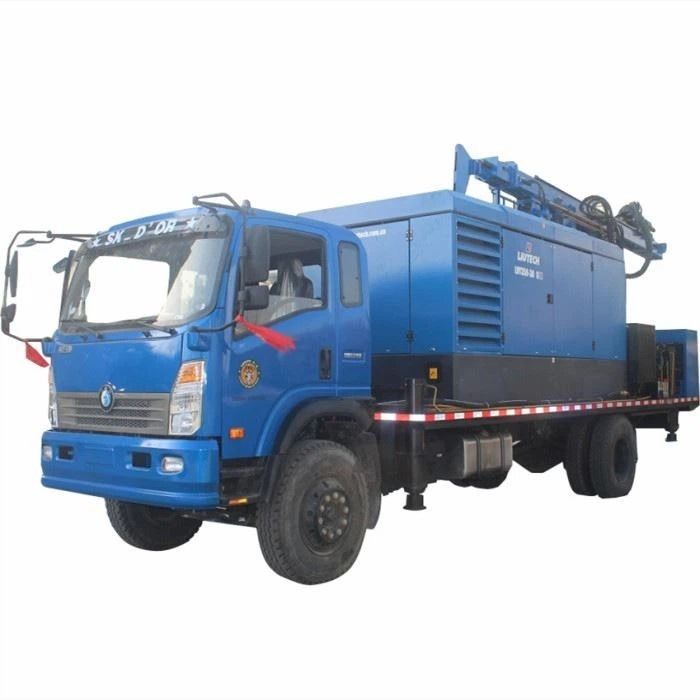

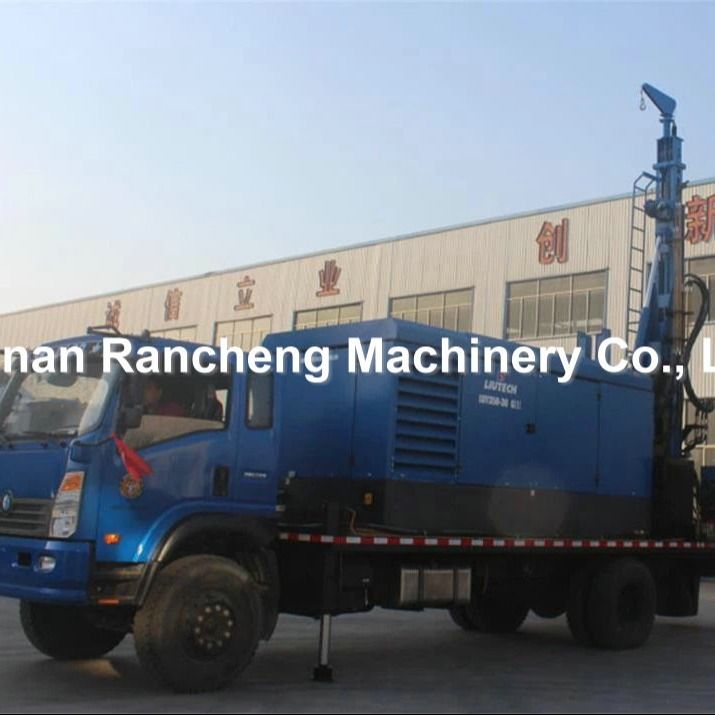

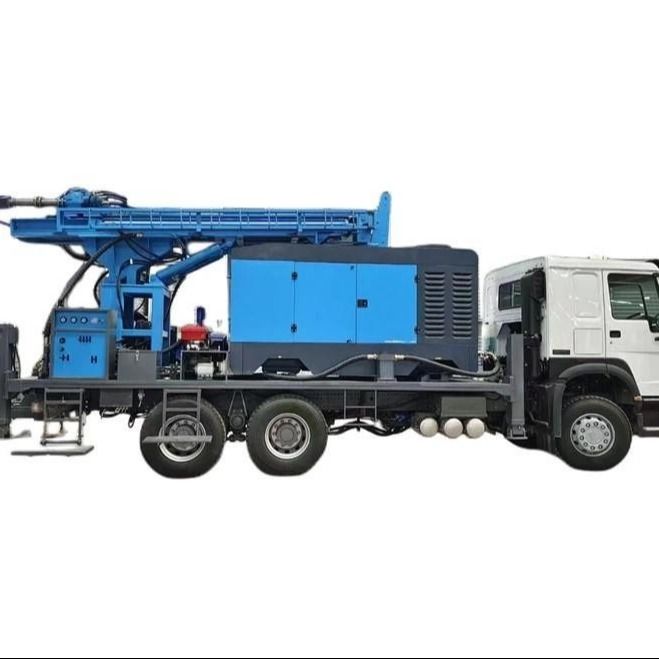

Product Image
