Best Selling 55KW Power 180m deep crawler mounted water well drilling rig machine
Product Description
The RCF180C hydraulic crawler-mounted water borehole drilling rig is a highly versatile and efficient machine developed by Rancheng Machinery. Equipped with advanced two-motor rotary heads, it is designed to operate seamlessly with both mud pumps and air compressors, ensuring excellent performance in a variety of drilling conditions.
This rig is suitable for a wide range of applications, including irrigation well drilling, residential water well drilling, geothermal well drilling, hydrological exploration, and industrial water well projects. Its reliable performance and ease of operation make it ideal for civil and industrial use, delivering consistent results across different geological conditions.
Technical Parameters
| Model |
RCF180C |
| Drilling way |
Mud pump drilling and air DTH hammer drilling |
| Operation system |
Full hydraulic operating |
| Bore diameter(Hammer) |
90-300mm |
| Bore depth |
180m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of the rotary |
3200-4600Nm |
| Rotary speed |
45-70r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
3×1.5×2.2M |
| Weight |
4500kg |
| Diesel engine |
55KW Quanchai |
Advantages
The RCF180C drilling rig offers exceptional efficiency thanks to its fully hydraulic system and top-drive slewing propulsion lifting. It supports various drilling processes and tools, enabling fast drilling speeds and minimal auxiliary time, which significantly enhances operational productivity.
The high hydraulic outriggers simplify loading and transportation, while the rubber crawler chassis ensures stability and ease of movement across different terrains. Powered by a robust 55KW Quanchai engine, the rig delivers reliable and consistent performance. Additionally, its composite tower design features a 3.4-meter long stroke and double-cylinder lift with a 12-ton capacity, providing superior lifting capabilities and versatility for various drilling applications.
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

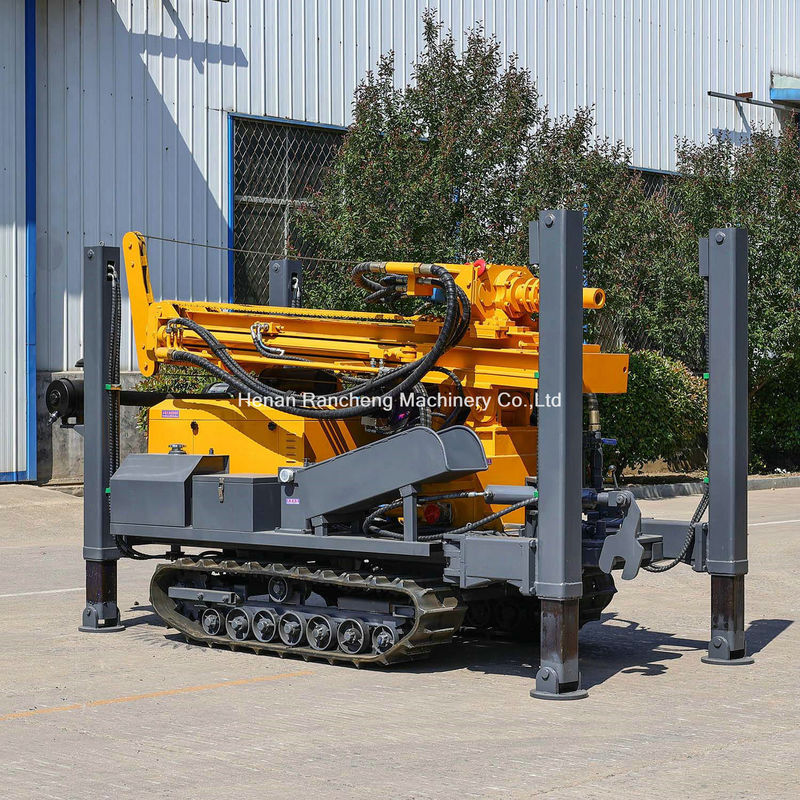

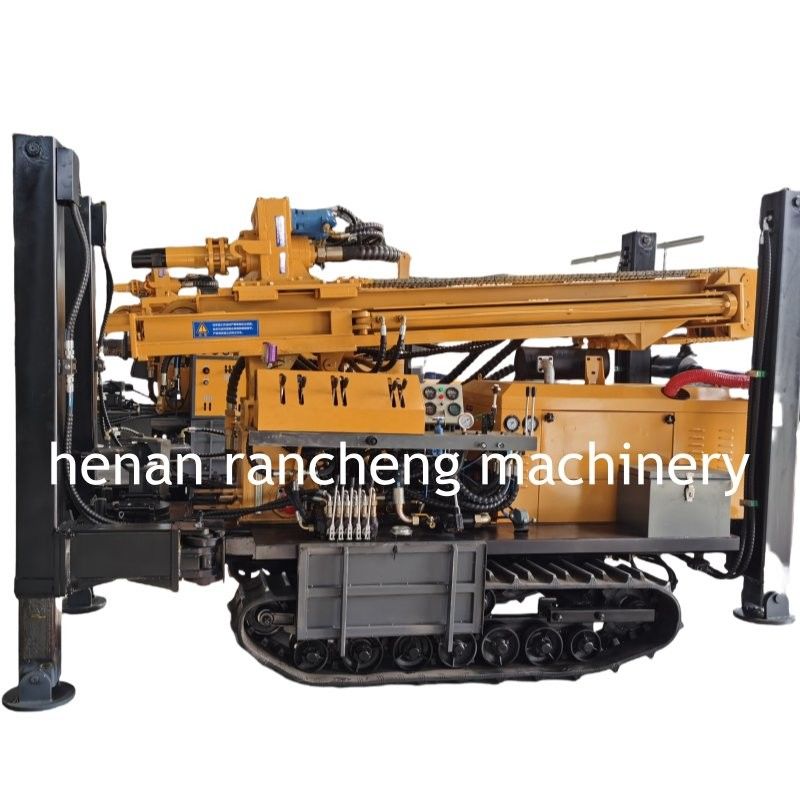

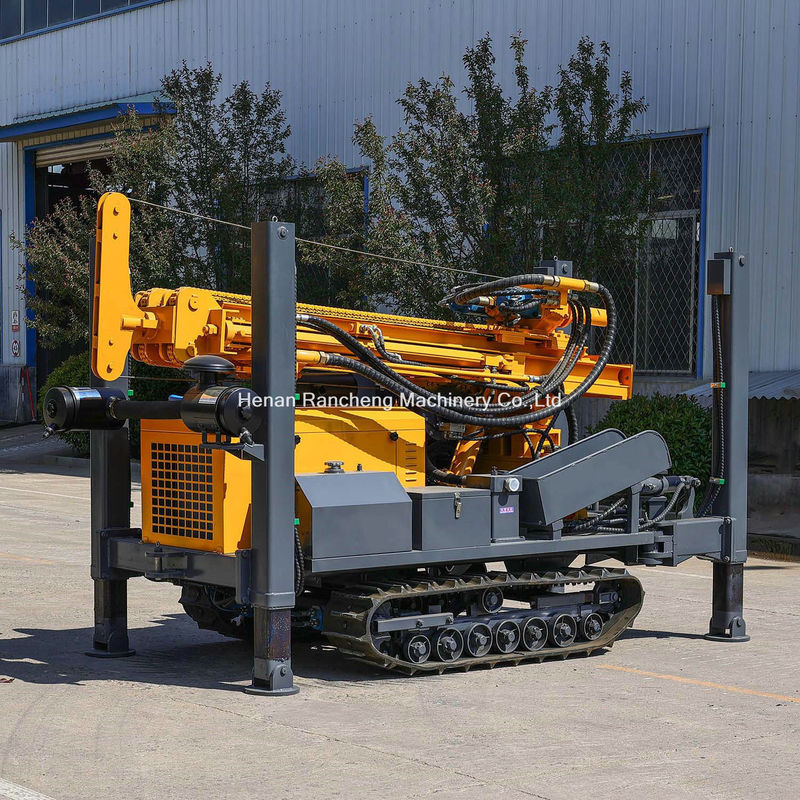

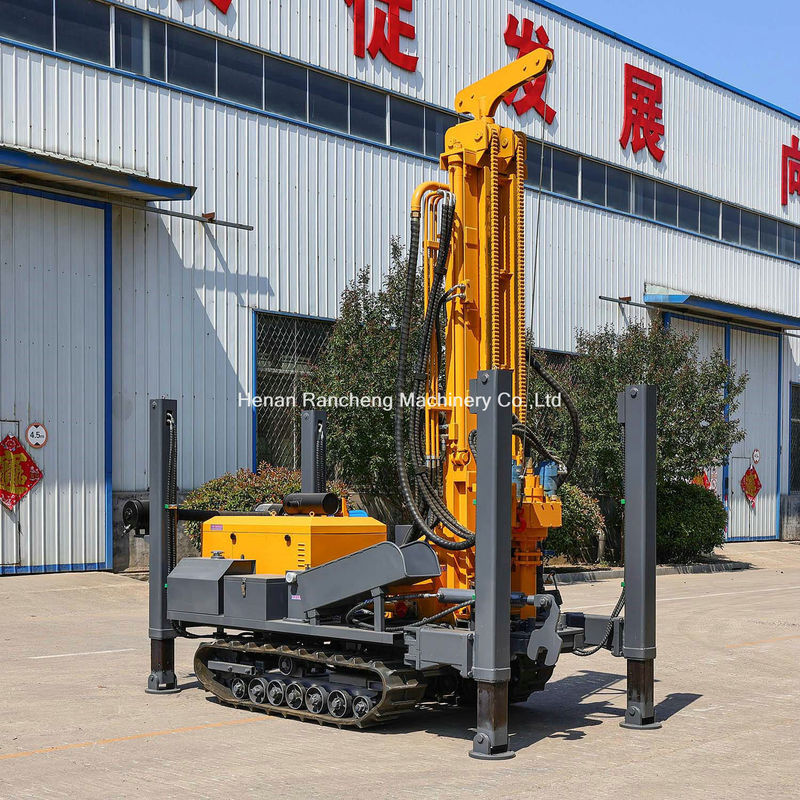

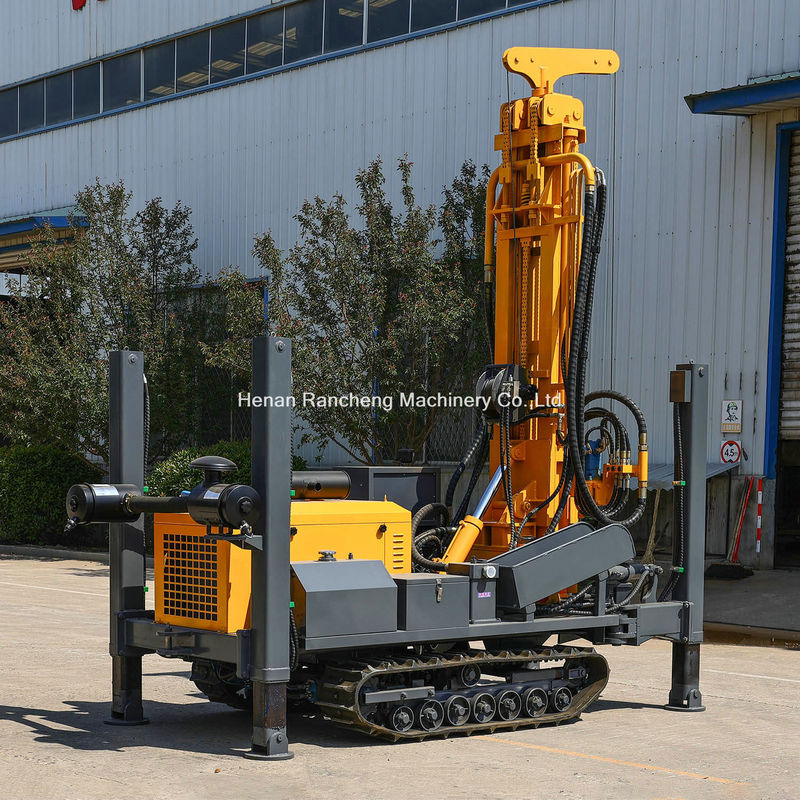

Pictures
