RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine

RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine

Pneumatic Crawler Water Well Machine

Diesel Engine Water Well Machine

400m Drilling Depth Water Well Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Contact Us
Request A Quote
Product Details
Name:
RCF400C Hydraulic Water Well Drilling Rig
Bore Diameter(hammer):
140-350mm
Drilling Depth:
400m
Pipe Diameter:
89mm/102mm
Pipe Length:
1.5m/2m/3m/6m
Max Torque Of Rotary:
6200-9000Nm
Rotary Speed:
66-135r/min
Diesel Engine:
92KW Yuchai Engine
Drilling Way:
Air Compressor Drilling Or Mud Pump Drilling
Highlight:

Pneumatic Crawler Water Well Machine

,

Diesel Engine Water Well Machine

,

400m Drilling Depth Water Well Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine



Machine Introduction



RCF400C crawler water well drilling rig is an efficient and multifunctional fully hydraulic water well drilling rig. Due to its large turntable torque and high drilling efficiency, it is mainly used for industrial and agricultural water wells, national defense building foundations, geological exploration, geothermal wells and other foundation projects.



RCF400C crawler water well drilling rig can use mud drilling in soft formations and air down-the-hole hammer drilling in rocks. It can drill in various formations. Rock drilling uses air down-the-hole hammer and uses air pressure to remove slag. The latter is ten times more efficient than traditional rotary drilling.



RCF400C crawler water well drilling rig can use cutting drilling or rotary drilling operations in loose formations, using mud to remove slag, or impact drilling operations, using pressurized air to remove slag. It is a hydraulic water well drilling rig suitable for drilling in complex geological conditions.

Technical Parameters



Bore diameter(Hammer) 140-350mm
Bore depth 400m
Air consumption 17-36m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1.5m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
Max torque of rotary 6200-9000Nm
Rotary speed 66-135r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2100×2550mm
Weight 9200Kg
Diesel engine 92KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling



Application



1. RCF400C crawler water well drilling rig can use air down-the-hole hammer drilling and mud drilling.



2. Centralized control console, convenient for various operations and controls. Quick lifting, reducing auxiliary time and improving work efficiency.



3. The chassis is equipped with the main transmission system, transfer case, gearbox, double winch unit, mud pump, turntable, drilling tower, feed system, etc.



4. This machine is a hydraulic rotary crawler water well drilling rig with directional circulation function. It can be equipped with a mud pump, using mud as flushing fluid, and equipped with a suitable drill bit, it can drill on clay, sand and rock.



Machine Pictures

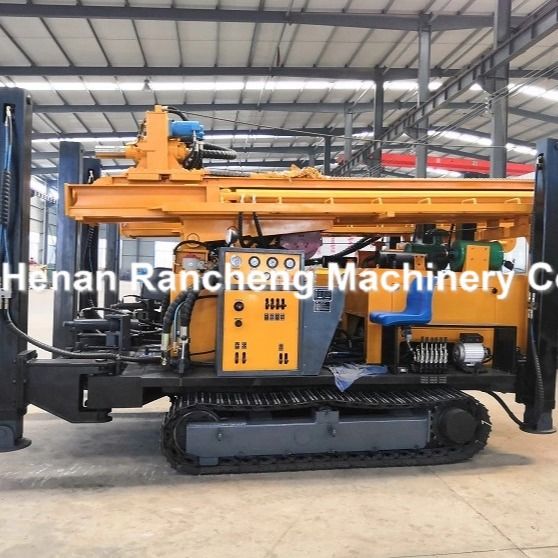

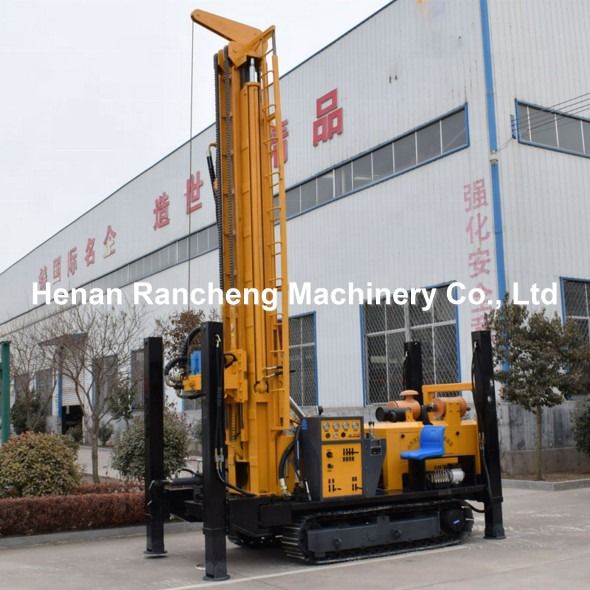

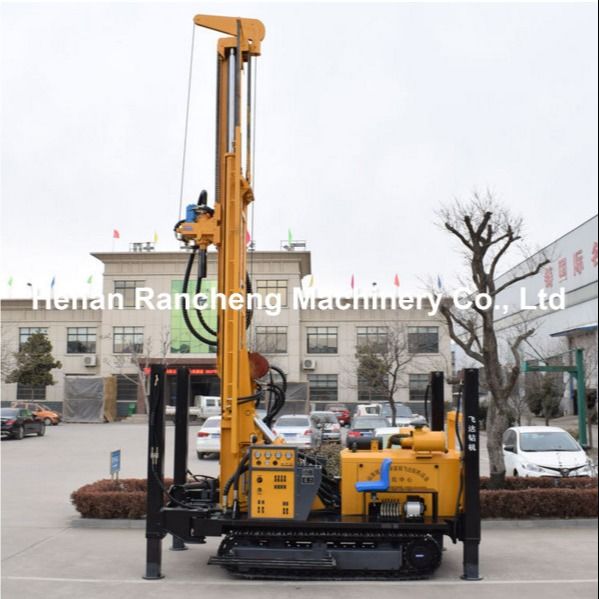

RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine 0RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine 1RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine 2

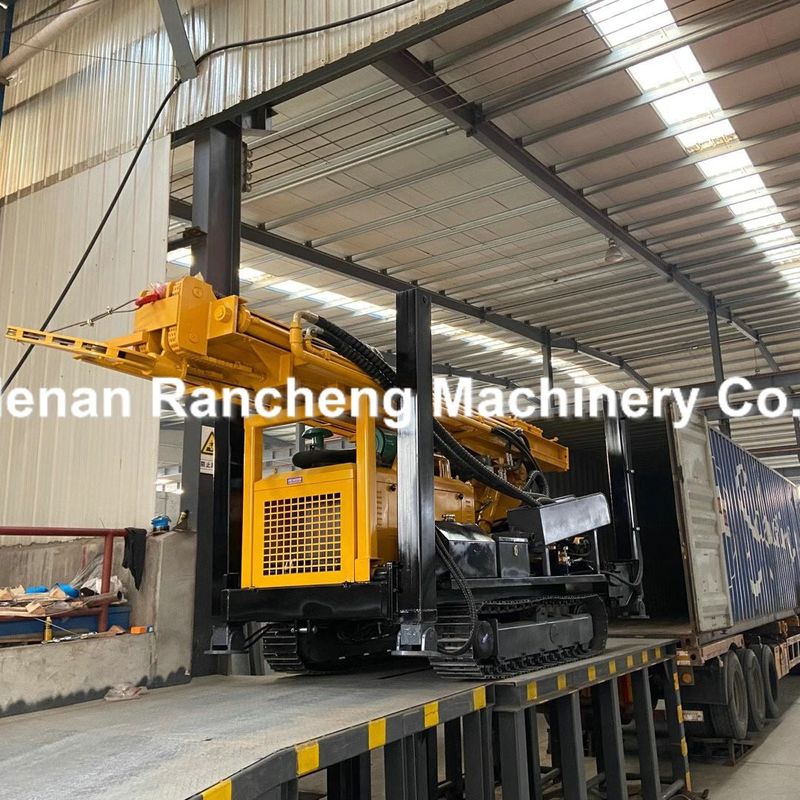

RCF400C 400m Drilling Depth Pneumatic Crawler Water Well Machine Driven By Diesel Engine 3
