Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF400C
400m Depth Water Well Drilling Machine With 9000Nm Max Torque Of Rotary
Machine Introduction
Introducing the RCF400C Multi-Purpose Drill - the ultimate solution for your drilling needs. Designed with versatility and efficiency in mind, this crawler drill can handle a wide range of drilling applications, making it an indispensable tool for construction, mining and geological exploration.
With a drilling depth of up to 400 meters, the RCF400C is able to handle a wide range of geological conditions, ensuring you reach your target depth with ease. With a borehole diameter ranging from 140mm to 350mm, it can flexibly adapt to different projects and requirements. Whether you are doing water drilling, mineral exploration or foundation engineering, this drill delivers exceptional performance.
One of the notable features of the RCF400C is its dual drilling capability. Equipped with a mud pump and air compressor, the drill can effectively handle both mud and air drilling methods. This versatility not only improves the performance of the drill in a variety of environments, but also optimizes the drilling process, reducing downtime and increasing productivity.
The RCF400C is equipped with a powerful 92 KW Yuchai engine, which is well-known for its reliability and efficiency. The powerful engine ensures the platform operates smoothly even in the toughest conditions, giving you the confidence to tackle any project.
Designed with durability and ease of use in mind, the RCF400C features tracks that increase stability and maneuverability on all types of terrain. Its compact size makes it easy to transport and install, making it ideal for both urban and remote areas.
In short, the RCF400C multi-function drill is your ideal solution for efficient, reliable and versatile drilling. Improve your drilling operations with this advanced equipment and watch the difference in performance and productivity.
Technical Parameters
Bore diameter(Hammer) | 140-350mm |
Bore depth | 400m |
Air consumption | 17-36m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 1.5m/2m/3m/6m |
Lifting force | 22T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 20m/min |
Fast feeding speed | 40m/min |
Max torque of rotary | 6200-9000Nm |
Rotary speed | 66-135r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.4m |
Feeding efficiency | 15-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6000×2100×2550mm |
Weight | 9200Kg |
Diesel engine | 92KW Yuchai engine |
Drilling way | Air compressor drilling or mud pump drilling |
Application
1. RCF400C crawler water well drilling rig can use air down-the-hole hammer drilling and mud drilling.
2. Centralized control console, convenient for various operations and controls. Quick lifting, reducing auxiliary time and improving work efficiency.
3. The chassis is equipped with the main transmission system, transfer case, gearbox, double winch unit, mud pump, turntable, drilling tower, feed system, etc.
4. This machine is a hydraulic rotary crawler water well drilling rig with directional circulation function. It can be equipped with a mud pump, using mud as flushing fluid, and equipped with a suitable drill bit, it can drill on clay, sand and rock.

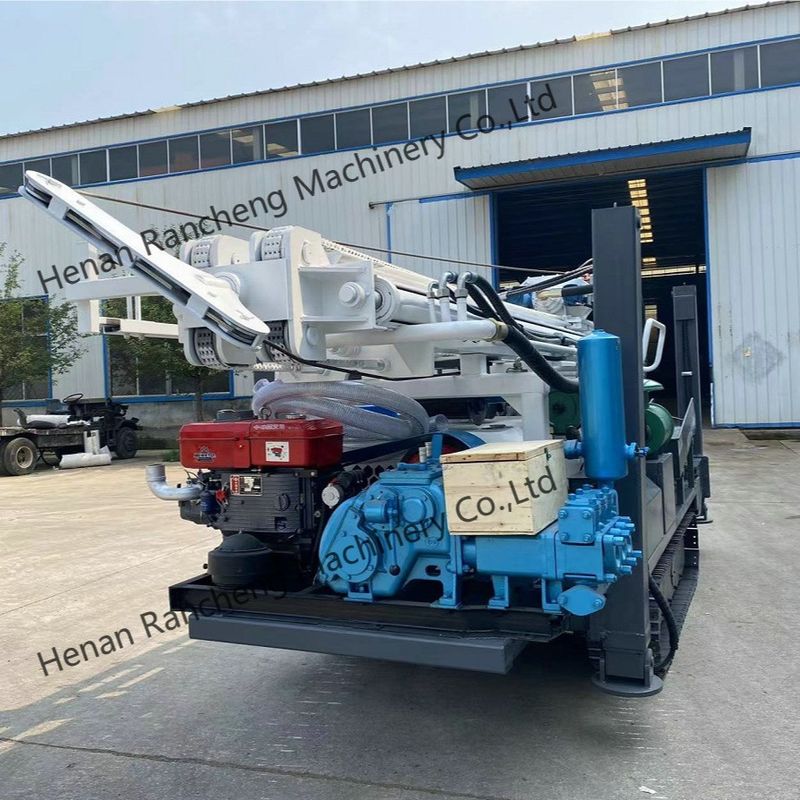

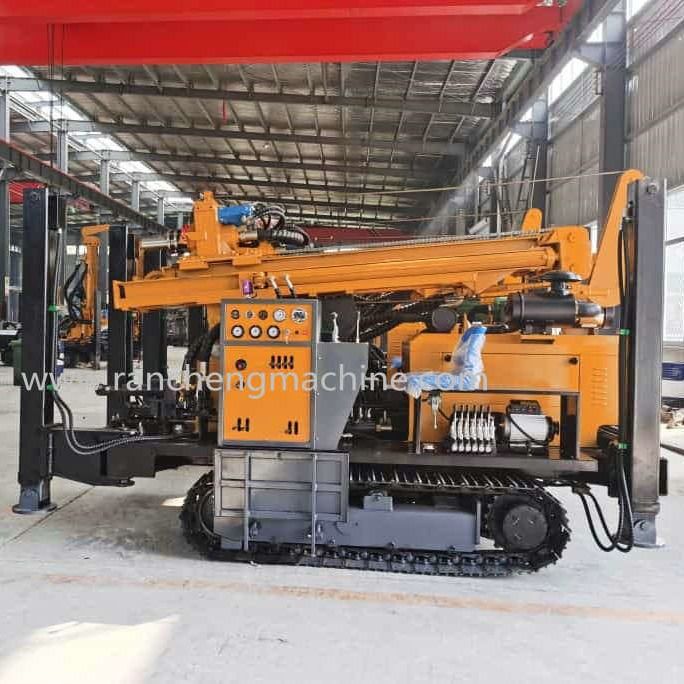

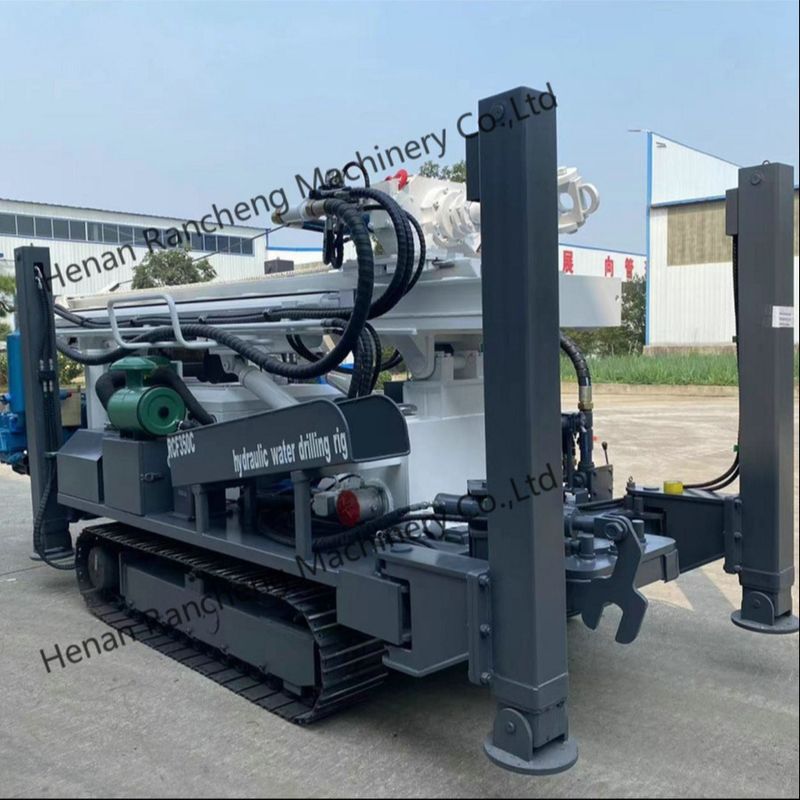

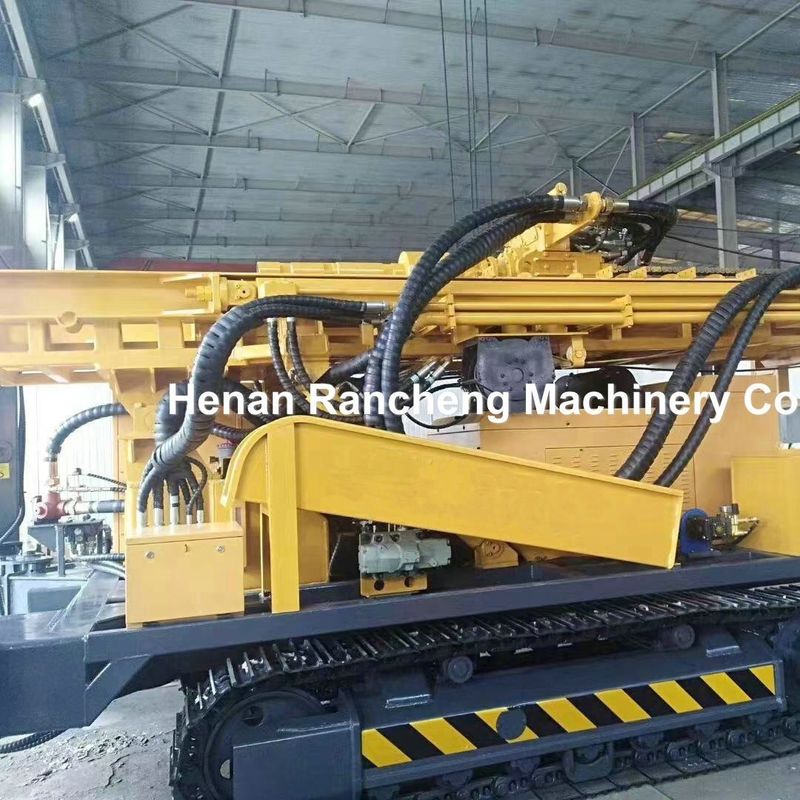

Machine Pictures
