Europe Best Selling 300m High Quality Water Well Drilling Rig Machiner with CE
Product Description
The RCF300C hydraulic crawler-mounted deepwater drilling machine is designed for drilling depths up to 300 meters. It integrates advanced hydraulic technology and a top head driving system, providing powerful rotary torque for efficient drilling. The rig’s compact structure ensures easy maneuverability while maintaining stability during operation, thanks to its adjustable compensation mast. When drilling, the mast is securely supported on the ground, ensuring excellent borehole stability.
This deep well drilling rig is ideal for a wide range of applications, including irrigation wells, home water wells, geothermal wells, hydrology wells, and industrial drilling projects. It offers both reliability and flexibility, making it suitable for various drilling environments. Whether for domestic, agricultural, or industrial purposes, the RCF300C is built to meet the demanding requirements of deep well drilling projects.
Technical Parameters
| Model |
RCF300C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
300m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4200×2200×2600mm |
| Weight |
7200Kg |
| Diesel engine |
85KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
Advantages
The RCF300C drilling rig is equipped with four high hydraulic outriggers, which make loading and transportation more convenient, eliminating the need for a crane. The rig is mounted on a professional excavator chassis, providing long service life and excellent mobility, even in muddy or challenging terrains.
With high configuration, the rig features key components and hydraulic systems from renowned brands. The mainframe is constructed using high-quality, high-strength low-carbon alloy steel, ensuring enhanced durability and resistance to wear.
The hydraulic system is designed with a parallel gearbox that separates the oil pump unit, allowing for better power distribution and reducing maintenance costs. Additionally, the 75.8KW Yuchai diesel engine ensures reliable performance, offering sufficient power for efficient drilling.
The composite tower design offers a 3.4-meter long stroke with double-cylinder lifting capacity of up to 18 tons, providing strong lifting power for handling heavy loads and ensuring smooth operation.

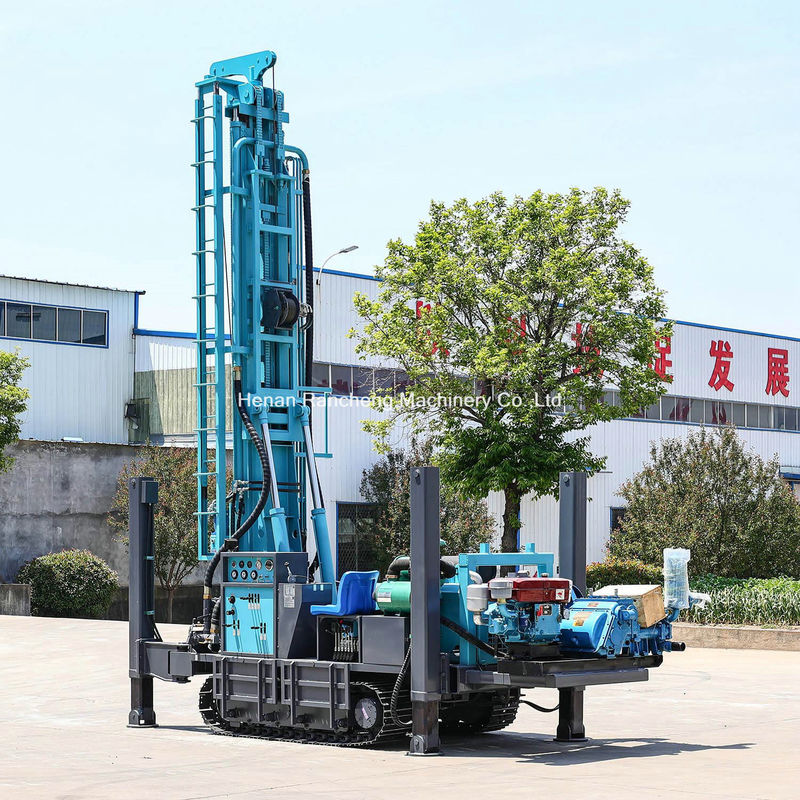

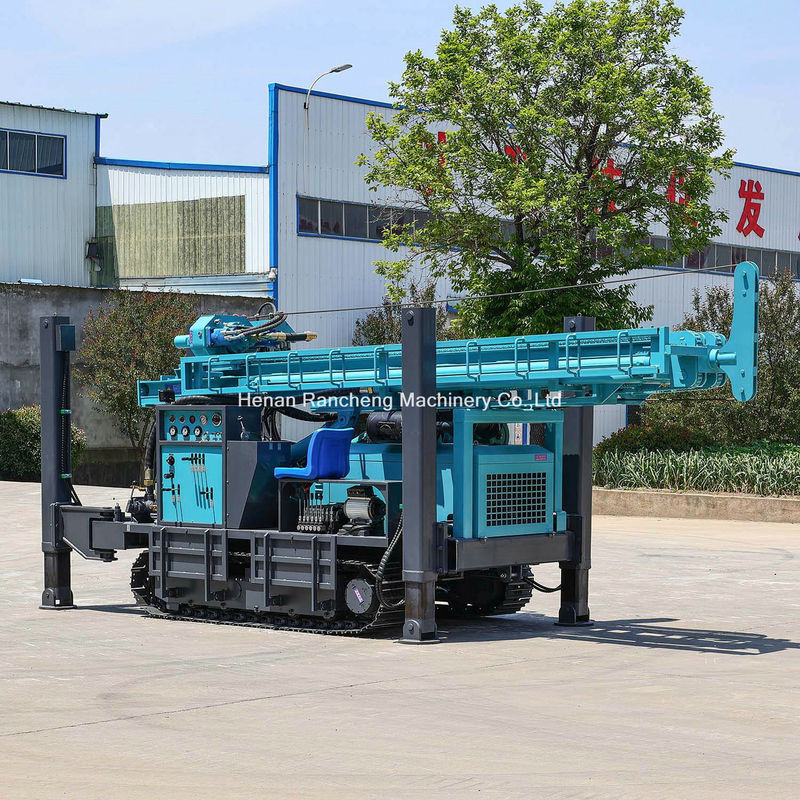

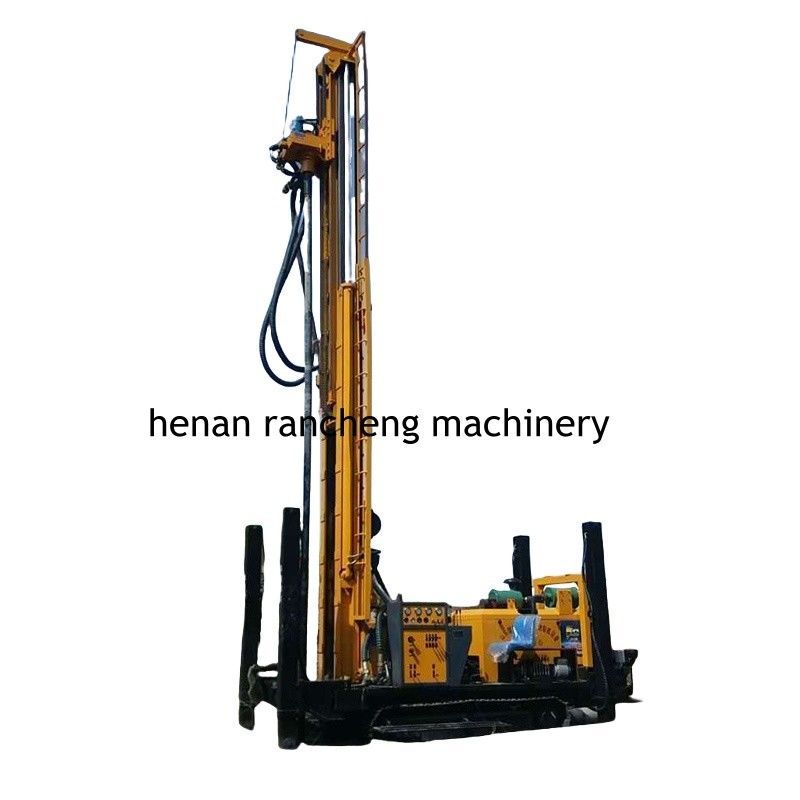

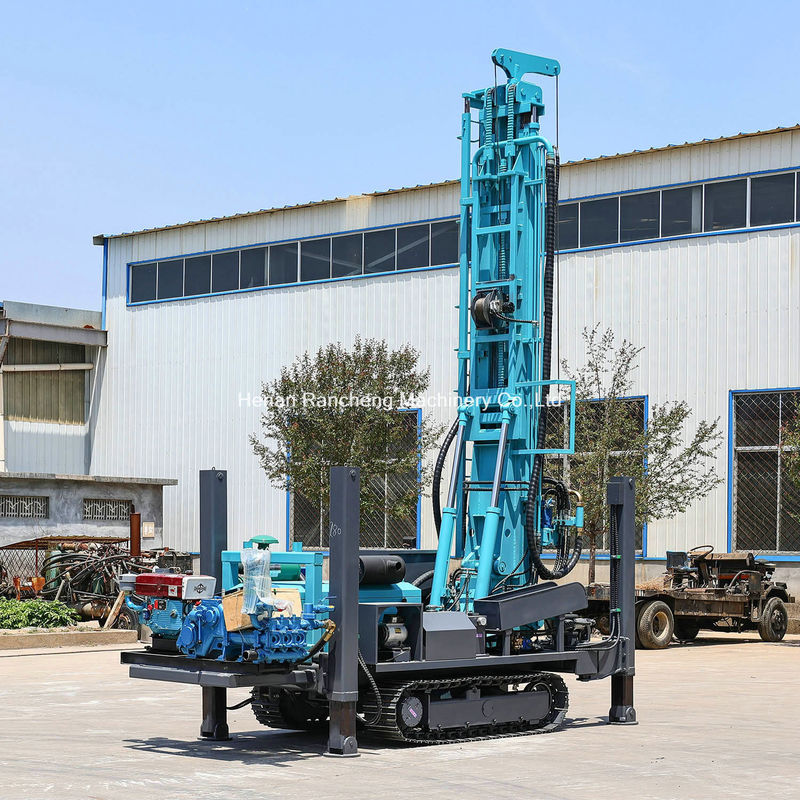

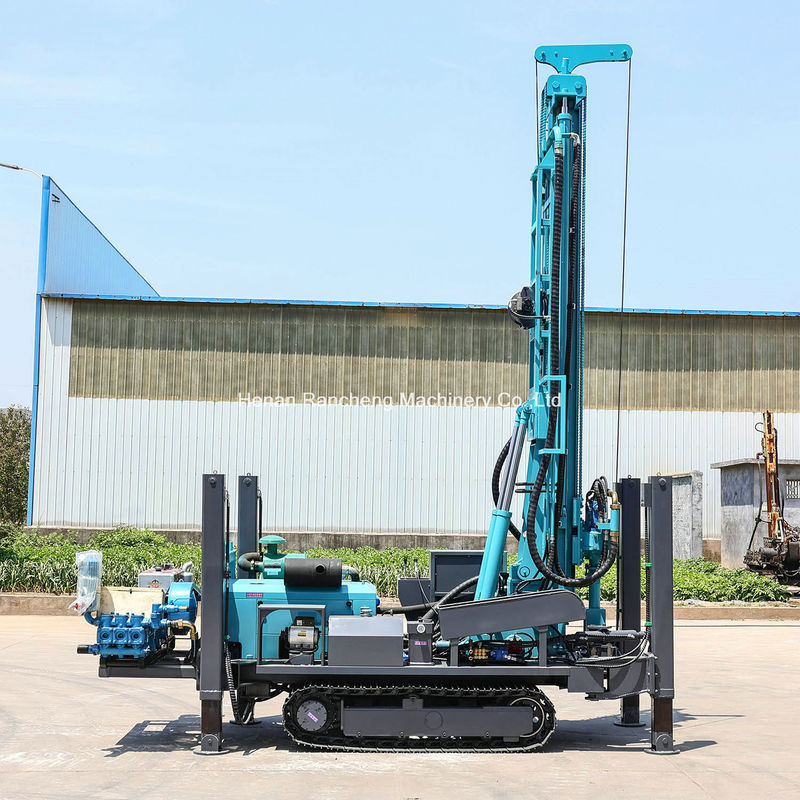

Machine picture display
