RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling For Blasting Hole

RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling For Blasting Hole

RC160Y Hydraulic Drilling Rig

Blasting Hole Drilling Rig

80m DTH Air Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC160Y

Contact Us
Request A Quote
Product Details
Name:
RC160Y DTH Air Drilling Rig
Bore Diameter(mm):
80-160
Mast Compensation(mm):
1200
Propel Speed(M/s):
0.6
Maximum Propel(kn):
12
Maximum Pull(kn):
26
Mast Length(mm):
5350
Once Promotion(mm):
3200
Highlight:

RC160Y Hydraulic Drilling Rig

,

Blasting Hole Drilling Rig

,

80m DTH Air Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling for Blasting Hole



Product Description



RC160Y high wind pressure crawler open-pit hydraulic drilling rig has the advantages of low energy consumption, high efficiency, field operation, and convenient transportation. The whole machine movement is realized by the hydraulic system, and only the down-the-hole hammer uses wind power, which greatly saves the cost of the air compressor.



The new rotary power head can provide and maintain a strong rotary torque output during the blasting hole construction process. When dragging the air compressor, the drilling rig is flexible and has strong climbing ability. It is suitable for working in rugged sites and is convenient for drilling.



The rotary mechanism of the down-the-hole drilling rig adopts a new dual-motor turret, which enables it to maintain a strong rotary torque output when drilling large holes during open-pit blasting drilling operations. When dragging the air compressor, it is flexible and has strong climbing ability. It is suitable for working in rugged sites and is convenient for perforation and displacement.



Product Specifications



Bore diameter(mm) 80-160
Bore depth(m) 80
Rotation speed(rpm) 80
Rotary Torque(N.m) 3600
Mast compensation(mm) 1200
Propel speed(M/s) 0.6
Maximum propel(kn) 12
Maximum pull(kn) 26
Mast length(mm) 5350
Once promotion(mm) 3200
walk speed(km/h) 3
Chassis floating(º) 10
Chassis height(mm) 330
Climb ability(º) 35
Diesel engine Cummins
Transport Dimension(L*W*H)(mm) 5350*2310*2450
Weight(kg) 6900



Product Features



1. The hydraulic motor of this drilling rig has low speed and large torque

2. This blast hole drilling rig adopts oil cylinder propulsion and has stable performance

3. Two-stage air filter to ensure air quality and extend the life of diesel engine

4. Multi-valve control system, easy to operate

5. Automatic monitoring of hydraulic and propulsion pressure

6. This hydraulic drilling rig is equipped with a crawler tensioning device to ensure operation reliability

7. This down-the-hole drilling rig is equipped with a spotlight to facilitate night operation and maintenance

8. This drilling rig has a compact structure and safe operation.

9. This blast hole drilling rig has the characteristics of flexibility, strong climbing ability, convenient perforation and displacement, and is suitable for operation in rugged sites.

10. The whole machine has a diameter of 105-165mm, with high perforation efficiency, simple maintenance and high reliability



Application

This hydraulic drilling rig is one multifunctional drilling machine,widely used for open pit mining blast hole drilling ,quarry blast hole drilling , highway blast hole drilling, water conservancy, power station construction, anchor drilling,soil nailing, and other construction drilling



Product Image

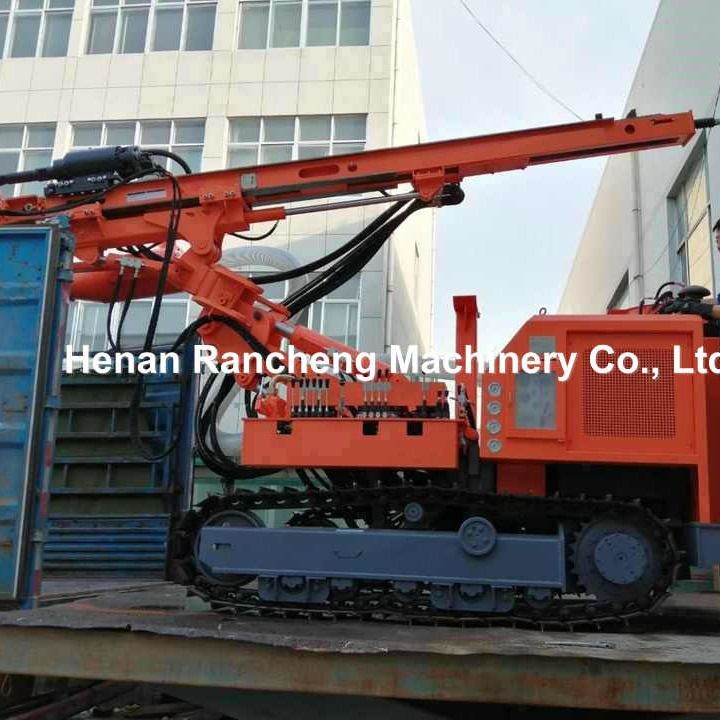

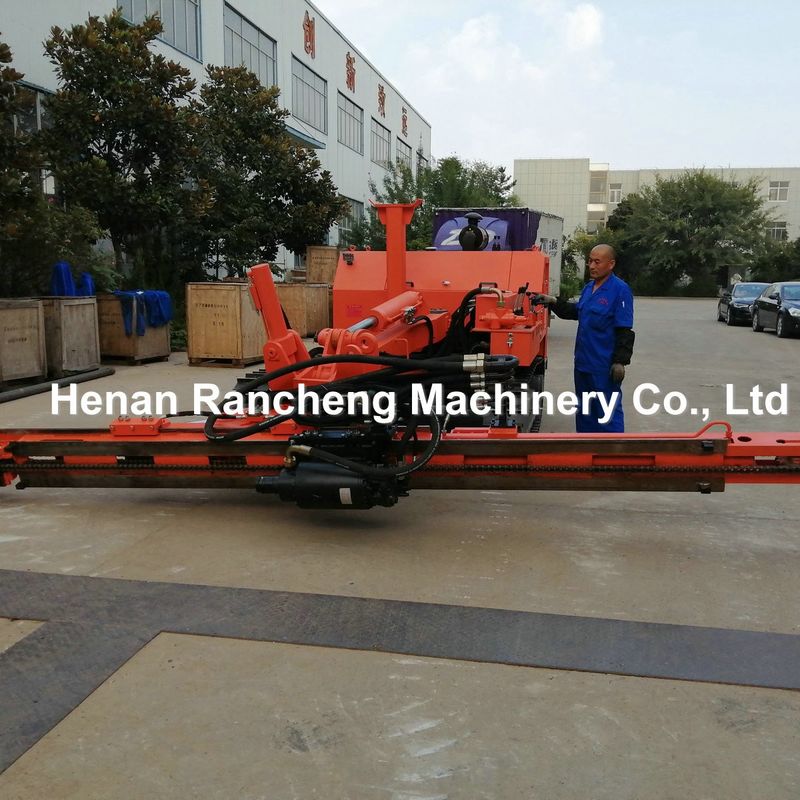

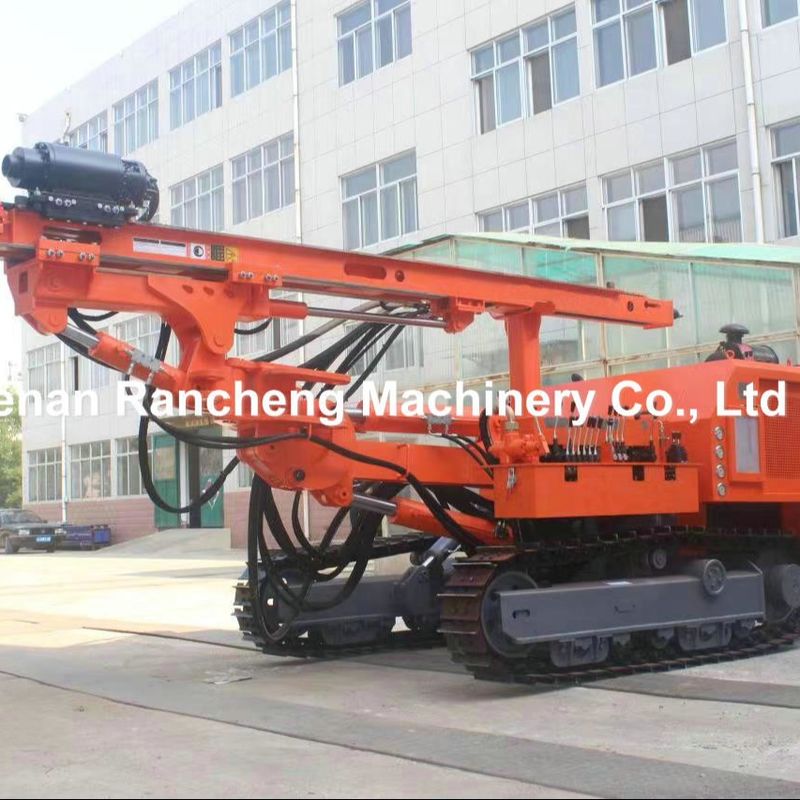

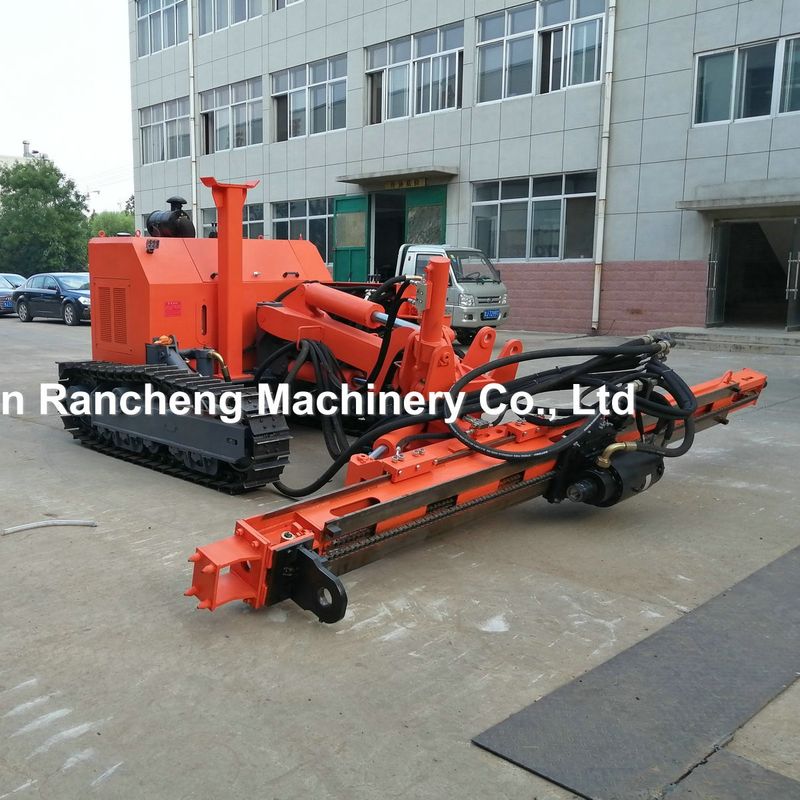

RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling For Blasting Hole 0RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling For Blasting Hole 1RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling For Blasting Hole 2RC160Y Hydraulic Drilling Rig 80m DTH Air Drilling For Blasting Hole 3
