Crawler-Mounted DTH Hydraulic Water Well Drilling Rig 180m Deep Ground Crawler Drilling Rig Machine
Machine Description
Introducing the RCF180S Small Water Well Drilling Rig – the ultimate solution for all your drilling needs! Designed with efficiency and versatility in mind, this compact crawler rig is engineered to tackle a variety of drilling applications, making it an essential tool for contractors, farmers, and water resource professionals alike.
With an impressive drilling depth of up to 180 meters and a diameter capacity of 300 mm, the RCF180S is capable of reaching deep underground water sources, ensuring that you can access the vital resources you need. Whether you are drilling for water wells, boreholes, or farmland irrigation, this rig delivers exceptional performance and reliability.
One of the standout features of the RCF180S is its high drilling efficiency. Equipped with advanced technology, this rig allows for faster drilling times without compromising on quality. The user-friendly design ensures that operators can easily navigate and control the rig, making it suitable for both experienced drillers and those new to the field.
Energy efficiency is at the forefront of the RCF180S design. This small water well drilling rig is built to minimize fuel consumption while maximizing output, making it an environmentally friendly choice for your drilling projects. Its durable construction ensures longevity, allowing you to rely on this rig for years to come.
In summary, the RCF180S Small Water Well Drilling Rig is a powerful, efficient, and versatile tool that meets the demands of various drilling applications. Whether you are looking to drill for water, create boreholes, or irrigate farmland, this rig is your go-to solution. Invest in the RCF180S today and experience the difference in your drilling operations!
Technical Parameters
| Bore diameter(hammer) |
90-300mm |
| Bore depth |
180m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Once-time advance length |
2.4m |
| Pipe diameter |
76mm/89mm |
| Pipe length |
2m |
| Push force |
4T |
| Lifting force |
15T |
| Max torque of rotary |
4000-4600Nm |
| Rotary speed |
45-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
2300×1200×1900mm |
| weight |
2700kg |
| Diesel engine |
77.3KW Yuchai engine |
Feature:
1.High Efficiency
Equipped with a hydraulic system and advanced drilling tools, the mini well drilling rig can drill up to 180m deep, making it an ideal choice for small water well projects.
2.Operating Easily
Its crawler chassis has excellent stability and maneuverability, allowing it to travel over rough terrain and difficult drilling conditions. The ergonomic control panel and user-friendly interface allow the operator to easily control and monitor the drilling progress.
3.Durability
Made of high-quality materials and advanced manufacturing processes, mini well drilling rig has a sturdy structure that can withstand harsh drilling conditions and can be used for many years with minimal maintenance.

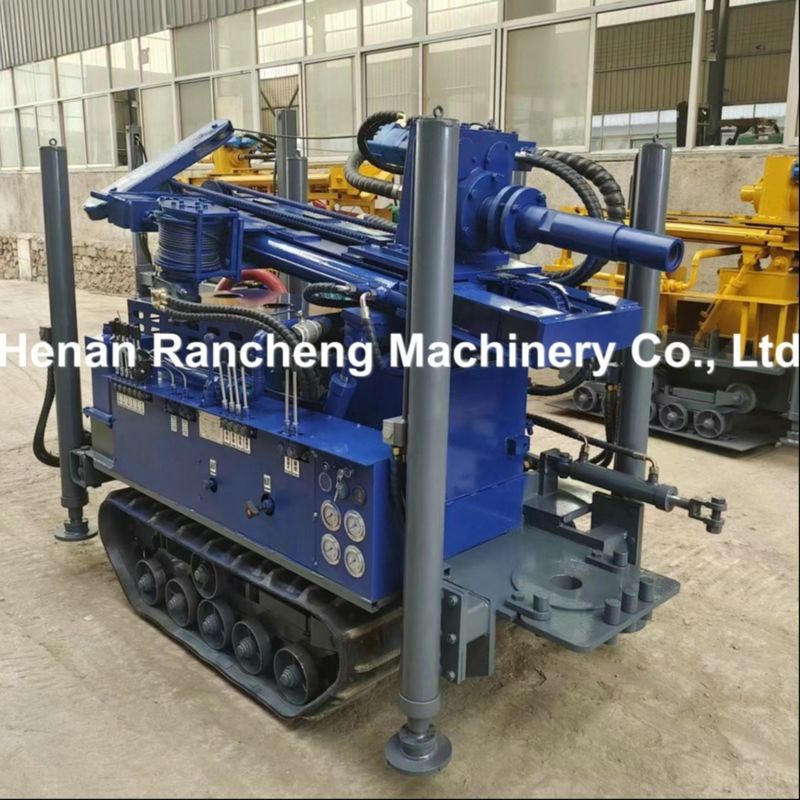

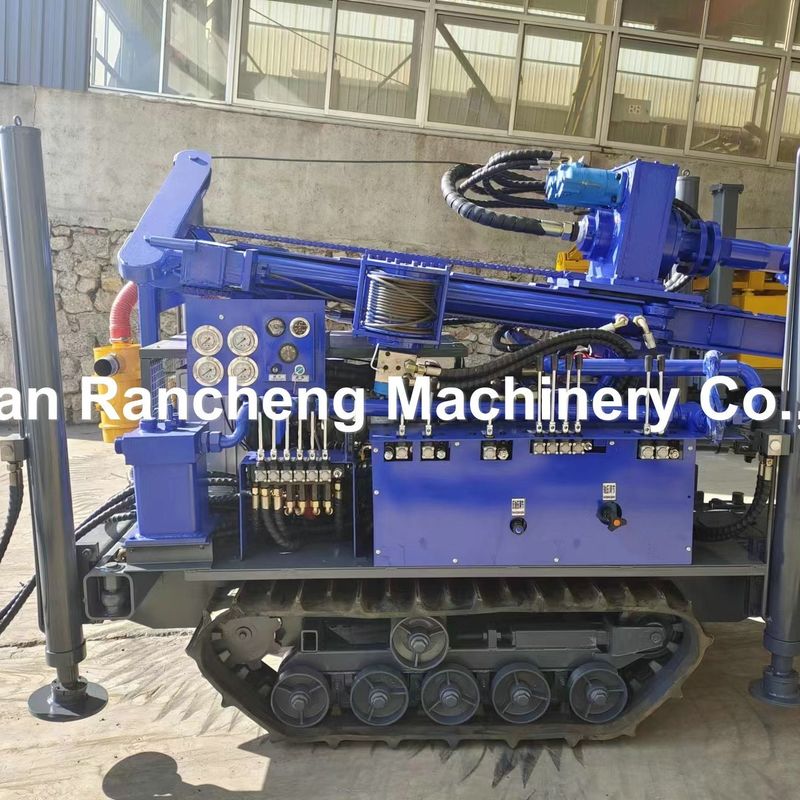

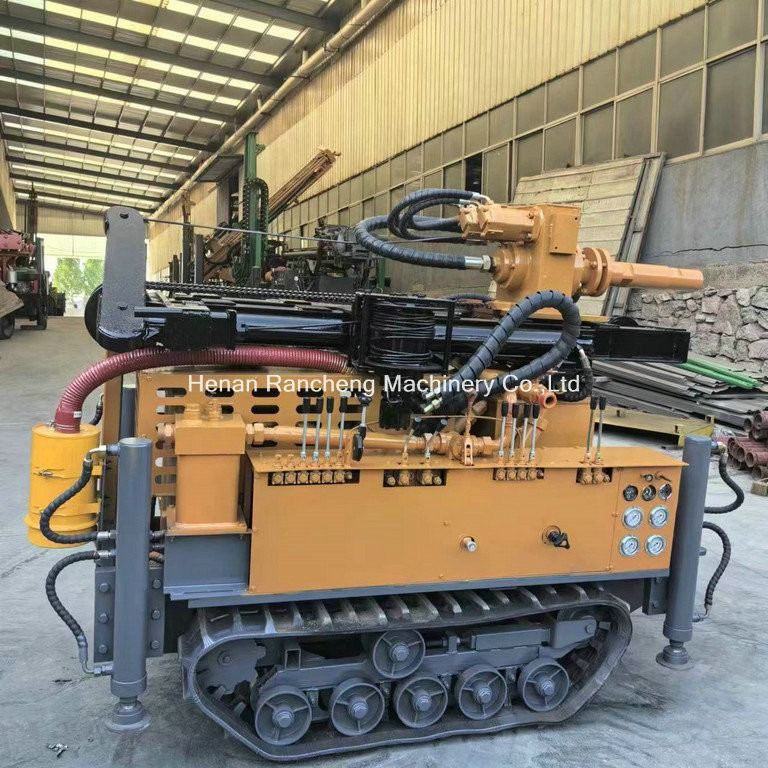

Image Display
