Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF180C
High quality low price hard rock depth 180m hydraulic leg crawler water well drilling rig
Product Description
The drilling rig is a versatile and efficient solution designed for a wide range of drilling applications, offering both mud pump and air DTH hammer drilling methods. Its fully hydraulic operating system ensures precise control and ease of use, making it suitable for professionals seeking reliability and performance.
This rig is capable of achieving bore diameters ranging from 90mm to 300mm, with a maximum drilling depth of 180 meters. Its robust air system operates efficiently within an air pressure range of 1.7 to 2.5 MPa, ensuring effective performance across varying conditions. Equipped with a powerful rotary system, the rig delivers a torque range of 3200 to 4600Nm, supporting rotary speeds between 45 to 70 revolutions per minute.
The machine’s hydraulic legs and feeding mechanism enhance stability and productivity, with adjustable speeds tailored for different drilling requirements. Designed with practicality in mind, it is compact and highly mobile, featuring a travel speed of 2.5 km/h and the ability to handle inclines of up to 30 degrees. Powered by a durable 55KW Quanchai diesel engine, the rig offers dependable performance for various projects, including water well drilling and geological exploration.
Built to combine power, efficiency, and convenience, this drilling rig is an excellent choice for those seeking a high-performing and reliable drilling solution.
Technical Parameters
Model | RCF180C |
Drilling way | Mud pump drilling and air DTH hammer drilling |
Operation system | Full hydraulic operating |
Bore diameter(Hammer) | 90-300mm |
Bore depth | 180m |
Air consumption | 17-31m³/min |
Air pressure | 1.7-2.5Mpa |
Pipe diameter | 76mm/89mm |
Pipe length | 3m |
Push force | 4T |
Lifting force | 12T |
Lifting speed | 2.5m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 18m/min |
Fast feeding speed | 35m/min |
Max torque of the rotary | 3200-4600Nm |
Rotary speed | 45-70r/min |
Mud Pump flow | 250L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 3×1.5×2.2M |
Weight | 4500kg |
Diesel engine | 55KW Quanchai |
Advantages
The RCF180C drilling rig offers exceptional efficiency thanks to its fully hydraulic system and top-drive slewing propulsion lifting. It supports various drilling processes and tools, enabling fast drilling speeds and minimal auxiliary time, which significantly enhances operational productivity.
The high hydraulic outriggers simplify loading and transportation, while the rubber crawler chassis ensures stability and ease of movement across different terrains. Powered by a robust 55KW Quanchai engine, the rig delivers reliable and consistent performance. Additionally, its composite tower design features a 3.4-meter long stroke and double-cylinder lift with a 12-ton capacity, providing superior lifting capabilities and versatility for various drilling applications.
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

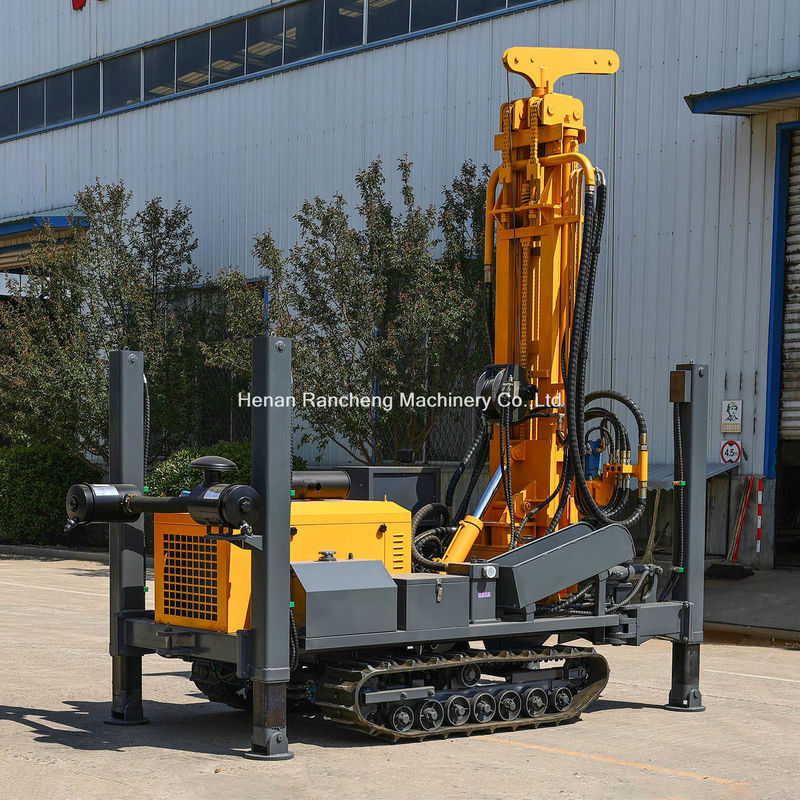

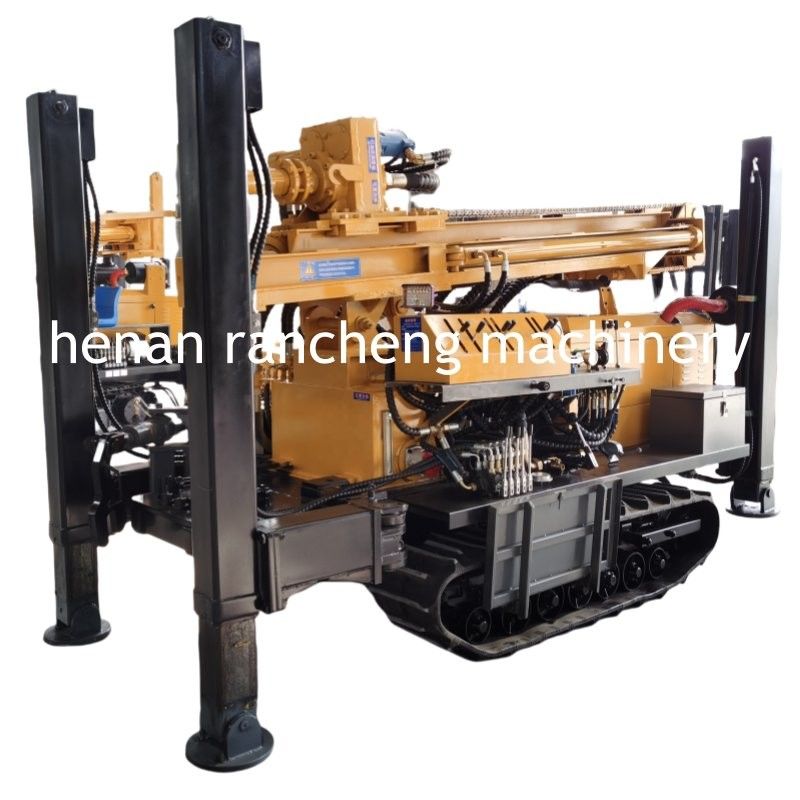

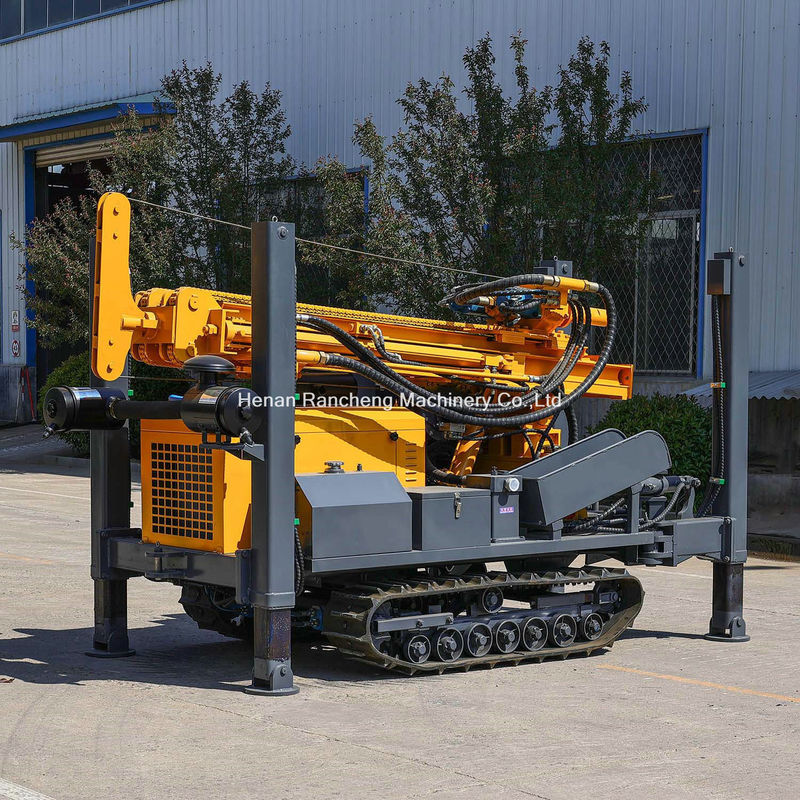

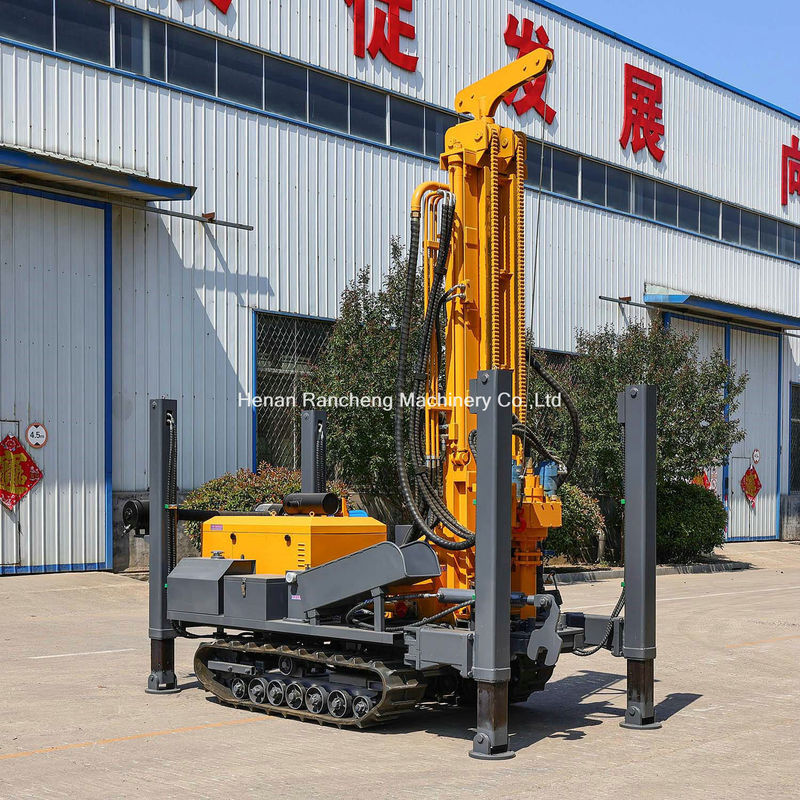

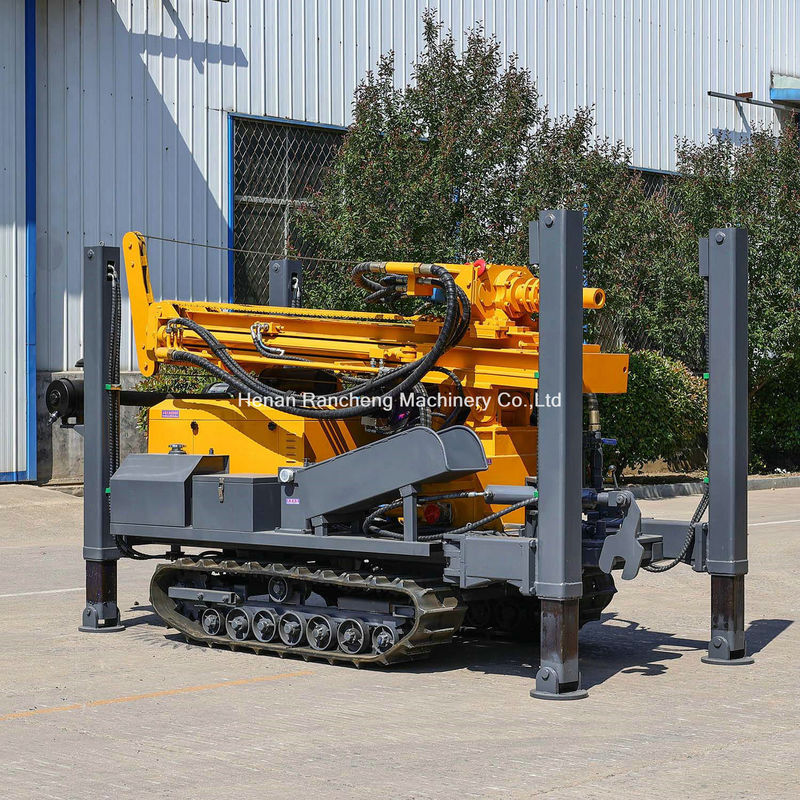

Pictures
