180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig With 55KW Quanchai Diesel

180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig With 55KW Quanchai Diesel

55KW Water Well Drilling Rig

Multi-function Water Well Drilling Rig

Crawler Mounted Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180C

Contact Us
Request A Quote
Product Details
Name:
RCF180C Crawler Mounted Water Well Drilling Machine
Operation System:
Full Hydraulic Operating
Bore Depth:
180m
Push Force:
4T
Lifting Force:
12T
Lifting Speed:
2.5m/min
Feeding Speed:
0.5-5m/min
Mud Pump Flow:
250L/min (option)
Travel Speed:
2.5kw/h
Highlight:

55KW Water Well Drilling Rig

,

Multi-function Water Well Drilling Rig

,

Crawler Mounted Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig with 55KW Quanchai Diesel



Product Description



RCF180C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed.



Adopting the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, and convenient hole deflection. It is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.



Made of high-quality materials, with a stylish and compact design, our drilling rigs are more efficient, have a low failure rate, are more economical and durable, and have a high comprehensive cost-effectiveness. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.



Technical Parameters



Model RCF180C
Drilling way Mud pump drilling and air DTH hammer drilling
Operation system Full hydraulic operating
Bore diameter(Hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3200-4600Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 3×1.5×2.2M
Weight 4500kg
Diesel engine 55KW Quanchai



Advantages



1.Low cost
DTH drilling mainly adopts DTH drilling technology, which has high efficiency of DTH rock drilling and low cost per meter.



2.High outriggers and crawler walking
High outriggers are easy to load and transport, and can be directly loaded without a crane. Crawler walking is more suitable for moving in muddy sites.



3.Positive and negative axial pressure adjustment
The best impact efficiency of each impactor has its matching best axial pressure and speed. During the drilling process, as the number of drill rods increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves should be adjusted during construction to ensure that the impactor obtains a more suitable axial pressure, and the impact efficiency is higher at this time.



4.Drilling rig chassis
It can be a crawler self-propelled chassis or a vehicle-mounted self-propelled chassis.



5.High configuration
The main components and hydraulic systems are all well-known brands. In addition, the main frame of the drilling rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very wear-resistant.



Pictures

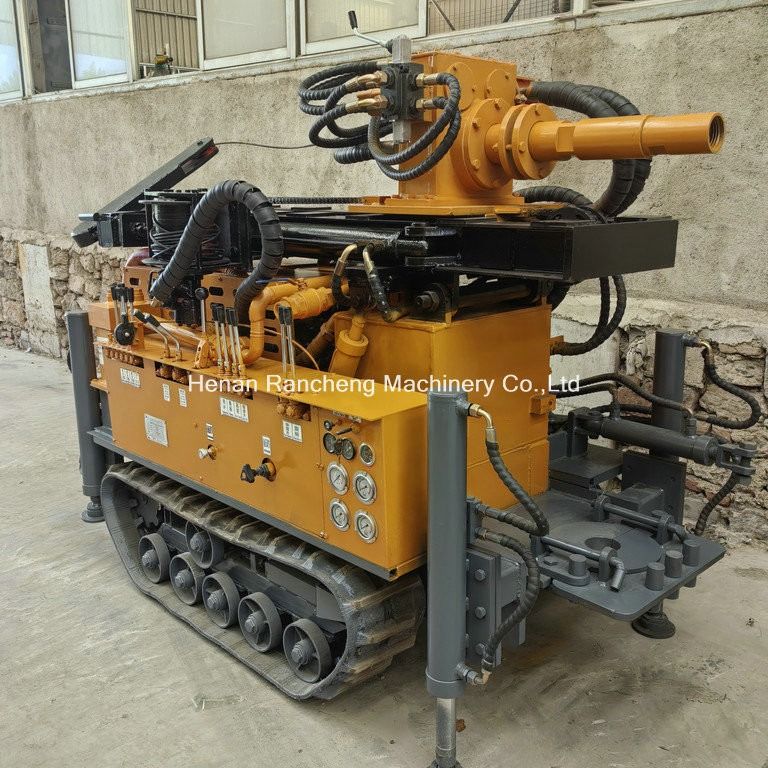

180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig With 55KW Quanchai Diesel 0

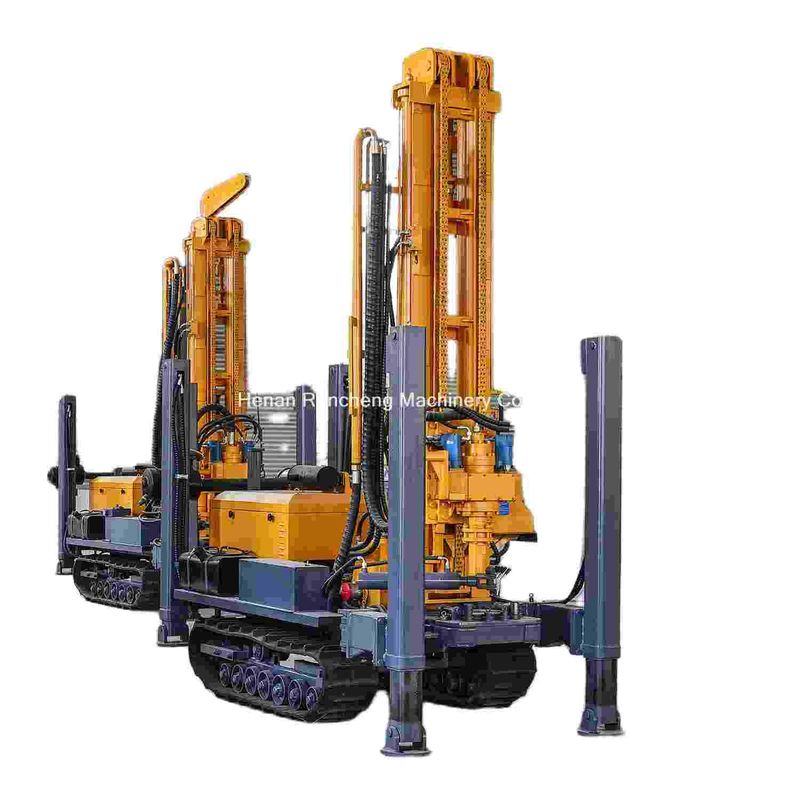

180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig With 55KW Quanchai Diesel 1

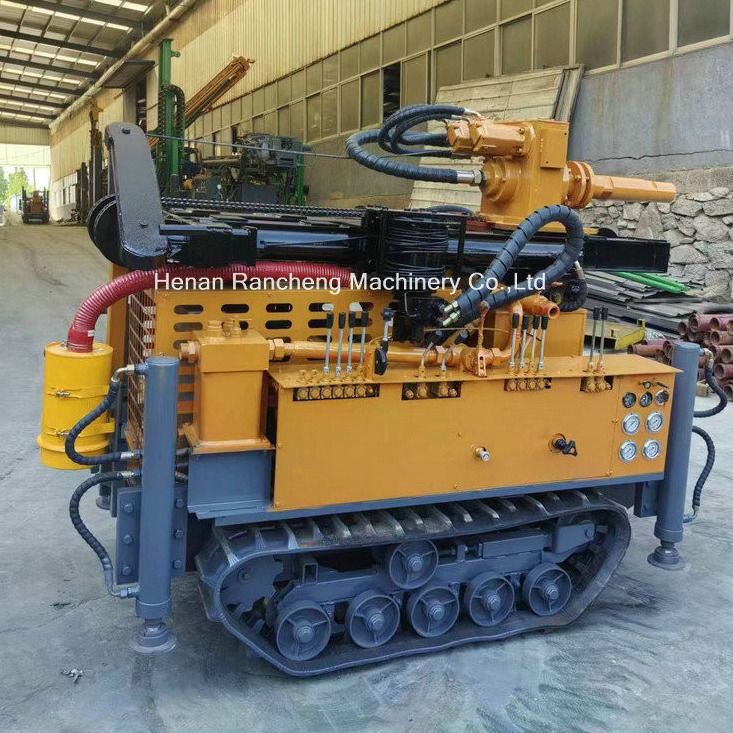

180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig With 55KW Quanchai Diesel 2

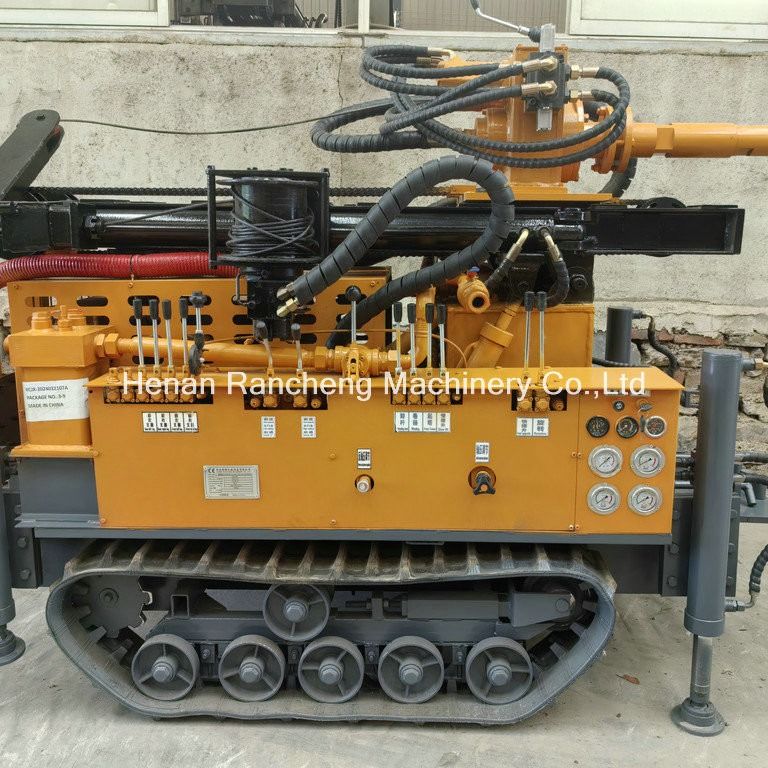

180m Pneumatic Water Well Drilling Rig Multi-function Crawler Mounted Rig With 55KW Quanchai Diesel 3
