Name: 800m Deep Well Machine Multifunctional Hydraulic Crawler Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Home > products > Water Well Drilling Machine >

800m Deep Well Machine Multifunctional Hydraulic Crawler Water Well Drilling Rig

Multifunctional Water Well Drilling Rig

800m Deep Well Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All Kind

Drill System And Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Highlight:

Multifunctional Water Well Drilling Rig

800m Deep Well Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

800m Deep Well Machine Multifunctional Hydraulic Crawler Water Well Drilling Rig

Machine Introduction

The drilling rig is equipped with dual oil pumps, which are used for oil supply and drilling operations. Both single and dual pumps are utilized for lifting during the drilling process, resulting in low power loss and reduced auxiliary time.

This is a fully hydraulic core drilling rig. The steel tracks are durable and have a longer lifespan, protecting the drilling rig. It is designed to meet the requirements of geological coring and exploration, capable of both straight and oblique drilling.

Specification

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

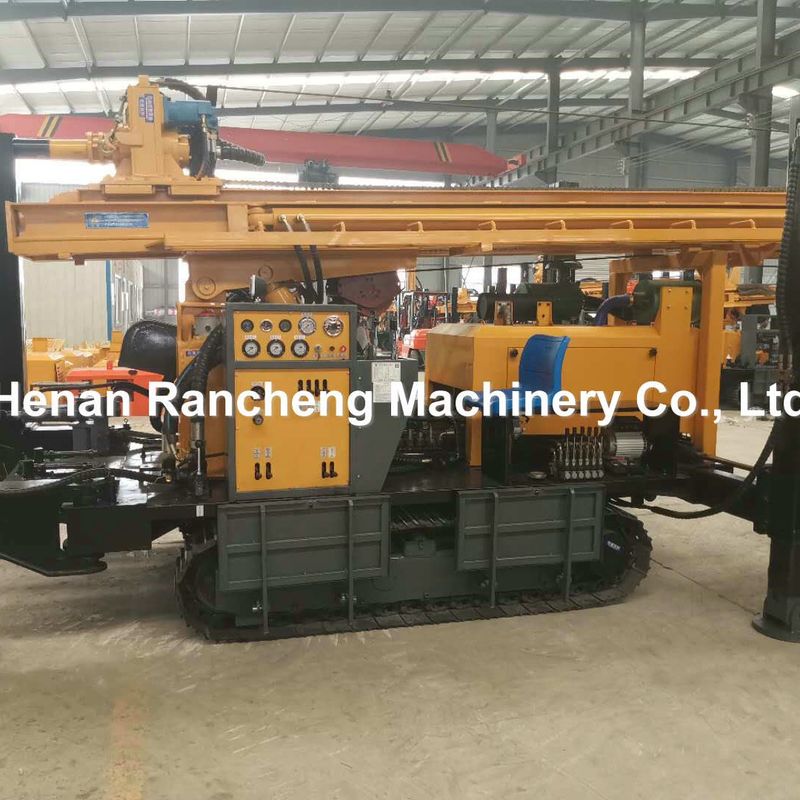

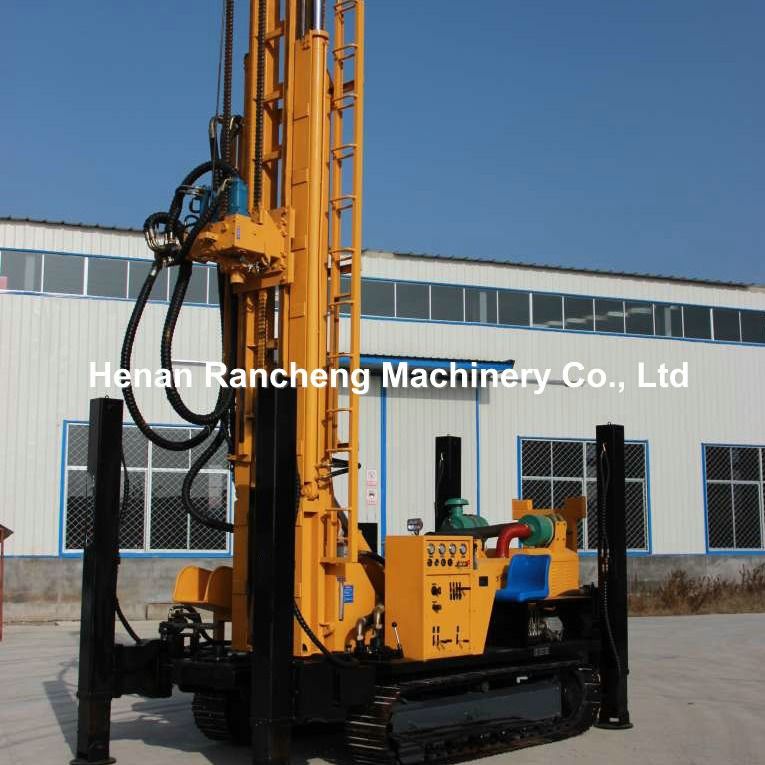

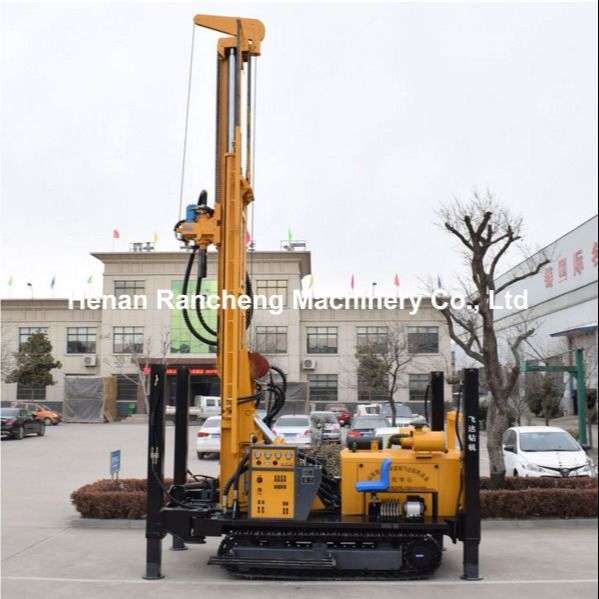

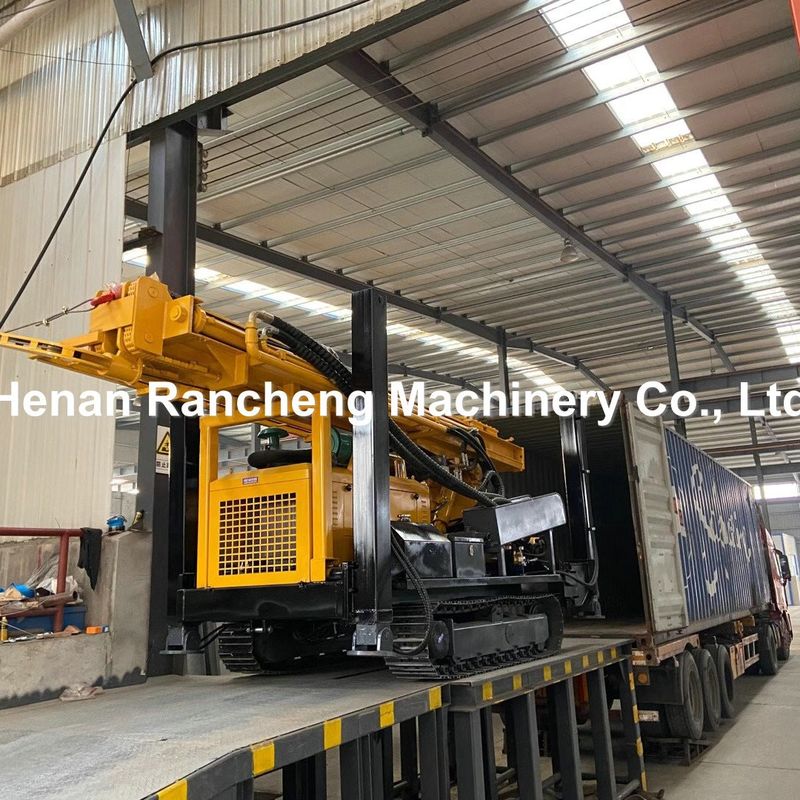

Machine Pictures

800m Deep Well Machine Multifunctional Hydraulic Crawler Water Well Drilling Rig 0
