RCF800C Multi Functional Drilling Rig 800m Depth Hydraulic Borehole Rig with 154KW Cummins Engine
Machine Introduction
RCF800C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with higher pneumatic power play an important role in increasing drilling speed.
It adopts the latest model and advanced hydraulic technology, with low consumption, large rotation torque, and convenient drilling deflection. It is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.
Specification
| Model |
RC800C |
| Drilling way |
Both mud pump drilling and air DTH drilling |
| Geology drilled |
All kind |
| Drill system and operation |
Hydraulic |
| Diesel engine |
154KW Cummins |
| Max hole depth |
800m |
| Hole diameter |
140-500mm
|
| Air consumption |
17-42m³/min
|
| Length of drilling pipe |
1m/2m/3m/6m |
| Diameter of drilling pipe |
102/108/114mm
|
| Total Weight |
13ton |
| Dimension (L * W * H) |
6300×2300×2650mm
|
Advantage and features
Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes
Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
Multifunctional drilling
Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.

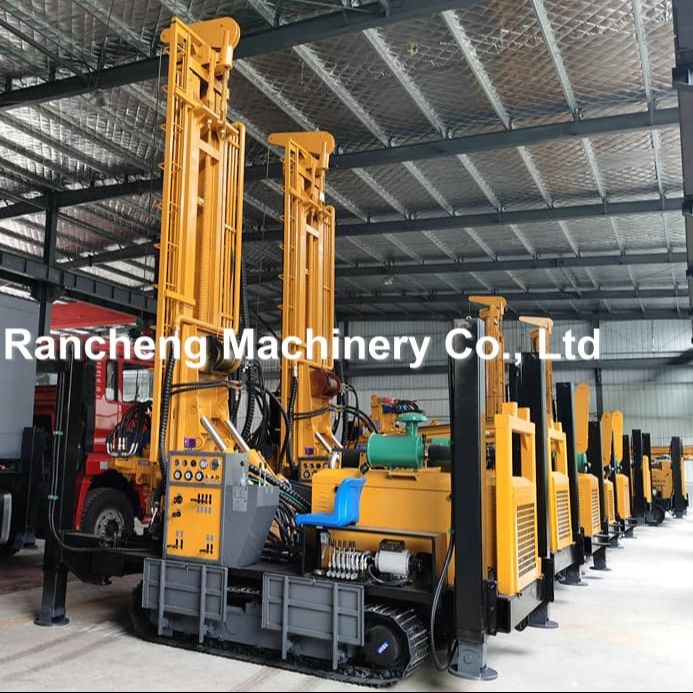

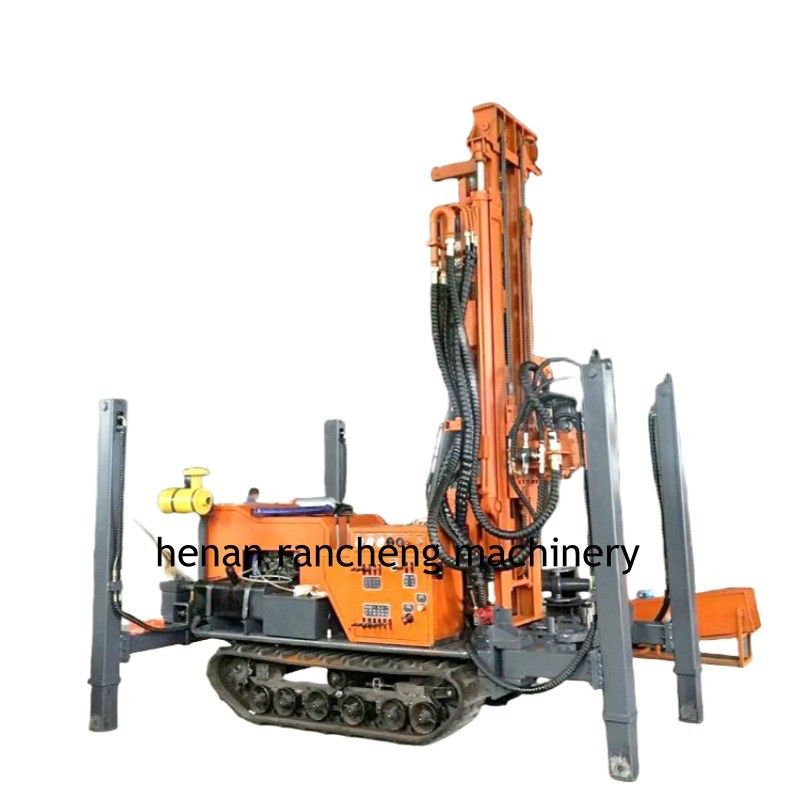

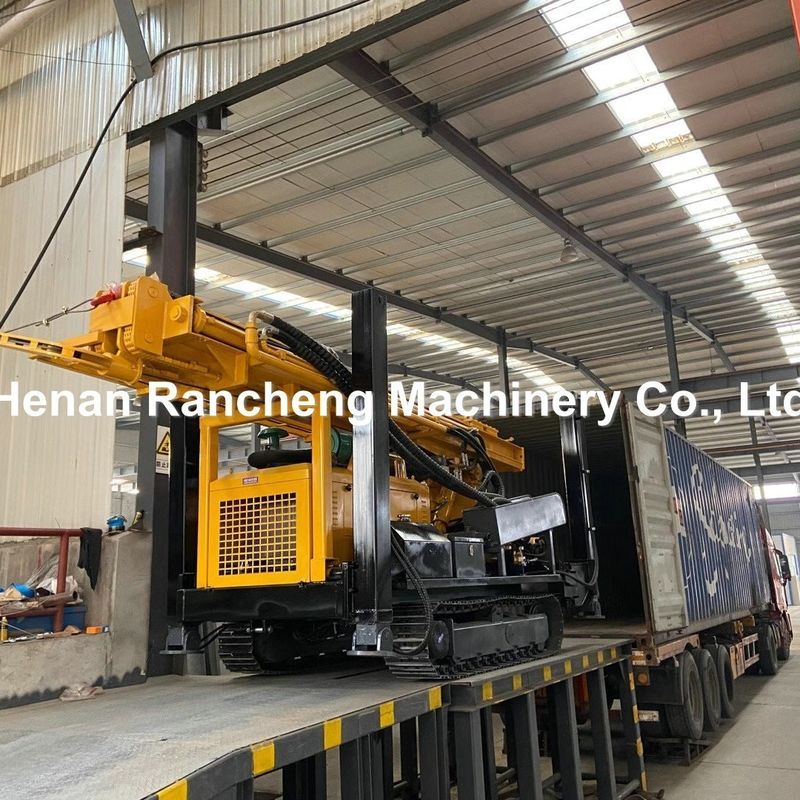

Machine Pictures
