BW1200/7 Piston Mud Pump For 1000m Deep Water Well Drilling
Product Description
The BW1200/7 mud pump is a horizontal double-cylinder reciprocating double-acting piston pump designed specifically for deepwater well drilling. The pump is driven by electricity, diesel engine or hydraulic motor, and has high applicability and flexibility. Its maximum flow rate can reach 1200L/min and the maximum pressure is up to 7MPa, ensuring that the mud can be delivered at a stable and efficient speed to fully clean the well and remove debris. The BW1200/7 mud pump has a sturdy and durable structure and is made of high-strength materials. It can withstand high temperatures, extreme pressures and wear from long-term operations. It is particularly suitable for water well drilling, oil well core drilling and well cleaning operations at a depth of 1500 meters.
The BW1200/7 mud pump has a compact structure and lightweight design, which is easy to transport and quickly install, and is suitable for various complex construction sites. Its modular design makes maintenance simpler, easy to check and replace parts, reduces downtime, and improves overall production efficiency. At the same time, equipped with a user-friendly control panel, operators can easily adjust the flow and pressure of the pump for precise control and stable output.
Technical Parameters
| Pattern |
Horizontal double-cylinder reciprocating double-acting piston pump |
| Cylinder dia(mm) |
160 |
150 |
| Flow(L/min) |
1200 |
1000 |
| Rated Output Pressure (Mpa) |
7 |
6 |
| Stroke(mm) |
270 |
| Rated Pump Speed(min-1) |
70 |
| Power (KW) |
185 |
| Weight(kg) |
7200 (without engine) |
| Dimension(mm) |
3045*1440*2420 |
Advantages
1. The BW1200/7 mud pump is easy to operate and has a moderate displacement. It has few wearing parts and a long service life.
2. By replacing cylinder sleeves and pistons of different diameters, the displacement and pressure of the mud pump can be changed to meet the needs of different working conditions.
3. The connecting rod is connected to the crankshaft bearing, and rolling friction reduces energy loss and prolongs the service life of the mud pump.
4. The connecting rod adopts an integral casting design. It has a strong load-bearing capacity and is easy to disassemble, maintain and replace.
Application
The BW1200/7 mud pump is mainly used to transport flushing fluids during geological exploration, geothermal development, water source drilling, and shallow oil and gas layer drilling. The flushing fluid can be a medium such as mud and clean water, and the pump can also be used as a delivery pump for the above media.
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Packing and Shipping:
delivery time :10-15days
standard exporting packing
FAQ
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

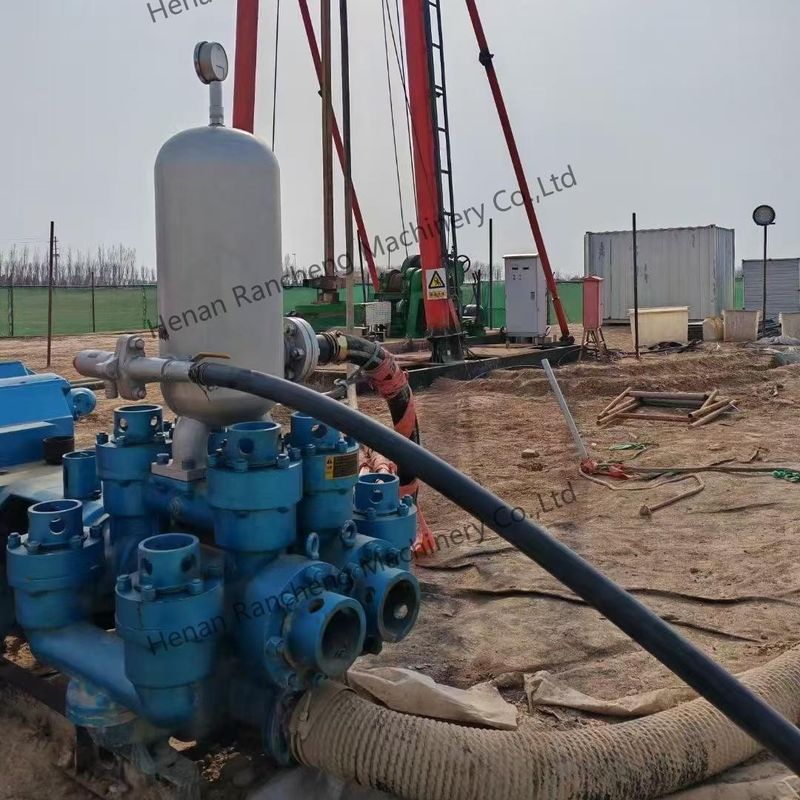

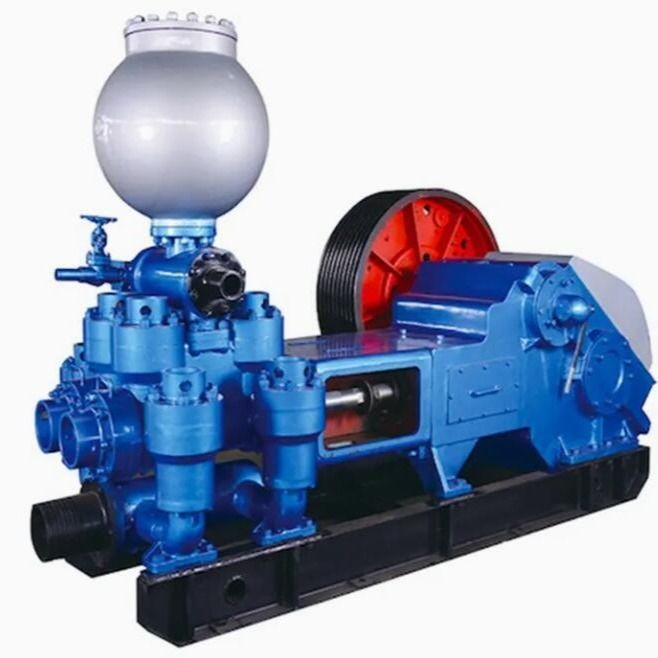

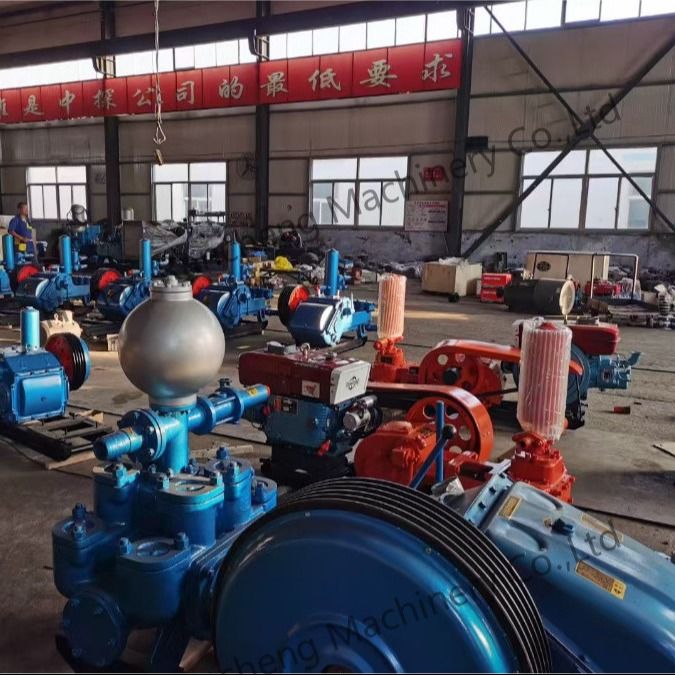

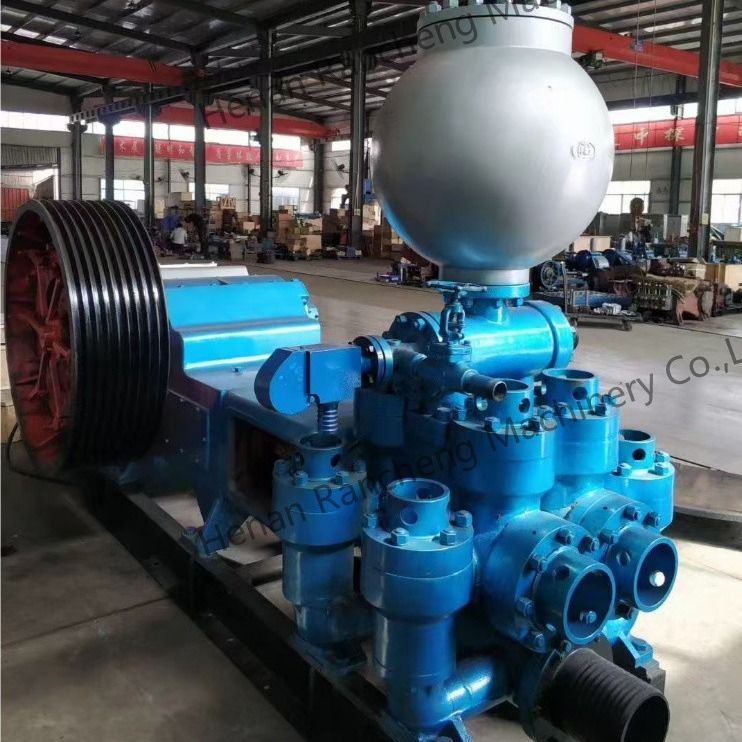

Product Image
