European high quality hydraulic leg 55KW diesel engine crawler drilling water well drilling rig
Product Description
RCF180C hydraulic crawler mounted water borehole drilling rig for 180m deep.
RCF180C hydraulic bore well drilling machine is our independent research and development product. It uses two motor rotary heads, work with both a mud pump and air compressor.
This water drilling rig is mainly used for irrigation well drilling, home water well drilling, geothermal good drilling, hydrology wells drilling, civil use water well drilling, industry well drilling, etc drilling projects
Technical Parameters
| Model |
RCF180C |
| Drilling way |
Mud pump drilling and air DTH hammer drilling |
| Operation system |
Full hydraulic operating |
| Bore diameter(Hammer) |
90-300mm |
| Bore depth |
180m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of the rotary |
3200-4600Nm |
| Rotary speed |
45-70r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
3×1.5×2.2M |
| Weight |
4500kg |
| Diesel engine |
55KW Quanchai |
Advantages
The drilling rig offers unparalleled adaptability with adjustable speed, torque, and axial pressures to cater to diverse construction processes and drilling conditions. Its design ensures effortless connection and disconnection of drill pipes, minimizing auxiliary time and simplifying operations. Equipped with advanced mechanisms for both rock layers and loose formations, it delivers exceptional penetration speed and versatility, making it ideal for challenging geological conditions.

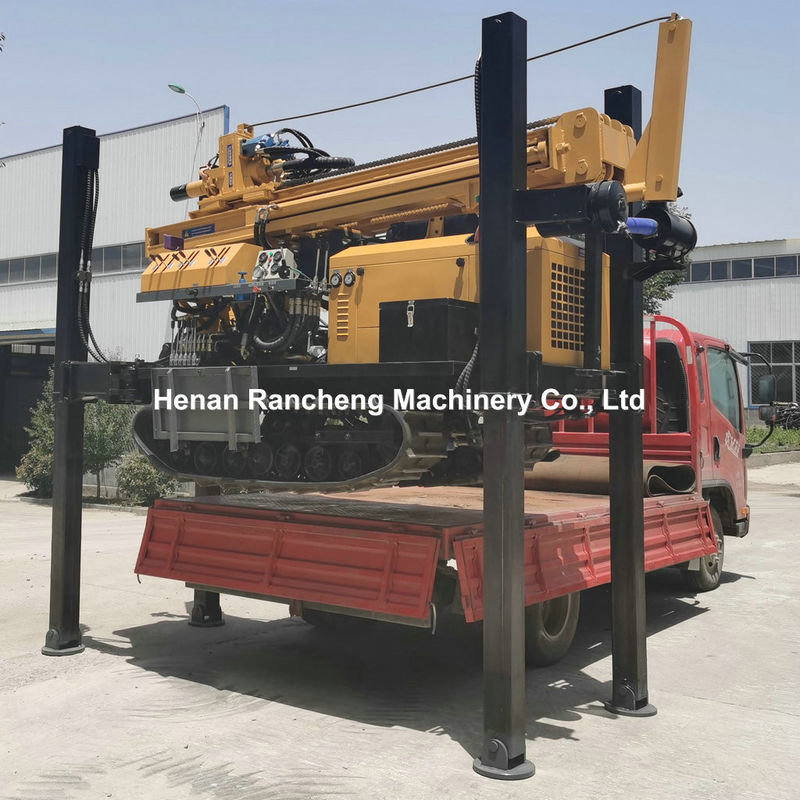

Thanks to its hydraulic and top-drive propulsion system, the rig achieves remarkable operational efficiency, enabling faster drilling with minimal downtime. The inclusion of high hydraulic legs facilitates seamless loading and transportation, while the rubber crawler chassis enhances stability and mobility across different terrains. Powered by a reliable 55KW Quanchai engine, the machine ensures robust performance. Additionally, its innovative composite tower design with a 3.4m long-stroke and a double-cylinder lifting capacity of 12 tons underscores its ability to handle demanding projects with ease.
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

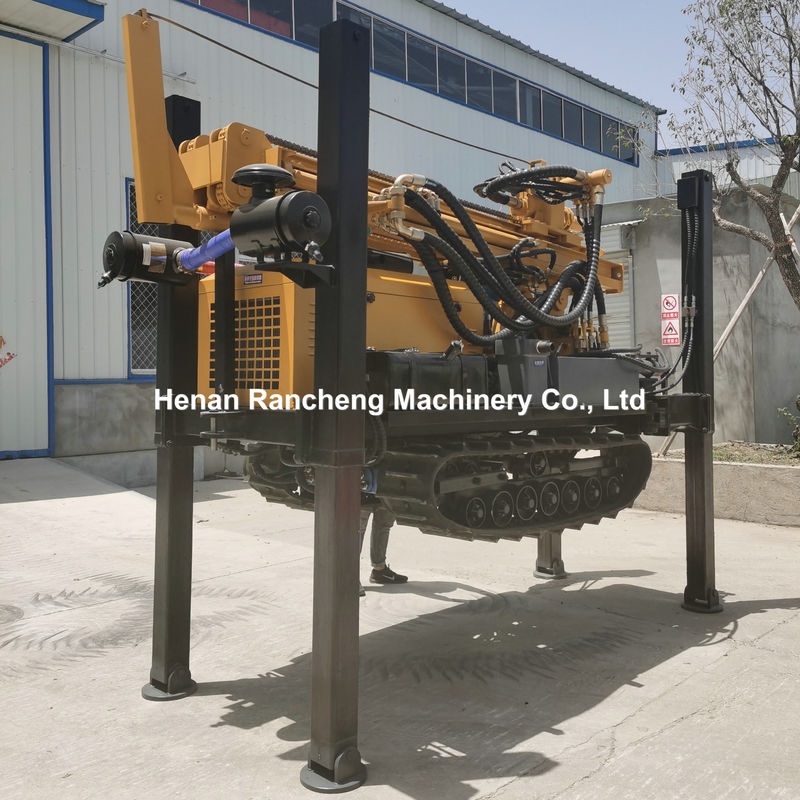

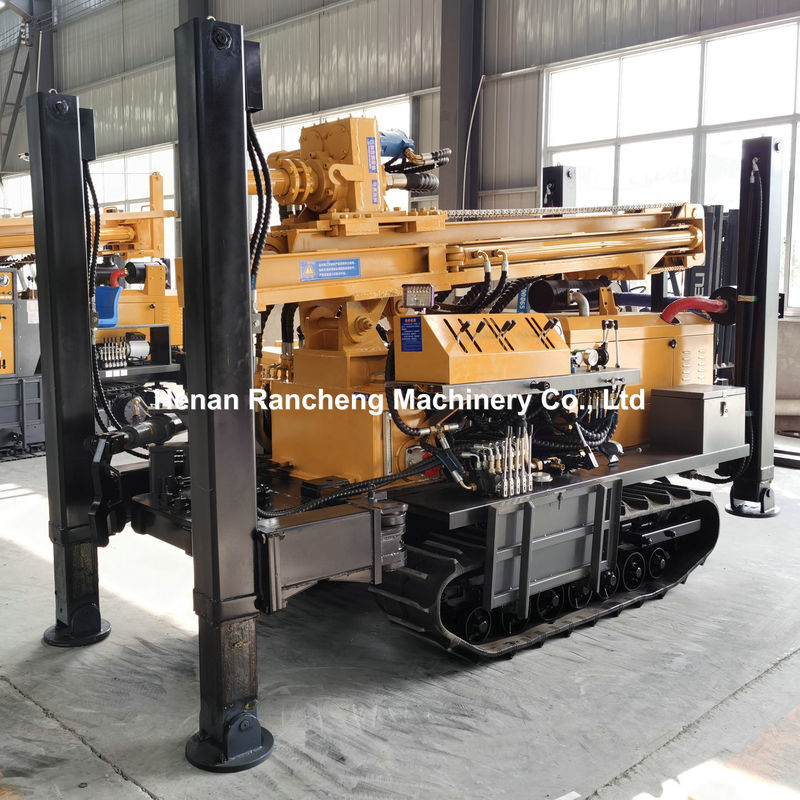

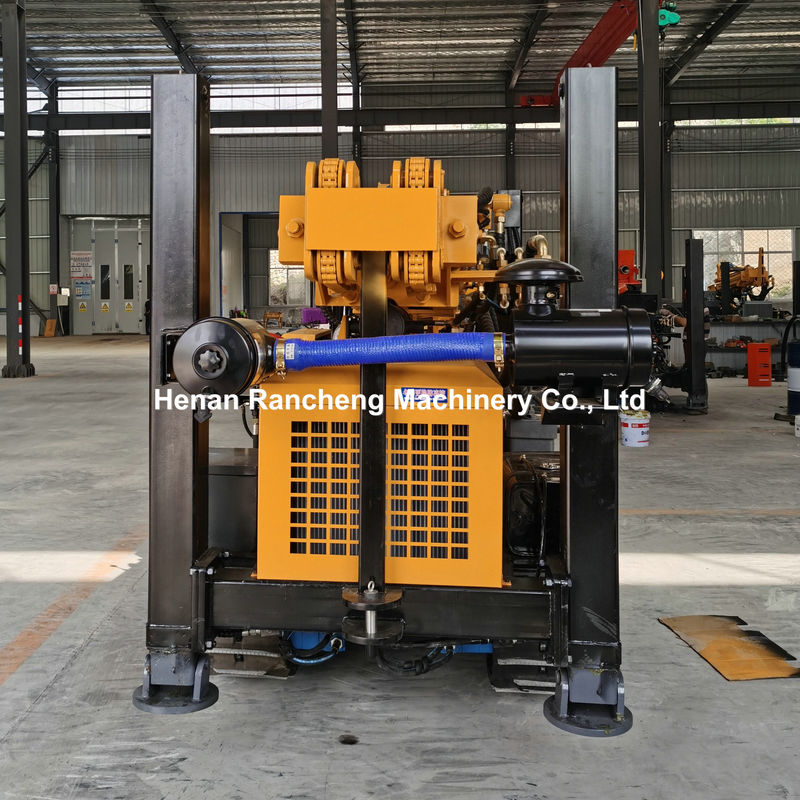

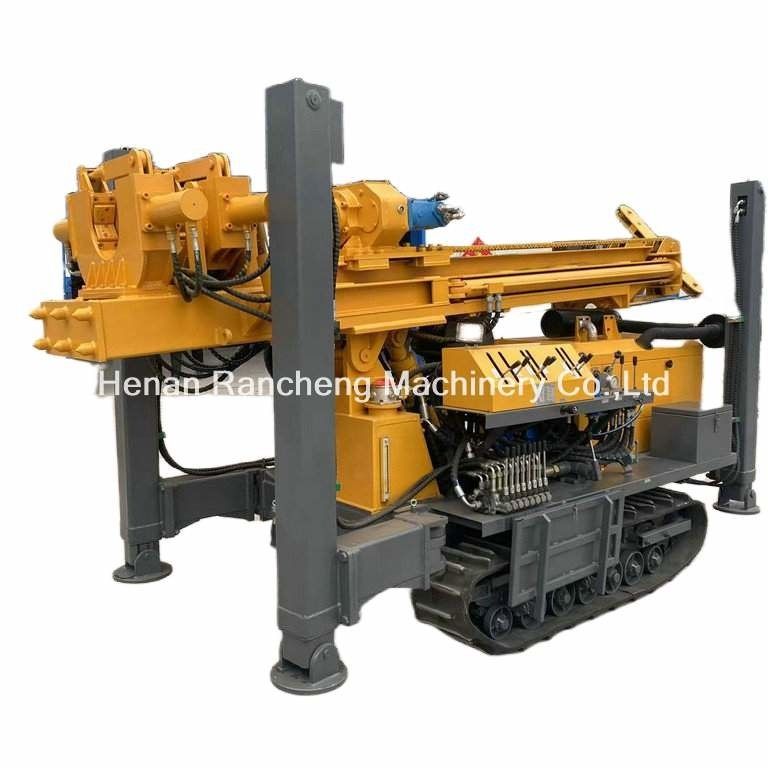

Pictures
