500m Crawler Mounted Deep Borehole Water Well Drill/Drilling Rig Machine
Product Description
These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers' positive feedback.
Technical Parameters
| Model |
RCF500C |
| Weight(kg) |
11500 |
Drill pipe diameter(mm) |
Φ102 Φ108 Φ114 |
| The hole diameter(mm) |
140-350 |
Drill pipe length(m) |
1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) |
500 |
Rig lifting force(T) |
26 |
| One-time advance length(m) |
6.6 |
Rapid rise speed(m/min) |
20 |
| Walking speed(km/h) |
2.5 |
Fast feeding speed(m/min) |
40 |
| Climbing angles(Max.) |
30° |
Width of loading(m) |
2.85 |
| Equipped capacitor(kw) |
118 |
Hoisting force of winch(T) |
2 |
| Using air pressure(MPA) |
1.7-3.5 |
Swing torque(N.m) |
7500-10000 |
| Air consumption(m³/min) |
17-42 |
Dimension(mm) |
6200×2200×2650 |
| Swing speed(rpm) |
40-130 |
Equipped with hammer |
Medium and high wind pressure series |
| The penetration efficiency(m/h) |
15-35 |
High leg stroke(m) |
1.7 |
| The engine brand |
Yuchai engine |
Feature:
1. Adopting reinforced wide plate steel tracks, it has super strong bearing capacity and wear resistance, adapting to complex, harsh, and challenging outdoor working environments.
2. The standard 6.6-meter slide frame is compatible with various types of drill rods such as 1.5m, 2m, 3m, 6m, etc., ensuring diversified construction needs and providing a solid foundation for construction.
3. Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
Our service
1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;
③ Provide you with training technical personnel services.
2. During the sales process, we will provide the following services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.
3. After the sale, we will provide considerate services to minimize your worries:
① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.

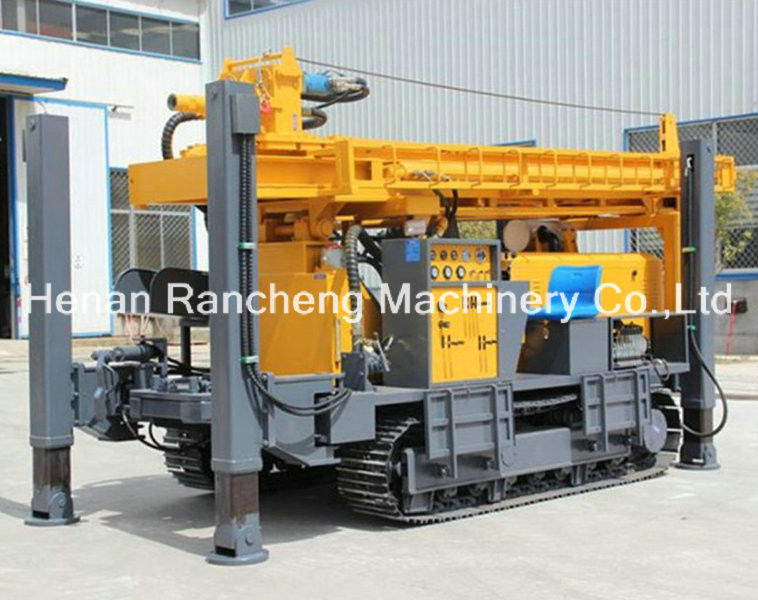

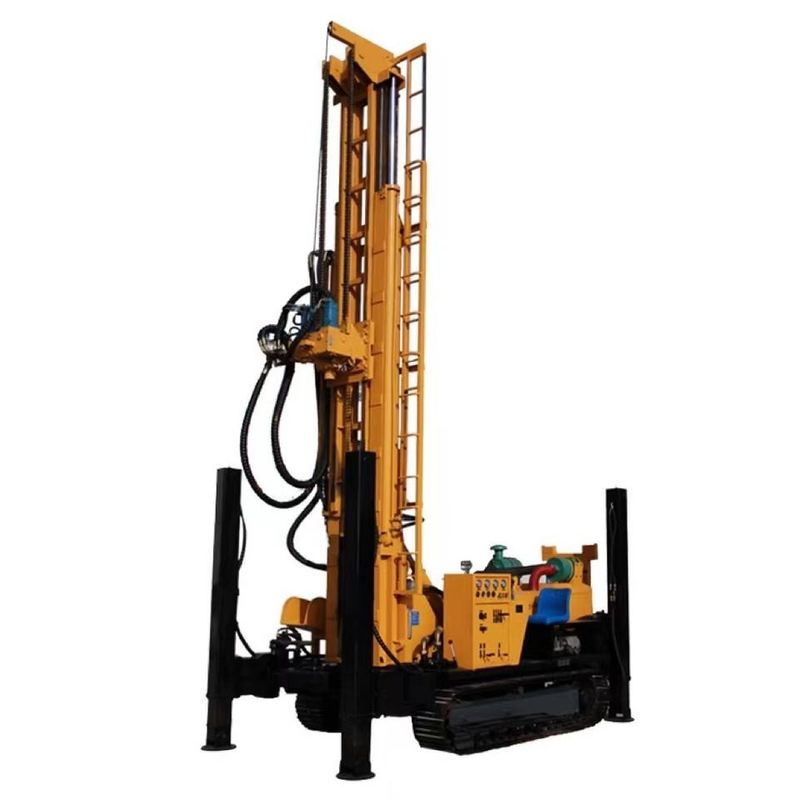

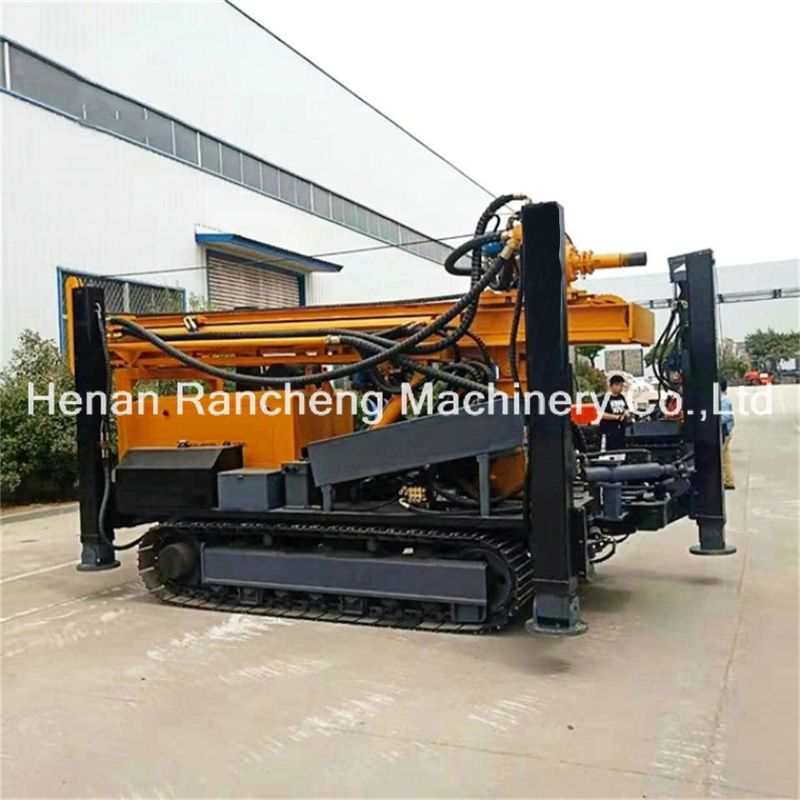

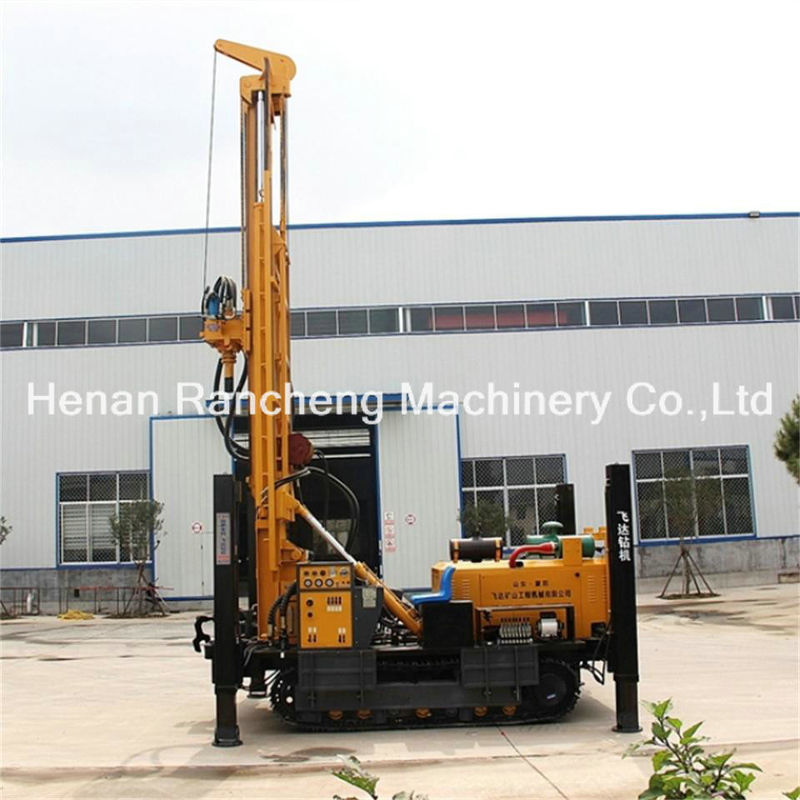

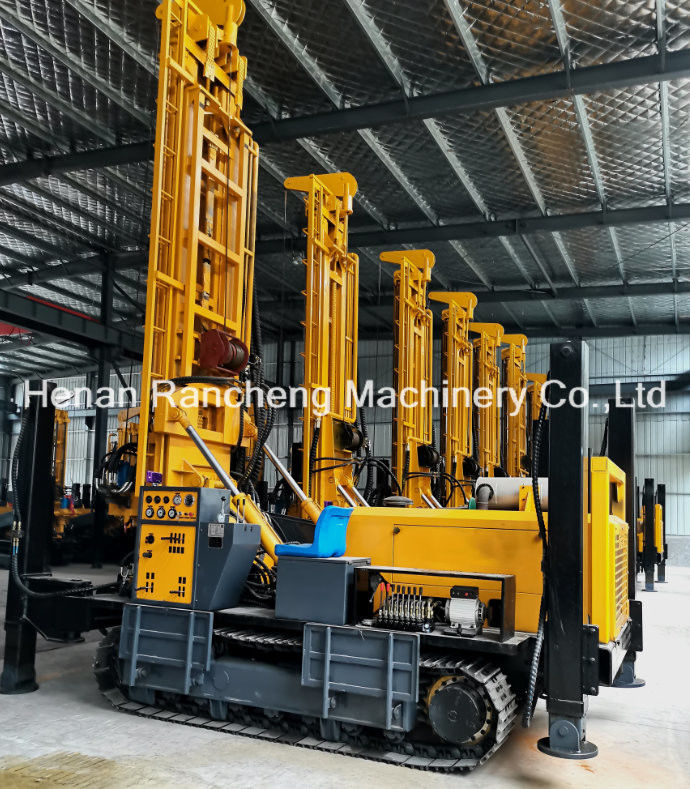

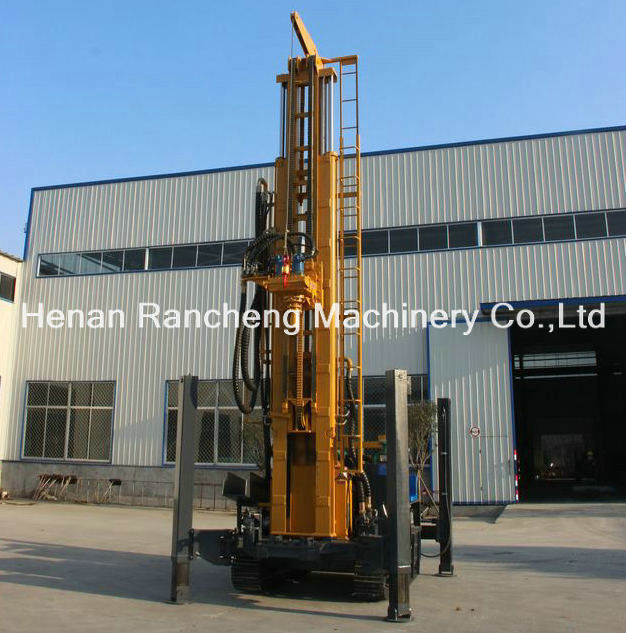

Machine Picture Display
