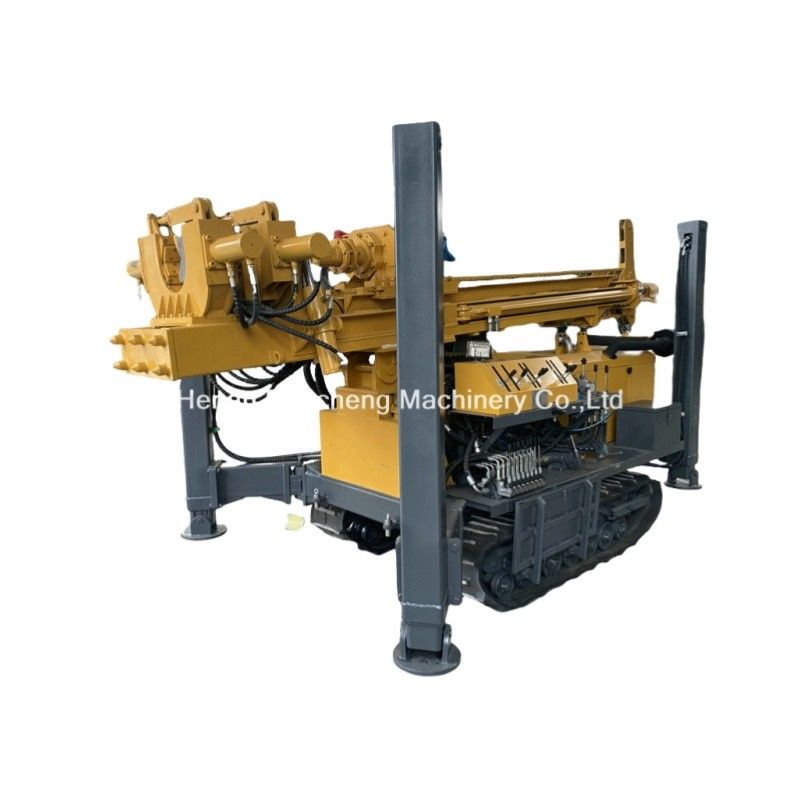

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig

Multi-Functional Water Well Drilling Rig

RCF180C Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180C

Contact Us
Request A Quote
Product Details
Name:
180m Borehole Drilling Rig
Model:
RCF180C Crawler
Power:
55KW
High Hydraulic Leg:
1.5m Four Leg
Pipe Diameter:
76/89mm
Walking Speed:
2.5Km/h
Highlight:

Multi-Functional Water Well Drilling Rig

,

RCF180C Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig For Sale



Product Description



This water drilling rig is designed to accommodate both mud pump and air DTH hammer drilling, making it versatile for various geological conditions. Equipped with a fully hydraulic system, it offers precise and efficient control throughout the drilling process.



The RCF180C supports bore diameters ranging from 90mm to 300mm, reaching depths of up to 180m. It operates with air consumption between 17-31m³/min under pressures of 1.7-2.5Mpa. Drill pipes are available in two sizes, 76mm and 89mm, both measuring 3m in length.



With a push force of 4T and a lifting force of 12T, the rig ensures smooth and efficient performance. Its variable lifting and feeding speeds, including rapid modes of 18m/min for lifting and 35m/min for feeding, enhance productivity on demanding projects.



Delivering a rotary torque of 3200-4600Nm and rotational speeds of 45-70r/min, the rig provides reliable power and performance. An optional mud pump with a flow rate of 250L/min adds further flexibility for diverse drilling applications.

The design incorporates high hydraulic legs with a 1.5m extension, offering superior stability on uneven terrains, including slopes of up to 30 degrees. Compact dimensions of 3×1.5×2.2m and a travel speed of 2.5Km/h make it highly maneuverable and easy to transport.



Powered by a robust 55KW Quanchai diesel engine, this 4500kg rig combines durability, efficiency, and power. It achieves a feeding efficiency of 10-35m/h, making it a reliable choice for water well, geothermal, and other engineering projects.



Technical Parameters



Model RCF180C
Drilling way Mud pump drilling and air DTH hammer drilling
Operation system Full hydraulic operating
Bore diameter(Hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3200-4600Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 3×1.5×2.2M
Weight 4500kg
Diesel engine 55KW Quanchai



Advantages



1. This water well drill rig chassis is a rubber crawler



2. This water drilling machine use a 55KW Quanchai engine



3.this drill machine Design composite tower, 3.4m long-stroke, double cylinder lift capacity 12 ton.



Pictures

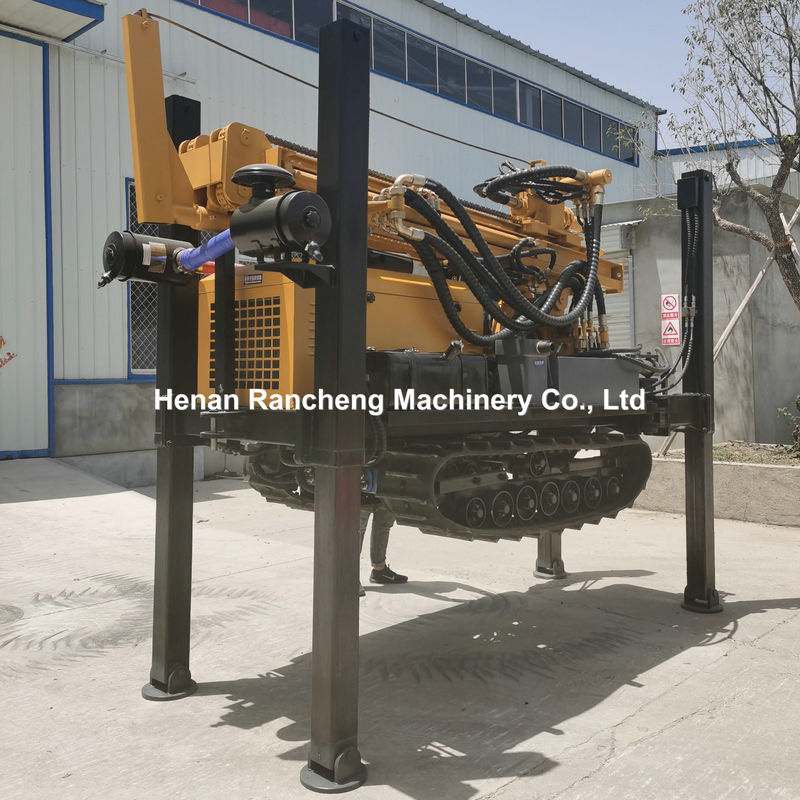

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig 0

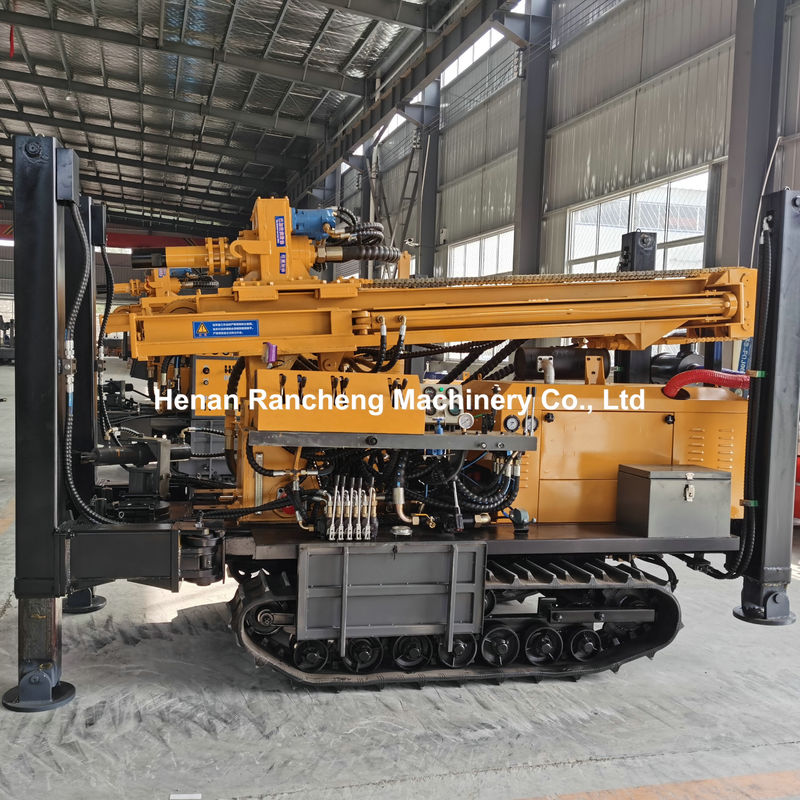

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig 1

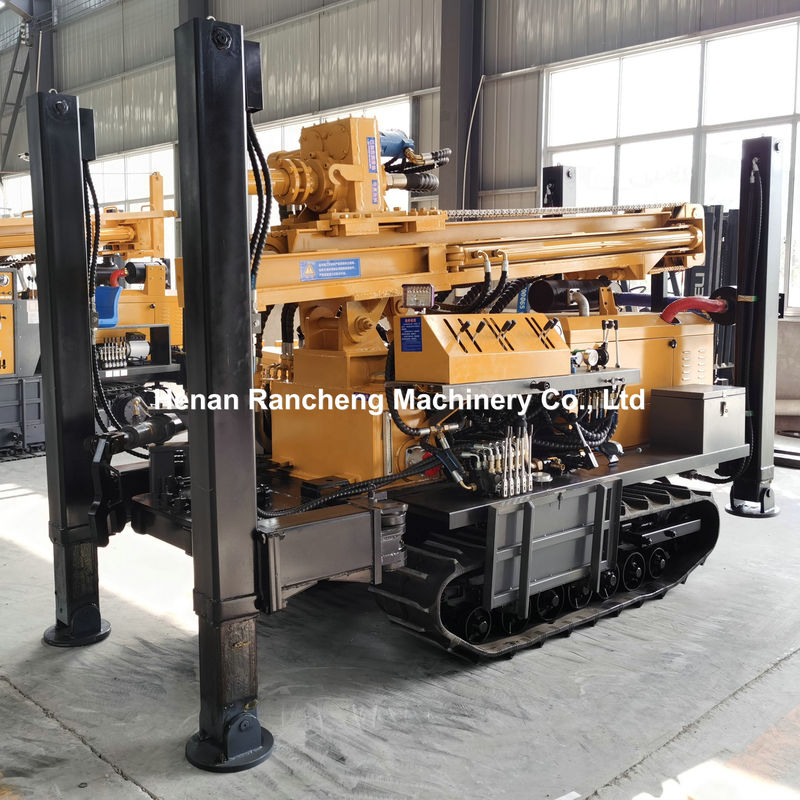

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig 2

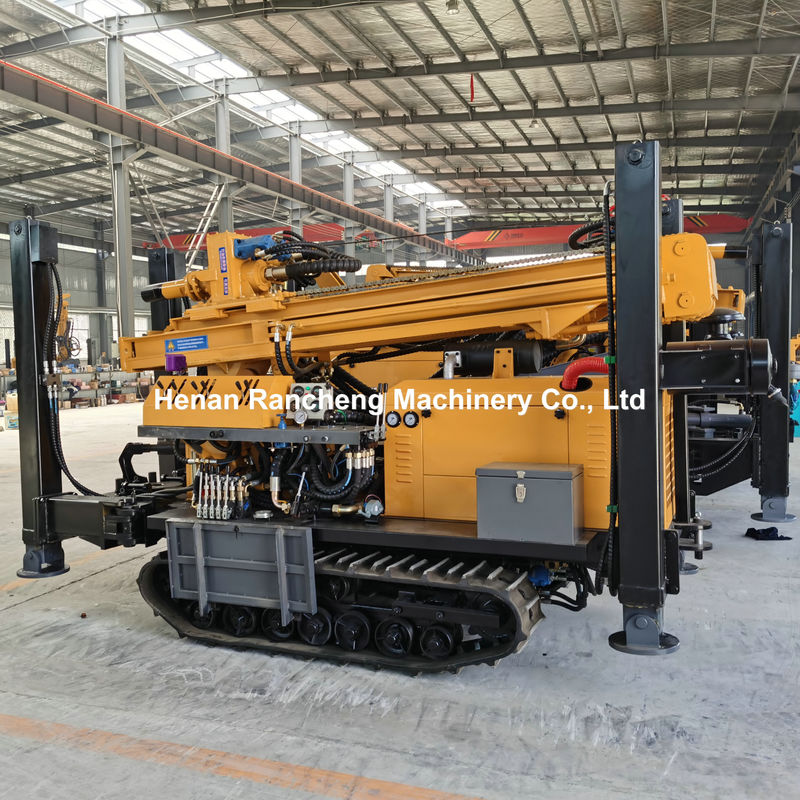

RCF180C Crawler Moving Multi-Functional Water Well Drilling Rig 3
