Hydraulic Crawler Mounted 200m Borehole Drill Wells Water Well Drilling Rig
Product Description
RCF200C deep water well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed. It adopts the latest model and advanced hydraulic technology, with low consumption, large rotation torque, and convenient hole deflection. It is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.
Made of high-quality materials, the design is stylish and compact, making the drilling rig more efficient, with a low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.
Technical Parameters
| Model |
RCF200C |
| Bore diameter(Hammer) |
90-350mm |
| Bore depth |
200m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of the rotary |
3500-4800Nm |
| Rotary speed |
45-70r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.4m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4000X1800X2300mm |
| Weight |
5000Kg |
| Diesel engine |
58KW Yuchai
|
Product advantages
High outrigger and Tracked walking
The high outriggers are convenient for loading and transportation, and can be loaded directly without crane. Tracked walking is more suitable for muddy field movement.
Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
Rig chassis
It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
High configuration
The main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.
Diesel engine
This drilling water machine adopt 58KW Yuchai engine
Lifting force
design composite tower, 3.4m long stroke, double cylinder lift capacity 15 ton.

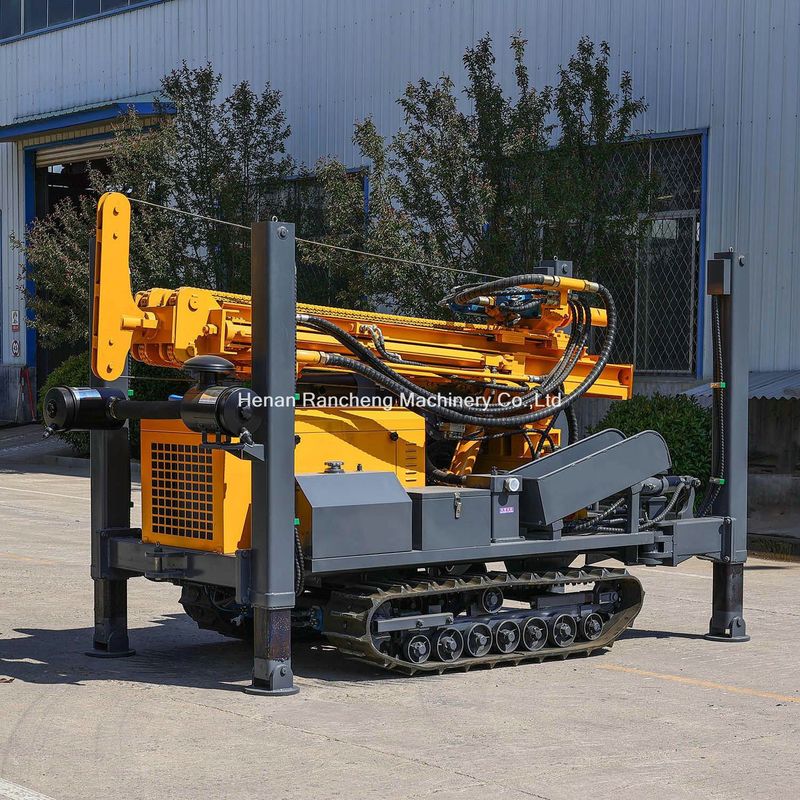

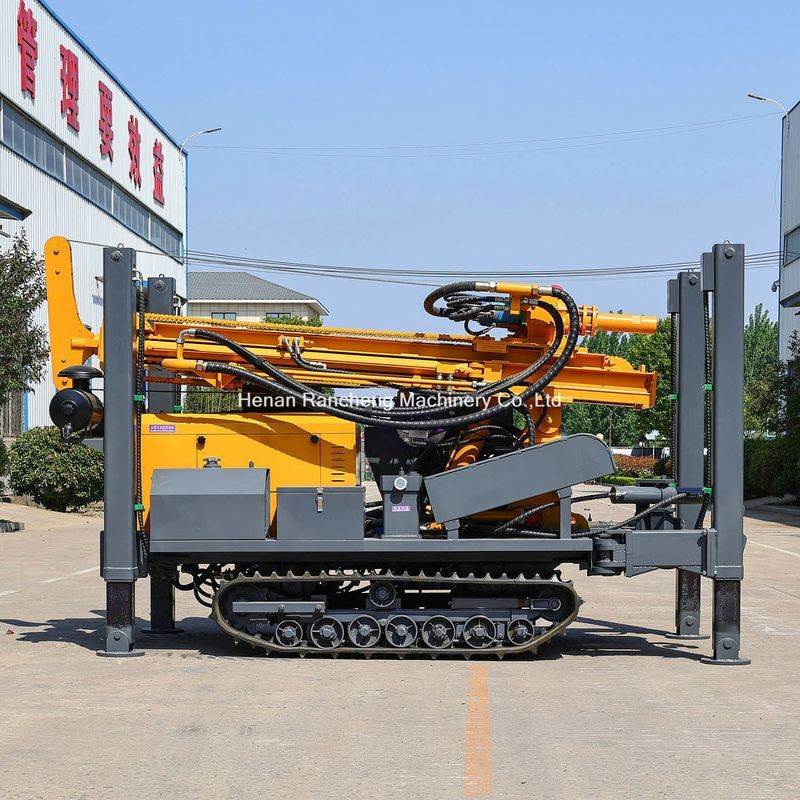

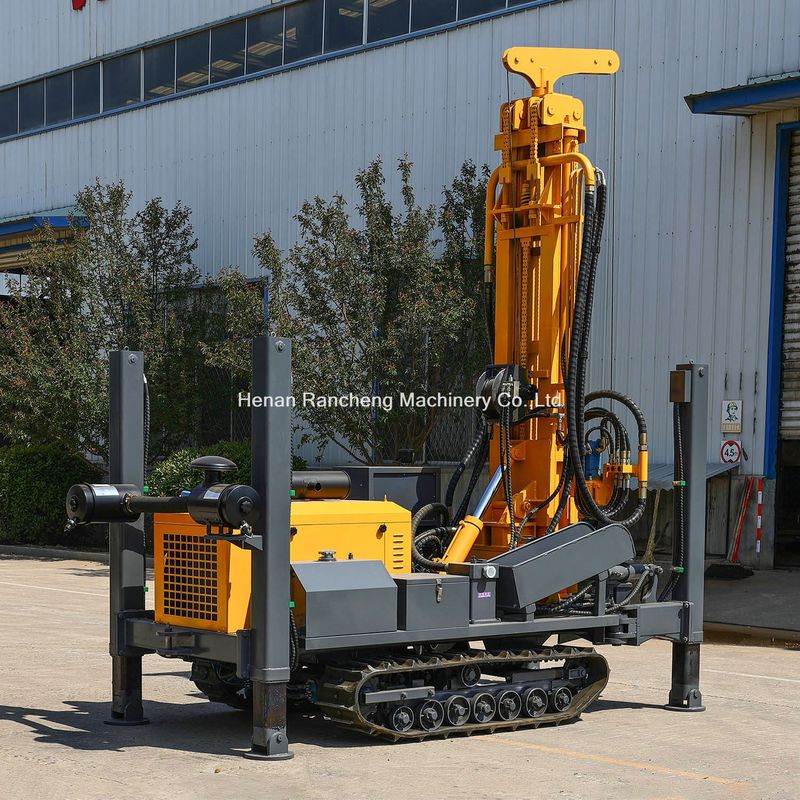

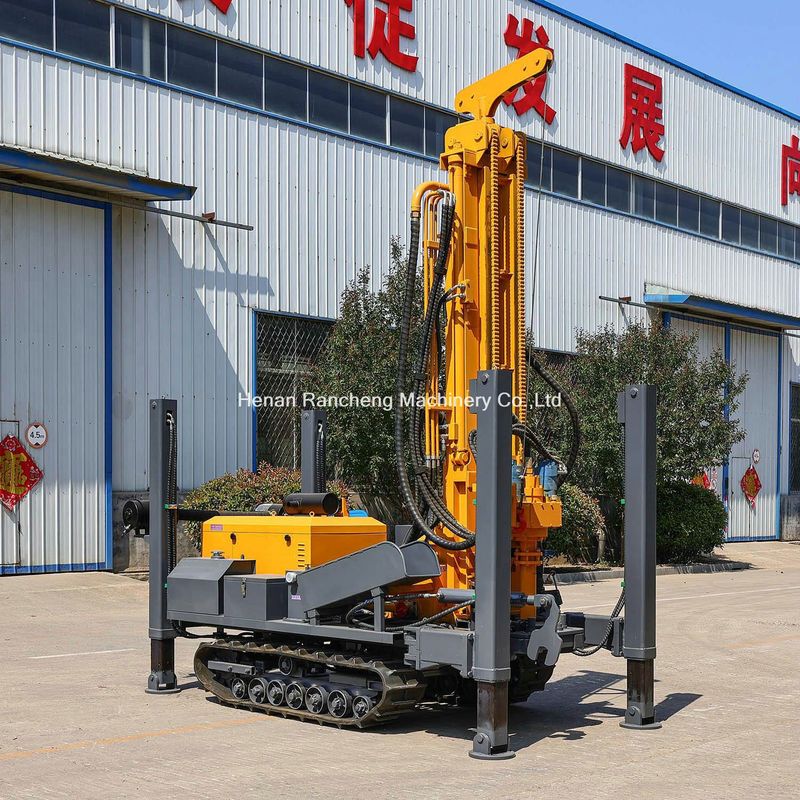

The Machine picture
