150m Drilling Depth Pneumatic DTH Crawler Drilling Rig for Water Well Drilling Rig Machine Driven by Diesel Engine
Products Description
RCF150S mini water well drilling rig is our independent research and development products. It is both Pneumatic DTH drilling and mud pump rotary drilling ,it can drill hard rock stratum with fast drilling speed.
This machine is very powerful ,it can drill max 150m depth ,this small water drilling machine use very powerful diesel engine ,it is 42KW Yunnei engine ,it assure the drilling machine strong power,this drilling water machine max torque of rotary head is 4600N.m ,the lifting force is 15T ,it is one small size drilling rig but big ability machine this water drilling machine use 2m length drilling rod ,it is convenient to load and unload drilling rod.
This mini water drilling rig is made by high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.this small well drilling machine passed CE certificate ,it is more popular and well received in Europe !
Machine Specifications
| Bore diameter(hammer) |
90-300mm |
| Bore depth |
150m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Once-time advance length |
2.4m |
| Pipe diameter |
76mm/89mm |
| Pipe length |
2m |
| Push force |
4T |
| Lifting force |
12T |
| Max torque of rotary |
3500-3800Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
2300×1200×1900MM |
| weight |
2300kg |
| Diesel engine |
42KW Yunnei engine |
Application
This water drilling rig is widely used for deep well drilling, farm irrigation well drilling, geothermal well drilling, borehole drilling, mini pile drilling etc projects

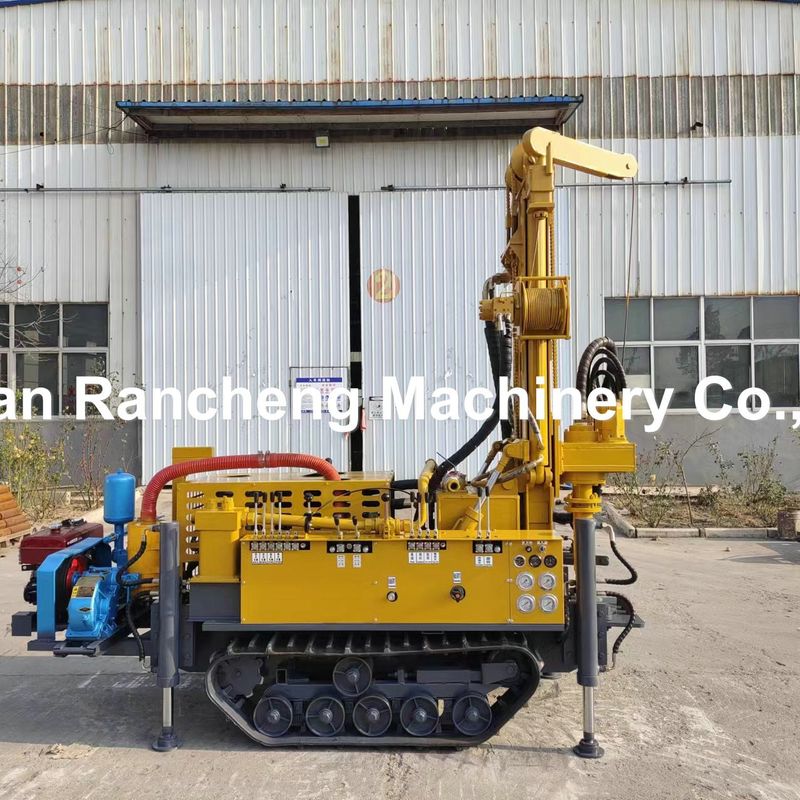

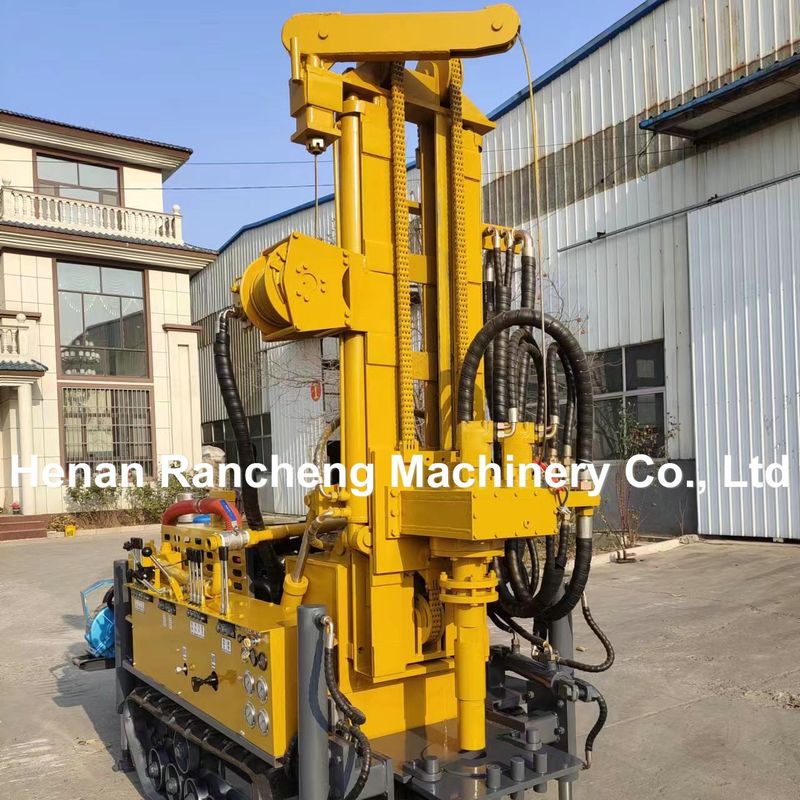

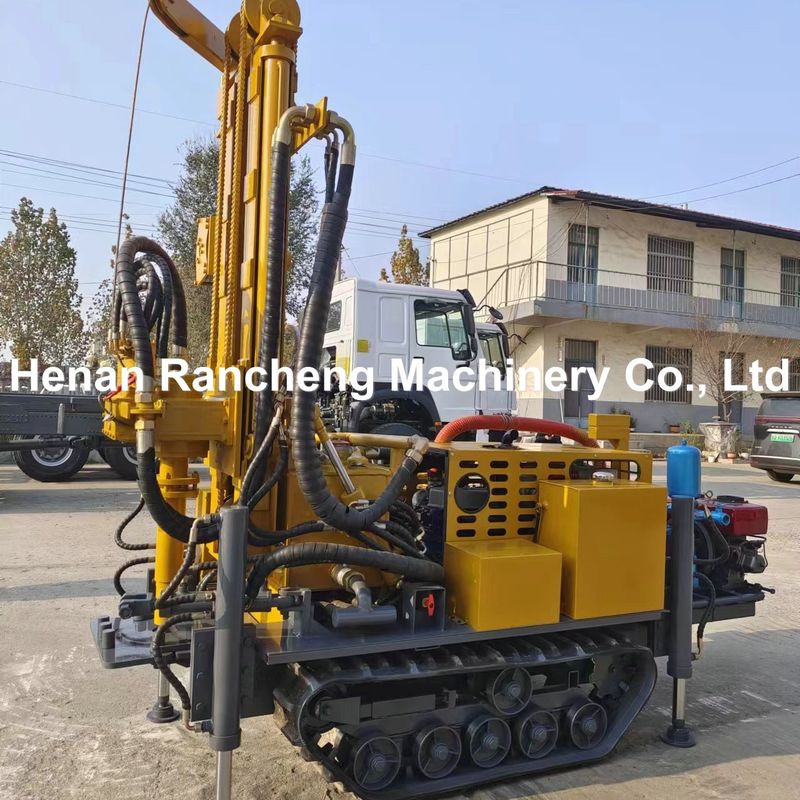

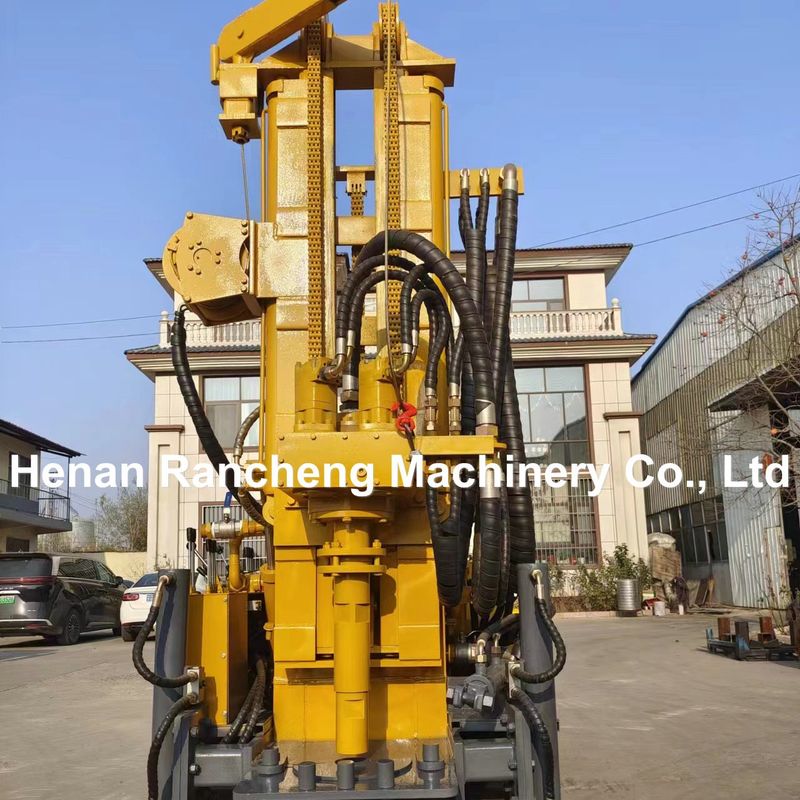

Machine Pictures
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
