2200rpm Speed Hydraulic Crawler Core Drilling Rig Powered By 74KW Cummins Diesel Engine
Product Description
Introducing the RCDX-2A fully hydraulic portable drill rig – the ultimate solution for geological exploration in difficult and remote terrains. Designed with versatility and efficiency in mind, this lightweight drill rig is ideal for diamond drilling using advanced rope core drilling techniques.
The RCDX-2A is built to withstand the toughest drilling conditions, making it an indispensable tool for geologists and exploration teams. Its rugged construction includes a powerful diesel generator, advanced hydraulic system and intuitive control panel to ensure flawless operation in the field. The rig’s mast and main winch are designed for stability and precision, while the cable winch and drill head facilitate efficient coring.
Unique to the RCDX-2A is its fully hydraulic drive system that powers all surface coring functions. This feature not only improves drilling performance, but also reduces the need for manual intervention, allowing the operator to focus on the task at hand. The electrical system and foot clamps provide additional support and control, ensuring safe and efficient drilling operations.
Whether you are conducting mineral exploration work, environmental assessments or geotechnical investigations, the RCDX-2A is the ideal drill rig for you. Its portability allows for easy transport to remote locations, while its advanced hydraulic features ensure you get accurate and reliable results in any condition.
Invest in the RCDX-2A fully hydraulic portable drill today and experience the perfect combination of power, efficiency, and portability in your geological exploration work. With this state-of-the-art equipment, you'll be able to confidently tackle any drilling challenge you encounter.
Product Specifications
| Power unit |
Power |
74KW Cummins diesel engine |
| Speed |
2200rpm |
| Drilling capacity |
BQ |
400m |
| NQ |
230m |
| HQ |
120m |
| Drill head capacity |
Max. spindle torque |
334~1030Nm |
| Max. Spindle speed |
0~900rpm |
| Feeding system (feed with hydraulic cylinder) |
Feeding stroke |
1700mm |
| Lifting capacity |
50kN |
| Feeding capacity |
25kN |
| The capacity of the main hoist |
Lifting capacity |
18kN (single-wire) |
| Lifting speed |
84m/min |
| Rope capacity |
30m |
| Steel wire diameter |
12mm |
| The capacity of wireline winch |
Lifting capacity |
8.4kN (bare drum) |
| Lifting speed |
90~240m/min |
| Rope capacity |
500m |
| Steel wire diameter |
6mm |
| Mud pump |
model |
BW-100A |
| Overall dimensions |
L*W*H in transport position |
3500*1500*1300 mm |
| Dimensions of the disassembled parts (without mud pump) |
The largest part not more than 100kg |
Product Features
1.Full hydraulic and drill head model: the drill head rotation is realized with duplex gear pump and four hydraulic pumps driven by 74KW diesel engine; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed;
2.Crawler mounted, has good climbing ability, easy to move and can work in rugged ground operations; the rig can be applied and performed in narrow space for drilling of hole at 45 degree~90 degree with stronger adaptability;
3.Strong techniques adaptability: besides diamond drilling with wire line coring technique, it is in strong techniques adaptability, it is applicable for the drilling and feeding requirements of any other stratum;

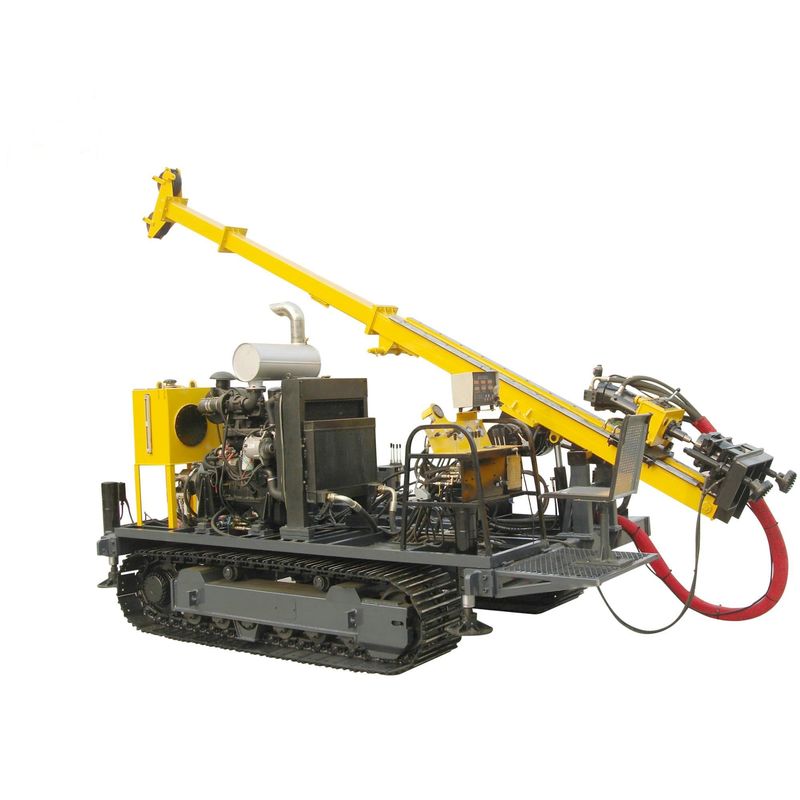

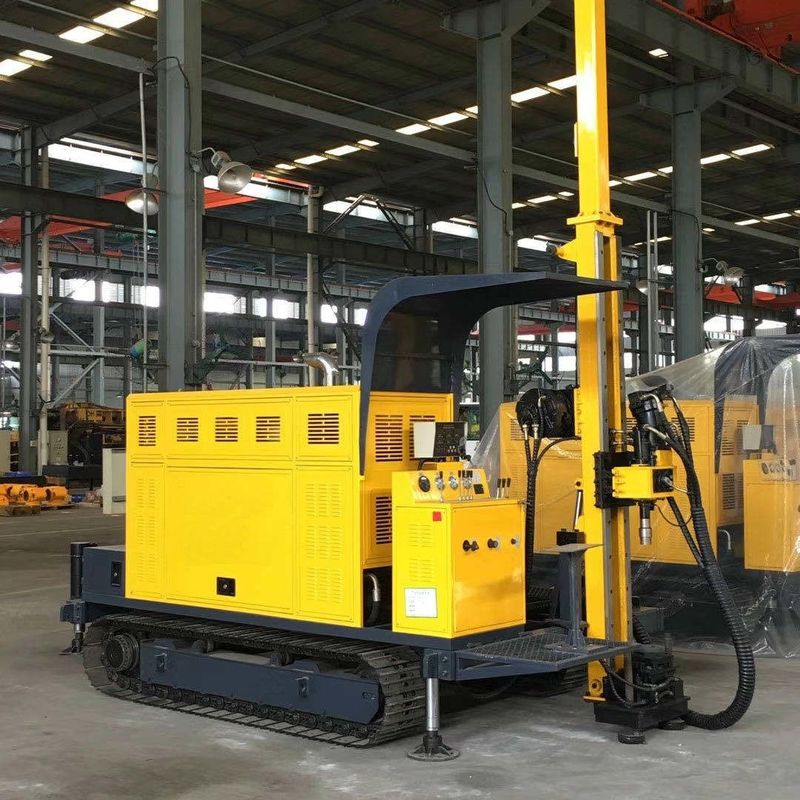

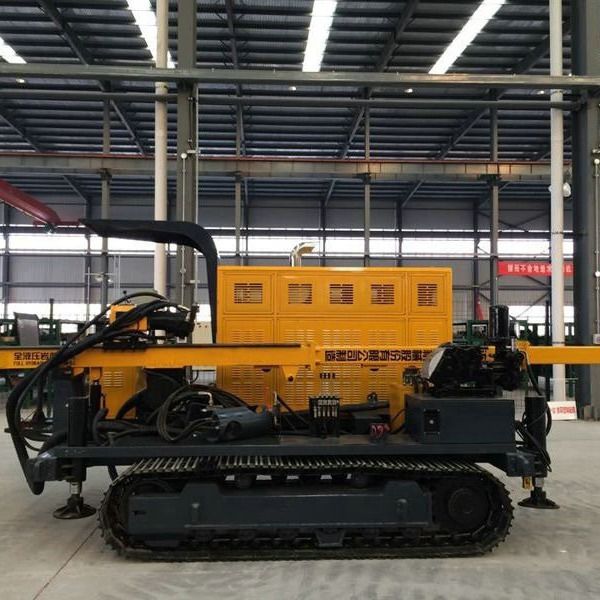

Product Image
