200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump

200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump

200m Water Well Drilling Rig

Crawler Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE,ISO 9001:2000

Model Number:

RCF200C

Contact Us
Request A Quote
Product Details
Name:
RCF200C Crawler Mounted Water Well Drilling Machine
Bore Diameter:
90-350mm
Bore Depth:
200m
Pipe Diameter:
76mm/89mm
Pipe Length:
3m
High Hydraulic Leg:
1.5m
Feeding Efficiency:
10-35m/h
Diesel Engine:
58KW Yuchai
Dimension(L*W*H):
4000×1750×2450
Mud Pump:
BW250
Highlight:

200m Water Well Drilling Rig

,

Crawler Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump

Product Description

RCF200C is a machine independently developed by our company. It is equipped with a 65kw Yuchai diesel engine. It has greater pneumatic power, plays an important role in improving drilling speed, has high working efficiency, and the maximum drilling depth can reach 200m. It adopts crawler design and is suitable for complex road conditions.


The drilling rig uses high-quality materials, has higher efficiency, low failure rate, is economical and durable, and has a high overall cost-effectiveness. Our product is widely welcomed by the market.





Technical Parameters



Model RCF200C
Bore diameter(Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4000X1800X2300mm
Weight 5000Kg
Diesel engine

58KW Yuchai



Advantages:


1.Deep Drilling: Capable of drilling up to 200 meters.
2.Durable: Made with high-quality materials for long-lasting use.
3.Efficient: Powered by a strong diesel engine with low fuel consumption.
4.Portable: Compact design with crawler tracks for easy movement.
5.Safe: Equipped with advanced safety features.
6.Versatile: Can use both mud pumps and air compressors for drilling.

The Machine picture

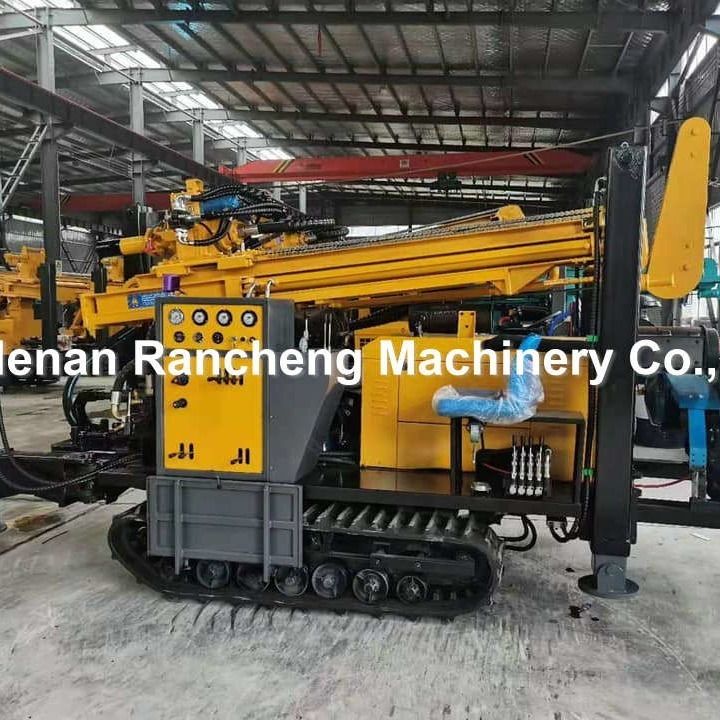

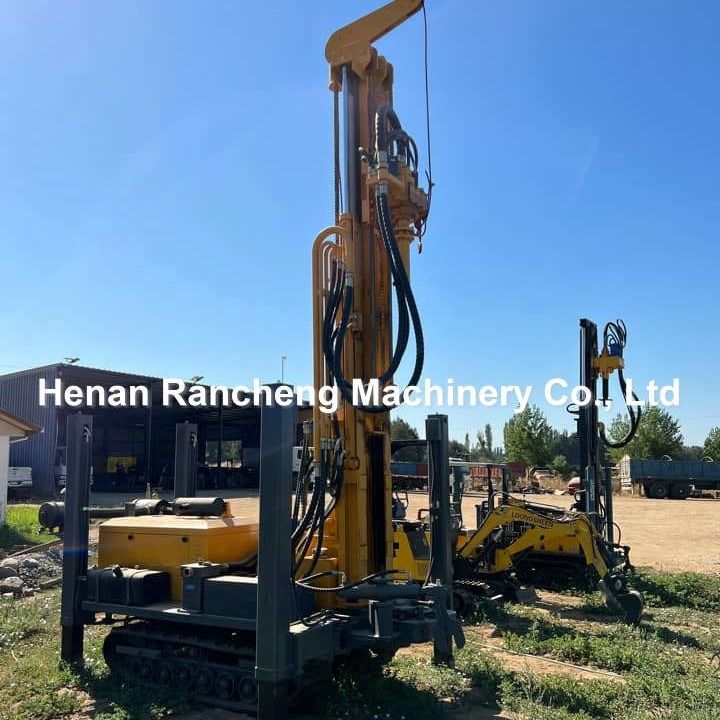

200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump 0200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump 1

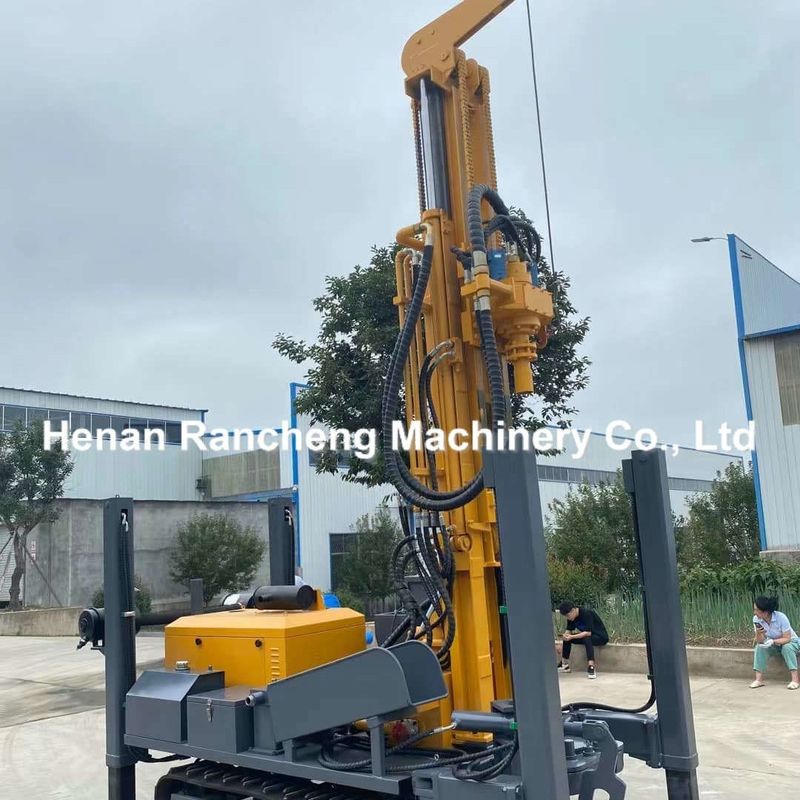

200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump 2

200m Rubber Crawler Water Well Drilling Rig With BW250 Mud Pump 3
