Factory Supply 150m 300m 500m Water Locator / Hand Held Magnetic Metal Water Detector
Product Description
The 300m natural electric field one-key mapping geophysical groundwater detector is the latest product developed by our company, which adopts a number of patented technologies. The instrument is lightweight and easy to carry. The measuring line only needs 10 meters, and one person can complete the operation, saving manpower. It has a full touch screen, simple operation, and an external large-capacity memory card. It has a one-key real-time mapping function, and can find high-resistance areas (fault zones) and low-resistance areas (such as water and mining area surveys).
The geological anomalies at the measurement site are directly displayed through real-time mapping. The instrument uses a unique built-in calculation function. After data collection, it can automatically draw curves and profiles with just one click. According to the profile, you can clearly understand the geological structure and quickly determine the location of ore bodies (ore layers), cavities (caves), water bodies (aquifers), etc.
Product Specifications
| Model No. |
Accuracy |
Channel |
Frequency |
LCD |
PS |
Other |
| 150m |
0.001mv |
4 |
Single,
Triple
33Frequency |
Industrial 7-inch HD touch screen |
DC12V 4000mAh
Built-in Battery |
1 . Powerful automatic noise reduction technology, excellent anti-interference performance.
2 . Intuitive user interface, fast CPU response, clear menu prompts.
3 . One-click automatic measurement, instant data storage, and automatic curve drawing.
4 . Data is automatically saved when you turn off the machine, so you don’t have to worry about losing it.
5 . Store up to 999 sets of data to meet a large number of measurement needs.
6 . Data can be easily imported into the computer for quick drawing analysis.
7 . Portable design, using rechargeable batteries, with electrode detection and power display functions, making it safer to use.
|
| 300m |
0.001mv |
6 |
Single ,
Triple ,
40 Frequency |
Industrial 7-inch HD touch screen |
DC12V
4000mAh
Built-in Battery |
| 500m |
0.001mv |
8 |
Single,
Triple,
56 Frequency |
Industrial 7-inch HD touch screen |
DC12V 4000mAh
Built-in Battery |
Product Features
1,high speed and high efficiency
Complete more than 8000m profiles measurement in one day to realize geological abnormality in different depth ,the prospecting speed and efficiency is improved about 10 times more than traditional resistivity method
2 easy to carry
Without heavy power supply ,it uses low frequency signals in earth natural electric field as signal source ,and the complete set weight is less than 2Kg ,so easy to carry
3,simple operation
It will take 0.5h for persons without prospecting experience to finish training
4,good accuracy ,high accuracy
The resolution of measurement is up to 0.001mv ,it gains high stability and abnormity curves matching with that of traditional electrical equipment in lots of field survey
5,anti-interference ability
It has advanced anti-jamming technology and multiple anti-jamming designs ,you can abserve abnormity curves result with good repetition even in weak signal area ,city,high electric jamming ,area and working area with other exterior interference via frequency selector and digital processing
6,mapping with one button
The detector is automatic from mapping in the instrument ,you can pick the drill well position after measurement
7,four language optional
The 4 language (chinese/English/Frence/Arabic)

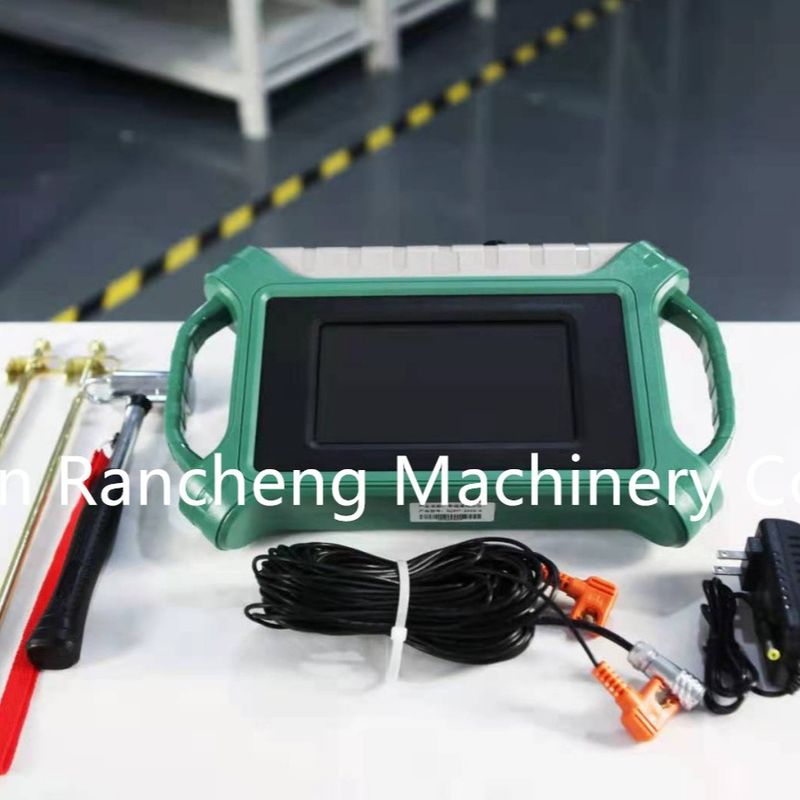

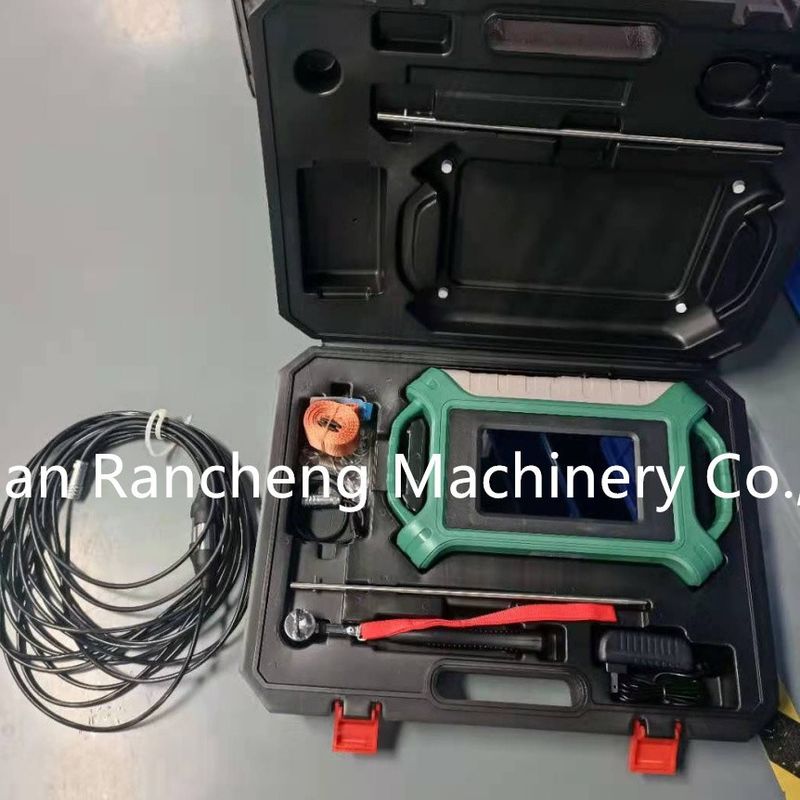

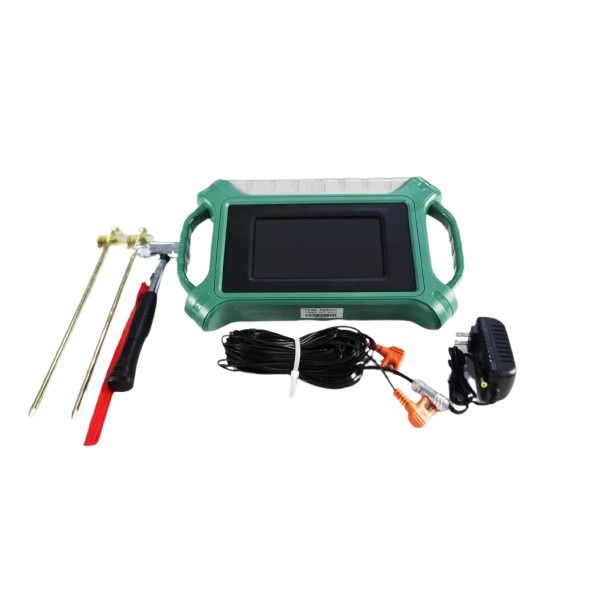

Product Image
