Name: Convenient 2m Length Drilling Rod RCF180S Water Well Drilling Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF180S
Availability: InStock

Home > products > Water Well Drilling Machine >

Convenient 2m Length Drilling Rod RCF180S Water Well Drilling Machine

Water Well Drilling Machine

RCF180S Drilling Rod

2m Length Drilling Rod

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Request A Quote

Product Details

Name:

RCF180S

Drilling Depth:

180m

Diesel Engine:

77.3KW Yuchai Engine

RCF180S Mini Water Drilling Machine Is Very Powerful ,it Can Drill Max 180m Depth , This Small Water:

76/89mm

Air Pressure:

1.7-2.5Mpa

Lifting Force:

15T

Climb Ability:

30°

Highlight:

Water Well Drilling Machine

RCF180S Drilling Rod

2m Length Drilling Rod

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

Convenient 2m Length Drilling Rod RCF180S Water Well Drilling Machine

Machine Description

This mini water drilling rig is made from high-quality materials and features a stylish, compact design that enhances efficiency while maintaining a low failure rate. It is economical, durable, and offers excellent overall cost performance. Our water drilling rigs have been validated in the market, as evidenced by the majority of positive feedback from our customers. This small well drilling machine has passed CE certification, making it popular and well-received in Europe!

Technical Parameters

Bore diameter(hammer)	90-300mm
Bore depth	180m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Once-time advance length	2.4m
Pipe diameter	76mm/89mm
Pipe length	2m
Push force	4T
Lifting force	15T
Max torque of rotary	4000-4600Nm
Rotary speed	45-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	2300×1200×1900mm
weight	2700kg
Diesel engine	77.3KW Yuchai engine

Feature:

1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.

2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.

3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.

4,it is rubber crawler mounted type ,easy to move.

5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.

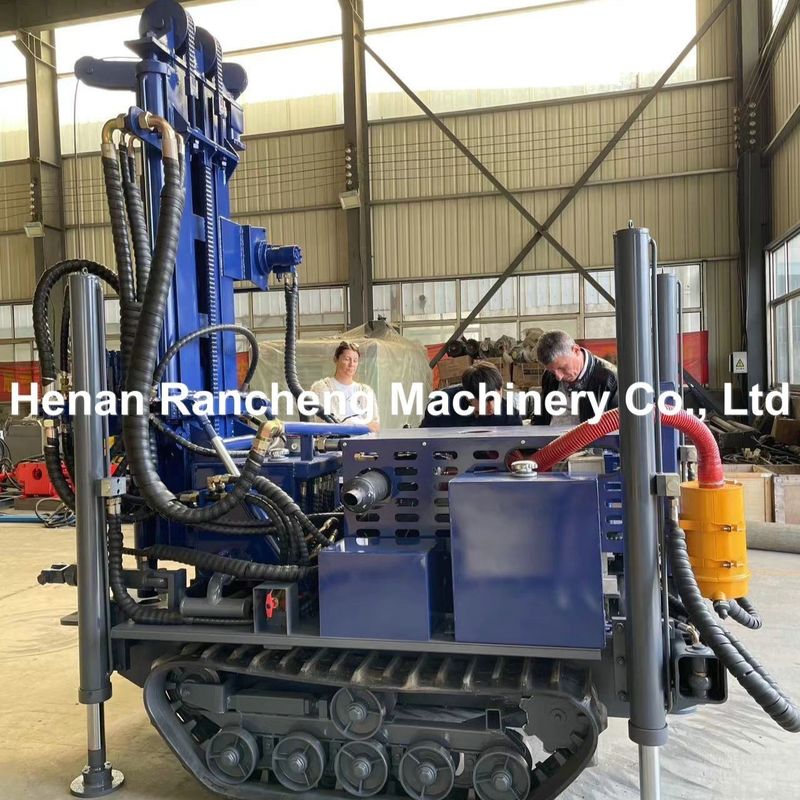

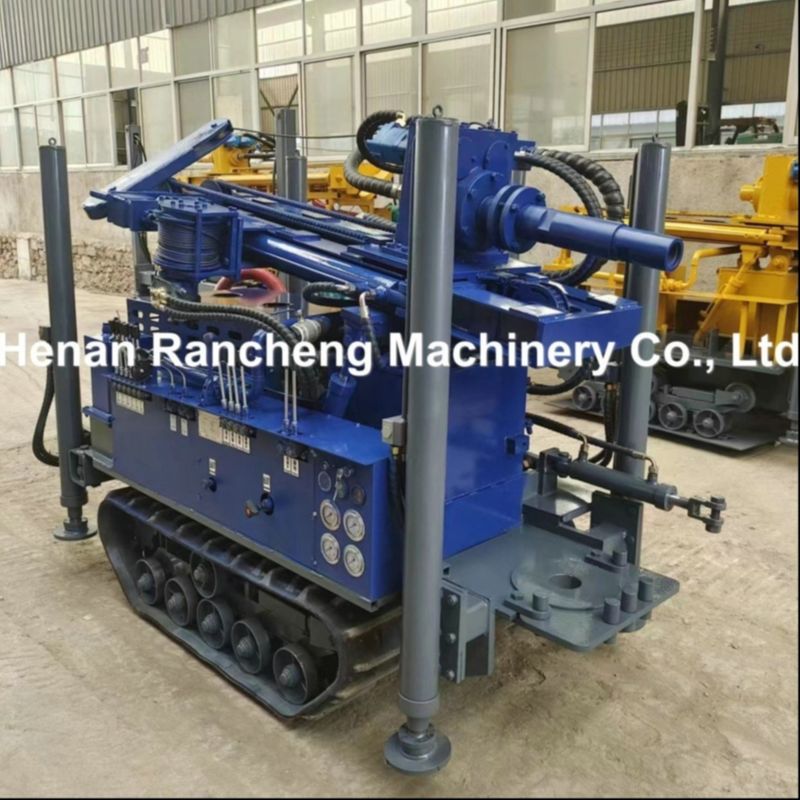

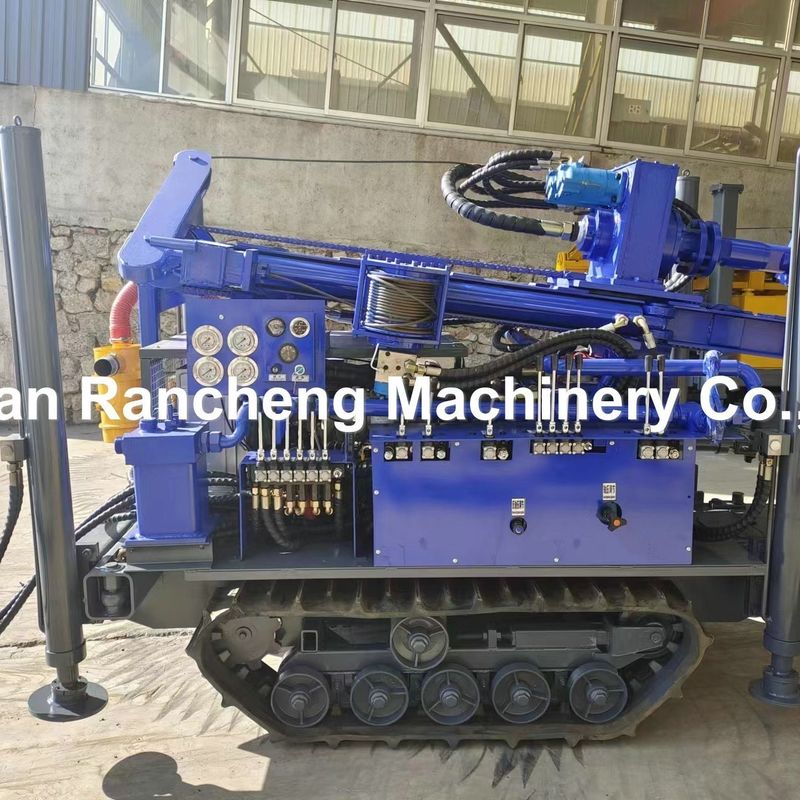

Image Display
