Product Description

RCF350T well drilling water truck is a highly customizable product designed to meet the specific needs of our clients. Customers can choose various options such as the chassis brand, boom length, mud pump selection, and air compressor installation. These trucks are ideal for a wide range of drilling projects, including borehole drilling, deep well drilling, geothermal well drilling, and farm irrigation well drilling.

The drilling depth of these trucks varies depending on the model, with the maximum depth reaching up to 800 meters. We offer models with different drilling capacities, including the RCF350T model, which features a drilling depth of 350 meters and a drilling diameter range of 140-350mm. The truck chassis options include Howo 6X4 and Dongfeng 6X4, providing flexibility and reliability for various applications. The lifting force of the trucks is 24 tons, ensuring efficient and powerful performance in demanding drilling tasks.

These trucks are built to provide both reliability and versatility for various well drilling applications, allowing customers to tailor the equipment to their specific needs and project requirements.

Technical Parameters

Machine Advantages

The RCF350T water drilling rig is a hydraulic rotary drilling rig with directional circulation function. The power of the drilling rig comes from a 266 - horsepower Cummins engine, which drives a large - displacement high-pressure plunger pump with strong power and stable performance. The lifting force can be adjusted and controlled to adapt to deep hole drilling. The water drilling rig can be equipped with a generator to facilitate welding or lighting at night.

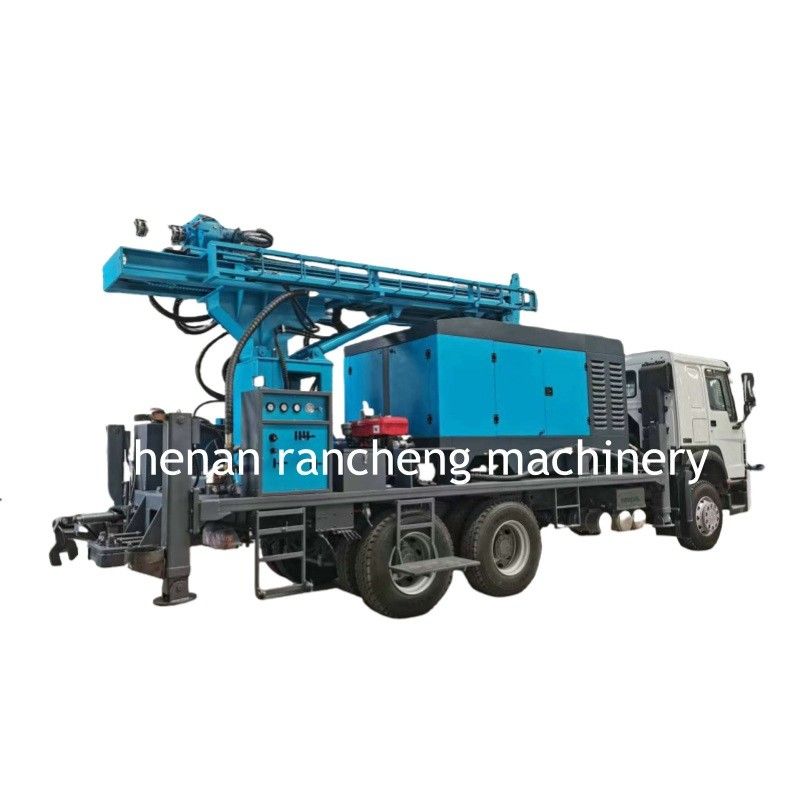

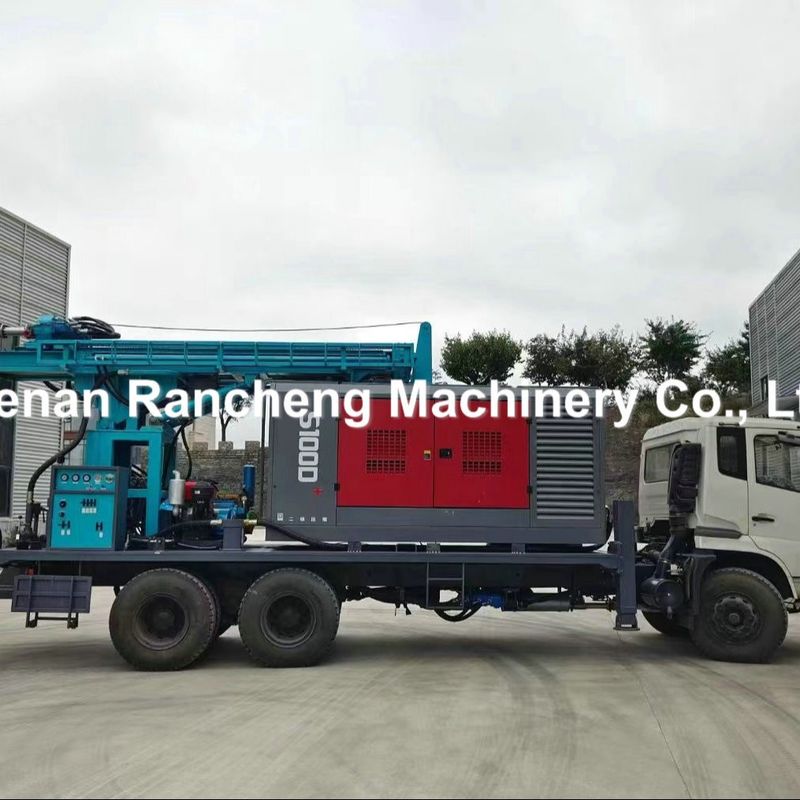

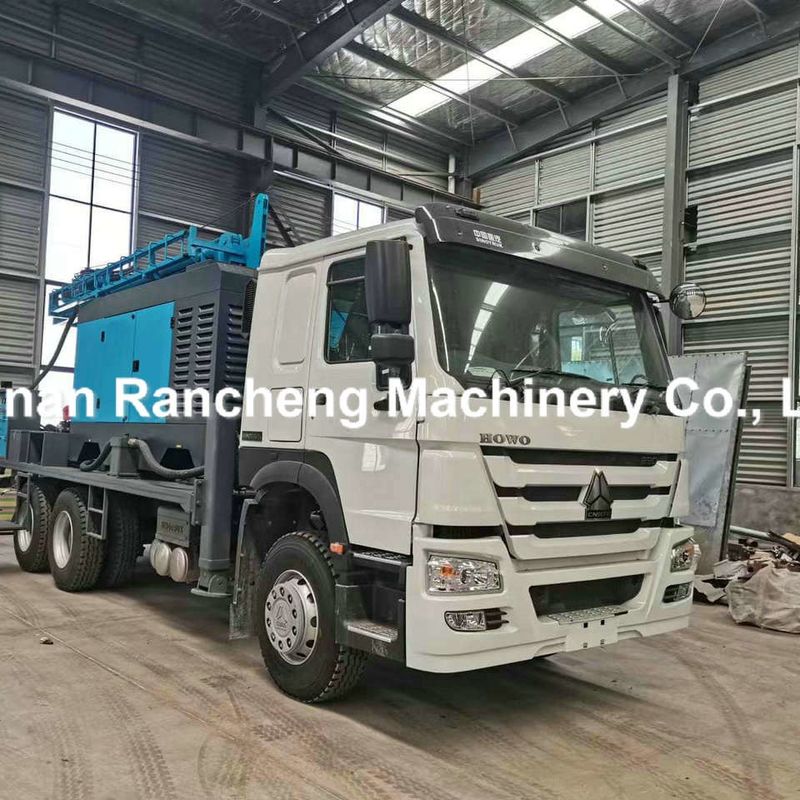

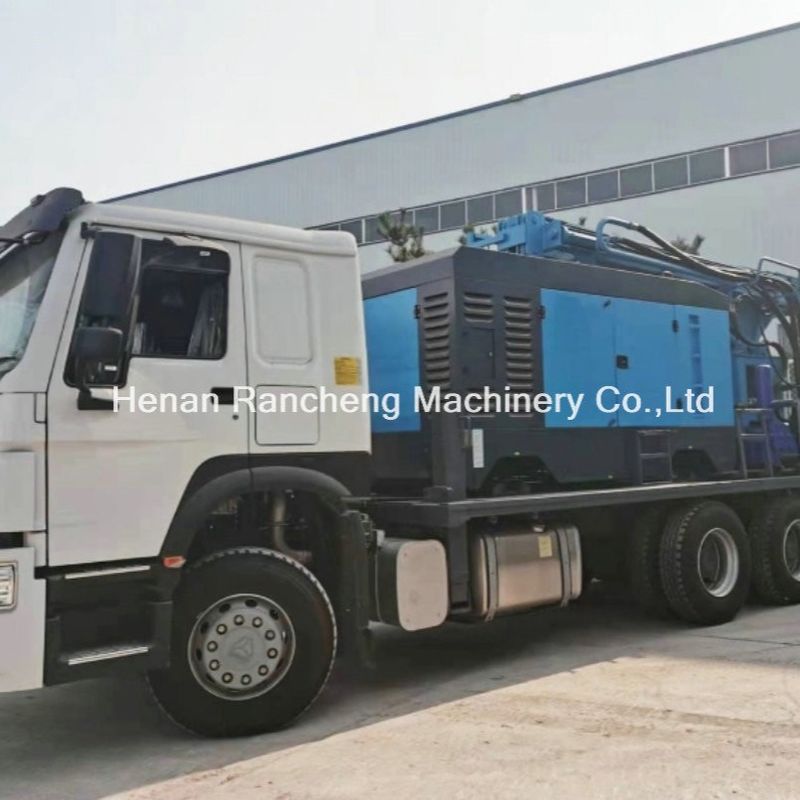

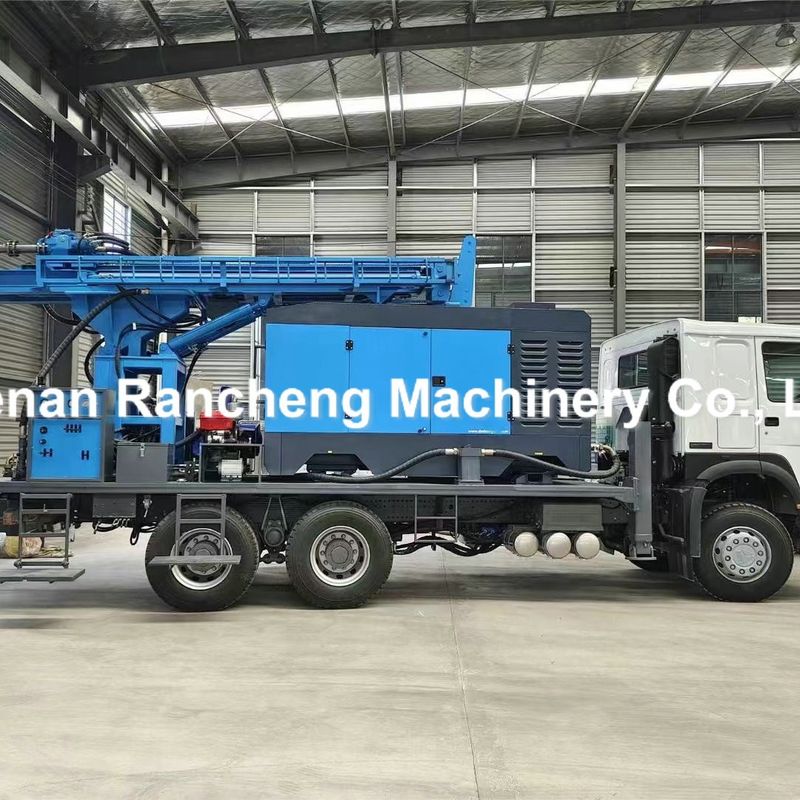

Machine picture display
