China Hot Selling 300m Deep Crawler Mounted Water Well Hydraulic legs Drilling Rig
Product Description
The RCF300C hydraulic water well drilling machine is a product independently developed by our company. It is one of the most popular products with high performance and versatility, which greatly improves work efficiency.
The drilling machine is powered by an 85KW Yuchai diesel engine and mounted on a durable steel crawler chassis, adopting the latest model and advanced hydraulic technology. It is made of high-quality materials, has strong power and low energy consumption, and is equipped with top head driving and an adjustable mast compensation function to ensure high rotary torque and smooth operation as well as strong borehole stability during drilling. It is suitable for irrigation wells, home drinking water wells, geothermal projects, industrial water supply and other projects.
Our company's drilling machines are highly efficient, low in failure rate, durable, and cost-effective. They have been recognized by the market and received positive feedback from customers.
Technical Parameters
| Model |
RCF300C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
300m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4200×2200×2600mm |
| Weight |
7200Kg |
| Diesel engine |
85KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
Advantages
Full Hydraulic Control - Easy parameter adjustment for various drilling conditions.
Top-Drive Slewing - Quick drill pipe connection and disconnection, reducing auxiliary time.
Multifunctional Drilling - Supports multiple drilling methods, enhancing versatility.
High Efficiency - Fast drilling speed and short auxiliary time due to advanced systems.
Cost-Effective - Air DTH drilling technology reduces cost per meter.
Portable Design - High outriggers for easy loading and transportation without a crane.
Axial Pressure Adjustment - Optimizes drilling efficiency by adjusting pressure.
Durable Chassis - Professional excavator chassis for rough terrains.
High Configuration - High-quality components and hydraulic system.
Efficient Power Distribution - Parallel gearbox design for better maintenance.

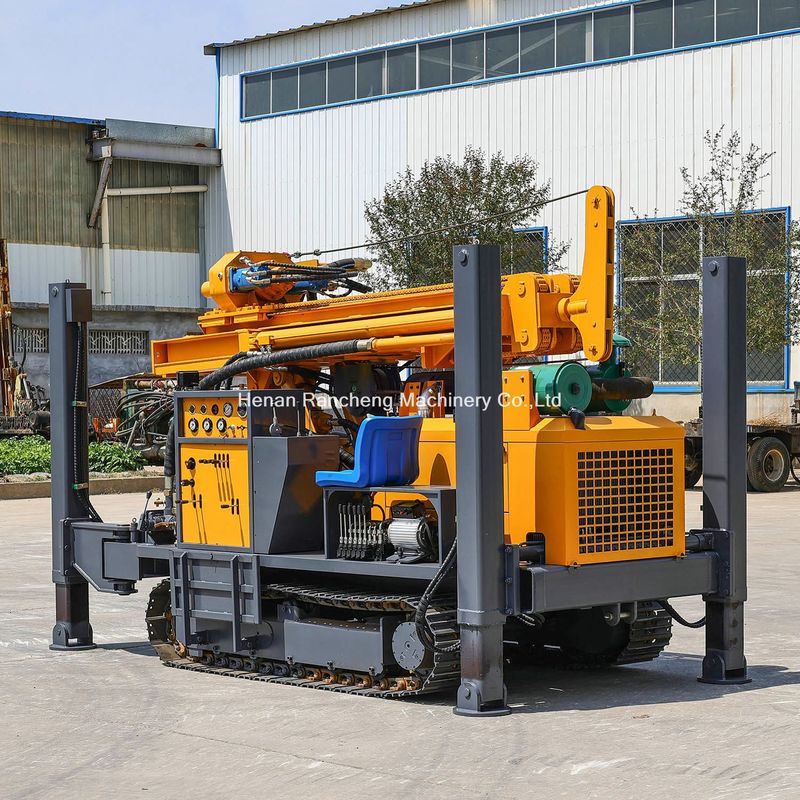

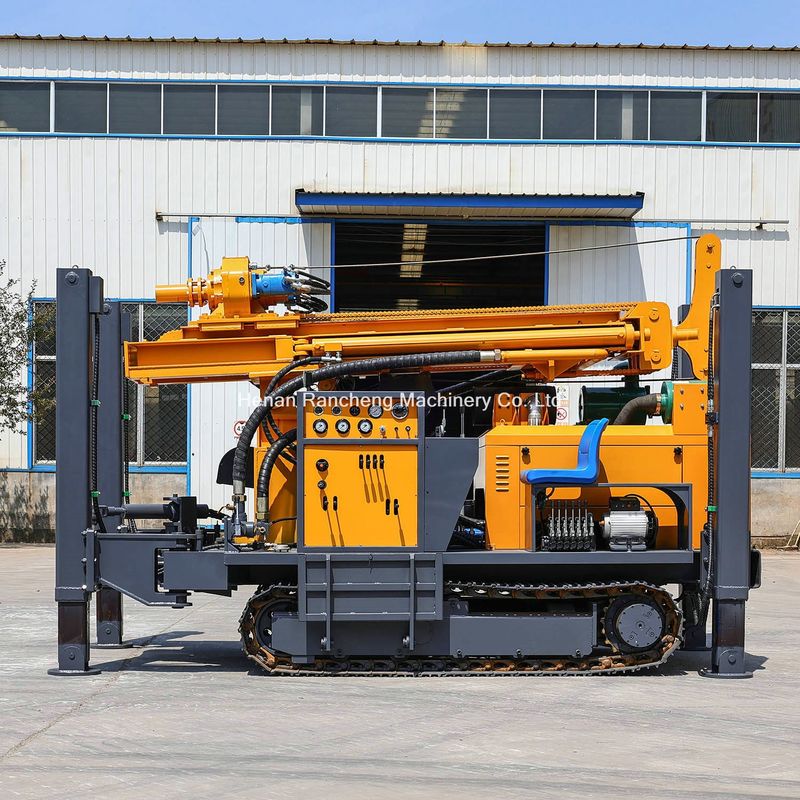

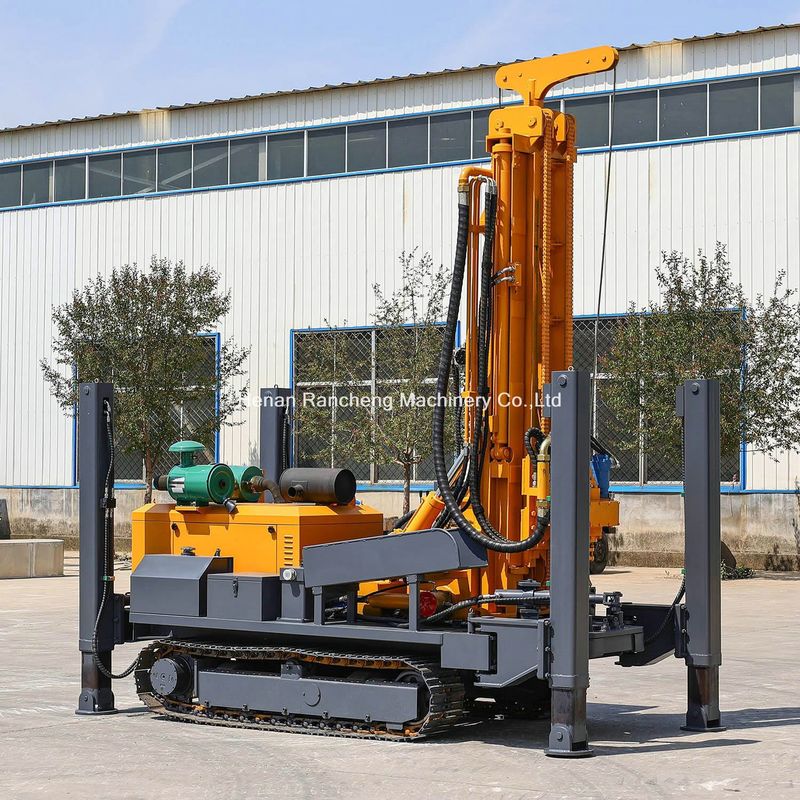

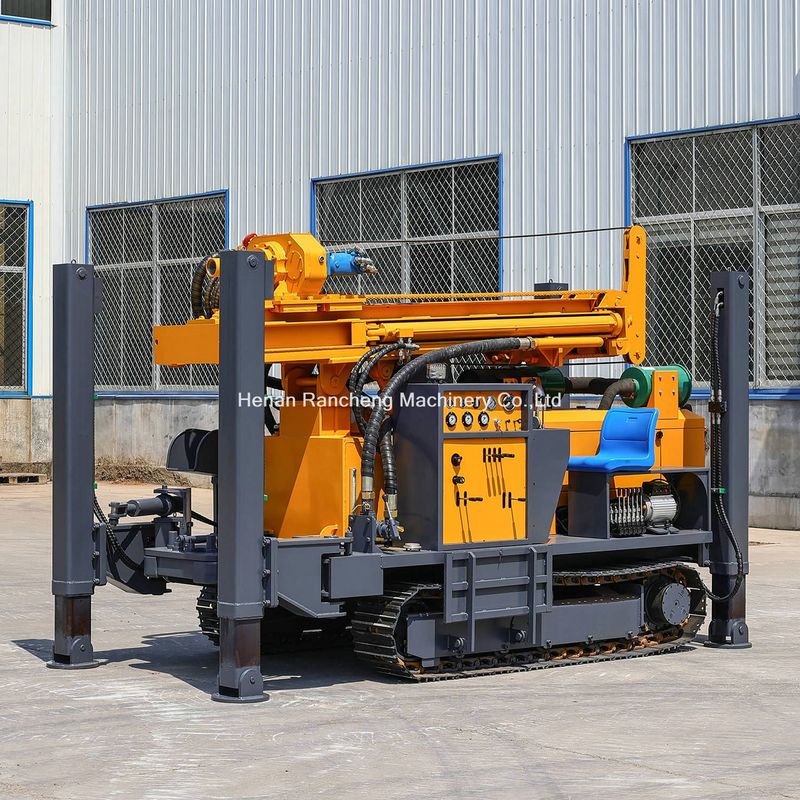

Machine picture display
