Name: 200m Vehicle-Mounted Deep Hole Drilling Rig With Cummins Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200T Truck Mounted Water Well Drilling Rig
Availability: InStock

Home > products > Water Well Drilling Rig >

200m Vehicle-Mounted Deep Hole Drilling Rig With Cummins Engine

Cummins Engine Deep Hole Drilling Rig

Vehicle-Mounted Deep Hole Drilling Rig

200m Deep Hole Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200T Truck Mounted Water Well Drilling Rig

Request A Quote

Product Details

Name:

RCF200T Hydraulic Truck Mounted Water Well Drilling Rig

Bore Diameter:

140-350mm

Bore Depth:

200m

Wind Pressure:

1.7-3.0Mpa

Air Consumption:

15-35m³/min

Drill Pipe Length:

Rotation Torque:

3300-4700N.m

Rotary Speed:

45-115r/pm

Travel Speed:

80km/h

Highlight:

Cummins Engine Deep Hole Drilling Rig

Vehicle-Mounted Deep Hole Drilling Rig

200m Deep Hole Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

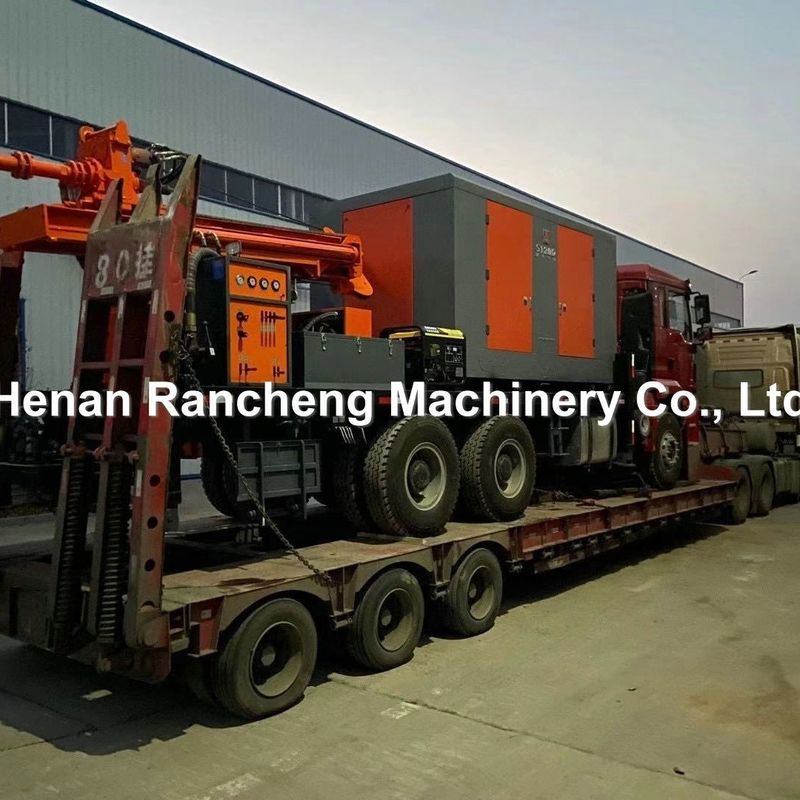

It can be shipped by ro-ro ship

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig

Get Best Price

Video

280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig

Get Best Price

Video

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

Get Best Price

Video

300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine

Get Best Price

Contact Now

Product Description

200m Truck Mounted Water Well Drilling Rig Borehole Drill Machine Equipment Portable Drill Machinery

Product Description

The RCF200T hydraulic truck-mounted water well drilling rig is an advanced and versatile drilling solution for a wide range of applications. The rig is equipped with a powerful 260HP Cummins engine, ensuring strong performance while maintaining energy efficiency. It adopts a 6X4 Dongfeng truck chassis, providing excellent maneuverability and stability on various terrains.

The RCF200T supports air down-the-hole drilling and mud pump circulation drilling processes, and is suitable for drilling deep wells, farmland irrigation wells, geothermal air conditioning wells and monitoring wells. It is also suitable for hydropower cofferdam grouting, embankment anti-seepage grouting, anchor grouting, open-pit mining and grassroots law enforcement grouting tasks.The rig is equipped with a composite boom and a long-stroke dual-cylinder lifting system, providing 13 tons of lifting force and 3400mm feed stroke.

Overall, the RCF200T is a reliable and efficient drilling rig backed by our company's commitment to quality and customer satisfaction. Made of high-quality materials, the RCF200T is durable and has low maintenance costs. It is well received in the market and has received positive feedback from customers for its performance and durability.

Technical Parameters

Drilling type	Mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Drilling diameter (mm)	115～350
Drilling depth (m)	200
Work Pressure(Mpa)	1.05～3.5
Consumption (m³/min)	16～40
Drill pipe length (m)	3
Drill pipe diameter (mm)	89
Axle pressure (N)	57000
Lifting power (T)	12T
Rotary torque (Nm)	5600
Rotary speed	0～100
Truck Chassis	DONGFENG
Diesel engine Model	Cummins
Discharge standard	Euro III
Horsepower	180HP
Rated speed	2500r/min
Fuel type	diesel
Tire size	90.00-20R
Drive form	4*2
Dimension (mm)	890021003300
The total weight (T)	12

Machine Advantages

Powerful Engine
Equipped with a 260HP Cummins engine for high performance and efficiency.
Versatile Drilling
Supports air DTH and mud pump drilling, adapting to various conditions.
Hydraulic Control
Full hydraulic system for easy parameter adjustment and flexibility.
Efficient Operation
Top-drive slewing lift enables quick drill pipe connection and disconnection.
High Mobility
Mounted on a 6X4 Dongfeng truck for excellent mobility and stability.
Durable Build
Constructed with high-quality materials for long-term durability.
Deep Drilling
Capable of drilling up to 200 meters, suitable for deep well projects.
Wide Application
Ideal for deep wells, irrigation, geothermal, and monitoring wells.
Low Maintenance
Designed for durability, reducing maintenance and operational costs.
High Lifting Capacity
Features a composite boom with a 13-ton lifting capacity for heavy loads.

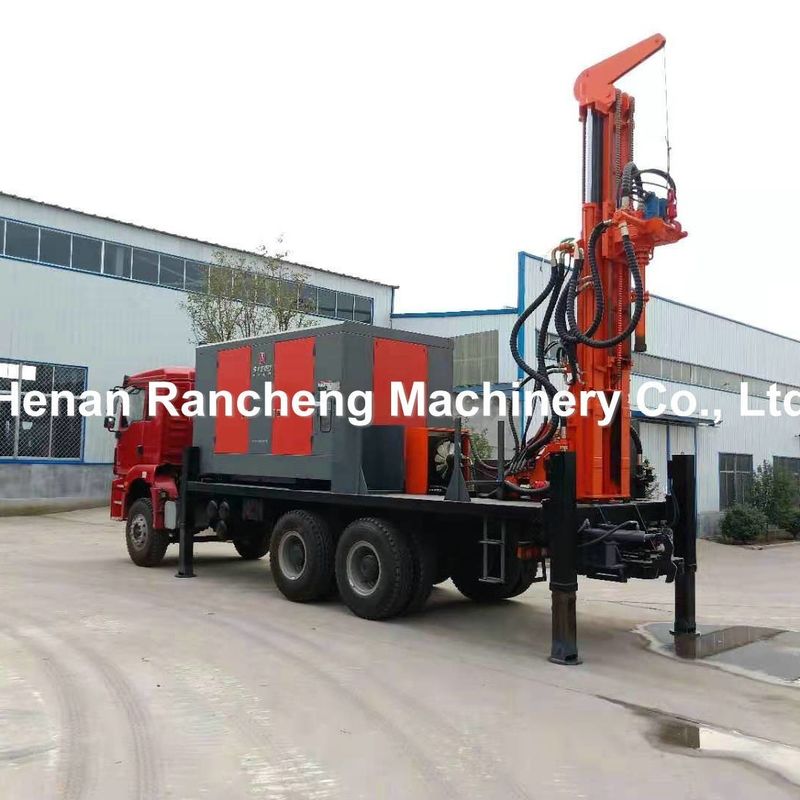

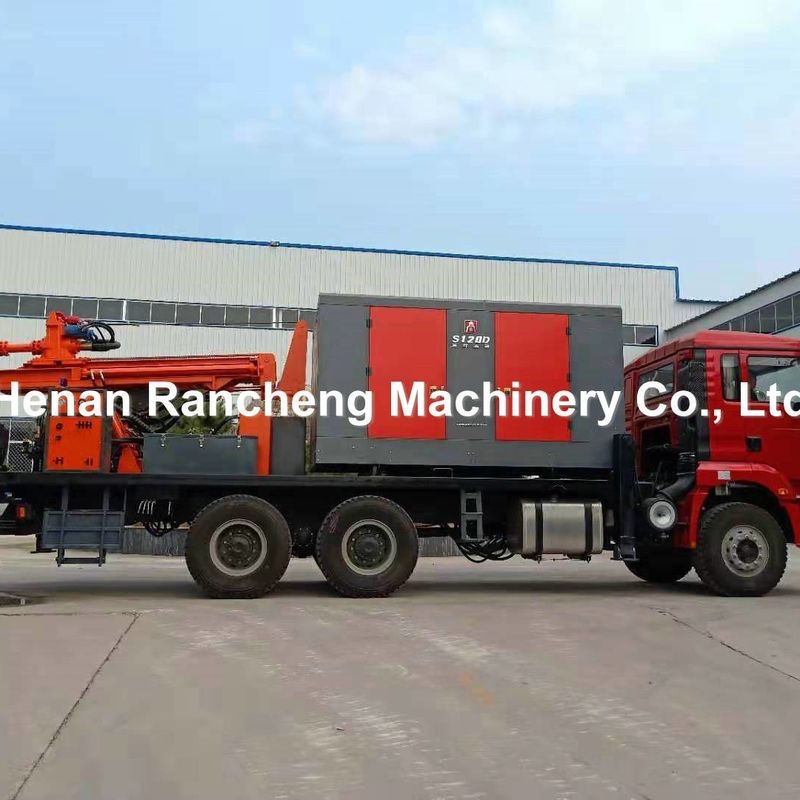

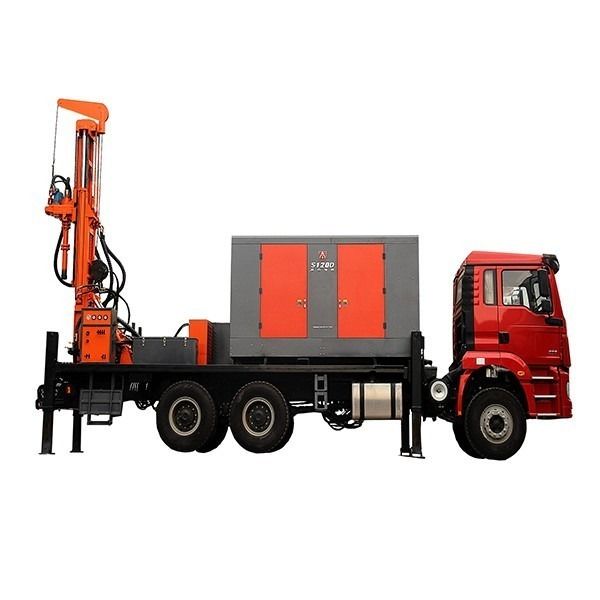

Machine picture display

200m Vehicle-Mounted Deep Hole Drilling Rig With Cummins Engine 0
