Depth 450m High Hydraulic Leg 1.6m Rubber Track Water Well Drilling Rig
Machine Introduction
The RCF450C crawler water well drilling rig is a versatile and powerful machine designed for efficient and precise drilling operations. Equipped with a robust engine, it delivers a torque of up to 9500N.m, ensuring high drilling efficiency across various soil and rock formations. Its advanced hydraulic system enhances performance and allows for smooth adjustment of the drilling angle, making the rig suitable for diverse applications in industries like mining, geology, and agriculture.
This machine is built with mobility in mind, featuring a durable track chassis that enables it to move easily over different terrains. It is designed for operator comfort and safety, with a user-friendly control system, an adjustable drilling angle gauge, and an emergency stop button to ensure a secure working environment.
The RCF450C also offers a hydraulic winch for simplified handling of drilling rods, boosting overall efficiency and making it an ideal choice for both experienced operators and those new to drilling projects. Its ability to handle a wide range of soil types, including clay, sandstone, and gravel, makes it a reliable solution for various drilling needs.
Application
The RCF450C crawler water well drilling rig has a wide range of applications, including deep well drilling, borehole drilling, farmland irrigation well drilling, geothermal well drilling and geothermal air conditioning well and other drilling projects.
Technical Parameters
| Bore diameter(Hammer) |
140-350mm |
| Bore depth |
450m |
| Air consumption |
17-36m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1.5m/2m/3m/6m |
| Lifting force |
25T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
20m/min |
| Fast feeding speed |
40m/min |
| Max torque of rotary |
6200-9000Nm |
| Rotary speed |
66-135r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.6m |
| Feeding efficiency |
15-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6000×2100×2550mm |
| Weight |
9400Kg |
| Diesel engine |
102KW engine |
| Drilling way |
Air compressor drilling or mud pump drilling |

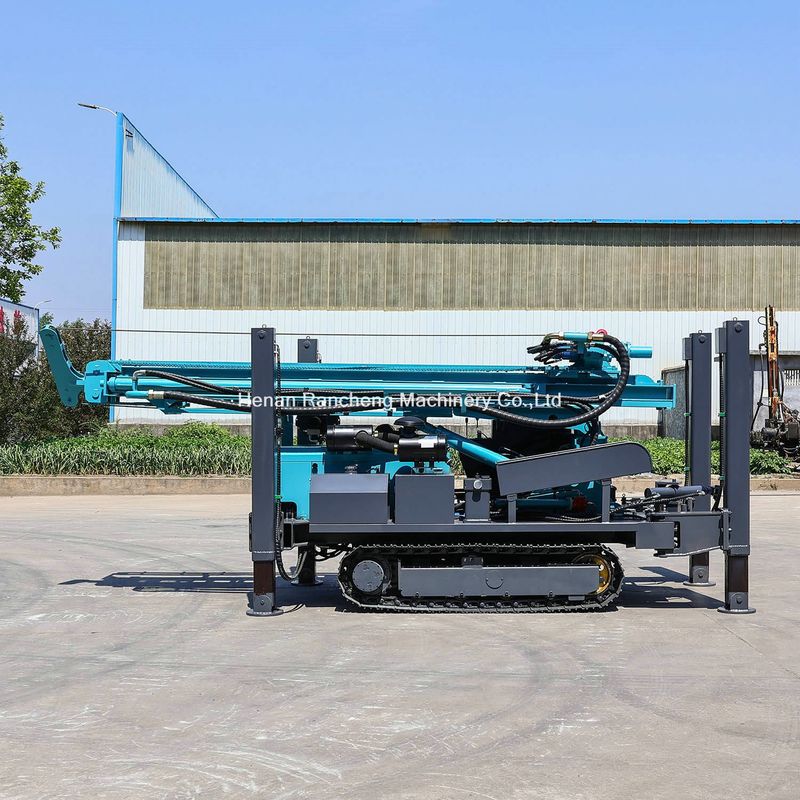

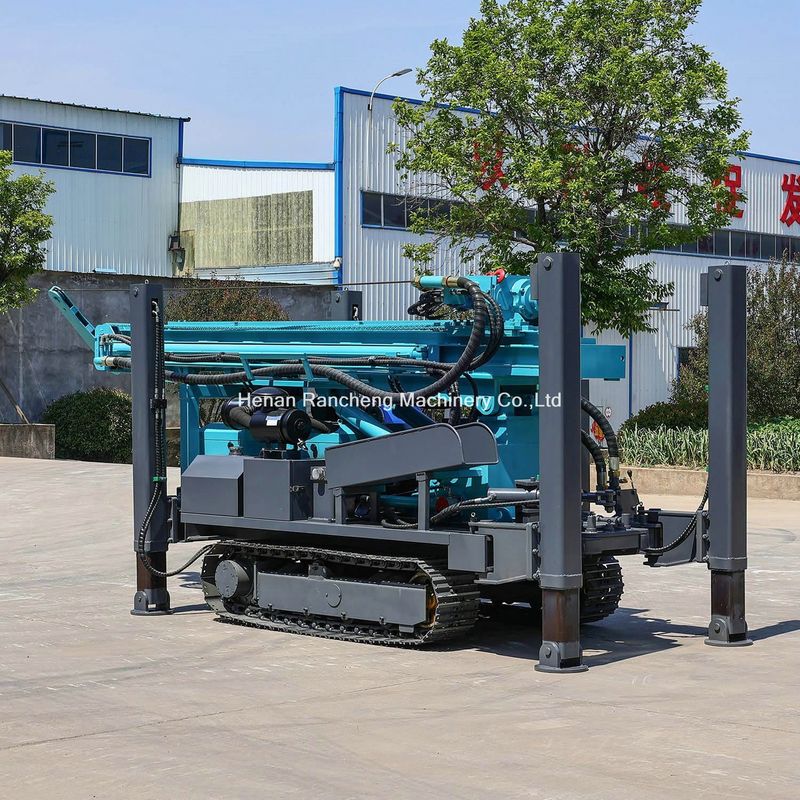

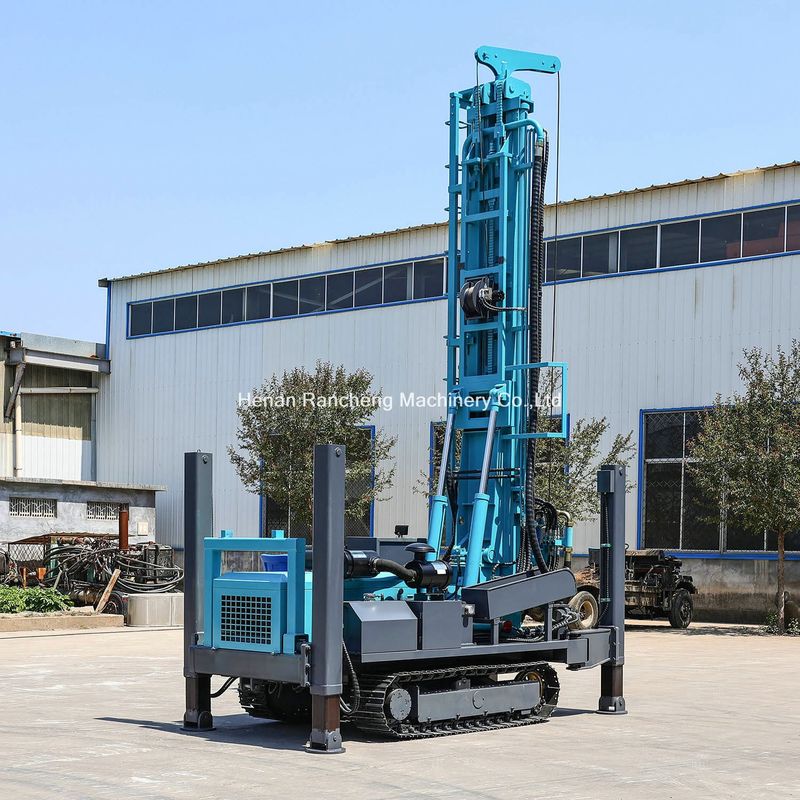

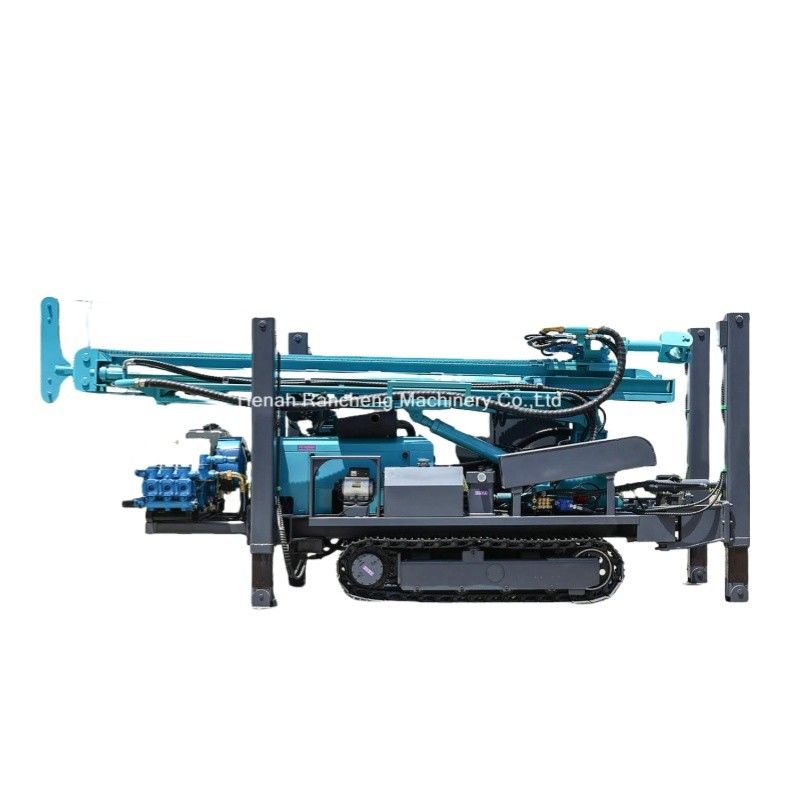

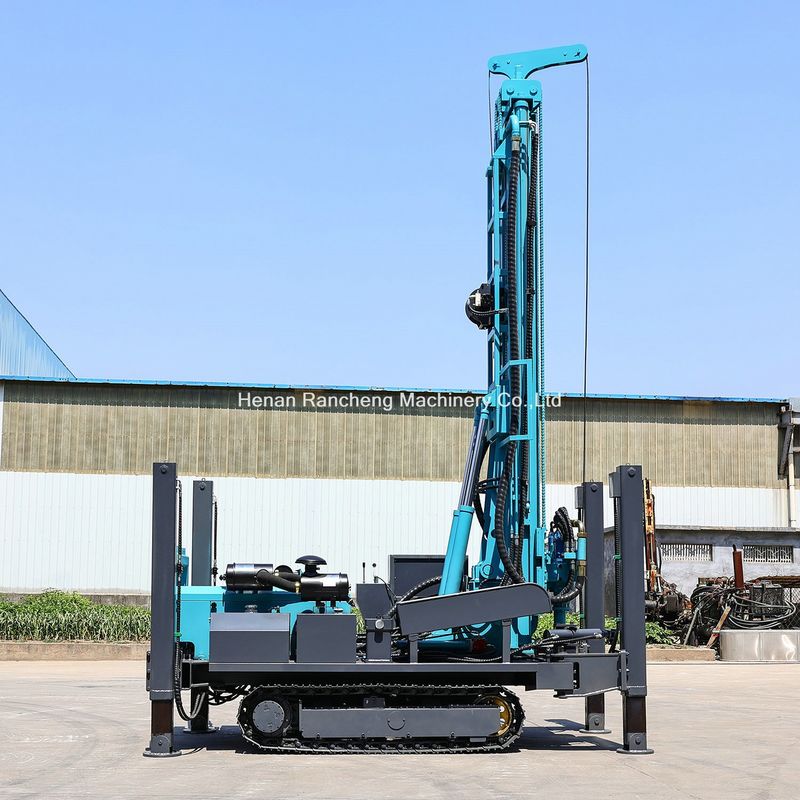

Machine Pictures
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!
