180m Mining Drilling Rig Equipment Machine Water Well Borehole Crawler Rig

180m Borehole Crawler Rig

180m Mining Drilling Rig

180m Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180C

Request A Quote

Product Details

Name:

RCF180C Water Well Drilling Rig

Drill Depth:

180m

Diameter:

90-300mm

Pipe Diameter:

76/89mm

Pipe Length:

Push Force:

Lifting Force:

12T

Highlight:

180m Borehole Crawler Rig

180m Mining Drilling Rig

180m Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

180m Mining Drilling Rig Equipment Machine Water Well Borehole Crawler Rig

Product Description

RCF180C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs with greater pneumatic power play an important role in increasing drilling speed.

Using high-quality materials and stylish and compact design, the drilling rig is more efficient, has a low failure rate, is more economical and durable, and has a high overall cost-effectiveness. Our water well drilling rigs have been truly verified by the market and received positive feedback from customers.

Technical Parameters

Model	RCF180C
Drilling way	Mud pump drilling and air DTH hammer drilling
Operation system	Full hydraulic operating
Bore diameter(Hammer)	90-300mm
Bore depth	180m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of the rotary	3200-4600Nm
Rotary speed	45-70r/min
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	3×1.5×2.2M
Weight	4500kg
Diesel engine	55KW Quanchai

Application

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

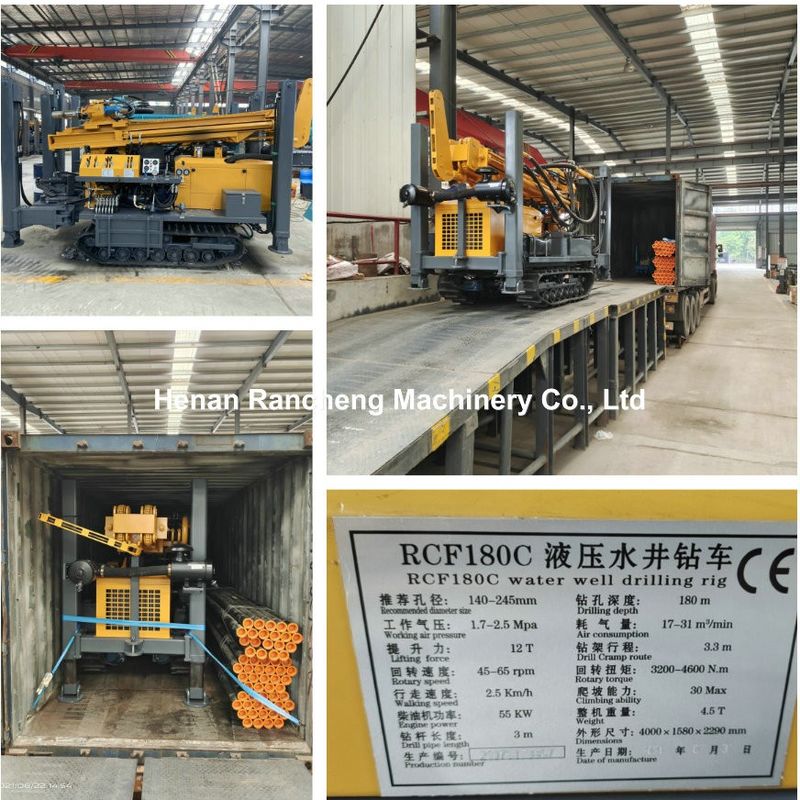

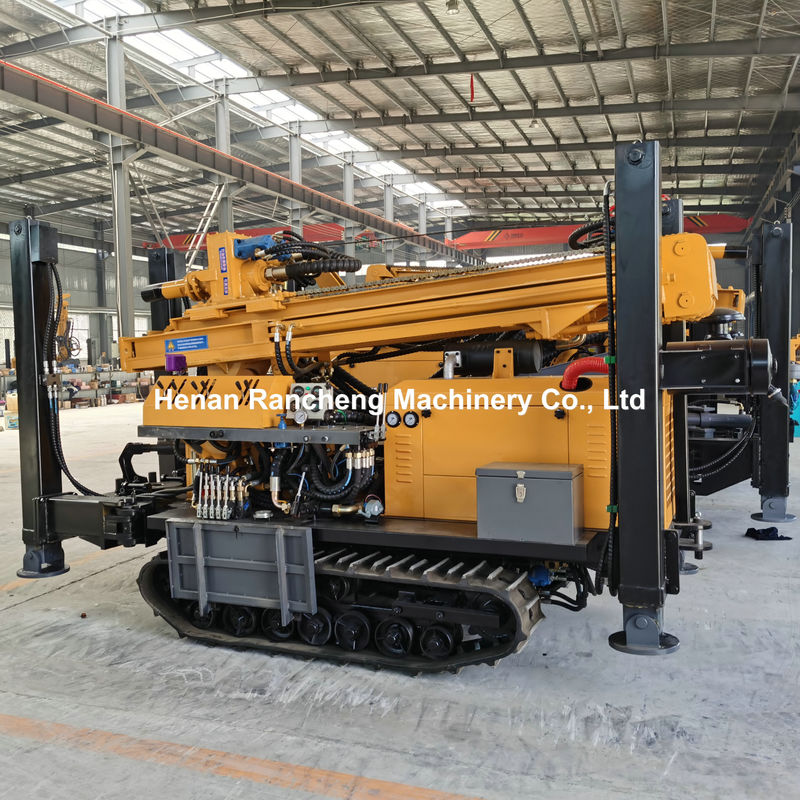

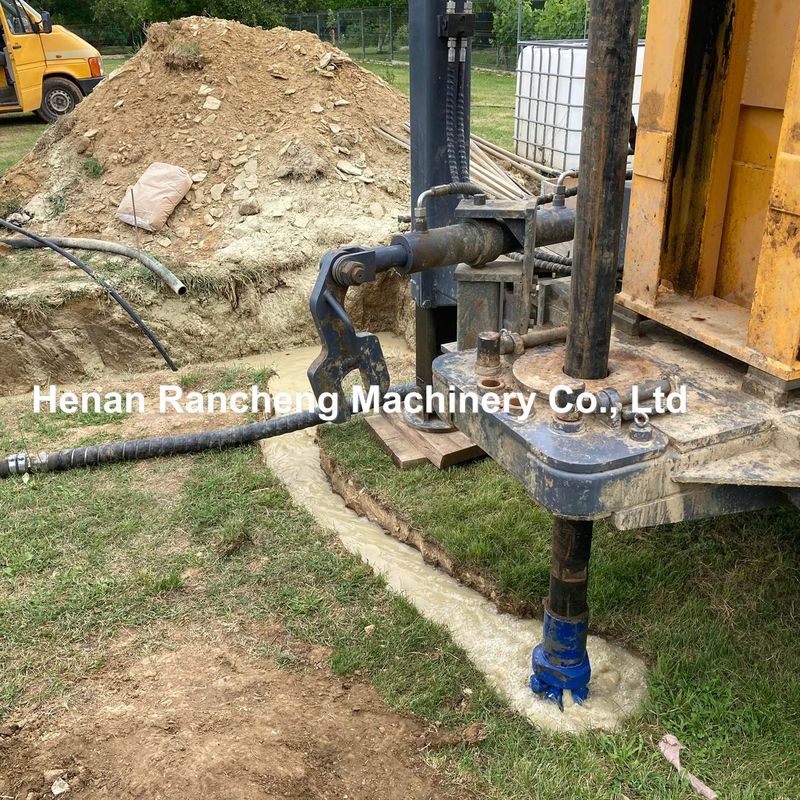

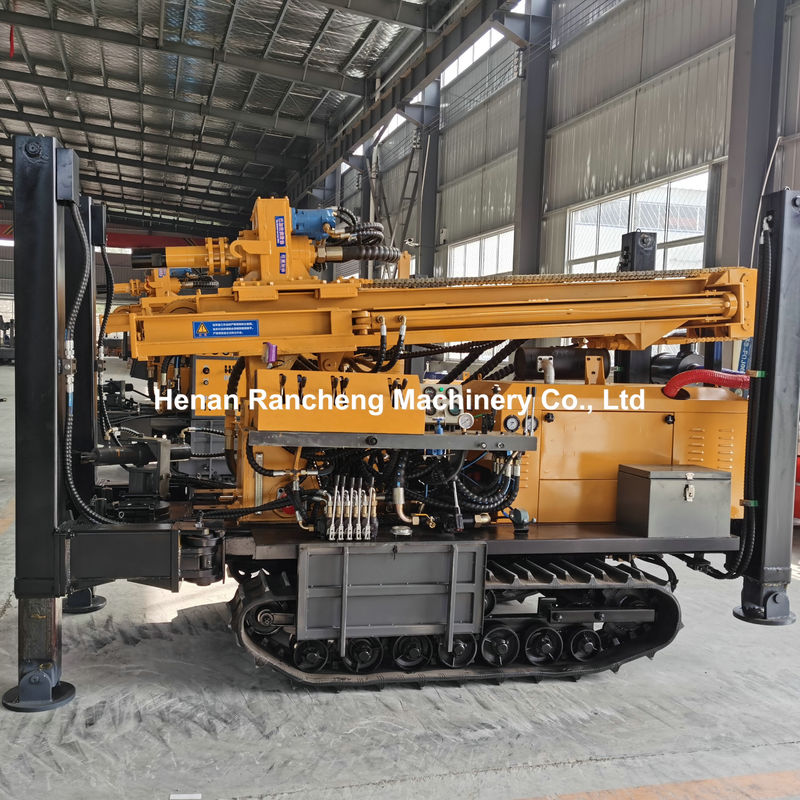

Pictures
