300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine
Product Description
The RCF300T is a hydraulic truck-mounted water well drilling rig. It is an independently researched and developed product with advanced hydro technology. The rig features full hydraulic control, top-drive slewing propulsion lift, and multifunctional drilling processes including air DTH drilling and mud pump circulation drilling. It has a drilling depth of 300 meters, a feed stroke of 3400mm, and a lifting force of 18 tons. The rig is mounted on a 6X4 Dongfeng truck with a 210HP Cummins engine and is equipped with a 24/22 air compressor powered by a Yuchai engine.
Technical Parameters
| Drilling type |
Mud pump drilling and air DTH drilling |
| Geology drilled |
All kind |
| Drill system and operation |
Hydraulic |
| Drilling diameter (mm) |
115～350 |
| Drilling depth (m) |
300 |
| Work Pressure(Mpa) |
1.05～3.5 |
| Consumption (m³/min) |
16～40 |
| Drill pipe length (m) |
3 |
| Drill pipe diameter (mm) |
89 |
| Axle pressure (N) |
57000 |
| Lifting power (T) |
18T |
| Rotary torque (Nm) |
5600 |
| Rotary speed |
0～100 |
| Truck Chassis |
HOWO |
| Diesel engine Model |
Cummins |
| Discharge standard |
Euro III |
| Horsepower |
266HP |
| Rated speed |
2500r/min |
| Fuel type |
diesel |
| Tire size |
90.00-20R |
| Drive form |
4*2 |
| Dimension (mm) |
10600*2500*3550 |
| The total weight (T) |
12 |
Machine Advantages
1.Full Hydraulic Control:
Offers flexible adjustment of speed, torque, and pressure, adapting to various drilling conditions and processes for optimal performance.
2.Top-Drive Slewing Propulsion:
Facilitates quick connection and disconnection of drill pipes, reducing auxiliary time and enhancing drilling efficiency.
3.Multifunctional Drilling:
Supports both air DTH and mud pump circulation drilling, with optional accessories for diverse drilling needs.
4.High Efficiency:
Combines full hydraulic control and top-drive technology for fast drilling speed and short auxiliary time, boosting operation efficiency.
5.Cost-Effectiveness:
Utilizes DTH drilling technology, achieving high efficiency and low cost per meter drilled, ensuring economic benefits.
6.Mobile Walking Device:
Equipped with a 6X4 Dongfeng truck and 210HP Cummins engine, providing strong mobility and easy relocation between sites.
7.Axial Pressure Adjustment:
Allows for positive and negative axial pressure adjustments during drilling, maintaining optimal impact efficiency as drill pipes increase.

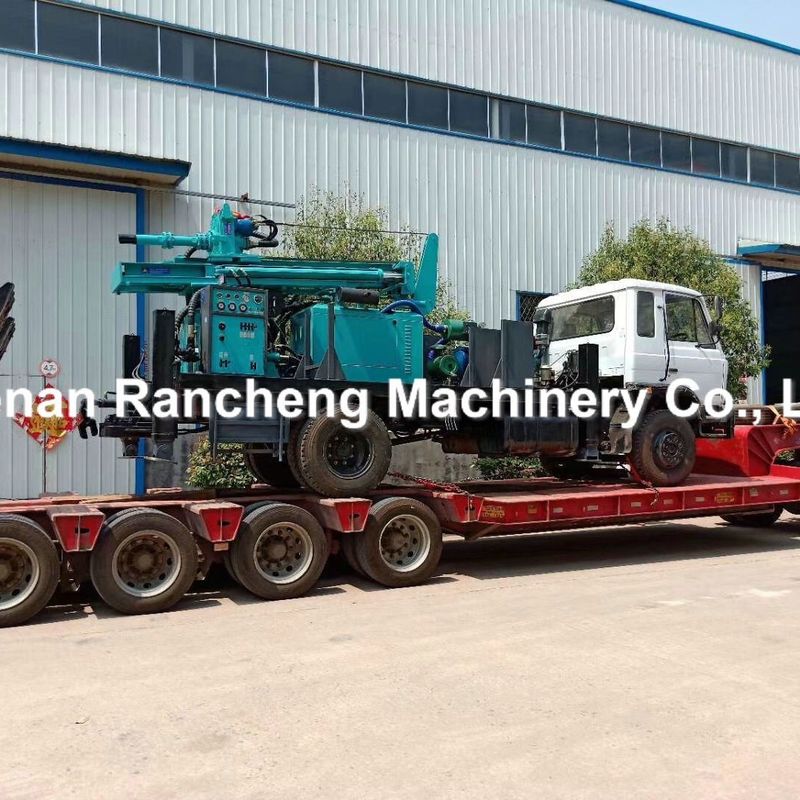

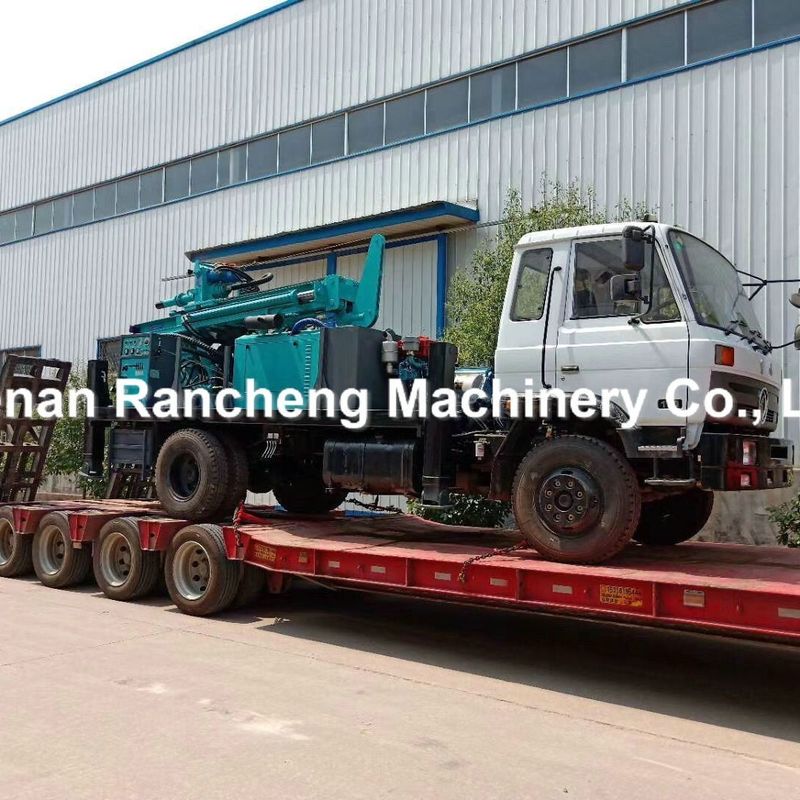

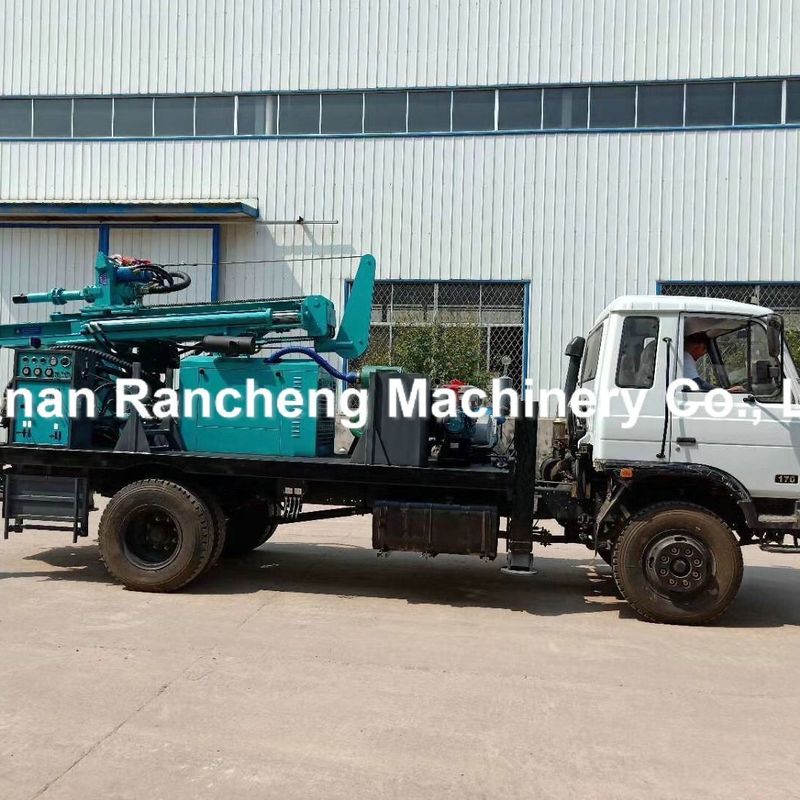

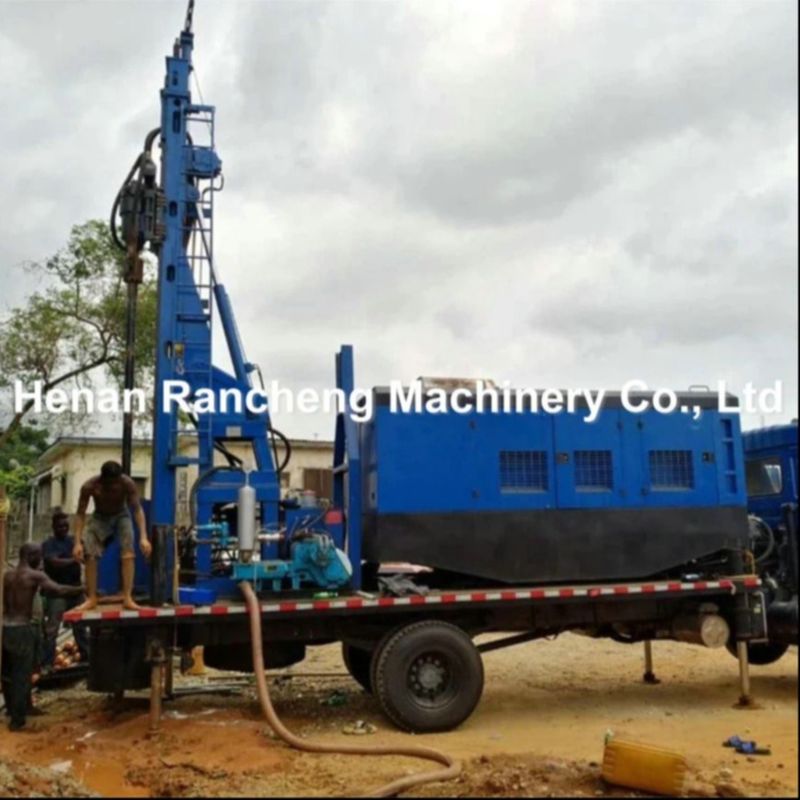

Machine picture display
