132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

132KW RC Drilling Rig

300m Drill Depth RC Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ300RC

Contact Us
Request A Quote
Product Details
Name:
RC Drilling Rig
Model Of Machine:
RCJ300RC
Walk Speed:
2km/h
Rotary Speed:
Max 2200rpm
Max Output Torque:
10000N.m
Output Rotation Speed):
55/ 110rpm
Lifting Force:
11KN
Highlight:

132KW RC Drilling Rig

,

300m Drill Depth RC Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

300m Drill Depth Hydraulic Crawler RC Drilling Rig 132KW Cummins Power



Product Description



The RCJ300RC is a full hydraulic crawler RC (Reverse Circulation) drill rig. It is designed for various drilling applications, including vertical and inclined hole drilling. The rig is equipped with a powerful engine and hydraulic system, providing high torque and strong thrust/lifting force. It features a crawler chassis for easy mobility and can adapt to different ground conditions. With a maximum drilling depth of 300 meters and a range of drilling techniques, it is a versatile and efficient solution for drilling tasks such as water wells, observation wells, and geothermal holes.



Product Specifications



Model RCJ300RC
Drill rig weight(crawler mounted) kg 10000
Length × Width × Height (normal) mm 6750×2300×3000
Ambient Temperature Range °C -10~38
Drill Ability
Nominal Drill Depth m 300
End-hole Diameter mm 130-350
Drill angle ° -10-90
Horizontal hole height m 1.85-2.8
Drill head output
Max Output Torque N.m 10000
Output Rotation Speed) rpm 55/ 110
Feeding mm 3500
Thrust Force kN 100
Lifting Capacity kN 150
Oil Pump
Output volume ml/r 63+63+25
winch
Lifting force KN 11
Hydraulic Oil
Tank Capacity L 220
Nominal Filtration Particle Size μm 10
Engine(Cummins) 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 2
Unit Pressure MPa <0.05
Climb Ability ° ≯30



Product Features



1. Versatile applications It can drill vertical or inclined holes and supports various drilling techniques, making it suitable for a wide range of drilling tasks.
2. High efficiency
  • Large output torque and wide speed range for different drilling methods.
  • Long feeding stroke and no active drilling rod, reducing auxiliary time and improving drilling efficiency.
  • Quick conversion to production drilling and support for inclined drilling.
3. Strong power and reliability
  • Large thrust force and lifting force for effective drilling and accident handling.
  • High - end hydraulic components and a monitoring system ensure good system reliability and low failure rate.
4. Labor - saving and easy to move
  • Equipped with a pipe puller device, reducing labor intensity.
  • Crawler - mounted design with a walking speed of 2km/h, making it easy to move to different drilling sites.
5. Adaptability to different ground conditions It can resolve the difficulty of boring in various ground conditions, making it widely used in different boring works

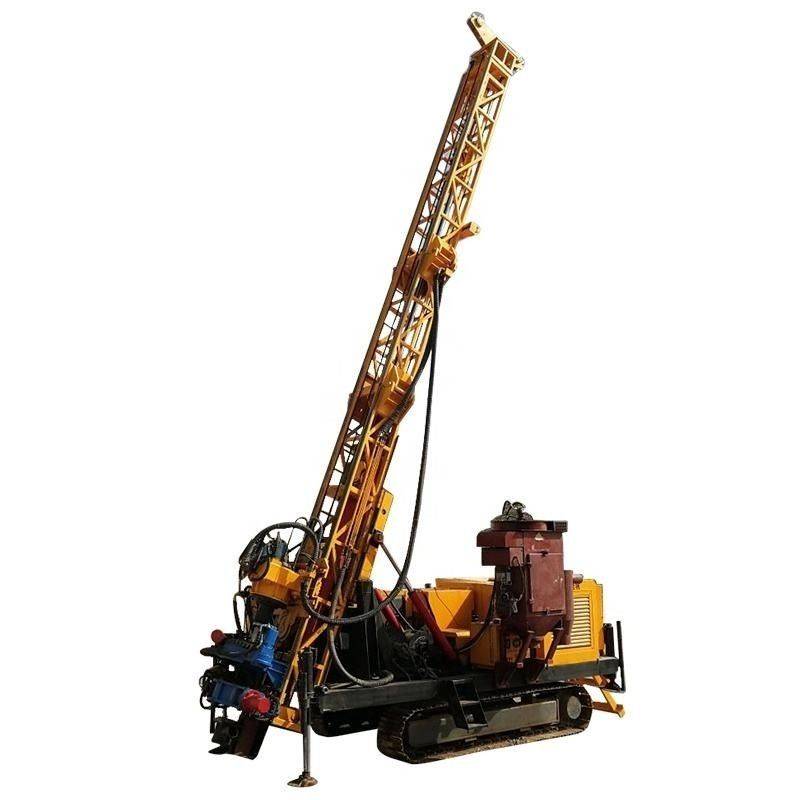

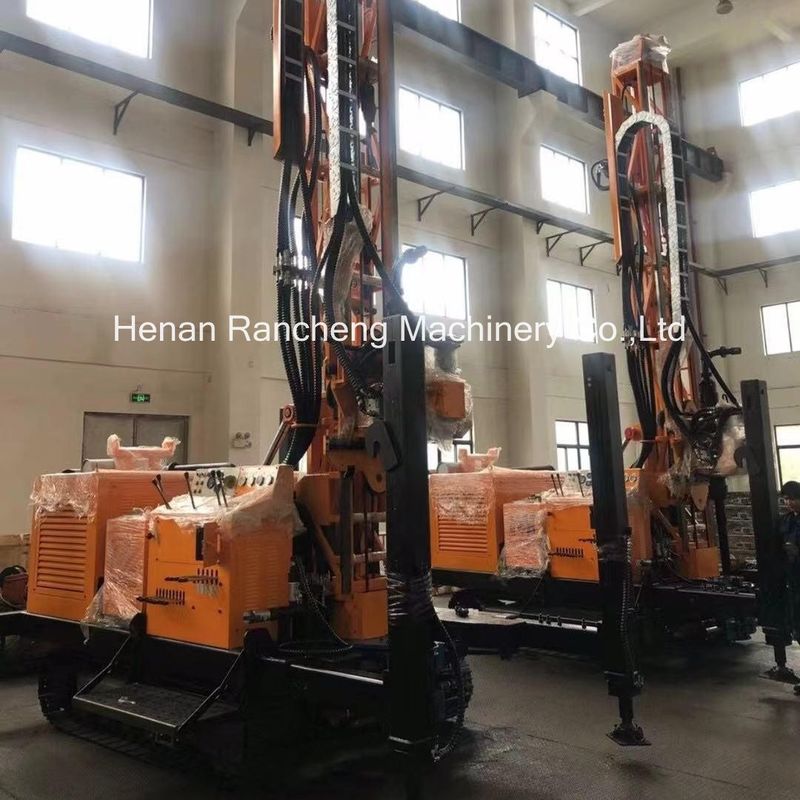

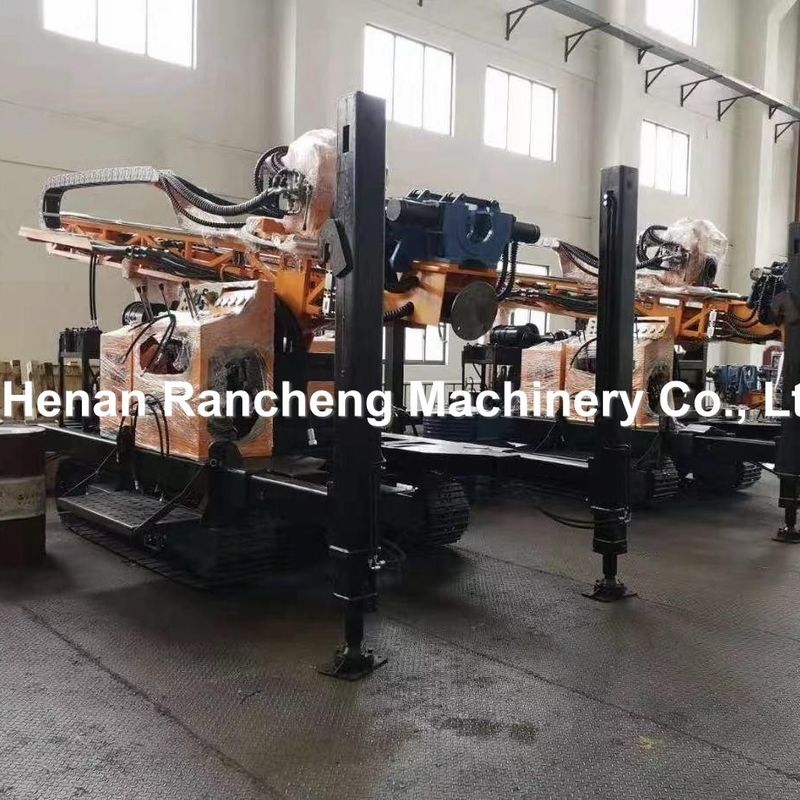

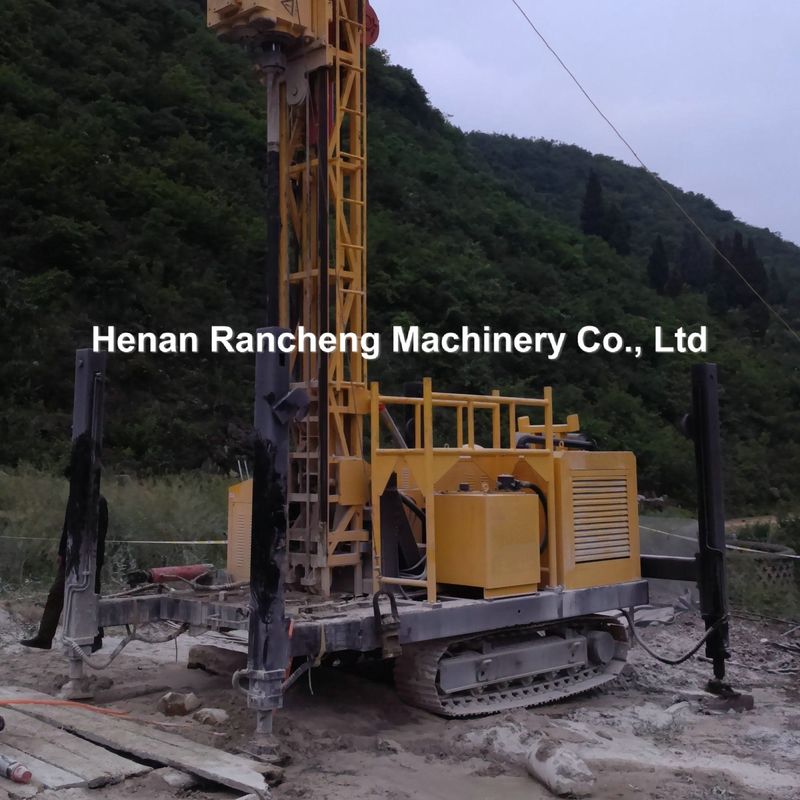

Product Image



132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 0132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 1132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 2132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 3
