Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF1000C
Hydraulic Crawler Well Drilling Machine 1000m Pneumatic Borehole Rig With Diesel Engine
Machine Introduction
RCF1000C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed.
Adopting the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, and convenient well deflection. It is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.
Made of high-quality materials, the design is stylish and compact, making the drilling rig more efficient, with a low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.
Technical Parameters
Bore diameter(Hammer) | 140-500mm |
Bore depth | 1000m |
Air consumption | 17-42m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 102/108/114mm |
Pipe length | 1m/2m/3m/6m |
Lifting force | 36T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 20m/min |
Fast feeding speed | 40m/min |
One-time advance length | 6.6m |
Max torque of rotary | 9000-14000Nm |
Rotary speed | 45-140r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 850L/min (option) |
High hydraulic leg | 1.7m |
Feeding efficiency | 15-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6300×2300×2950mm |
Weight | 13000Kg |
Diesel engine | 194KW Cummins engine |
Drilling way | Air compressor drilling or mud pump drilling |
Machine Advantages
1.Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes
2.Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
4.Multifunctional drilling
Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
5.High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
6.low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.
7.High outrigger and Tracked walking
The high outriggers are convenient for loading and transportation, and can be loaded directly without crane. Tracked walking is more suitable for muddy field movement.

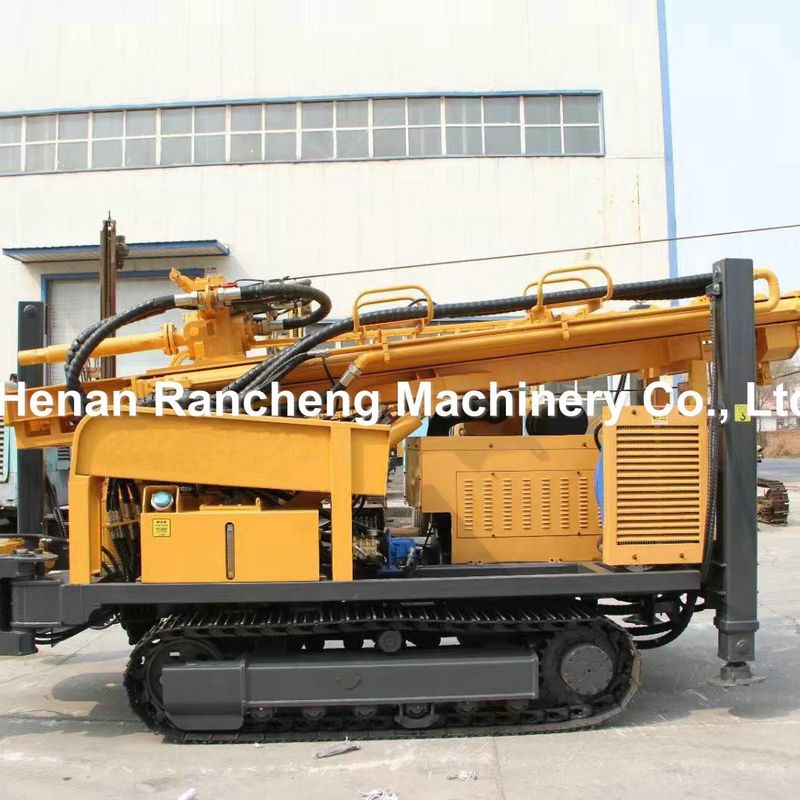

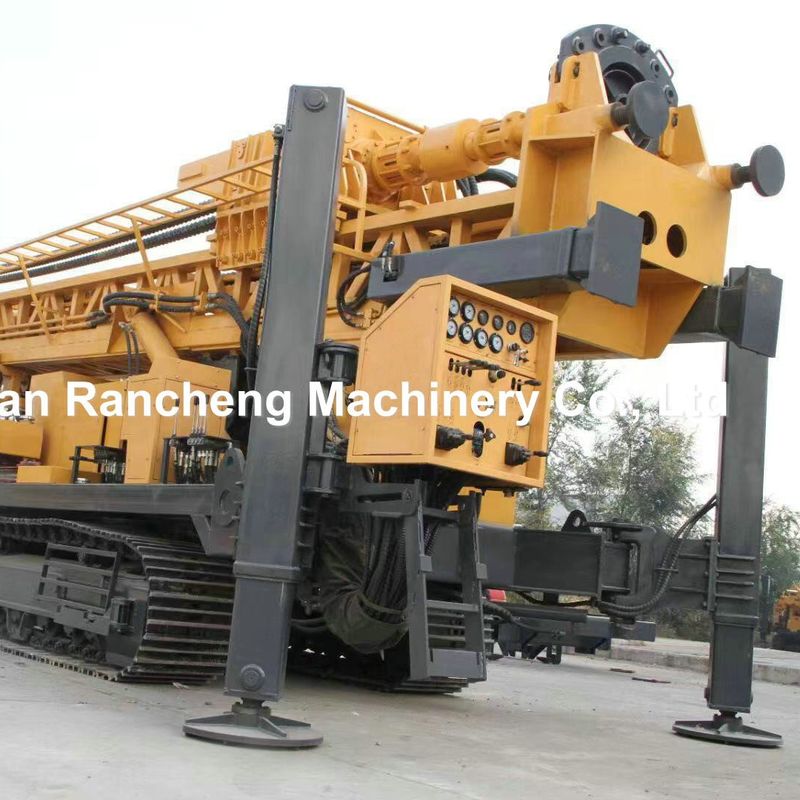

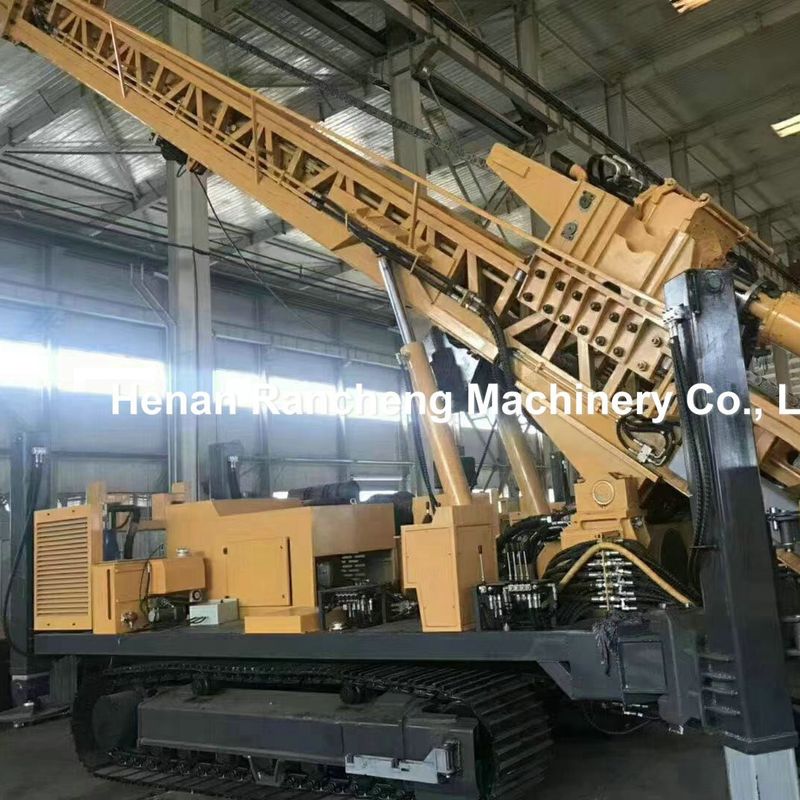

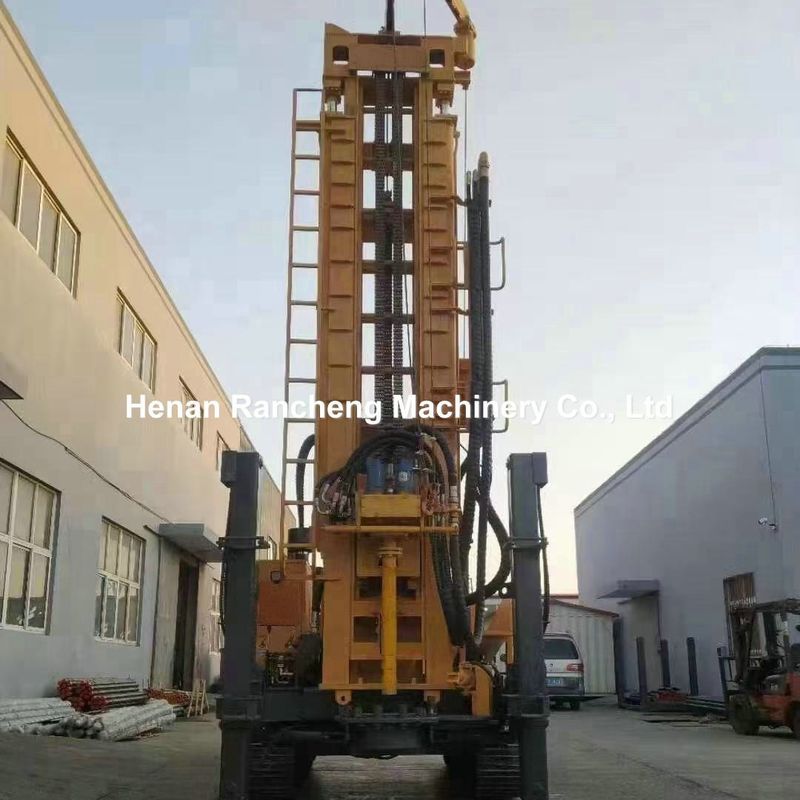

Machine Pictures
