Small Size And Powerful RCF180S Mini Water Well Drilling Machine

Small Size And Powerful RCF180S Mini Water Well Drilling Machine

Powerful Mini Water Well Drilling Machine

RCF180S Mini Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Small Size And Powerful RCF180S Mini Water Well Drilling Machine
Small Size And Powerful RCF180S Mini Water Well Drilling Machine Small Size And Powerful RCF180S Mini Water Well Drilling Machine Small Size And Powerful RCF180S Mini Water Well Drilling Machine Small Size And Powerful RCF180S Mini Water Well Drilling Machine
Product Details
Name:
RCF180S
Drilling Depth:
180m
Once-time Advance Length:
90-300mm
Rotary Speed:
45-65r/min
Diesel Engine:
77.3KW Yuchai Engine
Max Torque Of Rotary:
4000-4600Nm
RCF180S Mini Water Drilling Machine Is Very Powerful ,it Can Drill Max 180m Depth , This Small Water:
76/89mm
Highlight:

Powerful Mini Water Well Drilling Machine

,

RCF180S Mini Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

Small Size And Powerful RCF180S Mini Water Well Drilling Machine


Machine Description


Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machines are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.


Technical Parameters

Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine



Feature:

1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.
4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.

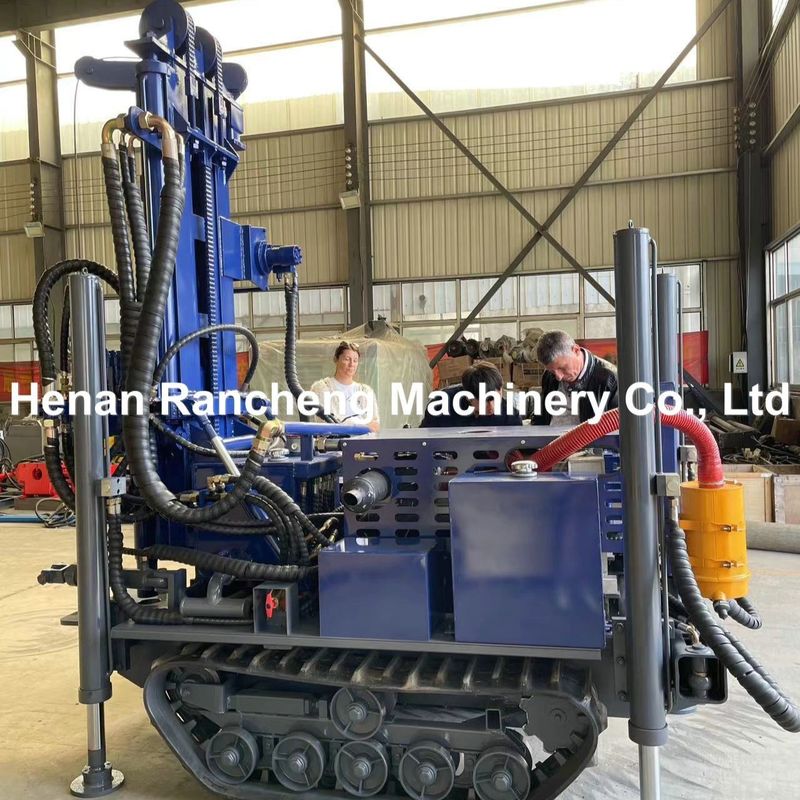

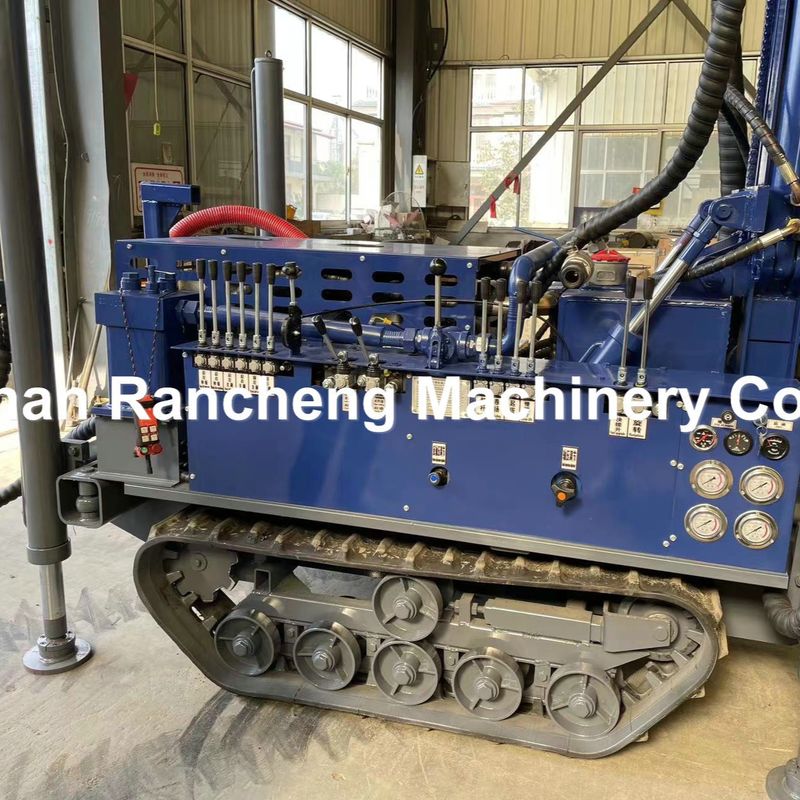

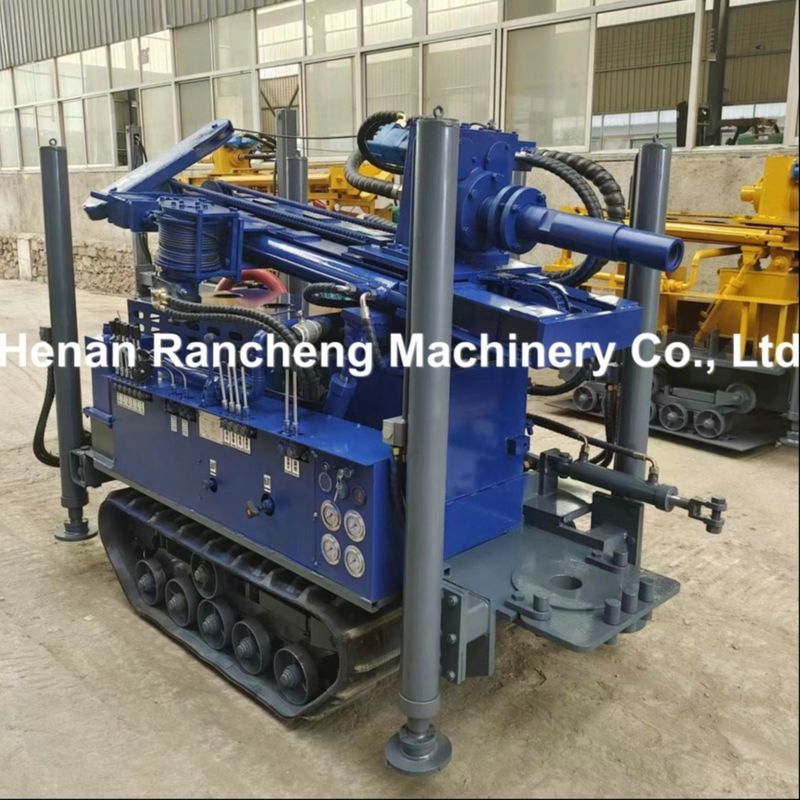

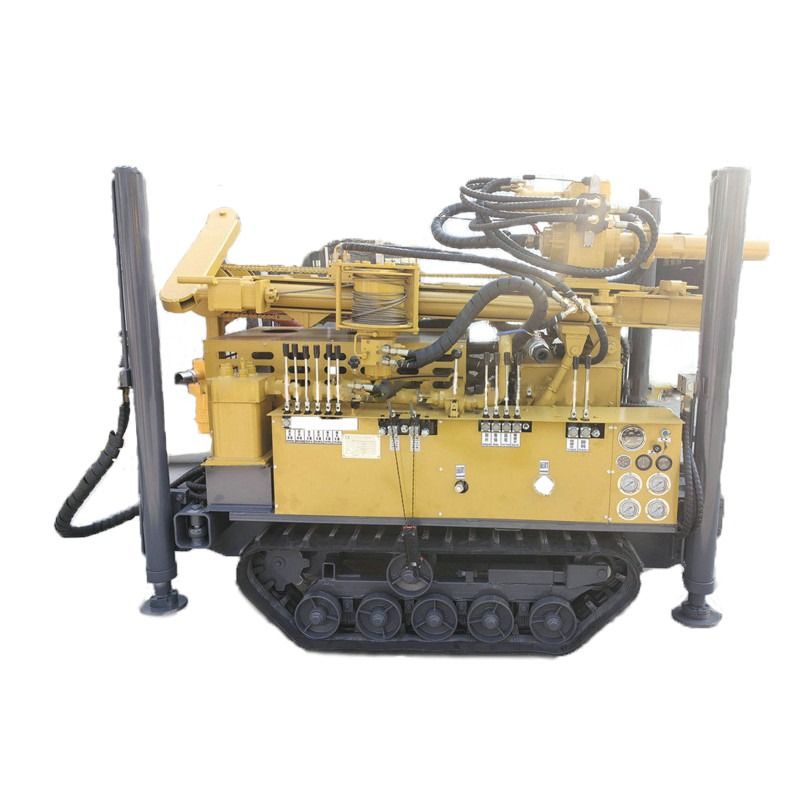

Image Display



Small Size And Powerful RCF180S Mini Water Well Drilling Machine 0Small Size And Powerful RCF180S Mini Water Well Drilling Machine 1Small Size And Powerful RCF180S Mini Water Well Drilling Machine 2
Small Size And Powerful RCF180S Mini Water Well Drilling Machine 3
