8bar Portable Diesel Air Compressor 55KW For Drilling Operations

8bar Portable Diesel Air Compressor 55KW For Drilling Operations

55KW Portable Diesel Air Compressor

8bar Portable Diesel Air Compressor

Drilling Operations Portable Diesel Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY220/8

Contact Us
Request A Quote
8bar Portable Diesel Air Compressor 55KW For Drilling Operations
8bar Portable Diesel Air Compressor 55KW For Drilling Operations 8bar Portable Diesel Air Compressor 55KW For Drilling Operations 8bar Portable Diesel Air Compressor 55KW For Drilling Operations 8bar Portable Diesel Air Compressor 55KW For Drilling Operations
Product Details
Name:
Drilling Air Compressor
Model:
KSCY220/8
Air Capacity:
6m³/min
Work Pressure(:
8Bar
Dimension:
2175*1760*1785mm
Weight:
1400kg
Highlight:

55KW Portable Diesel Air Compressor

,

8bar Portable Diesel Air Compressor

,

Drilling Operations Portable Diesel Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

6m³ / min Capacity 8bar Work Pressure Drilling Air Compressor Yuchai Engine 55KW



Machine Introduction



The KSCY220/8 air compressor is a portable diesel-driven screw compressor featuring a 220CFM air displacement and 8-bar working pressure. Equipped with a 75 horsepower Yuchai diesel engine, it is designed for small DTH drilling rigs, anchor hole drilling, and portable applications. With a compact and mobile design, it includes wheels for easy transportation. This model is versatile, suitable for various industries including construction, mining, and energy, offering reliable performance and adaptability.



Technical Parameters



KSCY-220/8 Diesel Driven portable Screw Air Compressor
Air compressor
Model No: KSCY-220/8
Air capacity(m³/min/cfm) 6 (220)
Work pressure(Bar/Psig) 8 (116)
Compression Stage Single
Diesel Engine
Engine Model No. Wuxi engine
Rated RPM (r/min) 1800
Unload RPM(r/min) 1400
Rated Power (KW/hp) 55 (75)
Fuel Capacity(L) 130
Package
Noise level db (a) 80±3
Outlet connection G3/4×1,G1 1/2×1
Wheel size * Qty 6.5-16x4
Dimension/mm 2175*1760*1785
Weight(KG) 1400



Machine Advantages



1.Low Operating Sound and Vibration: Designed with reduced noise and vibration for quieter and smoother operation.



2.High Efficiency and Energy Savings: Features a full protection system and low fuel consumption, making it cost-effective and environmentally friendly.



3.High-Quality Diesel Engine: Equipped with well-known brands like Yuchai, ensuring reliability and performance.



4.Adaptive Air Delivery: Automatically adjusts air output based on demand, similar to frequency conversion control, enhancing efficiency.



5.Robust and Durable: Large rotor design and high-efficiency airend ensure long lifespan and minimal maintenance.

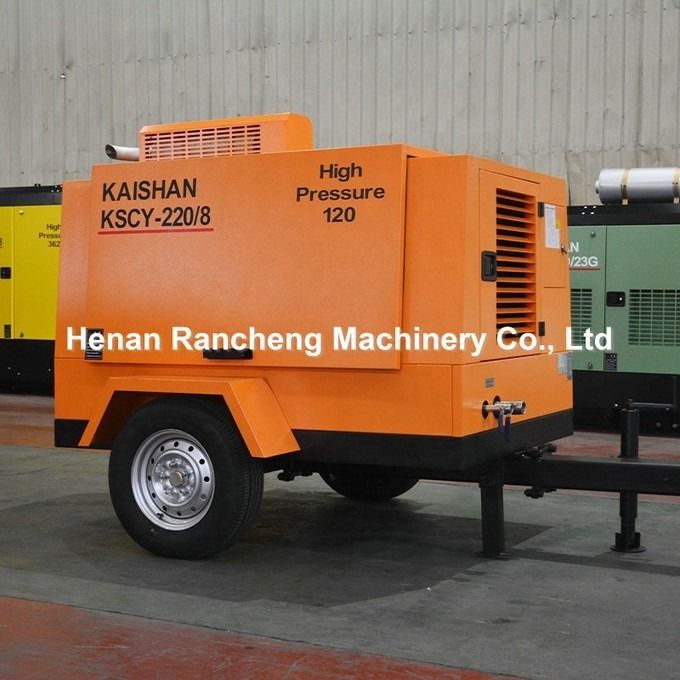

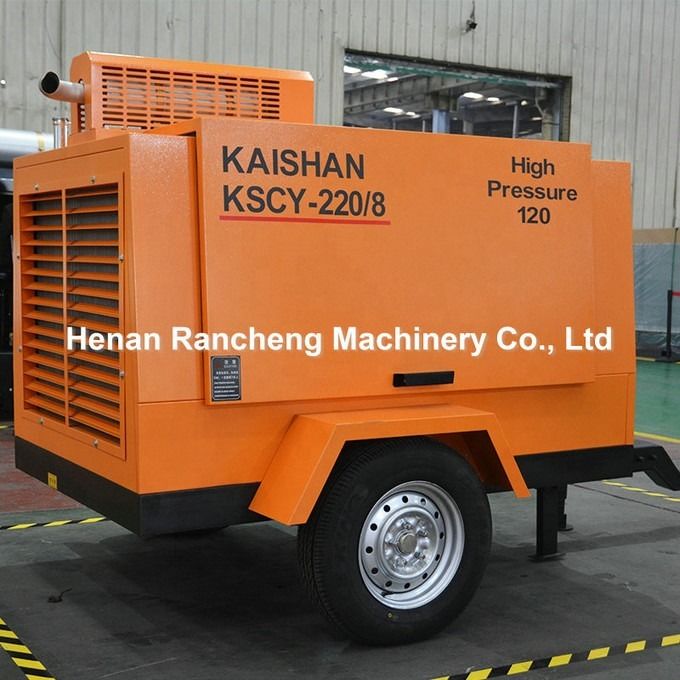

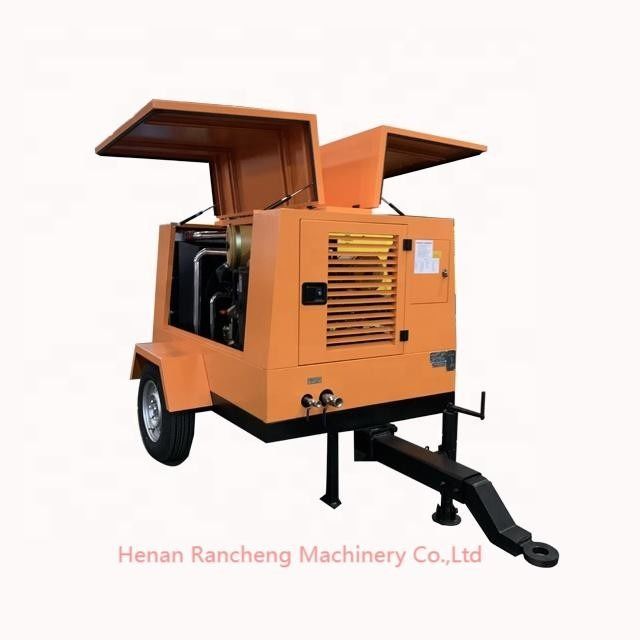

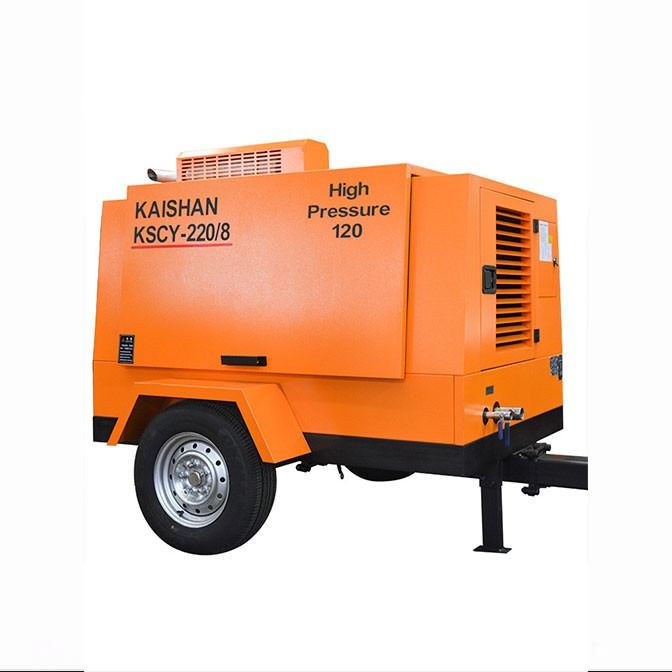

Machine Pictures



8bar Portable Diesel Air Compressor 55KW For Drilling Operations 08bar Portable Diesel Air Compressor 55KW For Drilling Operations 18bar Portable Diesel Air Compressor 55KW For Drilling Operations 28bar Portable Diesel Air Compressor 55KW For Drilling Operations 3
