800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling

800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling

800m Hydraulic Crawler Borehole Mining Machine

154KW Hydraulic Crawler Borehole Mining Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF800C
Geology Drilled:
All Kind
Drill System And Operation:
Hydraulic
Max Hole Depth:
800m
Hole Diameter:
140-500m
Diesel Engine:
154KW Cummins
Dimension:
6300×2300×2650mm
Highlight:

800m Hydraulic Crawler Borehole Mining Machine

,

154KW Hydraulic Crawler Borehole Mining Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling



Machine Introduction



Introducing the RCF800C multi-purpose drill – the ultimate solution for all your drilling needs. Versatile and efficient across a wide range of drilling applications, this crawler drill is an indispensable tool for construction, mining and geological exploration projects.



With a drilling depth of up to 800 meters, the RCF800C can easily handle a wide range of geological conditions. Its adjustable diameter from 140 to 500 mm allows for precision drilling, so you can achieve the exact specifications required for your project. Whether you are drilling for water, searching for minerals or working on foundations, this equipment delivers exceptional performance.



Equipped with a mud pump and air compressor, the RCF800C offers unparalleled flexibility in drilling methods. This dual functionality enables operators to select the most effective drilling technique for specific job requirements, increasing productivity and reducing downtime. A powerful 154 kW Cummins engine provides the power to propel the machine through rugged terrain, ensuring reliable operation even in the most challenging environments.



The RCF800C is more than just power; it's also designed with ease of use in mind. Intuitive controls and ergonomic design allow operators to easily operate the equipment, reducing the learning curve and increasing overall workplace safety.



In short, the RCF800C multi-function drill rig is a powerful, versatile, and convenient solution for all your drilling projects. Its advanced features and rugged construction make it a reliable choice for professionals who seek efficiency and productivity in their drilling operations. Invest in the RCF800C and take your drilling capabilities to new heights!



Specification



Model RC800C
Drilling way Both mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Diesel engine 154KW Cummins
Max hole depth 800m
Hole diameter

140-500mm

Air consumption

17-42m³/min

Length of drilling pipe 1m/2m/3m/6m
Diameter of drilling pipe

102/108/114mm

Total Weight 13ton
Dimension (L * W * H)

6300×2300×2650mm



Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;

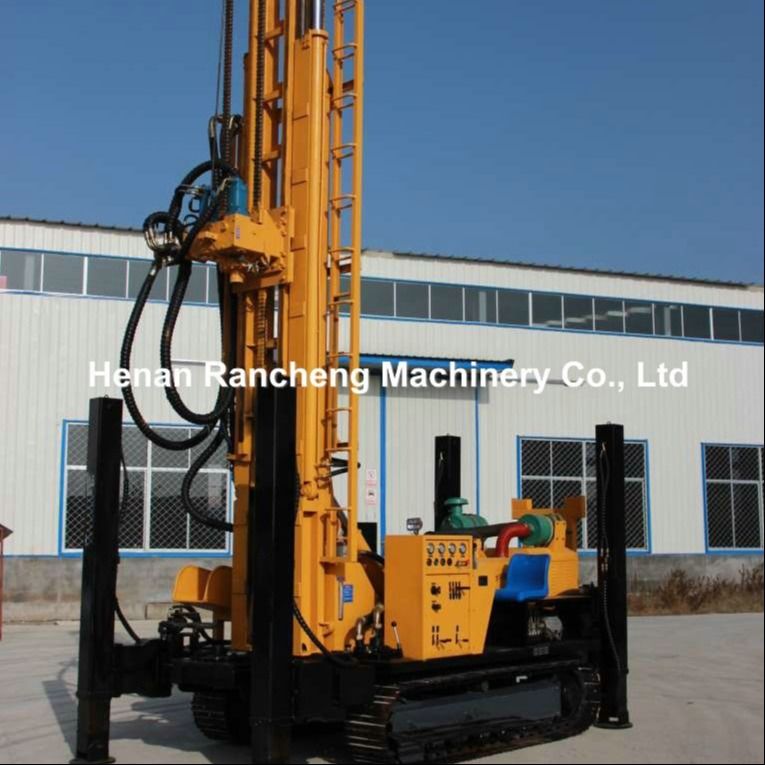

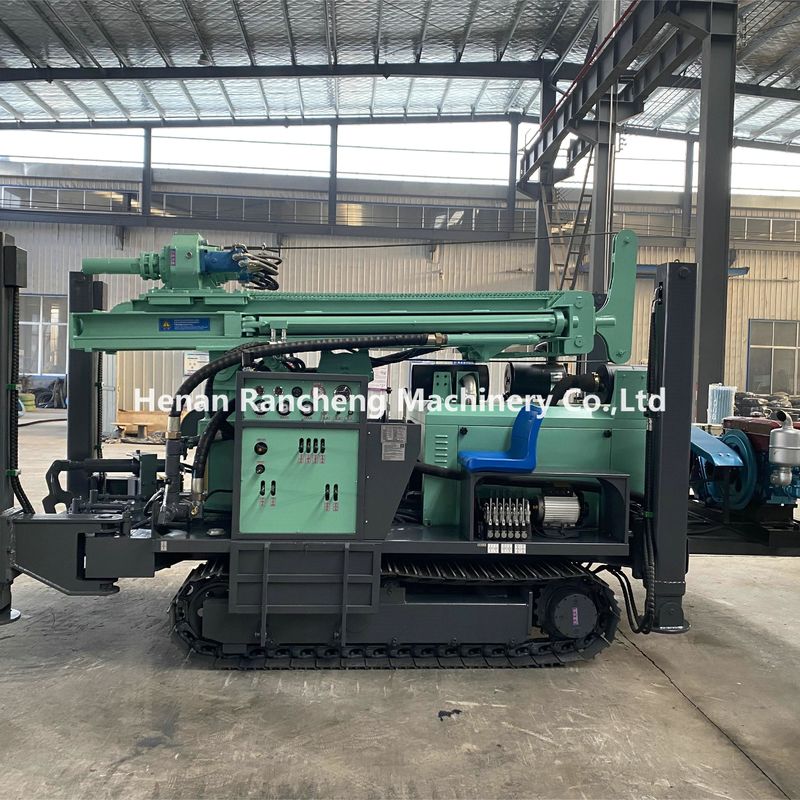

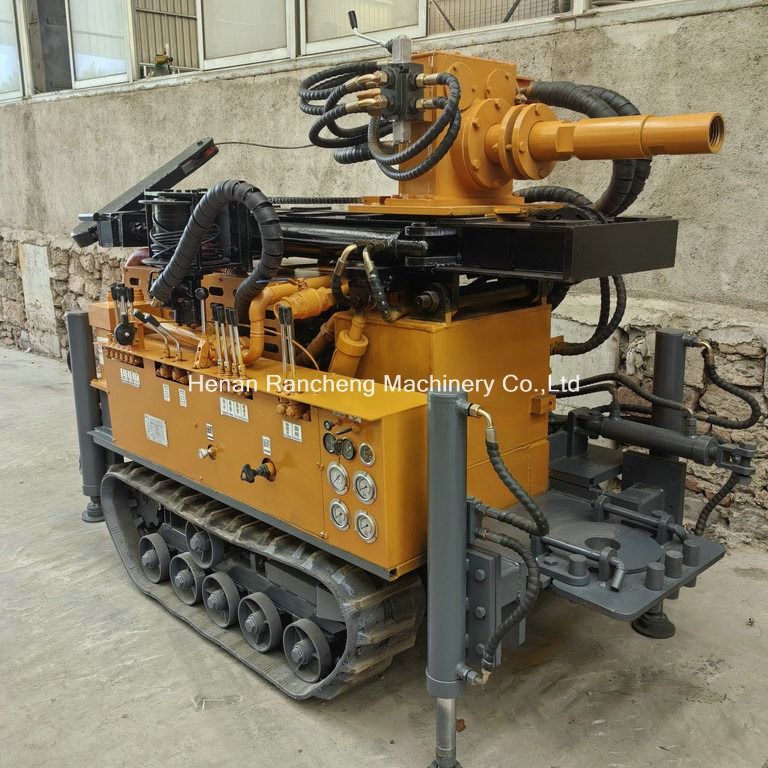

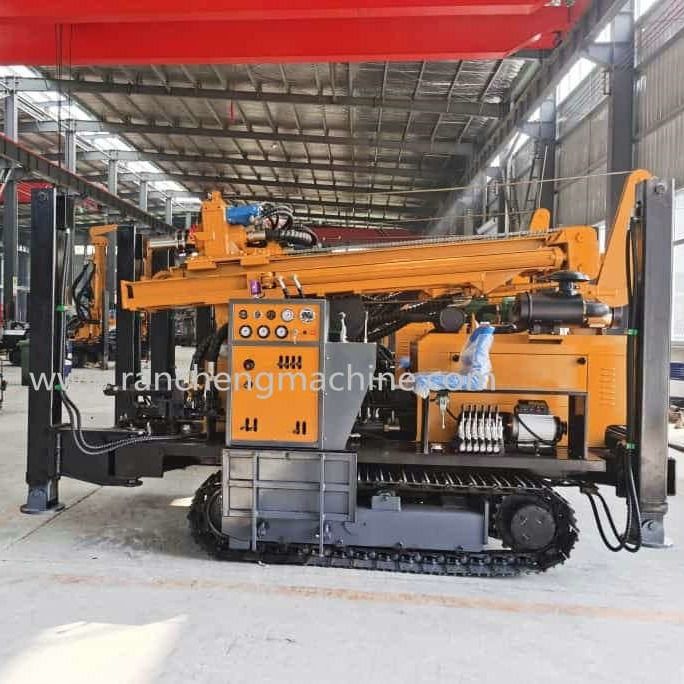

Machine Pictures



800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling 0800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling 1800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling 2800m 154KW Cummins Hydraulic Crawler Borehole Mining Machine For Rock Drilling 3
