Name: 20m Rotary Drilling Rig Intelligent Operation And Display Point And Touch Control Panel Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ520
Availability: InStock

Home > products > Rotary Drilling Rig >

20m Rotary Drilling Rig Intelligent Operation And Display Point And Touch Control Panel Drilling Rig

Intelligent Operation Rotary Drilling Rig

20m Rotary Drilling Rig

Display Point Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ520

Request A Quote

Product Details

Name:

Rotary Drilling Rig

Model:

RCQ520

Drilling Deepth:

Max 20m

Kelly Bar Diameter:

315mm

Dimension:

10500X2650X3350mm

Diesel Engine:

Cummins 110KW

Drilling Diameter:

Φ500-Φ1200mm

Highlight:

Intelligent Operation Rotary Drilling Rig

20m Rotary Drilling Rig

Display Point Rotary Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price

Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price

Contact Now

Product Description

20m Rotary Drilling Rig Intelligent Operation And Display Point And Touch Control Panel Drilling Rig

Machine Introduction

The hydraulic small rotary drilling rig adopts a pressurized drilling mode, enabling a maximum rotary drilling depth of 20 meters. With various specifications of drilling tools, the pile hole diameter can range from 500 to 1200 mm.

This small pile driver has high drilling efficiency. After construction, it can quickly move to the next work site. Flexible, convenient, and efficient, it is specifically designed as piling machinery for national high-speed rail construction.

Technical Parameters

Model	RCQ520 hydraulic rotary drilling rig
Working mode	Hydraulic oil cylinder pressure
Drilling diameter	Φ500-Φ1500mm
drilling depth	20m
Kelly bar diameter	315mm
Dimension	10500X2650X3350mm
The total weight	23.5T
Powerhead max output torque	100KN.m
Rotary speed	10-50r/min
Pressurized oil cylinder max pressure	100KN
Pressurized oil cylinder max lifting force	100KN
Main winch max lifting force	120KN
Main winch max lifting speed	70m/min
Assisting winch max lifting force	30KN
Assisting winch max lifting speed	50m/min
Pressurized oil cylinder max stroke	2500mm
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	28Mpa
pilot pressure	3.5Mpa
Travelling speed	5km/h
Working hight	12800mm
Working width	2500-3000mm
Diesel engine power	151KW ,Cummins ,water cooling ,turbocharger ,

Application:

This pie drilling rig is primarily used for soft soil piling applications, including foundations, seaports, bridges, reservoir stations, and national defense construction. It is widely utilized in rotary screw pile projects, pile engineering, drilling engineering, geological prospecting, and various building projects, including engineering blasting.

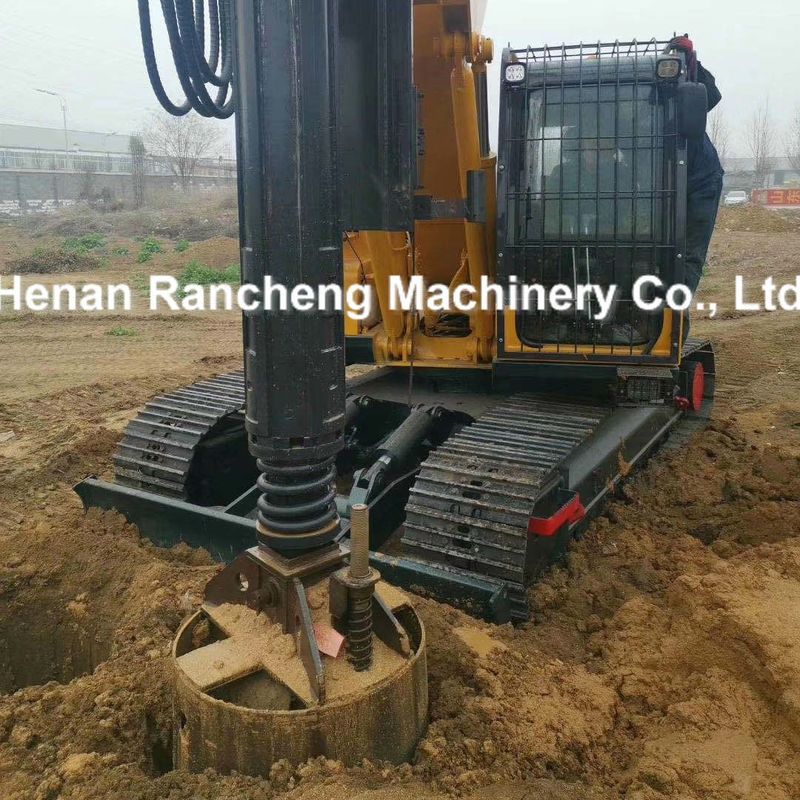

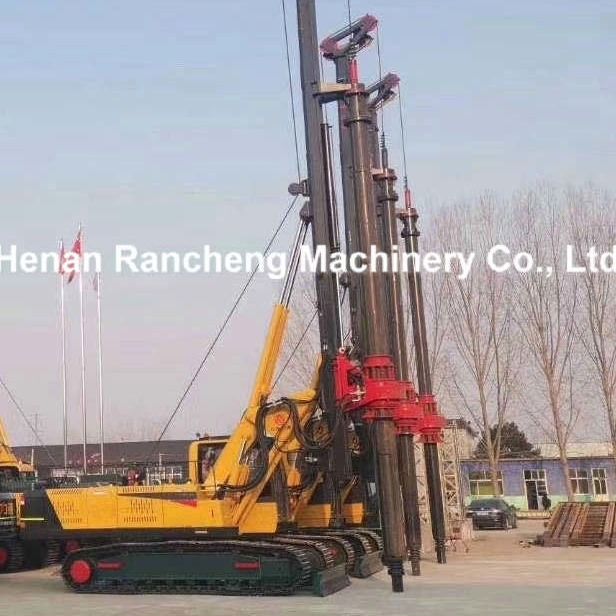

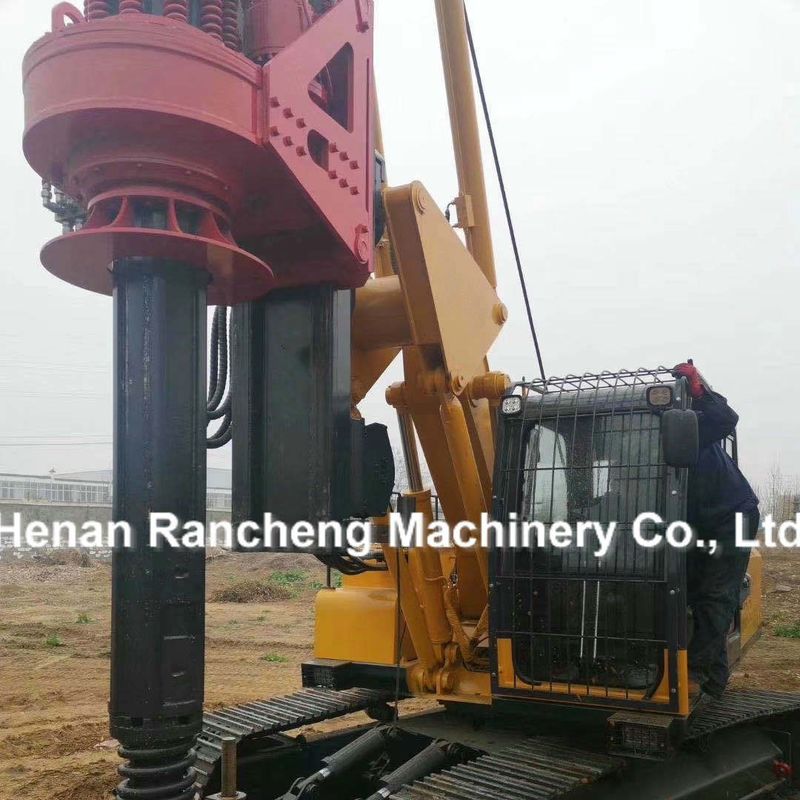

Machine Pictures
