DTH 680m Pneumatic Hydraulic Borehole Crawler Water Well Drilling Rig Machine
Product Description
RCF680C deep water well drilling rig adopts the latest model and advanced hydraulic technology, with low consumption, large rotation torque, convenient hole deflection, and is mainly used for drilling of resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.
Made of high-quality materials, with a stylish and compact design, our drilling rigs are more efficient, with a low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.
Technical Parameters
| Model |
RCF680C |
| Bore diameter(Hammer) |
140-400mm |
| Bore depth |
680m |
| Air consumption |
17-42m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
102/108/114mm |
| Pipe length |
1m/2m/3m/6m |
| Lifting force |
28T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| One-time advance length |
6.6m |
| Max torque of rotary |
8850-13150Nm |
| Rotary speed |
45-140r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
600L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6300×2200×2650mm |
| weight |
13000Kg |
| Diesel engine |
153KW Cummins engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
Product Features
Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes
Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
Multifunctional drilling
Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.
High outrigger and Tracked walking

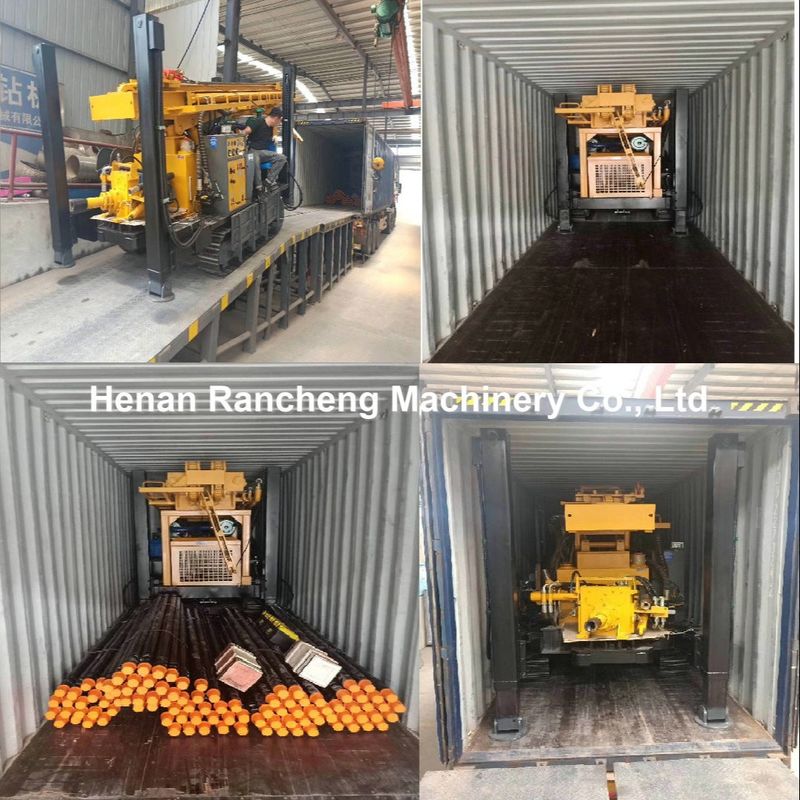

The high outriggers are convenient for loading and transportation, and can be loaded directly without crane. Tracked walking is more suitable for muddy field movement.
Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
Rig chassis
It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
High configuration
The main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.

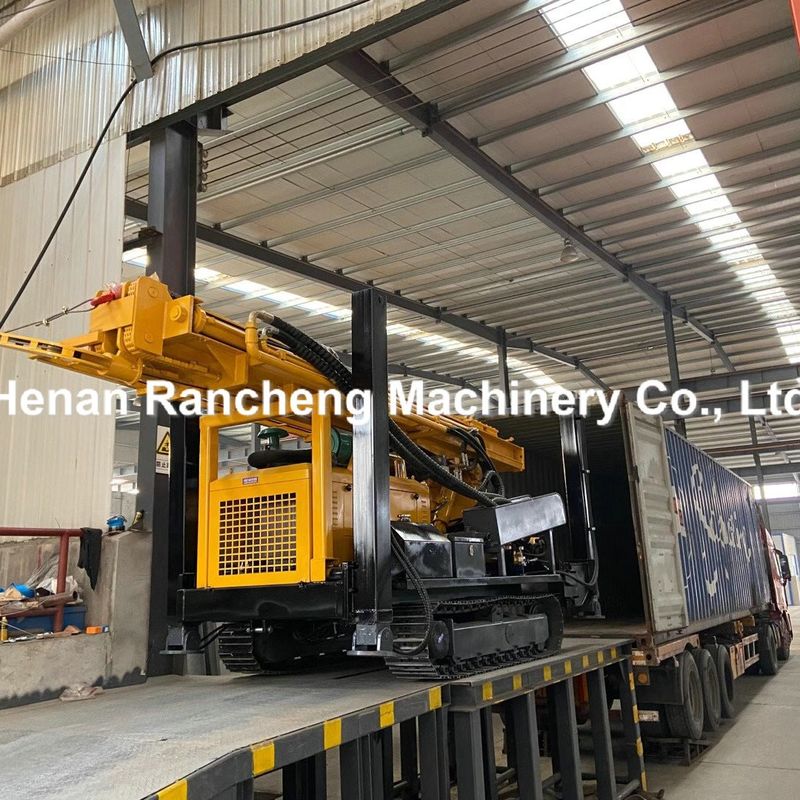

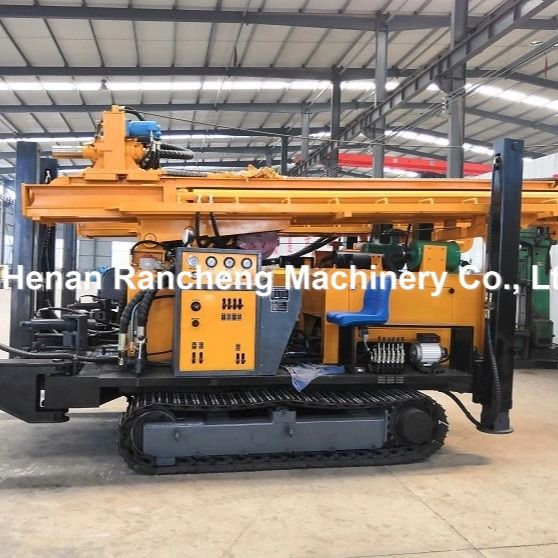

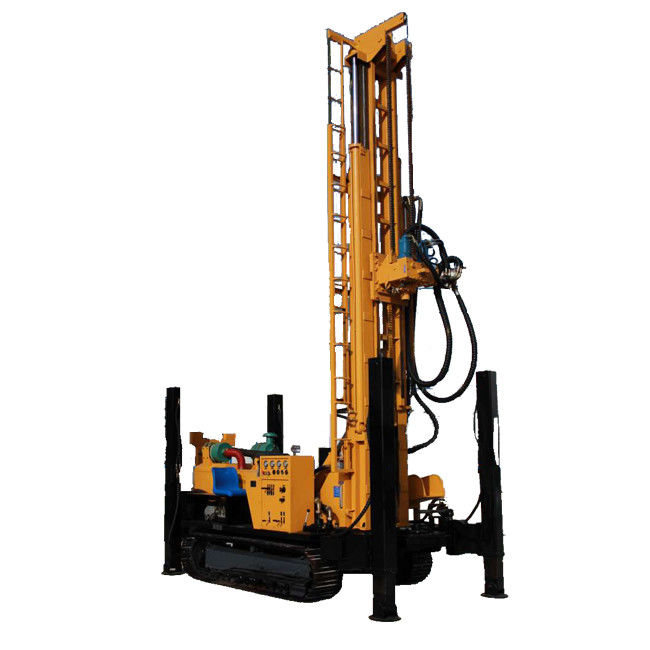

Machine Picture Display
